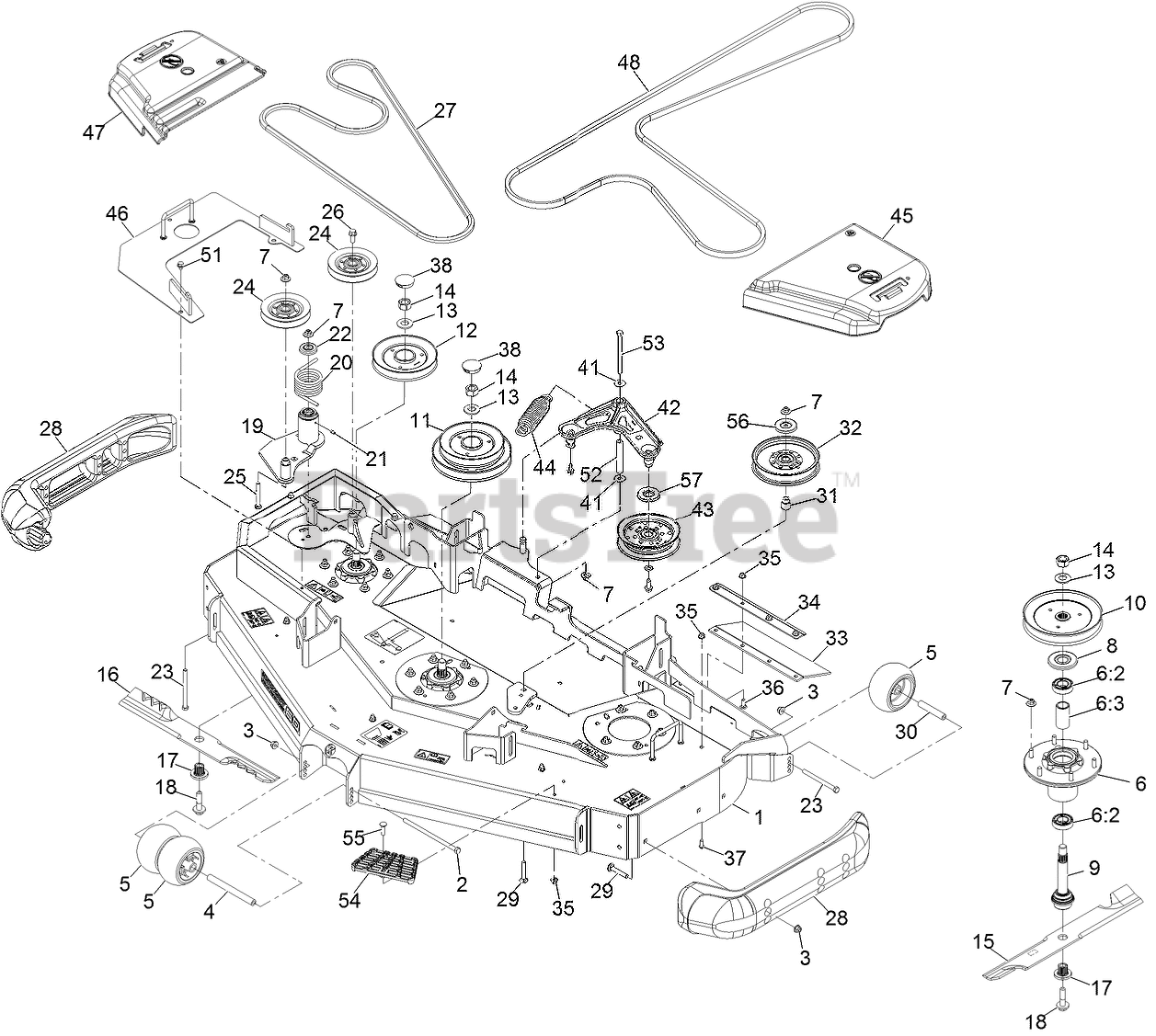

RAS730GKA60RA3 - Exmark 60" Radius S-Series Zero-Turn Mower, Kawasaki FX730 (SN: 411294212 - 413950473) (Rev A) (2022) Deck Assembly Parts Diagram

60" Radius S-Series Zero-Turn Mower, Kawasaki FX730

Deck Assembly Parts Diagram

  • Title

1

Exmark 126-3682

ASM-DECK W/DECALS 60RD

$2810.99

$

Usually ships in 3-6 days

0

2

Exmark 108-5388

SCREW-HH

$17.99

$

In Stock, Qty 20+

0

3

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 98-5967

SPACER-WHEEL

$17.99

$

In Stock, Qty 20+

0

5

Exmark 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

6

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$167.99

$

In Stock, Qty 20+

0

6:2

Exmark 116-0720

BEARING-BALL

$23.99

$

In Stock, Qty 20+

0

6:3

Exmark 116-3312

SPACER-BEARING

$9.49

$

In Stock, Qty 18

0

7

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

8

Exmark 116-1286

GUARD,BEARING TOP .989

$5.99

$

In Stock, Qty 20+

0

9

Exmark 116-3341

ASM-SPINDLE AND SEAL

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) to spindle shaft

$94.99

$

In Stock, Qty 20+

0

10

Exmark 116-0676

SHEAVE,BLADE DRIVE 7.25

$74.99

$

In Stock, Qty 20+

0

11

Exmark 126-0352

SHEAVE, DOUBLE 60RD

$153.99

$

In Stock, only 4 left!

0

12

Exmark 126-0354

SHEAVE-RD REV DRIVE SERIES 4

$100.99

$

Usually ships in 3-6 days

0

13

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 20+

0

14

Exmark 116-7306

NUT-HEX

Note: Torque to 130-160 ft-lb

$2.99

$

In Stock, Qty 20+

0

15

Exmark 103-6403

USE 103-6403-S
(Superseded to 103-6403-S)

$34.99

$

In Stock, Qty 20+

0

15

Exmark 103-6388

USE 103-6388-S
(Superseded to 103-6388-S)

Note: Optional Equipment

$39.99

$

In Stock, Qty 7

0

15

Exmark 116-5174

Blade-Extreme 2, 20.50"

Note: Optional Equipment

$

$

Currently unavailable

16

Exmark 116-8196

Blade-Low Lift 20.5, Rd60
(Superseded to 116-8196-S)

$36.99

$

In Stock, Qty 12

0

16

Exmark 116-8181

Blade-Extreme 2-20.50, Rd60
(Superseded to 116-8181-S)

$36.99

$

In Stock, Qty 20+

0

17

Exmark 103-3037

BUSHING,SPLINED

$23.99

$

In Stock, Qty 20+

0

18

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

Note: Torque to 50-60 ft-lb | Apply lubricant to threads as needed to prevent seizing. Copper based anti-seize preferable. Grease is an acceptable substitute.

$8.99

$

In Stock, Qty 20+

0

19

Exmark 126-0853

IDLER ASM

$270.99

$

Usually ships in 3-6 days

0

20

Exmark 108-1921

SPRING-TORSION

$31.99

$

Usually ships in 3-6 days

0

21

Exmark 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

22

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 8

0

23

Exmark 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

24

Exmark 126-1478

SHEAVE

$53.99

$

In Stock, only 1 left!

0

25

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

26

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

27

Exmark 116-8187

BELT
(Superseded to 116-8187-SL)

$120.99

$

Usually ships in 3-6 days

0

28

Exmark 112-1479

SKID-BUMPER, DECK

$110.99

$

Usually ships in 3-6 days

0

29

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/4

$7.49

$

In Stock, Qty 20+

0

30

Exmark 98-7912

TUBE-SPANNER

$15.99

$

In Stock, Qty 20+

0

31

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

32

Exmark 126-9189

IDLER-PULLEY, FLAT 6.00X1.00

$66.99

$

In Stock, only 2 left!

0

33

Exmark 116-8191

GUARD-TIRE

$18.99

$

Usually ships in 3-6 days

0

34

Exmark 126-0413-01

SUPPORT-OUTER FLAP

$21.99

$

Usually ships in 3-6 days

0

35

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

36

Exmark 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

37

Exmark 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 12

0

38

Exmark 116-2253

PLUG,BLACK NYLON 1.75

$3.49

$

In Stock, only 3 left!

0

41

Exmark 52-2860

WASHER

$1.49

$

In Stock, Qty 20+

0

42

Exmark 126-0976

IDLER ARM ASM

$120.99

$

In Stock, Qty 13

0

43

Exmark 126-9196

IDLER-PULLEY, FLAT

$64.99

$

In Stock, Qty 20+

0

44

Exmark 116-6317

SPRING-EXTENSION

$29.99

$

In Stock, Qty 20+

0

45

Exmark 126-1989

COVER-BELT, LH

$92.99

$

Usually ships in 3-6 days

0

46

Exmark 126-5116-01

COVER-DRIVE, REVERSE

$108.99

$

Usually ships in 3-6 days

0

47

Exmark 116-0094

COVER-BELT, RH

$92.99

$

In Stock, Qty 20+

0

48

Exmark 126-6628

BELT-V
(Superseded to 126-6628-SL)

$133.99

$

Usually ships in 3-6 days

0

51

Exmark 9266934

SCREW

$9.49

$

In Stock, Qty 7

0

52

Exmark 116-5111

BUSHING

$35.99

$

In Stock, Qty 17

0

53

Exmark 323-38

SCREW-HH

$12.99

$

In Stock, Qty 20+

0

54

Exmark 126-4781-03

STEP-DECK

$30.99

$

In Stock, only 2 left!

0

55

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

56

Exmark 126-8043

SHIELD-DUST

$2.99

$

In Stock, Qty 20+

0

57

Exmark 126-9195

SHIELD-GUARD, DUST

$3.49

$

In Stock, only 2 left!

0
