RAX651GKA484A3 - Exmark 48" Radius X-Series Zero-Turn Mower, Kawasaki FX651V (SN: 400000000 - 402082299) (Rev B) (2017) Caster Wheel and Fork Assembly Parts Diagram

48" Radius X-Series Zero-Turn Mower, Kawasaki FX651V

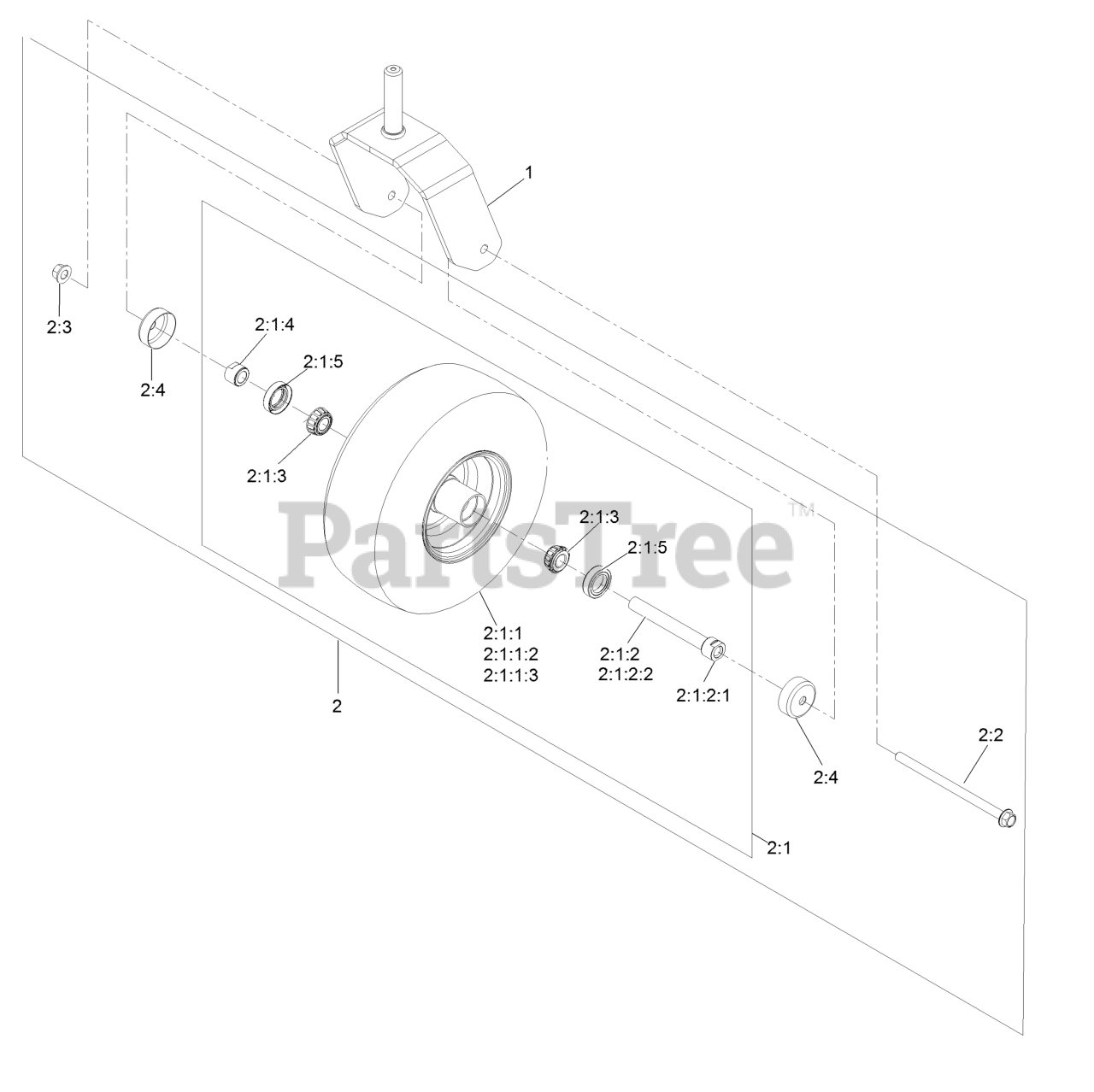

Caster Wheel and Fork Assembly Parts Diagram

  • Title

1

Exmark 126-4312-01

Fork-Caster
(Superseded to 142-7827-01)

$120.99

$

In Stock, only 2 left!

0

2

Exmark 126-7752

ASM-Wheel Brgs Axle 13X6.50-6

$274.99

$

In Stock, only 3 left!

0

2:1

ASM-Wheel And Brgs, 13X6.50-6

ASM-Wheel And Brgs, 13X6.50-6

$

$

Not available

2:1:1

ASM-Wheel And Tire 13X6.50-6

ASM-Wheel And Tire 13X6.50-6

$

$

Not available

2:1:1:2

Exmark 5108

Valve

$7.49

$

In Stock, Qty 7

0

2:1:1:3

Exmark 126-5959

Tire

$84.99

$

In Stock, only 4 left!

0

2:1:2

Exmark 126-7796

Caster Axle ASM

$20.99

$

In Stock, only 2 left!

0

2:1:2:1

Exmark 126-5220

Axle-Caster

$

$

Currently unavailable

2:1:2:2

Exmark 103-3051

Spacer-Nut

$9.49

$

In Stock, only 2 left!

0

2:1:3

Exmark 1-633585

Bearing-Cone Tapered Roller

$22.99

$

In Stock, Qty 17

0

2:1:4

Exmark 103-3051

Spacer-Nut

$9.49

$

In Stock, only 2 left!

0

2:1:5

Exmark 103-0063

Seal-Double Lip

$9.49

$

In Stock, only 3 left!

0

2:2

Exmark 126-5389

Screw-HHF

$8.49

$

In Stock, Qty 5

0

2:3

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 15

0

2:4

Exmark 103-2768

Guard-Seal

$3.99

$

In Stock, Qty 6

0
