RAX921GKA604A3 - Exmark 60" Radius X-Series Zero-Turn Mower, Kawasaki FX921V (SN: 411294212 - 413950473) (Rev A) (2022) Controls Assembly Parts Diagram

60" Radius X-Series Zero-Turn Mower, Kawasaki FX921V

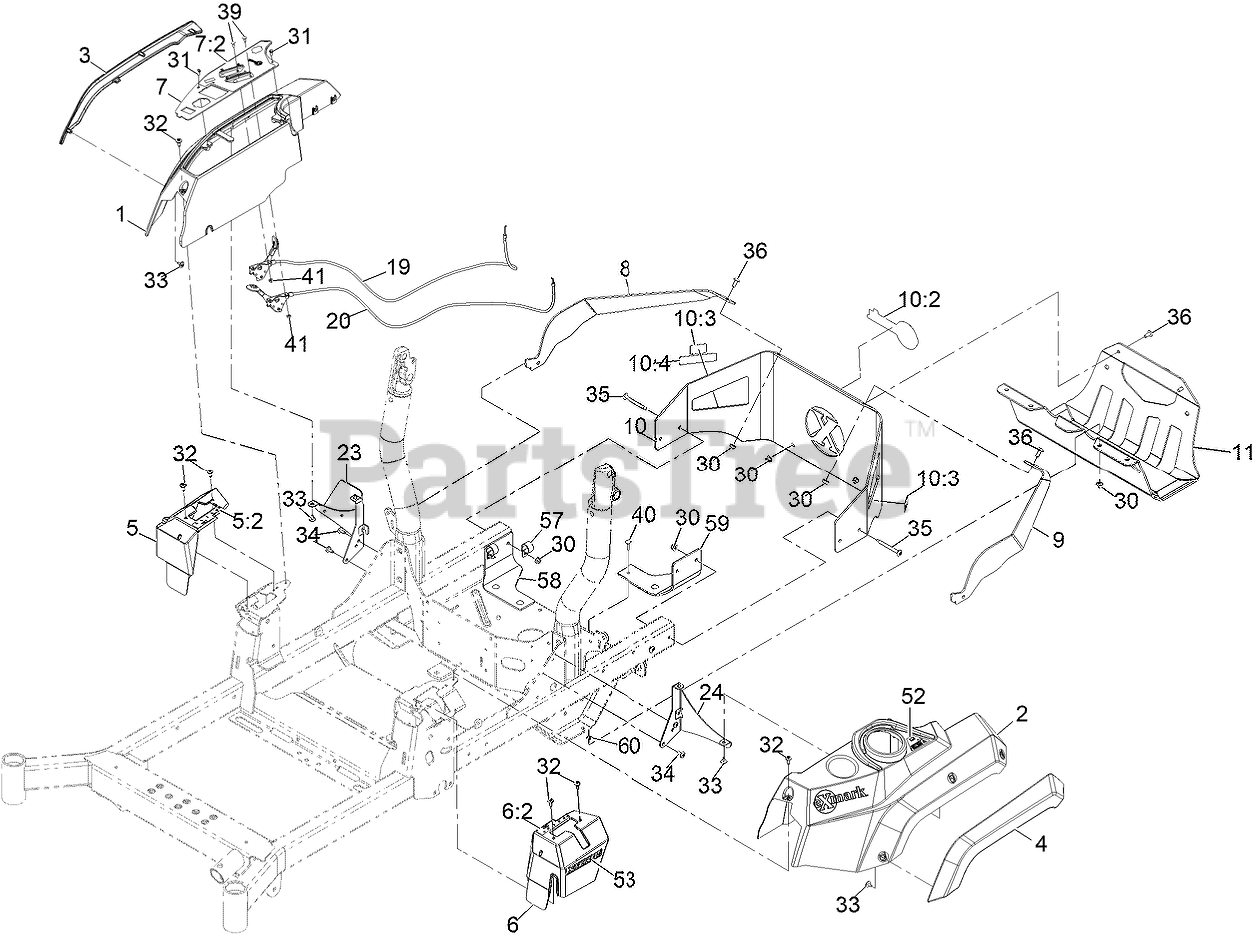

Controls Assembly Parts Diagram

  • Title

1

Exmark 126-4959

CONSOLE-EXMARK, RH

$65.99

$

Usually ships in 3-6 days

0

2

Exmark 126-4960

CONSOLE, LH

$65.99

$

Usually ships in 3-6 days

0

3

Exmark 126-4741

FENDER-RH

$21.99

$

Usually ships in 3-6 days

0

4

Exmark 126-4742

FENDER-LH

$21.99

$

In Stock, Qty 5

0

5

Exmark 126-7371

COVER-CONTROL, MOTION (RH

$28.99

$

Usually ships in 3-6 days

0

5:2

Exmark 126-6183

Decal-Control, Motion (RH)

$

$

Not available

6

Exmark 126-7372

COVER-CONTROL, MOTION (LH

$28.99

$

Usually ships in 3-6 days

0

6:2

Exmark 126-6194

Decal-Control, Motion (LH)

$5.49

$

Usually ships in 3-6 days

0

7

Exmark 135-7845

ASM-CONTROL PANEL W/EXMARK DECAL

$88.99

$

Usually ships in 3-6 days

0

7:2

Exmark 135-7816

DECAL-CONTROL PANEL

$12.99

$

Usually ships in 3-6 days

0

8

Exmark 126-6015-03

SUPPORT-UPPER, RH

$44.99

$

Usually ships in 3-6 days

0

9

Exmark 126-6016-03

SUPPORT-UPPER, LH

$44.99

$

Usually ships in 3-6 days

0

10

Exmark 126-7802

REAR GUARD ASM

$273.99

$

Usually ships in 3-6 days

0

10:2

Exmark 126-6877

DECAL, EXMARK LOGO

$8.49

$

In Stock, only 1 left!

0

10:3

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 1 left!

0

10:4

Exmark 133-8062

DECAL-ARRESTOR, SPARK

$3.49

$

Usually ships in 3-6 days

0

11

Exmark 142-9545-03

GUARD-MUFFLER W/DEFLECTORS

$

$

Not available

19

Exmark 109-4601

ASM,CHOKE CABLE

$59.99

$

Usually ships in 3-6 days

0

20

Exmark 116-2950

ASM, THROTTLE CABLE

$65.99

$

Usually ships in 3-6 days

0

23

Exmark 126-9945

SUPPORT-CONSOLE, RH

$27.99

$

Usually ships in 3-6 days

0

24

Exmark 126-5532-03

BRACKET-CONSOLE, LH

$13.99

$

Usually ships in 3-6 days

0

30

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, only 1 left!

0

31

Exmark 117-5036

SCREW-HWH

$5.49

$

Usually ships in 3-6 days

0

32

Exmark 120-7950

SCREW-SHOULDER

$2.99

$

Usually ships in 3-6 days

0

33

Exmark 126-5544

SCREW-TORX

$1.49

$

In Stock, Qty 5

0

34

Exmark 126-6266

SCREW-TORX

$1.49

$

Usually ships in 3-6 days

0

35

Exmark 142-8167

SCREW-TORX

$8.99

$

Usually ships in 3-6 days

0

36

Exmark 126-6268

SCREW-TORX

$1.99

$

In Stock, only 2 left!

0

39

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 16

0

40

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, only 3 left!

0

41

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 15

0

52

Exmark 126-9939

DECAL-FILL, FUEL

$5.49

$

Usually ships in 3-6 days

0

53

Exmark 126-9297

DECAL-X-SERIES

$6.99

$

Usually ships in 3-6 days

0

57

Exmark 110-0824

R-CLAMP

$5.49

$

Usually ships in 3-6 days

0

58

Exmark 142-8125-01

BRACKET-DECK SUPPORT, RH

$34.99

$

Usually ships in 3-6 days

0

59

Exmark 142-8126-01

BRACKET-DECK SUPPORT, LH

$34.99

$

Usually ships in 3-6 days

0

60

Exmark 117-2749

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0
