RB-100 S - Echo Broadcast Spreader, Stainless Steel (SN: N26600001001 - N26600999999) Replacement Parts Parts Diagram

Broadcast Spreader, Stainless Steel

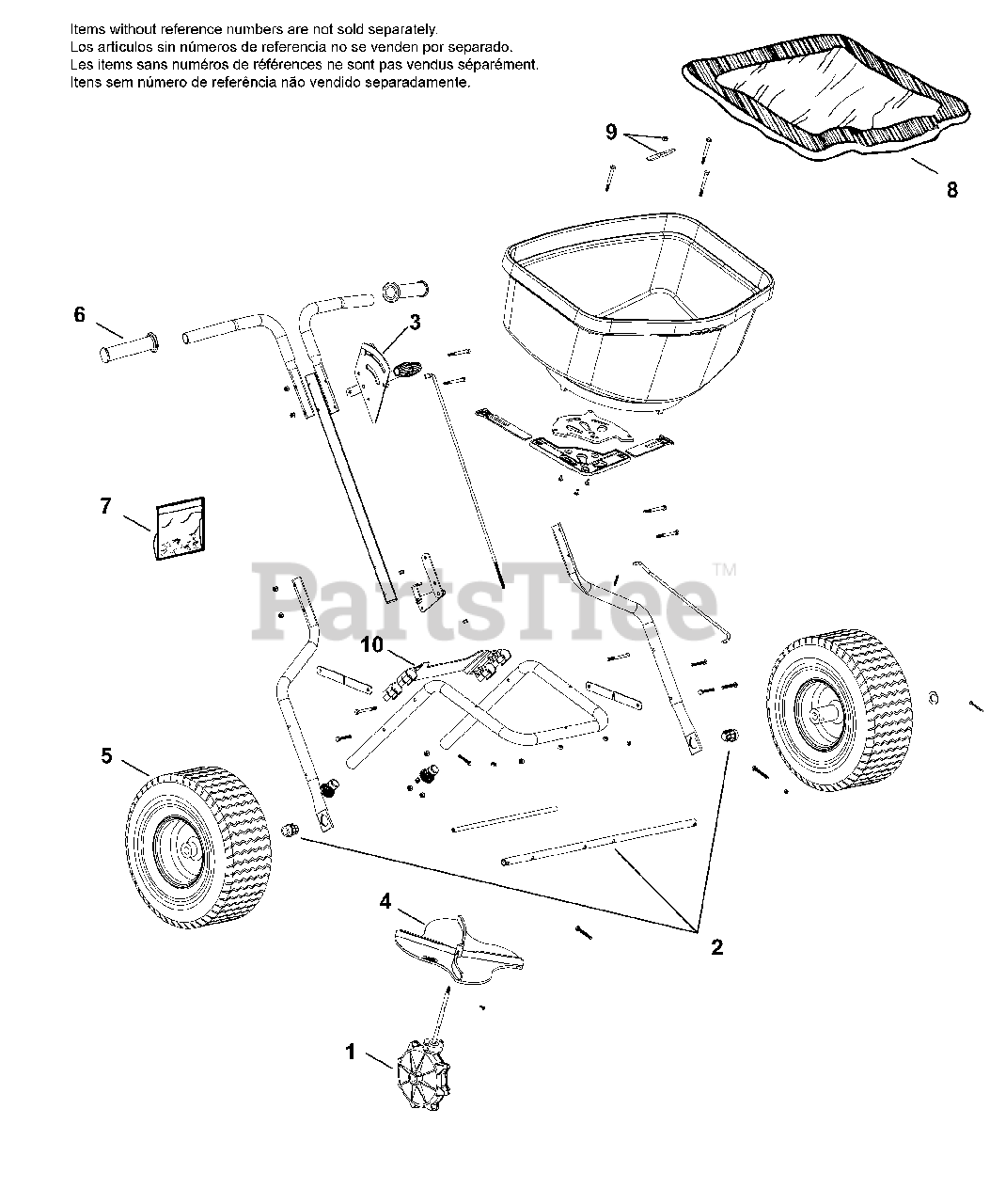

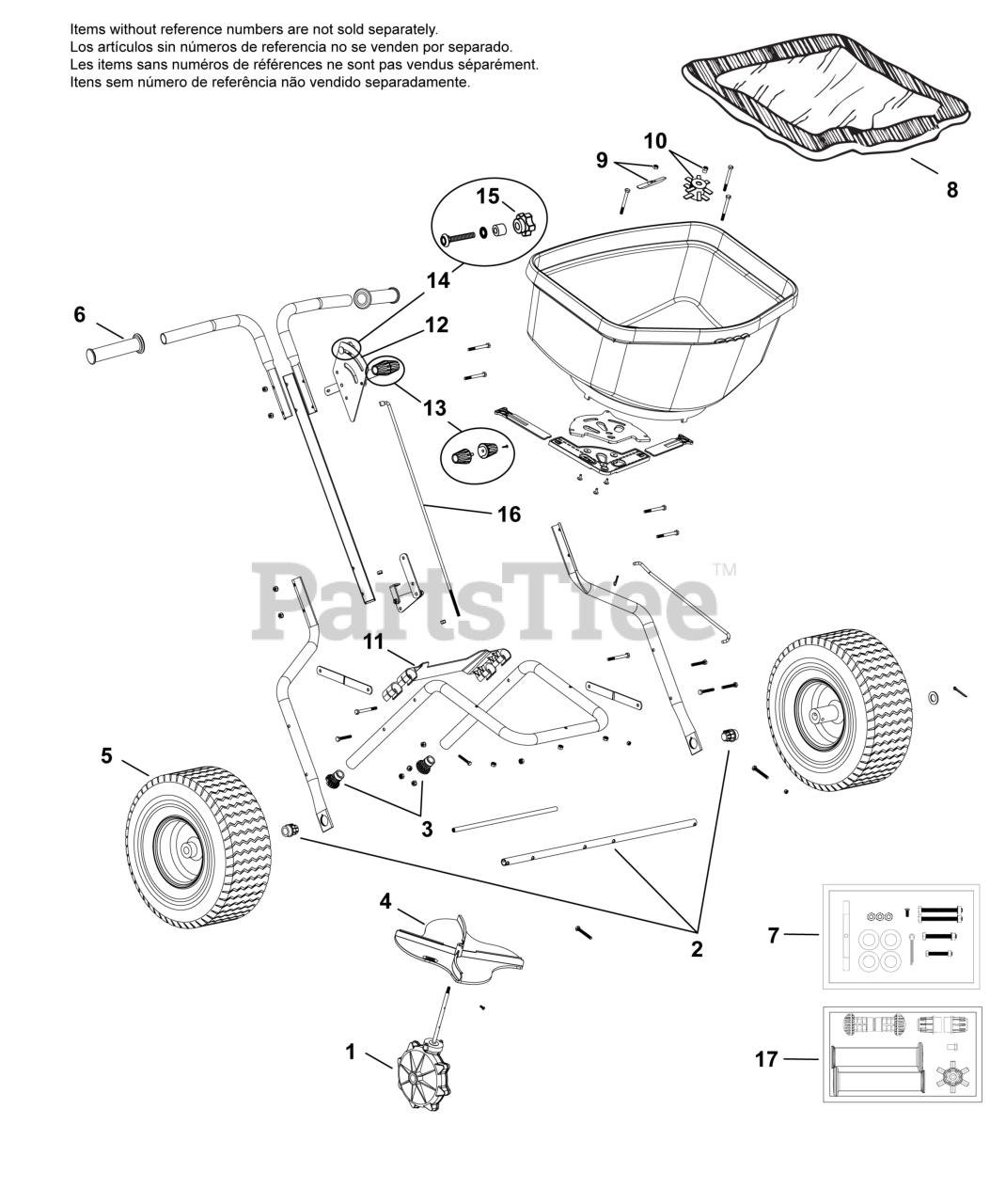

Replacement Parts Parts Diagram

  • Title

1

Echo 91210

GEAR BOX ASSEMBLY

$100.99

$

In Stock, only 2 left!

0

2

Echo 91211

DRIVE SHAFT W/2 BUSHINGS

$105.99

$

In Stock, only 1 left!

0

3

Echo CN014171

CAP, END

$4.49

$

Usually ships in 2-4 days

0

4

Echo 91213

IMPELLER & SECURING SCREW ASSEMBLY

$

$

Not available

5

Echo 91214

TIRE & RIM ASSEMBLY 14"

$107.99

$

Usually ships in 2-4 days

0

6

Echo 91216

HANDLE GRIPS

$27.99

$

Usually ships in 2-4 days

0

7

Echo YH485000090

HARDWARE PACK, SS

$42.99

$

Usually ships in 2-4 days

0

8

Echo 91218

RAIN COVER

$23.99

$

Usually ships in 2-4 days

0

9

Echo 91219

AUGER & LOCK NUT ASSEMBLY

$15.99

$

Usually ships in 2-4 days

0

10

Echo 91227

SPIKED AUGER & LOCK NUT ASSEMBLY
(Superseded to YH485000100)

$44.99

$

In Stock, only 1 left!

0

11

Echo 91220

REAR BAFFLE

$24.99

$

Usually ships in 2-4 days

0

12

Echo 91225

GATE CONTROL ASSEMBLY, SS

Note: Includes Items 13-15

$61.99

$

Usually ships in 2-4 days

0

13

Echo CN6-8310

KNOB, CONTROL

$13.99

$

Usually ships in 2-4 days

0

14

Echo CN6-8311

KNOB ASSY

Note: Includes Item 15

$19.99

$

Usually ships in 2-4 days

0

15

Echo CN012011

KNOB

$5.49

$

Usually ships in 2-4 days

0

16

Echo 91229

ROD, CONTROL LEVER, SS

$16.99

$

Usually ships in 2-4 days

0

17

Echo YH485000100

HARDWARE PACK

$44.99

$

In Stock, only 1 left!

0
