RB-300 (213-030-190) - White Outdoor Roto Boss Tiller (1993)

Roto Boss Tiller

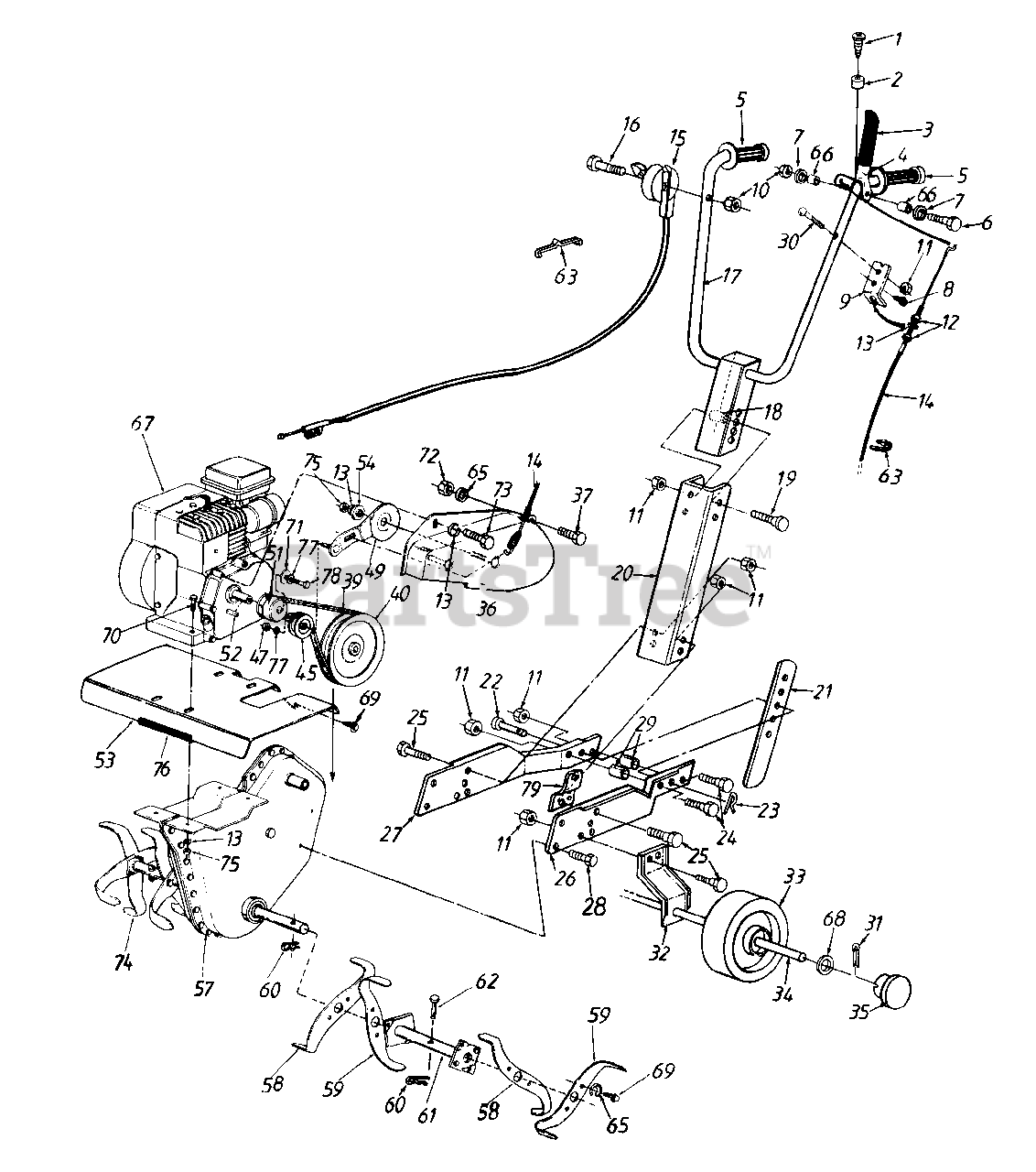

RB-300 (213-030-190) - White Outdoor Roto Boss Tiller (1993) > Parts Diagrams (2) > Tiller

  • Title
710-1167

1

Tap Scr. #10-16 x 1/2" Lg.

Part# 710-1167

OEM Warranty Repair Part for White Outdoor

Not available

720-0263

2

Rubber Bumper

Part# 720-0263

OEM Warranty Repair Part for White Outdoor

Not available

731-0473

3

Vinyl Grip

Part# 731-0473

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.08

686-0002

4

Clutch Lever Ass'y.

Part# 686-0002

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

LEVER ASSY-CLUTCH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $28.77

720-0233

5

Handle Grip

Part# 720-0233 (Superseded to 920-0233)

OEM Warranty Repair Part for White Outdoor

Not available

710-0501

6

Hex Bolt 1/4-20 x 2" Lg.

Part# 710-0501

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.02

736-3090

7

Fl-Wash. 1/4" I.D.

Part# 736-3090

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.65

710-1201

8

Hex Tap Scr. 1/4-20 x 1/2" Lg.

Part# 710-1201

OEM Warranty Repair Part for White Outdoor

Not available

15093C

9

Cable Bracket

Part# 15093C

OEM Warranty Repair Part for White Outdoor

Not available

712-0324

10

Lock Nut 1/4-20 Thd.

Part# 712-0324

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.68

712-0429

11

Lock Nut 5/16-18 Thd.

Part# 712-0429 (Superseded to 912-0429)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.86

712-0256

12

Hex Jam Nut 5/16-24 Thd.

Part# 712-0256

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.81

736-0119

13

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.41

746-0509

14

Clutch Control Cable

Part# 746-0509 (Superseded to 946-0926)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $29.92

746-0835

15

Throttle Control

Part# 746-0835 (Superseded to 746-0756A)

OEM Warranty Repair Part for White Outdoor

Not available

710-0606

16

Hex Bolt 1/4-20 x 1-1/2" Lg.

Part# 710-0606

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.74

649-0153

17

Handle Ass'y.

Part# 649-0153

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

KIT-UPPER HANDLE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

750-0848

18

Spacer

Part# 750-0848

OEM Warranty Repair Part for White Outdoor

Not available

710-0572

19

Carr. Bolt 5/16-18 x 2-1/2" Lg.

Part# 710-0572

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

786-0013

20

Handle Channel-Frame

Part# 786-0013

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available FRAME-CHANNEL HDL

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

04764

21

Depth Stake

Part# 04764

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Depth Stake

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

711-0653

22

Clevis Pin

Part# 711-0653

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.69

714-0145

23

Hairpin Cotter

Part# 714-0145 (Superseded to 914-0145)

OEM Warranty Repair Part for White Outdoor

Not available

710-0376

24

Hex Bolt 5/16-18 x 1" Lg.

Part# 710-0376

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.91

710-0759

25

Hex Bolt 5/16-18 x 5/8" Lg.

Part# 710-0759

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.81

786-0011

26

L.H. Frame Half

Part# 786-0011

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

L.H. Frame Half

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

786-0010

27

R.H. Frame Half

Part# 786-0010

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

FRAME HALF-RH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

710-0607

28

Hex Tap. Scr. 5/16-18 x 1/2" Lg.

Part# 710-0607

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.82

750-0845

29

Spacer

Part# 750-0845 (Superseded to 750-0808)

OEM Warranty Repair Part for White Outdoor

Not available

710-1090

30

Hex Bolt 5/16-18 x 1-1/4" Lg.

Part# 710-1090

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.53

714-3017

31

Cotter Pin

Part# 714-3017 (Superseded to 914-0111)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.36

786-0012

32

Wheel Bracket

Part# 786-0012

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-WHEEL

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

634-0013

33

Wheel-6"

Part# 634-0013

OEM Warranty Repair Part for White Outdoor

Not available

738-0855

34

Axle-Wheel

Part# 738-0855

OEM Warranty Repair Part for White Outdoor

Not available

720-0258

35

Hub Cap

Part# 720-0258

OEM Warranty Repair Part for White Outdoor

Not available

686-0021

36

Belt Cover

Part# 686-0021

Note: Code: N Notates a new part (not previously existing)

OEM Warranty Repair Part for White Outdoor

Variations

OLD CUB YELLOW (0498)

No Longer Available

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

No Longer Available

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

710-0258

37

Hex Bolt 1/4-20 x 5/8" Lg.

Part# 710-0258 (Superseded to 710-0751)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

754-0216

39

V-Belt

Part# 754-0216 (Superseded to 954-0216)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $25.58

756-0287

40

Pulley - Chain Case

Part# 756-0287

OEM Warranty Repair Part for White Outdoor

Not available

756-0199

45

Flat Idler Pulley

Part# 756-0199

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $18.07

712-0116

47

Hex Jam L-Nut 3/8-24 Thd.

Part# 712-0116 (Superseded to 912-0116)

OEM Warranty Repair Part for White Outdoor

Not available

784-0016

49

Idler Arm Ass'y.

Part# 784-0016

OEM Warranty Repair Part for White Outdoor

Not available

756-0286

51

Engine Pulley

Part# 756-0286

OEM Warranty Repair Part for White Outdoor

Not available

714-0122

52

Square Key 3/16" x .75" Lg.

Part# 714-0122 (Superseded to 914-0122)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.47

04765

53

Tine Shield

Part# 04765

Not available

736-0289

54

Washer-Bushing

Part# 736-0289 (Superseded to 936-0289)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

686-0022

57

Chain Case Ass'y. Comp.

Part# 686-0022

OEM Warranty Repair Part for White Outdoor

Not available

04922

58

R.H. Tine Blade

Part# 04922

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

TINE RH BLACK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

04923

59

L.H. Tine Blade

Part# 04923

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

TINE LH BLACK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $15.76

714-01498

60

Hairpin Cotter

Part# 714-01498

Not available

04918

61

Adapter Ass'y. - Tine

Part# 04918

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

ADAPTER ASSY-TINE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

711-0702

62

Clevis Pin

Part# 711-0702

OEM Warranty Repair Part for White Outdoor

Not available

726-0306

63

Cable Tie - Plastic

Part# 726-0306

OEM Warranty Repair Part for White Outdoor

Not available

736-0329

65

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

750-0846

66

Spacer

Part# 750-0846

OEM Warranty Repair Part for White Outdoor

Not available

67

Engine

Part#

Not available

736-0185

68

Fl-Wash. 3/8" I.D.

Part# 736-0185 (Superseded to 936-0185)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

710-0599

69

Tap Scr. 1/4-20 x 1/2" Lg.

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

710-0442

70

Hex Bolt 5/16-18 x 1-1/2" Lg.

Part# 710-0442 (Superseded to 710-0805A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

736-0258

71

Fl-Wash. 3/8" I.D. x 1" O.D.

Part# 736-0258

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

712-0287

72

Hex Nut 1/4-20 Thd.

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.18

710-0107

73

Hex Bolt 5/16-24 x .5" Lg.

Part# 710-0107

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.53

04921

74

Tine Blade Ass'y. Comp.

Part# 04921

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

TINE ASSY-COMP

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

712-0267

75

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Not available

731-0511-12

76

Trim Strip

Part# 731-0511-12

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $15.82

736-0169

77

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.64

710-0152

78

Hex Bolt 3/8-24 x 1" Lg.

Part# 710-0152 (Superseded to 710-1039)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.19

786-0046

79

Belt Cover Bracket

Part# 786-0046

Note: Code: N Notates a new part (not previously existing)

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-BELT COVER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available
