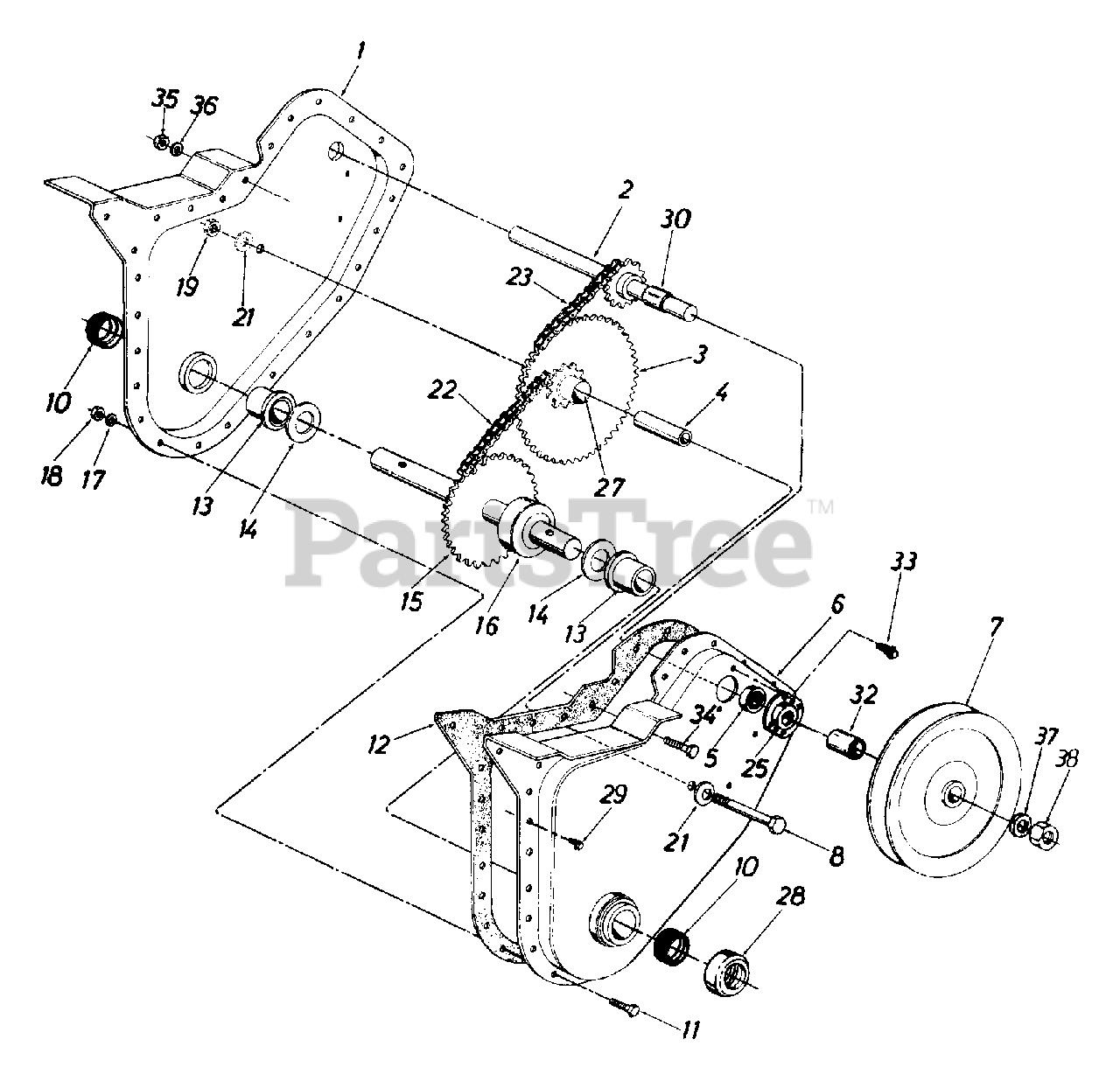

RB-300 (216-035-190) - White Outdoor Roto Boss Tiller (1996) > Parts Diagrams (2) > Chain Case Assembly

  • Title
686-0093

Chain Case Ass'y. Comp.

Part# 686-0093

Note: Code: N notates a new part (not previously existing).

OEM Warranty Repair Part for White Outdoor

Not available

686-0085

1

Chain Case Ass'y. - R.H.

Part# 686-0085

Note: Code: N notates a new part (not previously existing).

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

CASE-CHAIN RH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

611-0057

2

Input Shaft Ass'y.

Part# 611-0057

Note: Code: N notates a new part (not previously existing).

OEM Warranty Repair Part for White Outdoor

Not available

04757

3

Hub and Sprocket Ass'y.

Part# 04757 (Superseded to 04757A)

OEM Warranty Repair Part for White Outdoor

Not available

750-0351

4

Bearing Inner Race

Part# 750-0351

OEM Warranty Repair Part for White Outdoor

Not available

741-0155

5

Ball Bearing

Part# 741-0155 (Superseded to 941-0155)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $17.54

686-0087

6

Chain Case Ass'y. - L.H.

Part# 686-0087

Note: Code: N notates a new part (not previously existing).

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

CASE ASSY-CHAIN LH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

756-0996

7

Pulley - Chain Case

Part# 756-0996

Note: Code: N notates a new part (not previously existing).

OEM Warranty Repair Part for White Outdoor

Not available

710-0369

8

Hex Bolt 3/8-24 x 2.5"

Part# 710-0369

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.81

721-0157

10

Seal

Part# 721-0157

OEM Warranty Repair Part for White Outdoor

Not available

710-0195

11

Hex Bolt 1/4-28 x .625"

Part# 710-0195 (Superseded to 910-0195)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.53

721-0156A

12

Gasket

Part# 721-0156A (Superseded to 921-0156A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $27.42

741-0227

13

Flange Brg. .879" I.D.

Part# 741-0227

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.19

736-0265

14

Fl-Wash. .88" I.D. x 1.5"

Part# 736-0265

OEM Warranty Repair Part for White Outdoor

Not available

04920

15

Tine Shaft Ass'y.

Part# 04920

OEM Warranty Repair Part for White Outdoor

Not available

750-0354A

16

Spacer 7/8" I.D.

Part# 750-0354A

OEM Warranty Repair Part for White Outdoor

Not available

736-0329

17

L-Wash. 1/4" I.D."

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

712-0138

18

Hex Nut 1/4-28 Thd.

Part# 712-0138 (Superseded to 912-0138)

OEM Warranty Repair Part for White Outdoor

Not available

712-0116

19

Hex Ins. L-Nut 3/8-24 Thd.

Part# 712-0116 (Superseded to 912-0116)

OEM Warranty Repair Part for White Outdoor

Not available

736-0219

21

Bell-Wash. .406" I.D.

Part# 736-0219 (Superseded to 936-0219)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

713-0215

22

Chain #420 1/2" Pitch 38 Links

Part# 713-0215

OEM Warranty Repair Part for White Outdoor

Not available

713-0154

#420 Master Link

Part# 713-0154 (Superseded to 913-0154)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

713-0216

23

Chain #35 .375" Pitch 50 Links

Part# 713-0216

OEM Warranty Repair Part for White Outdoor

Not available

713-0139

#35 Master Link

Part# 713-0139 (Superseded to 913-0139)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.87

05034A

25

Bearing Housing

Part# 05034A

OEM Warranty Repair Part for White Outdoor

Not available

741-0228

27

Bearing

Part# 741-0228 (Superseded to 941-0228)

OEM Warranty Repair Part for White Outdoor

Not available

731-0486

28

Dust Cap

Part# 731-0486

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.27

710-0599

29

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

750-0471

30

Spacer .63" I.D. x .77" O.D. x .38" Lg.

Part# 750-0471 (Superseded to 950-0471)

OEM Warranty Repair Part for White Outdoor

Not available

750-0999

32

Spacer .647 x .77"

Part# 750-0999

Note: Code: N notates a new part (not previously existing).

OEM Warranty Repair Part for White Outdoor

Not available

710-0653

33

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .38" Lg.

Part# 710-0653

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.03

710-0118

34

Hex Bolt 5/16-18 x .75" Lg.

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.99

712-0267

35

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Not available

736-0119

36

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.41

736-0105

37

Bell-Wash. .38" I.D. x .88" O.D.

Part# 736-0105

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

712-0379

38

Hex Flange L-Nut 3/8-24 Thd.

Part# 712-0379

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.23
