RB-300 (21A-035-190) - White Outdoor Roto Boss Tiller (1997) Handles, Frame And Blades Parts Diagram

Roto Boss Tiller

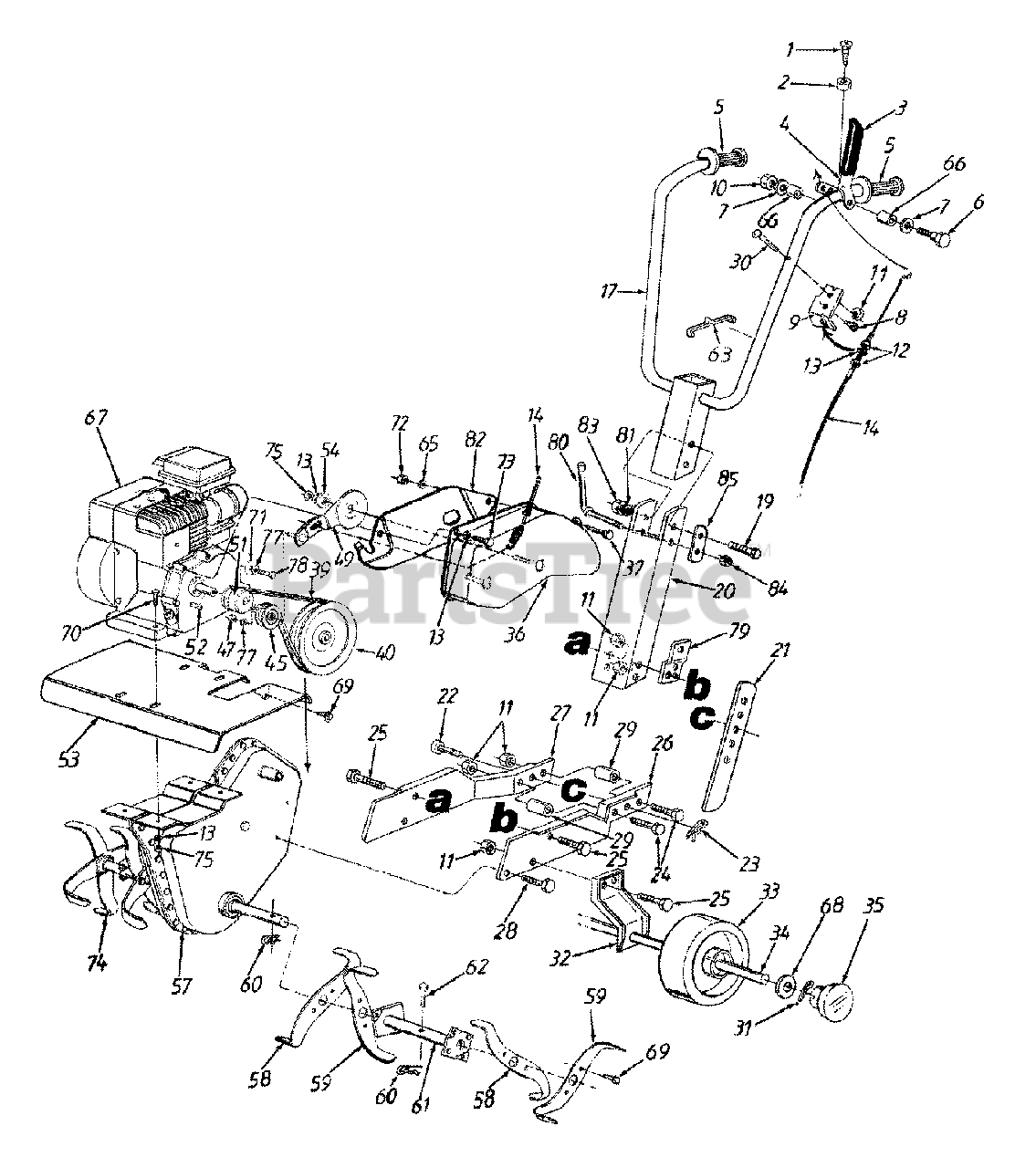

Handles, Frame And Blades Parts Diagram

  • Title

1

MTD 710-1167

Tap Scr. #10-16 x 1/2" Lg.

Note: NLA

$

$

Not available

2

MTD 720-0263

Rubber Bumper

Note: NLA

$

$

Not available

3

MTD 731-0473

Vinyl Grip

$4.49

$

Usually ships in 3-6 days

0

4

MTD 686-0002-0637

Clutch Lever Ass'y.

$38.99

$

Usually ships in 3-6 days

0

5

MTD 920-0233

Handle Grip

$

$

Not available

6

MTD 710-0501

Hex Bolt 1/4-20 x 2" Lg.

$6.99

$

In Stock, only 1 left!

0

7

MTD 736-3090

Fl-Wash. 1/4" I.D.

$6.49

$

In Stock, only 2 left!

0

8

MTD 710-1201

Hex Tap Scr. 1/4-20 x 1/2" Lg.

Note: NLA

$

$

Not available

9

MTD 15093C

Cable Bracket

$

$

Not available

10

MTD 712-0324

Lock Nut 1/4-20 Thd.

$3.49

$

In Stock, Qty 20+

0

11

MTD 912-0429

Lock Nut 5/16-18 Thd.
(Superseded to 712-0429)

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-0256

Hex Jam Nut 5/16-24 Thd.

$

$

Not available

13

MTD 936-0119

L-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

14

MTD 946-0926

Clutch Control Cable

$39.99

$

In Stock, Qty 5

0

17

MTD 649-0018-0637

Handle Ass'y.

Note: NLA

$

$

Not available

19

MTD 710-0572

Carr. Bolt 5/16-18 x 2-1/2" Lg.

$3.99

$

In Stock, Qty 5

0

20

MTD 786-0146-0637

Handle Channel - Frame

$

$

Not available

21

MTD 04764-0637

Depth Stake

Note: NLA

$

$

Not available

22

MTD 711-0653

Clevis Pin

$3.99

$

Usually ships in 3-6 days

0

23

MTD 914-0145

Hairpin Cotter
(Superseded to 714-0145)

$4.49

$

In Stock, Qty 20+

0

24

MTD 710-0376

Hex Bolt 5/16-18 x 1" Lg.

$3.99

$

In Stock, Qty 17

0

25

MTD 710-0759

Hex Bolt 5/16-18 x 5/8" Lg.

$6.49

$

Usually ships in 3-6 days

0

26

MTD 786-0011-0637

L.H. Frame Half

Note: NLA

$

$

Not available

27

MTD 786-0010-0637

R.H. Frame Half

$

$

Not available

28

MTD 710-0607

Hex Tap. Scr. 5/16-18 x 1/2" Lg.

$6.49

$

In Stock, Qty 20+

0

29

MTD 750-0808

Spacer

$

$

Not available

30

MTD 710-1090

Hex Bolt 5/16-18 x 1-1/4" Lg.

$3.49

$

Usually ships in 3-6 days

0

31

MTD 914-0111

Cotter Pin
(Superseded to 714-0111)

$4.49

$

In Stock, Qty 20+

0

32

MTD 786-0012-0637

Wheel Bracket

$

$

Not available

33

MTD 634-0013

Wheel - 6"

$

$

Not available

34

MTD 738-0855

Axle - Wheel

Note: NLA

$

$

Not available

35

MTD 720-0258

Hub Cap

$

$

Not available

36

MTD 786-0151A-0662

Belt Cover

Note: NLA

$

$

Not available

37

MTD 710-0751

Hex Bolt 1/4-20 x 5/8" Lg.

$3.99

$

In Stock, Qty 20+

0

39

MTD 954-0216

V-Belt

$30.99

$

In Stock, only 1 left!

0

40

MTD 756-0996

Pulley - Chain Case

Note: NLA

$

$

Not available

45

MTD 756-0199

Flat Idler Pulley

$23.99

$

In Stock, only 2 left!

0

47

MTD 912-0116

Hex Jam L-Nut 3/8-24 Thd.
(Superseded to 712-0116)

$

$

Not available

49

MTD 784-0016

Idler Arm Ass'y.

Note: NLA

$

$

Not available

51

MTD 756-0286

Engine Pulley

$

$

Not available

52

MTD 914-0122

Square Key 3/16" x .75" Lg.
(Superseded to 714-0122)

$

$

Not available

53

MTD 786-0148A-0662

Tine Shield

Note: NLA

$

$

Not available

54

MTD 936-0289

Washer - Bushing

$6.49

$

In Stock, only 1 left!

0

57

MTD 686-0093A

Chain Case Ass'y. Comp.

Note: NLA

$

$

Not available

58

MTD 04922-0637

R.H. Tine Blade

$

$

Not available

59

MTD 04923-0637

L.H. Tine Blade

$18.99

$

Usually ships in 3-6 days

0

60

MTD 914-0149B

Hairpin Cotter
(Superseded to 714-0149B)

$

$

Not available

61

MTD 04918-0637

Adapter Ass'y. - Tine

$

$

Not available

62

MTD 711-0702

Clevis Pin

$

$

Not available

63

MTD 726-0306

Cable Tie - Plastic

$

$

Not available

66

MTD 750-0846

Spacer

$

$

Not available

67

Engine

$

$

Not available

68

MTD 936-0185

Fl-Wash. 3/8" I.D.
(Superseded to 736-0185)

$3.49

$

In Stock, Qty 16

0

69

MTD 710-0599

Tap Scr. 1/4-20 x 1/2" Lg.

$3.99

$

In Stock, Qty 20+

0

70

MTD 710-0805

Hex Bolt 5/16-18 x 1-1/2" Lg.
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

71

MTD 736-0258

Fl-Wash. 3/8" I.D. x 1" O.D.

$4.49

$

In Stock, only 2 left!

0

72

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.49

$

In Stock, only 2 left!

0

73

MTD 710-0107

Hex Bolt 5/16-24 x .5" Lg.

$3.49

$

Usually ships in 3-6 days

0

74

MTD 04921-0637

Tine Blade Ass'y. Comp.

$

$

Not available

75

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

77

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

78

MTD 710-1039

Hex Bolt 3/8-24 x 1" Lg.

$4.49

$

In Stock, Qty 11

0

79

MTD 786-0046-0637

Belt Cover Bracket

$

$

Not available

80

MTD 784-0190

Handle Lever

$22.99

$

Usually ships in 3-6 days

0

81

MTD 936-0300

Fl-Wash. .385" I.D. x .87" O.D.
(Superseded to 736-0300)

$3.99

$

In Stock, Qty 20+

0

82

MTD 786-0153-0637

Belt Cover-Rear

Note: NLA

$

$

Not available

83

MTD 912-3000

Hex L-Nut 3/8-16 Thd.
(Superseded to 712-3000)

$3.99

$

In Stock, Qty 20+

0

84

MTD 712-0379

Hex Flange L-Nut 3/8-24 Thd.

$4.49

$

Usually ships in 3-6 days

0

85

MTD 784-0191

Retainer Bracket

$6.99

$

Usually ships in 3-6 days

0
