RB-300 (21A-035-190) - White Outdoor Roto Boss Tiller (1999) Chain Case Assembly Parts Diagram

Roto Boss Tiller

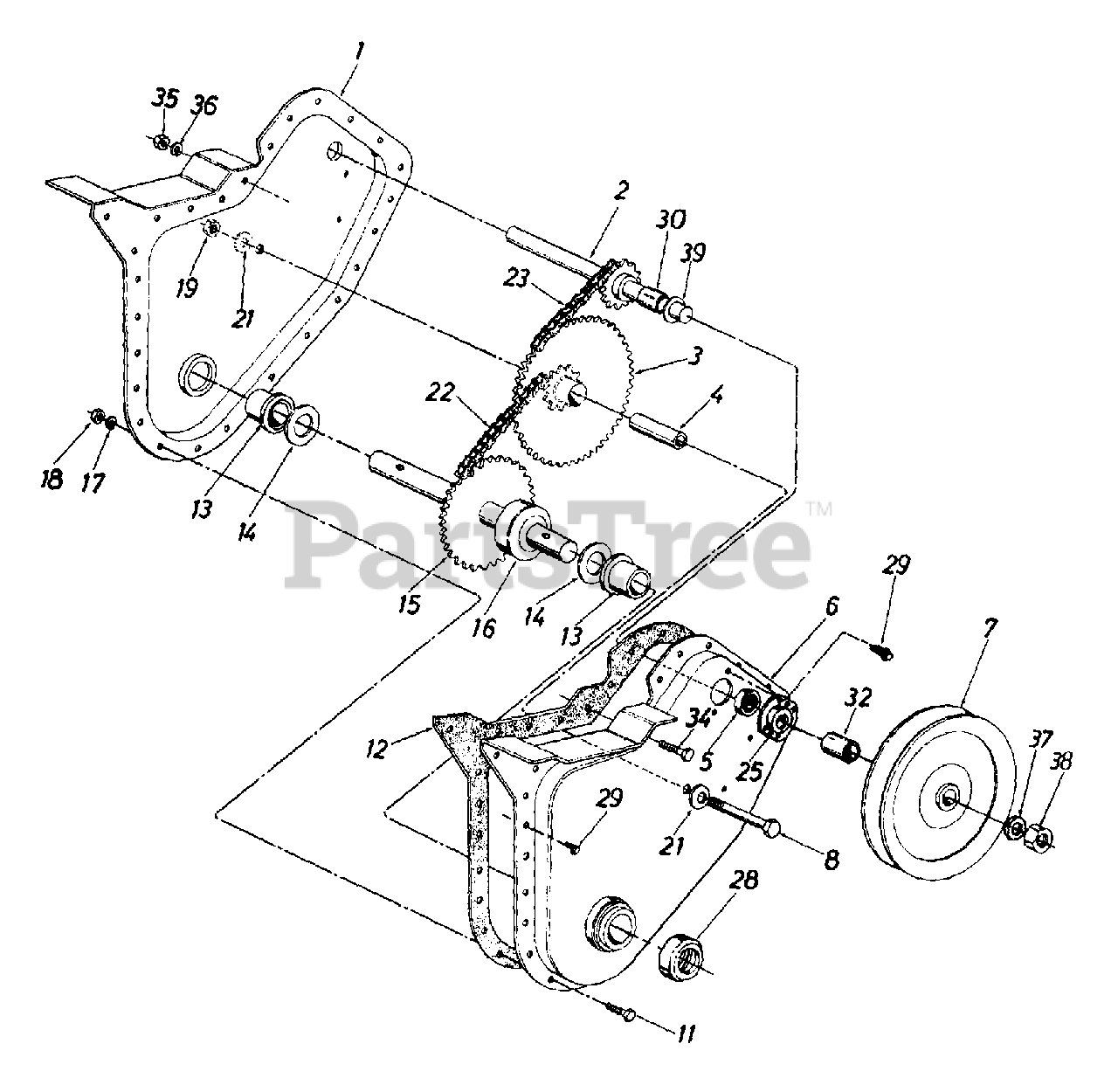

Chain Case Assembly Parts Diagram

  • Title

1

MTD 686-0085-0637

Chain Case Ass'y. - R.H.

$

$

Not available

2

MTD 611-0057

Input Shaft Ass'y.

Note: NLA

$

$

Not available

3

MTD 04757A

Hub and Sprocket Ass'y.

$

$

Not available

4

MTD 750-0351

Bearing Inner Race

$

$

Not available

5

MTD 941-0155

Ball Bearing

$22.99

$

In Stock, Qty 20+

0

6

MTD 686-0087-0637

Chain Case Ass'y. - L.H.

$

$

Not available

7

MTD 756-0996

Pulley - Chain Case

Note: NLA

$

$

Not available

8

MTD 710-0369

Hex Bolt 3/8-24 x 2.5"

$5.99

$

Usually ships in 3-6 days

0

11

MTD 910-0195

Hex Bolt 1/4-28 x .625"

$3.49

$

In Stock, only 1 left!

0

12

MTD 921-0156A

Gasket

$

$

Not available

13

MTD 741-0227

Flange Brg. .879" I.D.

$10.99

$

In Stock, Qty 20+

0

14

MTD 736-0265

Fl-Wash. .88" I.D. x 1.5"

$

$

Not available

15

MTD 04920

Tine Shaft Ass'y.

$

$

Not available

16

MTD 750-0354A

Spacer 7/8" I.D.

$

$

Not available

17

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 12

0

18

MTD 912-0138

Hex Nut 1/4-28 Thd.
(Superseded to 712-0138)

$

$

Not available

19

MTD 912-0116

Hex Ins. L-Nut 3/8-24 Thd.
(Superseded to 712-0116)

$

$

Not available

21

MTD 936-0219

Bell-Wash. .406" I.D.

$3.99

$

In Stock, only 1 left!

0

22

MTD 713-0215

Chain #420 1/2" Pitch 38 Links

Note: NLA

$

$

Not available

22

MTD 913-0154

#420 Master Link

$

$

Not available

23

MTD 713-0216

Chain #35 .375" Pitch 50 Links

Note: NLA

$

$

Not available

23

MTD 913-0139

#35 Master Link

$

$

Not available

25

MTD 05034A

Bearing Housing

$

$

Not available

28

MTD 921-0392

Shaft Seal

$

$

Not available

29

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20

$3.99

$

In Stock, Qty 20+

0

30

MTD 750-0471

Spacer .63" I.D. x .77" O.D. x .38" L

Note: NLA

$

$

Not available

32

MTD 750-0099

Spacer .647 x .77"

Note: NLA

$

$

Currently unavailable

34

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

35

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

36

MTD 936-0119

L-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

37

MTD 736-0105

Bell-Wash. .38" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

38

MTD 712-0379

Hex Flange L-Nut 3/8-24 Thd.

$4.49

$

Usually ships in 3-6 days

0

39

MTD 736-0302

Washer .652 I.D.

$

$

Not available

MTD 686-0093A

Chain Case Ass'y .Comp.

Note: NLA

$

$

Not available
