RB-310 (210-031-190) - White Outdoor Roto Boss Tiller (1990) Tiller Assembly Parts Diagram

Roto Boss Tiller

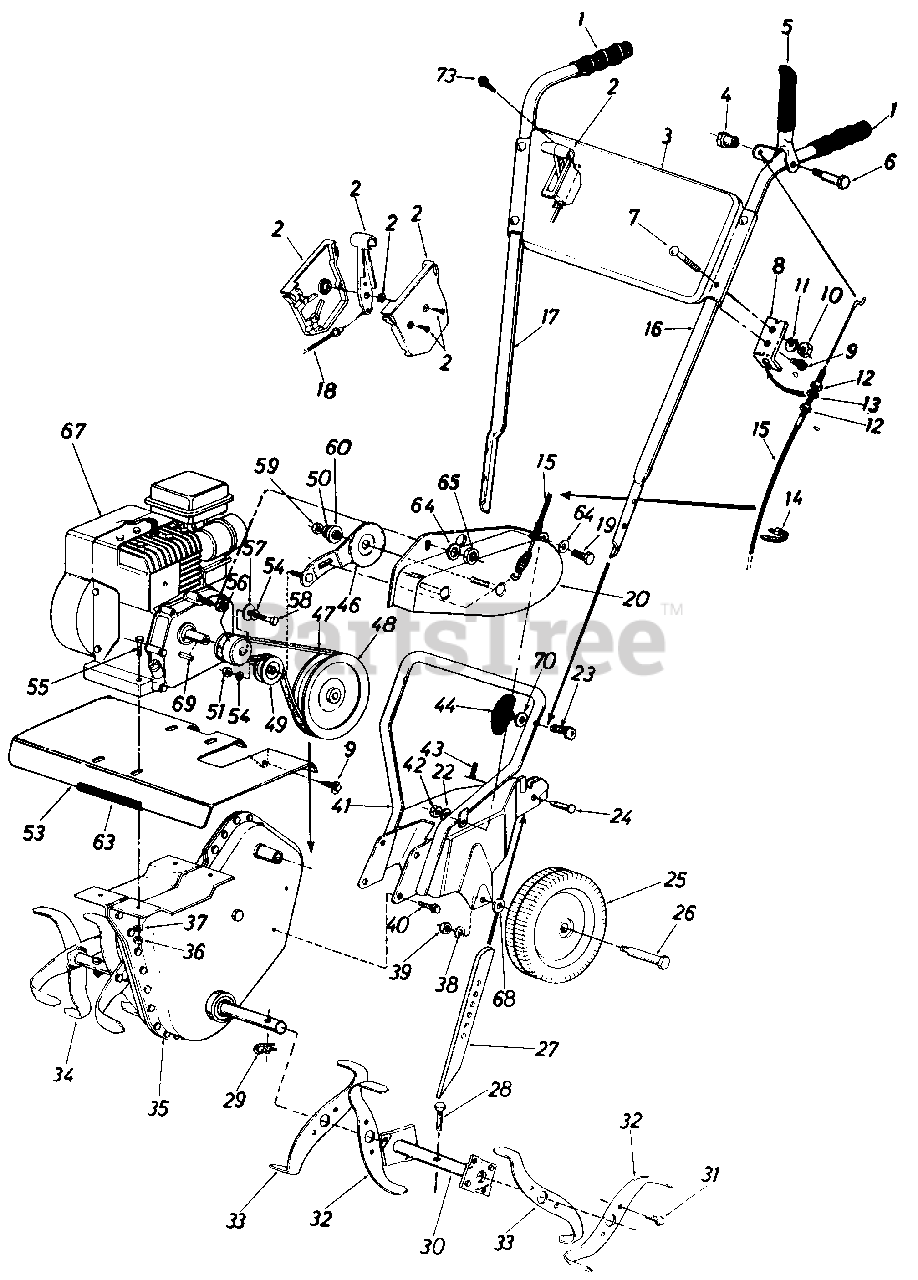

Tiller Assembly Parts Diagram

  • Title

1

MTD 720-0204

Grip

$12.99

$

Usually ships in 3-6 days

0

2

MTD 831-0796A

Throttle Control Box Ass'y.

$20.99

$

In Stock, Qty 14

0

3

MTD 784-0036A

Handle Panel

Note: NLA

$

$

Not available

4

MTD 938-0561

Shoulder Nut

$9.49

$

In Stock, only 1 left!

0

5

MTD 784-0007A

Clutch Grip Ass'y.

Note: NLA

$

$

Not available

6

MTD 938-0572

Shoulder Bolt 3/8" x 1.16"
(Superseded to 738-0572)

$

$

Not available

7

MTD 710-0262

Carriage Bolt 5/16-18 x 1.5" Lg.

$3.99

$

In Stock, Qty 14

0

8

MTD 15093C

Cable Support Bracket

$

$

Not available

9

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

10

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

11

MTD 936-0119

L-Wash. 5/16" l.D.

$4.49

$

In Stock, Qty 20+

0

12

MTD 712-0256

Hex Jam Nut 5/16-24 Thd.

$

$

Not available

13

MTD 936-0119

L-Wash. 5/16" l.D.

$4.49

$

In Stock, Qty 20+

0

14

MTD 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

15

MTD 946-0926

Clutch Control Cable

$39.99

$

In Stock, only 4 left!

0

16

MTD 749-0631

Upper Handle-L.H.

Note: NLA

Variations

MTD 749-0631-0637

No Longer Available HANDLE-UPP - POWDER BLACK (0637)

$

$

Not available

$

$

17

MTD 749-0630

Upper Handle-R.H.

Note: NLA

Variations

MTD 749-0630-0637

No Longer Available HANDLE-UPP - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 946-0634

Throttle Control Wire

$10.99

$

In Stock, Qty 11

0

19

MTD 710-3015

Hex Bolt 1/4-20 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

20

MTD 784-0018

Belt Cover Ass'y.

Note: NLA

$

$

Currently unavailable

22

MTD 936-0329

L-Wash. 1/4" l.D.

$4.49

$

In Stock, Qty 13

0

23

MTD 710-1174

Curved Hd. Bolt 5/16-18 x 1.75" Lg.

$6.99

$

In Stock, Qty 20+

0

24

MTD 711-0653

Clevis Pin

$3.99

$

Usually ships in 3-6 days

0

25

MTD 734-1161A

Wheel Ass'y. Comp.-Plastic

Note: NLA

$

$

Not available

25

MTD 734-0893

Wheel Ass'y. Comp.-Steel

Note: NLA

$

$

Not available

25

MTD 741-0262

Wheel Bearings

$7.99

$

Usually ships in 3-6 days

0

26

MTD 738-0213

Shoulder Bolt

$7.49

$

In Stock, Qty 5

0

27

MTD 04764

483Depth Bar

Note: NLA

Variations

MTD 04764-0637

Depth Stake - POWDER BLACK (0637)

$

$

Not available

$

$

28

MTD 711-0702

Clevis Pin .31" Dia. x 1.5"

$

$

Not available

29

MTD 914-0149B

Hairpin Cotter
(Superseded to 714-0149B)

$

$

Not available

30

MTD 04918-0637

Tine Adapter Ass'y.

$

$

Not available

31

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr. l/4-20 x .6" Lg.

$3.99

$

In Stock, Qty 20+

0

32

MTD 04923-0637

Tine Blade L.H.

$18.99

$

Usually ships in 3-6 days

0

33

MTD 04922-0637

Tine Blade-R.H.

$

$

Not available

34

MTD 04921-0637

Tine Ass'y. Comp.

$

$

Not available

35

MTD 04924A

483Chain Case Ass'y. Comp.

Note: NLA

$

$

Currently unavailable

36

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

37

MTD 936-0119

L-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

38

MTD 936-0217

L-Wash. 3/8" l.D. (Heavy Duty)
(Superseded to 736-0217)

$3.99

$

In Stock, Qty 13

0

39

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

40

MTD 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/16-1 8 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

41

MTD 04762

483Support Brkt. Ass'y.

Note: NLA

Variations

MTD 04762-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

42

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.49

$

In Stock, only 2 left!

0

43

MTD 914-0104

Internal Cotter Pin
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

44

MTD 720-04072A

Hand Knob

$6.49

$

In Stock, Qty 20+

0

46

MTD 784-0016

Idler Amm Ass'y.

Note: NLA

$

$

Not available

47

MTD 954-0216

Belt

$30.99

$

Usually ships in 3-6 days

0

48

MTD 756-0287

Chain Case Pulley 6-l/2" x 1/2"

$

$

Not available

49

MTD 756-0199

Fl-ldler 2"

$23.99

$

In Stock, only 2 left!

0

50

MTD 936-0119

L-Wash. 5/16" l.D.

$4.49

$

In Stock, Qty 20+

0

51

MTD 912-0116

Hex Nut 3/8-24 Thd.
(Superseded to 712-0116)

$

$

Not available

53

MTD 04765

Tine Shield

Note: NLA

Variations

MTD 04765-0498

No Longer Available SHIELD-TIN - OLD CUB YELLOW (0498)

$

$

Not available

MTD 04765-0637

No Longer Available SHIELD-TIN - POWDER BLACK (0637)

$

$

Not available

MTD 04765-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

54

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

55

MTD 710-0805

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

56

MTD 756-0286

Engine Pulley 3/8" V

$

$

Not available

57

MTD 736-0258

Fl-Wash. .385 I.D. x 1" O.D.

$4.49

$

In Stock, only 2 left!

0

58

MTD 710-1039

Hex Bolt 3/8-24 x 1" Lg.

$4.49

$

In Stock, Qty 11

0

59

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

60

MTD 936-0289

Shld. Spacer .50" Dia.

$6.49

$

In Stock, only 1 left!

0

63

MTD 731-0511

Trim Strip 4-1/2"

$3.49

$

Usually ships in 3-6 days

0

64

MTD 936-0142

Fl-Wash. .281" I.D. x .5" O.D.

$4.49

$

In Stock, only 1 left!

0

65

MTD 912-0107

Hex Cent. L-Nut 1/4-20 Thd.

$4.49

$

In Stock, only 1 left!

0

67

Engine

$

$

Not available

68

MTD 936-0219

Bell-Wash.

$3.99

$

In Stock, only 1 left!

0

69

MTD 914-0122

Square Key 3/16" x 3/4" Lg.
(Superseded to 714-0122)

$

$

Not available

70

MTD 736-0242

Bell-Wash.

$3.99

$

In Stock, Qty 20+

0

73

MTD 710-0779A

Self-Tap Screw #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0
