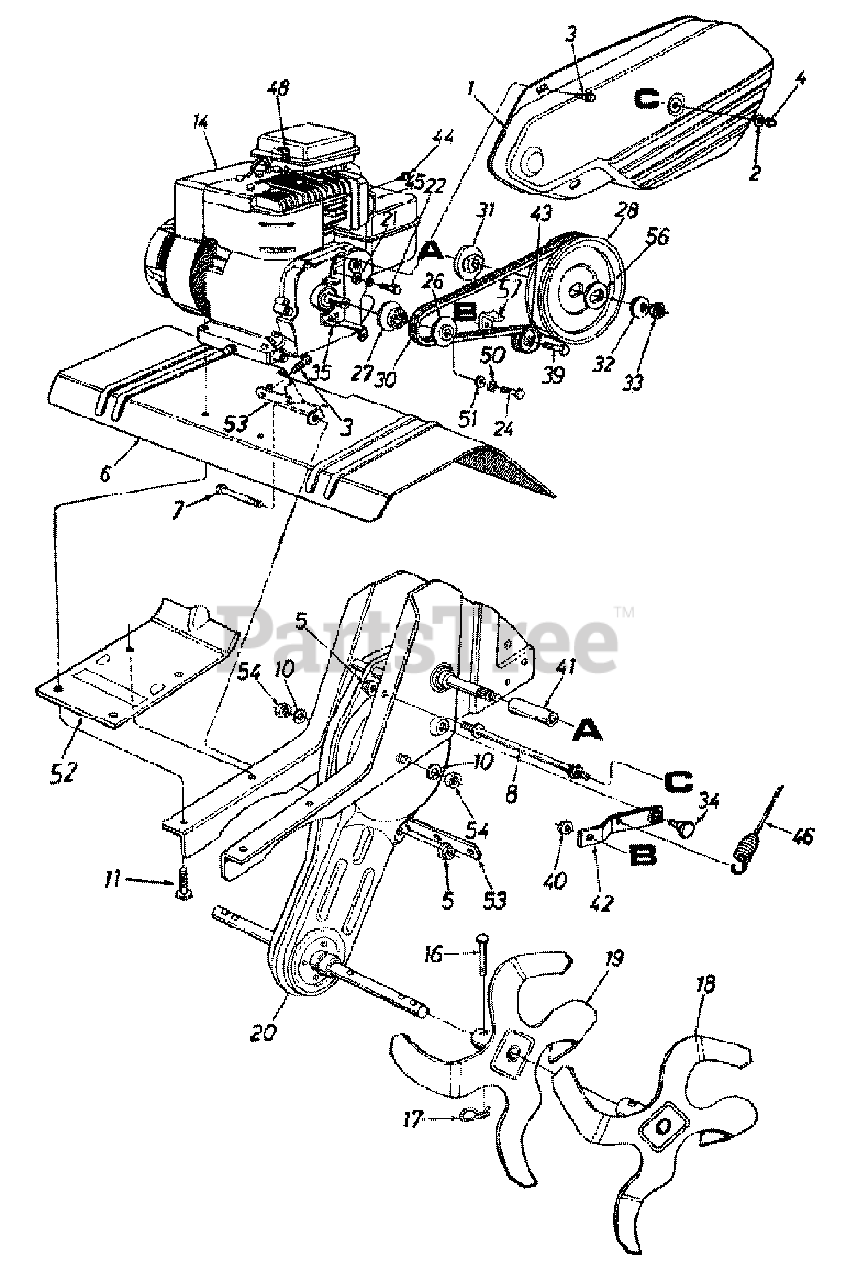

RB-500 (21A-340-190) - White Outdoor Roto Boss Tiller (1998) Belt Cover, Outer Tine Ass'y And Chain Case Ass'y Parts Diagram

Roto Boss Tiller

Belt Cover, Outer Tine Ass'y And Chain Case Ass'y Parts Diagram

  • Title

1

White Outdoor 786-0056-0662

Belt Cover

$80.99

$

Usually ships in 3-6 days

0

2

White Outdoor 736-3020

Fl-Wash. .266" I.D. x .625" O.D.

$6.49

$

In Stock, Qty 9

0

3

White Outdoor 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

4

White Outdoor 712-0392

Hex L-Stop Nut 1/4-28 Thd.

$6.49

$

In Stock, only 2 left!

0

5

White Outdoor 712-3004A

Hex Flange Top L-Nut 5/16-18 Thd. (Gr. 5)

$3.49

$

In Stock, Qty 20+

0

6

White Outdoor 786-0035A-0662

Tine Shield

$

$

Not available

7

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 711-0919

Belt Cover Bolt

$17.99

$

Usually ships in 3-6 days

0

10

White Outdoor 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 710-0502A

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.25" Lg.

$6.49

$

In Stock, Qty 7

0

14

Engine

$

$

Not available

16

White Outdoor 711-0415

Clevis Pin .375" Dia. x 1.62" Lg.

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 714-0149B

Internal Cotter Pin

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 642-0005

Outer Tine Ass'y. - L.H.
(Superseded to 642-0005-0637)

Variations

White Outdoor 642-0005-0637

Tine Assembly, Outer LH Black - POWDER BLACK (0637)

$60.99

$

In Stock, Qty 6

0

$60.99

$

In Stock, Qty 6

0

White Outdoor 642-0004

Outer Tine Ass'y. - R.H.
(Superseded to 642-0004-0637)

Note: (Not shown)

Variations

White Outdoor 642-0004-0637

Tine Assembly, Outer RH - POWDER BLACK (0637)

$60.99

$

In Stock, Qty 17

0

$60.99

$

In Stock, Qty 17

0

19

White Outdoor 642-0003

Inner Tine Ass'y. - L.H.
(Superseded to 642-0003-0637)

Variations

White Outdoor 642-0003-0637

Tine Assembly, Inner LH Black - POWDER BLACK (0637)

$60.99

$

In Stock, Qty 15

0

$60.99

$

In Stock, Qty 15

0

White Outdoor 642-0002

Inner Tine Ass'y. - R.H.
(Superseded to 642-0002-0637)

Note: (Not shown)

Variations

White Outdoor 642-0002-0637

Tine Assembly, Inner RH - POWDER BLACK (0637)

$60.99

$

In Stock, Qty 6

0

$60.99

$

In Stock, Qty 6

0

20

White Outdoor 686-0091

Chain Case Ass'y. Comp.
(Superseded to 986-0091C)

Note: (Available Only as Comp. Ass'y.)

$481.99

$

Usually ships in 3-6 days

0

21

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 710-0107

Hex Bolt 5/16-24 x .5" Lg.

$3.49

$

Usually ships in 3-6 days

0

24

White Outdoor 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.49

$

In Stock, Qty 8

0

26

White Outdoor 756-0972

Outer Engine Pulley Half

$15.99

$

In Stock, only 4 left!

0

27

White Outdoor 756-0971

Inner Engine Pulley Half

$13.99

$

In Stock, only 2 left!

0

28

White Outdoor 756-0585

Fl-Pulley 6" Dia.

$38.99

$

Usually ships in 3-6 days

0

30

White Outdoor 754-0428

"V"-Belt
(Superseded to 954-0428)

$34.99

$

Usually ships in 3-6 days

0

31

White Outdoor 748-0350

Pulley Mounting Adapter
(Superseded to 948-0350)

$19.99

$

Usually ships in 3-6 days

0

32

White Outdoor 736-0112

Bell-Wash. .535" I.D. x 1.5" O.D.

$8.99

$

Usually ships in 3-6 days

0

33

White Outdoor 712-3029

Hex Jam Nut 1/2-20 Thd. (Gr. 5)

$6.49

$

In Stock, Qty 8

0

34

White Outdoor 738-0930

Shld. Bolt 5/16-18 Thd.

$6.49

$

In Stock, only 1 left!

0

35

White Outdoor 786-0039

Belt Cover Brkt.
(Superseded to 786-0039B-0637)

Variations

White Outdoor 786-0039-0637

Belt Cover Bracket - POWDER BLACK (0637)

$44.99

$

Usually ships in 3-6 days

0

$44.99

$

Usually ships in 3-6 days

0

39

White Outdoor 710-0723

Hex Cap Bolt 3/8-16 x 1.25" Lg.

$4.49

$

In Stock, only 3 left!

0

40

White Outdoor 712-0266

Hex Cent. Jam Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

41

White Outdoor 750-0892

Spacer .64" I.D. x 2.4" Lg.
(Superseded to 950-0892)

$10.99

$

Usually ships in 3-6 days

0

42

White Outdoor 786-0144

Tine Idler Brkt.
(Superseded to 786-0144-0637)

Variations

White Outdoor 786-0144-0637

BRACKET-IDLER - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

43

White Outdoor 756-0313

Fl-Idler

$24.99

$

In Stock, Qty 7

0

44

White Outdoor 710-0783

Hex Self-Tap Scr. #8-32 x .38" Lg.

$

$

Not available

45

White Outdoor 751-0233

Muffler Deflector
(Superseded to BS-796956)

$10.99

$

In Stock, only 1 left!

0

46

White Outdoor 746-0918

Clutch Control Cable
(Superseded to 946-0918)

$28.99

$

Usually ships in 3-6 days

0

48

White Outdoor 735-0639

Spark Plug Boot

Note: (Optional)

$

$

Not available

50

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

51

White Outdoor 736-0258

Fl-Wash. 3/8" I.D. x 1" O.D.

$4.49

$

In Stock, only 2 left!

0

52

786-0415A

Engine Plate

Note: Code: N notates a new part (not previously existing)

$

$

Not available

53

White Outdoor 786-0053

Tine Shield Support
(Superseded to 786-0053-0637)

Variations

White Outdoor 786-0053-0637

Tine Shield Bracket - POWDER BLACK (0637)

$9.99

$

Usually ships in 3-6 days

0

$9.99

$

Usually ships in 3-6 days

0

54

White Outdoor 712-0240

Hex Nut 7/16-20 Thd.
(Superseded to 912-0240)

$3.99

$

In Stock, Qty 20+

0

56

White Outdoor 736-0312

Bearing Retainer Washer

$3.99

$

Usually ships in 3-6 days

0

57

White Outdoor 786-0149

Belt Keeper

$9.49

$

Usually ships in 3-6 days

0
