RB-500 (21A-354-190) - White Outdoor Roto Boss Tiller (2000)

Roto Boss Tiller

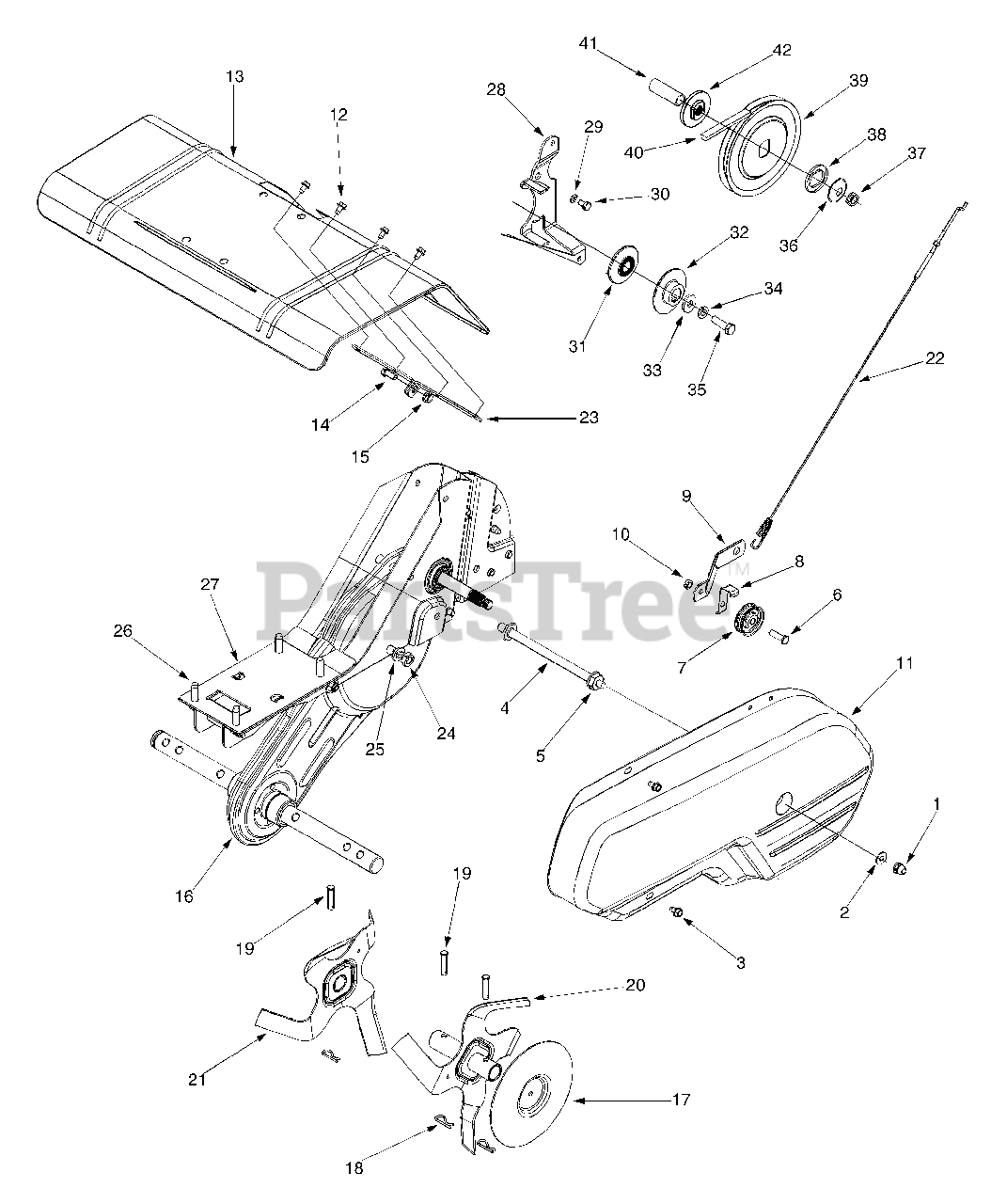

RB-500 (21A-354-190) - White Outdoor Roto Boss Tiller (2000) > Parts Diagrams (2) > Drive Assembly

  • Title
712-0392

1

Hex L-Stop nut 1/4-28

Part# 712-0392

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.45

736-3020

2

Flat Wash. .266" I.D. x .625" O.D.

Part# 736-3020 (Superseded to 936-3020)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.40

710-0599

3

Hex Washer Screw 1/4-20 x .5"

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

711-0920

4

Belt Cover Bolt

Part# 711-0920

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $11.45

712-3004A

5

Hex Flange Top L-Nut 5/16-18

Part# 712-3004A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.56

710-0723

6

Hex Hd. Scr. 3/8-16 x 1.25" Lg.

Part# 710-0723

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.98

756-0313

7

Fl-Idler 2.12" O.D.

Part# 756-0313

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $17.97

786-0149

8

Idler Belt Keeper

Part# 786-0149

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.34

786-0144

9

Idler Bracket

Part# 786-0144

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-IDLER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $9.08

712-0266

10

Hex Cent. Jam Nut 3/8-16 Thd.

Part# 712-0266 (Superseded to 712-0266A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.55

786-0057

11

Belt Cover

Part# 786-0057

OEM Warranty Repair Part for White Outdoor

Variations

CHARCOAL GRAY (0483)

COVER BELT

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $64.74

OLD CUB YELLOW (0498)

COVER BELT

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for White Outdoor

Not available

MAJESTIC ORANGE (0606)

Belt Cover

Part# MAJESTIC ORANGE (0606)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $64.74

MTD/TROY-BILT RED (0638)

COVER-BELT

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $64.74

OYSTER GRAY (0662)

COVER BELT

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $64.74

YARDMAN GREEN (0665)

COVER BELT

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $64.74

BLACK JACK (0691)

COVER BELT

Part# BLACK JACK (0691)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $64.74

CUB YELLOW-99 (0716)

COVER BELT

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for White Outdoor

Not available

CUB YELLOW 2 (4021)

COVER BELT

Part# CUB YELLOW 2 (4021)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $64.74

FLINT MICA (4033)

COVER BELT

Part# FLINT MICA (4033)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $64.74

710-0599

12

Hex Washer Screw 1/4-20 x .5"

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

786-0043A

13

Tine Shield

Part# 786-0043A

OEM Warranty Repair Part for White Outdoor

Variations

MAJESTIC ORANGE (0606)

SHIELD-TINE EXPORT

Part# MAJESTIC ORANGE (0606)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $95.10

MTD/TROY-BILT RED (0638)

SHIELD-TINE EXPORT

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $95.10

TECH GRAY (0648)

SHIELD-TINE EXPORT

Part# TECH GRAY (0648)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $95.10

RED METALLIC (0650)

SHIELD-TINE EXPORT

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $95.10

OYSTER GRAY (0662)

SHIELD-TINE EXPORT

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $95.10

YARDMAN GREEN (0665)

SHIELD-TINE EXPORT

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $95.10

BLACK JACK (0691)

SHIELD-TINE EXPORT

Part# BLACK JACK (0691)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $95.10

CUB YELLOW-99 (0716)

SHIELD-TINE EXPORT

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $95.10

SEARS RED (0721)

SHIELD-TINE EXPORT

Part# SEARS RED (0721)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $95.10

CUB YELLOW 2 (4021)

SHIELD-TINE EXPORT

Part# CUB YELLOW 2 (4021)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $95.10

FLINT MICA (4033)

SHIELD-TINE EXPORT

Part# FLINT MICA (4033)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $95.10

CRAFTSMAN RED (4044)

SHIELD-TINE EXPORT

Part# CRAFTSMAN RED (4044)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $95.10

710-3008

14

Hex Hd. Cap Scr. 5/16-18 x .75" Lg

Part# 710-3008

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

712-3004A

15

Hex Flange Top L-Nut 5/16-18

Part# 712-3004A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.56

686-0091

16

Chain Case Assembly Complete

Part# 686-0091 (Superseded to 986-0091A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $391.31

686-0106

17

Tine Disc Ends

Part# 686-0106

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

PLATE-DISC OUTER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $36.82

714-0149B

18

Internal Cotter Pin

Part# 714-0149B (Superseded to 914-0149B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.91

711-0415

19

Clevis Pin

Part# 711-0415 (Superseded to 911-0415)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.98

642-0023

20

Outer Tine Assembly L.H.

Part# 642-0023

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

TINE ASSEMBLY OUTER LH BLACK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $44.23

642-0024

Outer Tine Assembly R.H.

Part# 642-0024

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

OUTER TINE ASSEMBLY-RH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $44.23

642-0003

21

Inner Tine Assembly L.H.

Part# 642-0003

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

TINE ASSEMBLY INNER LH BLACK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $44.23

642-0002

Inner Tine Assembly R.H.

Part# 642-0002

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

INNER TINE ASSEMBLY-RH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $44.23

746-0918

22

Forward Clutch Cable

Part# 746-0918 (Superseded to 946-0918)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $19.77

786-0053

23

Tine Shield Bracket

Part# 786-0053

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-TINE SHIELD

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.87

736-0171

24

L-Wash. 7/16" I.D.

Part# 736-0171 (Superseded to 936-0171)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.86

712-0240

25

Hex Nut 7/16-20 Thd.

Part# 712-0240 (Superseded to 912-0240)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.85

710-0502A

26

Hex Washer Screw 3/8-16 x 1.25"

Part# 710-0502A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.24

786-0145A

27

Engine Plate

Part# 786-0145A

OEM Warranty Repair Part for White Outdoor

Variations

BRILLIANT GREEN (0480)

PLATE-ENGINE MOUNTING

Part# BRILLIANT GREEN (0480)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $14.47

OLD CUB YELLOW (0498)

PLATE-ENGINE MOUNTING

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for White Outdoor

Not available

MAJESTIC ORANGE (0606)

PLATE-ENGINE MOUNTING

Part# MAJESTIC ORANGE (0606)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $14.47

POWDER BLACK (0637)

PLATE-ENGINE MOUNTING

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $14.47

MTD/TROY-BILT RED (0638)

PLATE-ENGINE MOUNTING

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $14.47

OYSTER GRAY (0662)

PLATE-ENGINE MOUNTING

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $14.47

YARDMAN GREEN (0665)

PLATE-ENGINE MOUNTING

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $14.47

BLACK JACK (0691)

PLATE-ENGINE MOUNTING

Part# BLACK JACK (0691)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $14.47

CUB YELLOW-99 (0716)

PLATE-ENGINE MOUNTING

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $14.47

CUB YELLOW 2 (4021)

PLATE-ENGINE MOUNTING

Part# CUB YELLOW 2 (4021)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $14.47

FLINT MICA (4033)

PLATE-ENGINE MOUNTING

Part# FLINT MICA (4033)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $14.47

CRAFTSMAN RED (4044)

PLATE-ENGINE MOUNTING

Part# CRAFTSMAN RED (4044)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $14.47

786-0039B

28

Bracket Cover

Part# 786-0039B

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-BELT COVER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $31.24

736-0119

29

Lock Washer 5/16

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

710-0107

30

Hex Bolt 5/16-24 x .5"

Part# 710-0107

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.34

756-0971

31

Inner Engine Pulley Half

Part# 756-0971

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.34

756-0972

32

Outer Engine Pulley Half

Part# 756-0972

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $10.50

736-0258

33

Flat Washer .385 ID x 1.0 OD

Part# 736-0258

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

736-0169

34

Lock Washer 3/8

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.47

710-0191

35

Hex Bolt 3/8-24 x 1.25"

Part# 710-0191

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.97

736-0112

36

Bell-Wash. .525" I.D. x 1.5" O.D.

Part# 736-0112

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.27

712-3029

37

Hex Jam Nut 1/2-20 Thd. (Gr. 5)

Part# 712-3029

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.45

736-0312

38

Retainer Washer Bearing

Part# 736-0312

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.60

756-0585

39

Fl-Pulley 6" Dia.

Part# 756-0585

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $27.00

754-0428

40

V-Belt (Forward)

Part# 754-0428 (Superseded to 954-0428)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $26.71

750-0892

41

Spacer .64" Dia. x 2.4" Lg.

Part# 750-0892 (Superseded to 950-0892)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.86

748-0350

42

Pulley Mounting Adapter

Part# 748-0350 (Superseded to 948-0350)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $13.98
