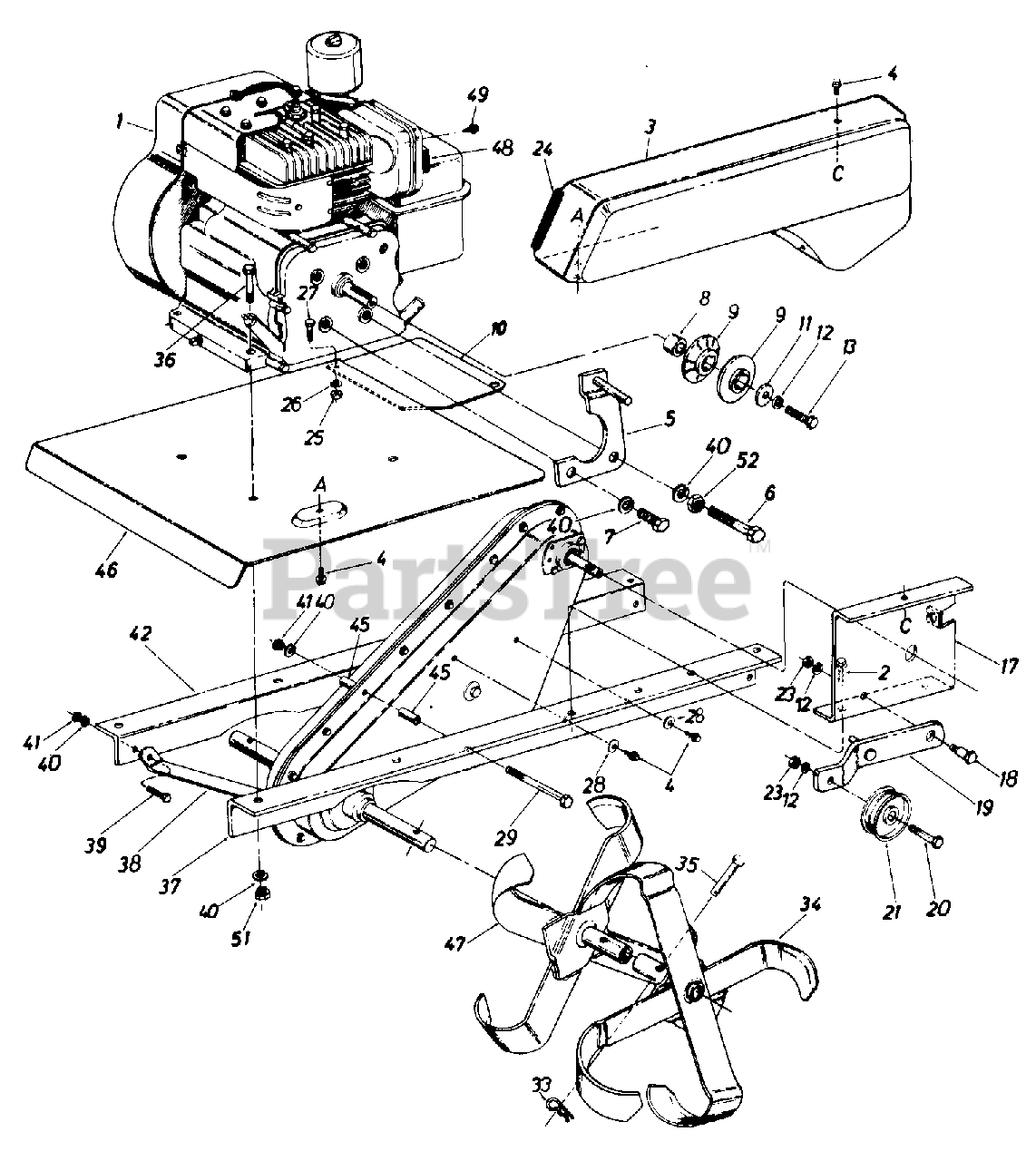

RB-510 (217-310-190) - White Outdoor Roto Boss Tiller (1987) > Parts Diagrams (3) > Tiller Mounting Assembly

  • Title

1

Engine

Part#

Not available

710-0600

2

Hex Self-Tap Scr. 5/16-24 x .5"

Part# 710-0600

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.53

04958

3

463 Belt Cover

Part# 04958

OEM Warranty Repair Part for White Outdoor

Not available

710-0599

4

Hex Self-Tap Scr. 1/4-20 x .5"

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

784-0114

5

Belt Keeper Brkt. Ass'y.

Part# 784-0114

Not available

710-0593

6

Hex Bolt 5/16-24 x 2.25" Lg. (Gr. 5)

Part# 710-0593

OEM Warranty Repair Part for White Outdoor

Not available

710-0237

7

Hex Bolt 5/16-24 x .62" Lg. (Gr. 5)

Part# 710-0237

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

710-0121

Hex Bolt 1/2-20 Thd.

Part# 710-0121

Note: (Special)

OEM Warranty Repair Part for White Outdoor

Not available

750-0345

8

Spacer

Part# 750-0345

OEM Warranty Repair Part for White Outdoor

Not available

748-0282

9

Pulley Half

Part# 748-0282

OEM Warranty Repair Part for White Outdoor

Not available

784-0265

10

Tine Shield Extension

Part# 784-0265

Not available

736-0258

11

Fl-Wash. 3/8" I.D. x 1.25"

Part# 736-0258

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

736-0169

12

L-Wash. 3/8" I.D.*

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.64

710-0152

13

Hex Bolt 3/8-24 x 1.00" Lg.

Part# 710-0152 (Superseded to 710-1039)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.19

04934

17

463 Idler Mounting Brkt.

Part# 04934

OEM Warranty Repair Part for White Outdoor

Not available

738-0322

18

Shld. Bolt

Part# 738-0322 (Superseded to 738-0322A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.76

784-0027

19

Idler Bracket Ass'y.

Part# 784-0027

Not available

710-0344

20

Hex Bolt 3/8-16 x 1.5" Lg.

Part# 710-0344

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.13

756-0137

21

Idler Pulley

Part# 756-0137

OEM Warranty Repair Part for White Outdoor

Not available

712-0342

23

Hex Jam Nut 3/8-16 Thd.

Part# 712-0342 (Superseded to 912-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.27

731-0511

24

Trim Strip-3"

Part# 731-0511

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.84

712-0287

25

Hex Nut 1/4-20 Thd.

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.18

736-0329

26

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

710-0258

27

Hex Bolt 1/4-20 x .62 Lg.*

Part# 710-0258 (Superseded to 710-0751)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

736-0270

28

Bell-Wash. .26 I.D. x .75 O.D.

Part# 736-0270

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

710-0189

29

Hex Bolt 5/16-18 x 3" Lg.

Part# 710-0189

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.24

714-0149

33

Hairpin Cotter

Part# 714-0149 (Superseded to 914-0149B)

OEM Warranty Repair Part for White Outdoor

Not available

784-0092

34

Inner Tine Ass'y. Comp.-R.H.

Part# 784-0092

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

TINE ASSY-INNER-RH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

784-0094

Outer Tine Ass'y. Comp.-R.H.

Part# 784-0094

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

TINE ASSY-OUTER-RH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

784-0091

Inner Tine Ass'y. Comp.-L.H.

Part# 784-0091

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

TINE ASSY-INNER-LH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

784-0093

Outer Tine Ass'y. Comp.-L.H.

Part# 784-0093

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available TINE ASSY-OUTER-LH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

1545-029

35

Clevis Pin

Part# 1545-029 (Superseded to 711-0679A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.94

710-0442

36

Hex Bolt 5/16-18 x 1.5" Lg.

Part# 710-0442 (Superseded to 710-0805A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

04949

37

463 Frame Rail-L.H.

Part# 04949

OEM Warranty Repair Part for White Outdoor

Not available

04933

38

Front Brace Brkt.

Part# 04933

Not available

710-0118

39

Hex Bolt 5/16-18 x .75" Lg.

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.99

736-0119

40

L-Wash. 5/16" I.D.*

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.41

712-0158

41

Hex Cent. L-Nut 5/16-18 Thd.

Part# 712-0158 (Superseded to 912-0158)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.27

04948

42

463 Frame Rail-R.H.

Part# 04948

OEM Warranty Repair Part for White Outdoor

Not available

750-0470

45

Spacer

Part# 750-0470

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.81

784-0001

46

Tine Shield

Part# 784-0001

OEM Warranty Repair Part for White Outdoor

Not available

784-0092

47

Inner Tine Ass'y. Comp.-R.H.

Part# 784-0092

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

TINE ASSY-INNER-RH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

784-0094

Outer Tine Ass'y. Comp.-R.H.

Part# 784-0094

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

TINE ASSY-OUTER-RH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

784-0091

Inner Tine Ass'y. Comp.-L.H.

Part# 784-0091

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

TINE ASSY-INNER-LH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

784-0093

Outer Tine Ass'y. Comp.-L.H.

Part# 784-0093

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available TINE ASSY-OUTER-LH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

751-0233

48

Deflector

Part# 751-0233 (Superseded to BS-796956)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $9.89

710-0783

49

Hex Self-Tap Scr. #8-32 0 x.38" Lg.

Part# 710-0783

OEM Warranty Repair Part for White Outdoor

Not available

712-0267

51

Hex Nut 5/16-18 Thd.*

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Not available

712-0123

52

Hex Nut 5/16-24 Thd.*

Part# 712-0123 (Superseded to 912-3057)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.76
