RB-530 (216-400-190) - White Outdoor Roto Boss Tiller (1996)

Roto Boss Tiller

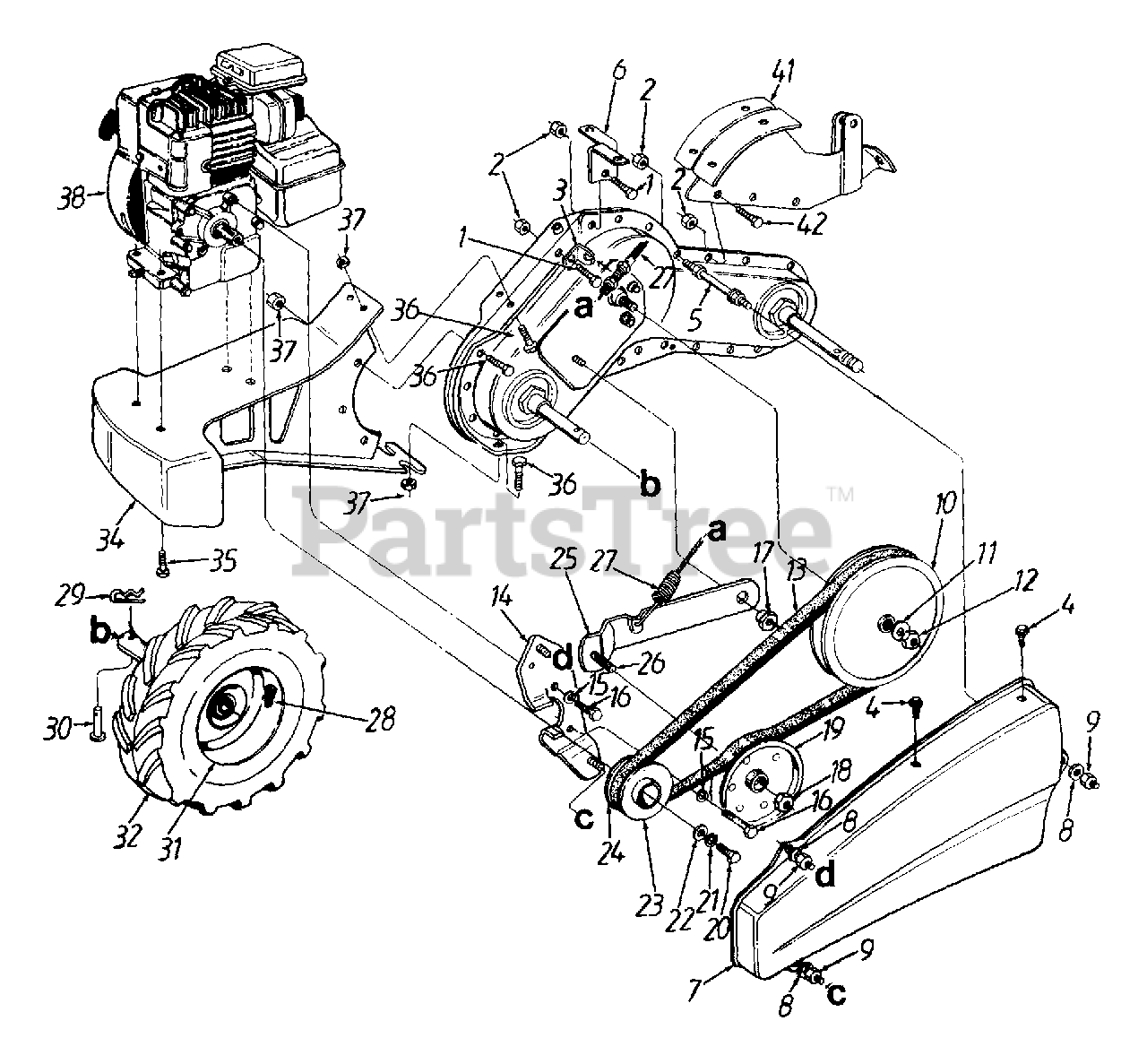

RB-530 (216-400-190) - White Outdoor Roto Boss Tiller (1996) > Parts Diagrams (3) > Engine And Wheel Assembly

  • Title
710-0118

1

Hex Bolt 5/16-18 x .75" Lg.

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

712-3004A

2

Hex Flange Top L-Nut 5/16-18

Part# 712-3004A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.56

786-0107

3

Cable Mtg. Bracket

Part# 786-0107

OEM Warranty Repair Part for White Outdoor

Not available

710-1017

4

Torx Mach. AB-Tap Scr. 1/4 x .6" Lg.

Part# 710-1017

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.37

738-0899

5

Belt Cover Bolt

Part# 738-0899

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $9.47

786-0117

6

Shift Cover Bracket

Part# 786-0117

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET COVER-SHIF

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

786-0100

7

Belt Cover

Part# 786-0100

OEM Warranty Repair Part for White Outdoor

Variations

BRILLIANT GREEN (0480)

COVER BELT

Part# BRILLIANT GREEN (0480)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

COVER-BELT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $92.79

MTD/TROY-BILT RED (0638)

COVER-BELT

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $92.79

CO-OP GREEN (0640)

COVER-BELT

Part# CO-OP GREEN (0640)

OEM Warranty Repair Part for White Outdoor

Not available

TECH GRAY (0648)

COVER-BELT

Part# TECH GRAY (0648)

OEM Warranty Repair Part for White Outdoor

Not available

OYSTER GRAY (0662)

COVER-BELT

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Not available

MIDNIGHT BLUE (0667)

COVER-BELT

Part# MIDNIGHT BLUE (0667)

OEM Warranty Repair Part for White Outdoor

Not available

736-0142

8

Fl-Wash. .281" I.D. x .5" O.D.

Part# 736-0142 (Superseded to 936-0142)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

712-0392

9

Hex Cap Nut 1/4-28 Thd.

Part# 712-0392

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.45

756-0634

10

Flat Pulley 8" O.D.

Part# 756-0634

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $58.96

736-0105

11

Bell-Wash. .38" I.D. x .88" O.D.

Part# 736-0105

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

712-0130

12

Hex Ins. L-Nut 3/8-16 Thd.

Part# 712-0130

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.65

754-0438

13

"V"-Belt

Part# 754-0438 (Superseded to 954-0438)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $41.20

686-0031

14

Belt Keeper Brkt.

Part# 686-0031

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET ASSY-BELT KEEPER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

736-0119

15

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

710-0237

16

Hex Bolt 5/16-24 x .62" Lg.

Part# 710-0237

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

738-0876

17

Shld. Nut

Part# 738-0876 (Superseded to 738-0876A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.07

712-0266

18

Hex Jam L-Nut 3/8-16 Thd.

Part# 712-0266 (Superseded to 712-0266A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.55

756-0405

19

Fl-Idler w/Flanges

Part# 756-0405

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $49.07

710-0152

20

Hex Bolt 3/8-24 x 1" Lg.

Part# 710-0152 (Superseded to 710-1039)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

736-0217

21

L-Wash. 3/8" I.D.

Part# 736-0217 (Superseded to 936-0217)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

736-0258

22

Fl-Wash. 3/8" I.D. x 1" O.D.

Part# 736-0258

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

756-0972

23

Outer Engine Pulley Half

Part# 756-0972

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $10.50

756-0971

24

Inner Engine Pulley Half

Part# 756-0971

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.34

786-0080

25

Idler Bracket

Part# 786-0080

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-IDLER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $15.33

710-0723

26

Hex Bolt 3/8-16 x 1.25" Lg.

Part# 710-0723

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.98

746-0916

27

Clutch Cable

Part# 746-0916 (Superseded to 946-0916)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $37.76

734-0255

28

Air Valve

Part# 734-0255 (Superseded to 934-0255)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.86

714-0104

29

Hairpin Clip

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.85

711-1017

30

Clevis Pin

Part# 711-1017

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.87

634-0108

31

Rim Only

Part# 634-0108

OEM Warranty Repair Part for White Outdoor

Variations

CUB BEIGE (0499)

WHEEL RIM

Part# CUB BEIGE (0499)

OEM Warranty Repair Part for White Outdoor

Not available

OYSTER GRAY (0662)

WHEEL RIM

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN YELLOW (0674)

WHEEL RIM

Part# YARDMAN YELLOW (0674)

OEM Warranty Repair Part for White Outdoor

Not available

634-0106

32

Wheel Ass'y. Comp. - R.H.

Part# 634-0106

OEM Warranty Repair Part for White Outdoor

Variations

Carlisle Gray (0911)

WHEEL ASM COMP-RH

Part# Carlisle Gray (0911)

OEM Warranty Repair Part for White Outdoor

Not available

Dico Gray (0912)

WHEEL ASM COMP-RH

Part# Dico Gray (0912)

OEM Warranty Repair Part for White Outdoor

Not available

Carlisle Beige (0931)

WHEEL ASM COMPL 16

Part# Carlisle Beige (0931)

OEM Warranty Repair Part for White Outdoor

Not available

Carlisle Yellow (0941)

WHEEL ASM COMP-RH

Part# Carlisle Yellow (0941)

OEM Warranty Repair Part for White Outdoor

Not available

Dico Yellow (0942)

WHEEL ASM COMP-RH

Part# Dico Yellow (0942)

OEM Warranty Repair Part for White Outdoor

Not available

634-0107

Wheel Ass'y. Comp. - L.W.

Part# 634-0107

OEM Warranty Repair Part for White Outdoor

Variations

Carlisle Gray (0911)

WHEEL ASM COMP-LH

Part# Carlisle Gray (0911)

OEM Warranty Repair Part for White Outdoor

Not available

Dico Gray (0912)

WHEEL ASM COMP-LH

Part# Dico Gray (0912)

OEM Warranty Repair Part for White Outdoor

Not available

Carlisle Beige (0931)

WHEEL ASM COMPL 16

Part# Carlisle Beige (0931)

OEM Warranty Repair Part for White Outdoor

Not available

Carlisle Yellow (0941)

WHEEL ASM COMP-LH

Part# Carlisle Yellow (0941)

OEM Warranty Repair Part for White Outdoor

Not available

Dico Yellow (0942)

WHEEL ASM COMP-LH

Part# Dico Yellow (0942)

OEM Warranty Repair Part for White Outdoor

Not available

734-1796

Tire Only

Part# 734-1796

OEM Warranty Repair Part for White Outdoor

Variations

Carlisle (0901)

SUPER LUG TIRE 14 X 4.5-6

Part# Carlisle (0901)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $96.68

619-0009

34

Frame Counterweight

Part# 619-0009 (Superseded to 919-0009A)

OEM Warranty Repair Part for White Outdoor

Not available

710-1007

35

Hex L-Wash. TT-Tap Scr. 3/8-16

Part# 710-1007

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.19

710-3002

36

Hex Bolt 5/16-18 x 1" Lg. (Gr. 5)

Part# 710-3002 (Superseded to 710-0376)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.69

712-3004A

37

Hex Flange L-Nut 5/16-18 Thd.

Part# 712-3004A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.56

38

Engine

Part#

Not available

686-0043

41

Tine Shield Brkt. Ass'y.

Part# 686-0043

OEM Warranty Repair Part for White Outdoor

Variations

BRILLIANT GREEN (0480)

BRACKET ASSY TINE

Part# BRILLIANT GREEN (0480)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

BRACKET ASSY TINE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

TECH GRAY (0648)

BRACKET ASSY TINE

Part# TECH GRAY (0648)

OEM Warranty Repair Part for White Outdoor

Not available

710-3038

42

Hex Bolt 5/16-18 x 7/8" Lg.

Part# 710-3038

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.08
