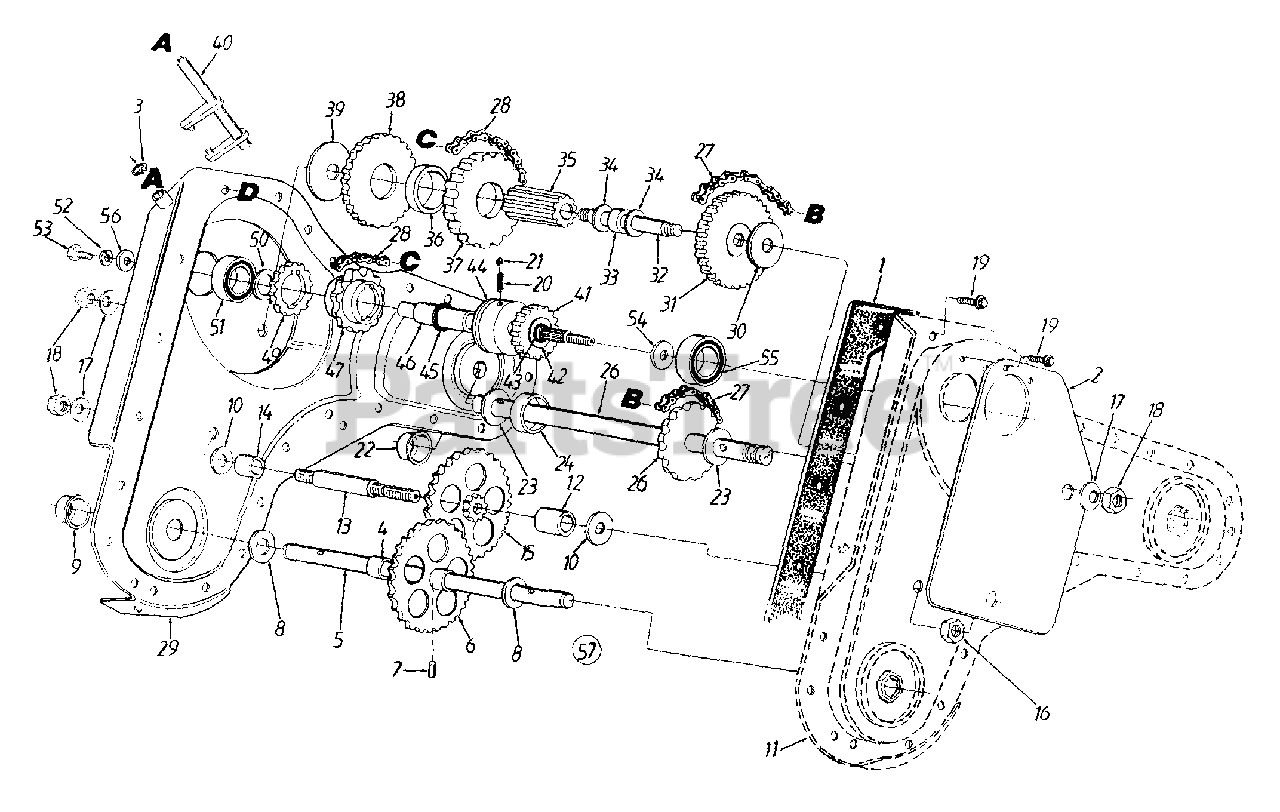

RB-530 (216-400-190) - White Outdoor Roto Boss Tiller (1996) > Parts Diagrams (3) > Gear Case Assembly

  • Title
721-0295

1

Chain Case Gasket

Part# 721-0295

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $48.96

786-0086

2

Reinforcement Plate

Part# 786-0086

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

PLATE REINFORCEMEN

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $22.72

716-0865

3

Snap Ring

Part# 716-0865

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.86

750-0938

4

Spacer .735" I.D. x .886" O.D.

Part# 750-0938 (Superseded to 950-0938)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.79

711-1015

5

Wheel Shaft

Part# 711-1015 (Superseded to 753-0645)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $130.00

717-1406

6

Spur Gear 46T

Part# 717-1406 (Superseded to 753-0645)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $130.00

715-0215

7

Pin Type "E" Grooved

Part# 715-0215

OEM Warranty Repair Part for White Outdoor

Not available

736-0351

8

Fl-Wash. .76" I.D. x 1.5" O.D.

Part# 736-0351 (Superseded to 936-0351)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.88

784-0166

9

Dust Cover Ass'y. .75" Shaft

Part# 784-0166 (Superseded to 721-0379)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $12.67

736-0406

10

Fl-Wash. 7/16" I.D. x 1-3/8" O.D.

Part# 736-0406 (Superseded to 936-0406)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.40

686-0039

11

Gear Case Ass'y. Half - L.H.

Part# 686-0039

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

GEAR CASE ASSEMBLY LH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

750-0935

12

Spacer .635" I.D. x 1" O.D. x .78

Part# 750-0935

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.37

738-0885

13

Jack Shaft 2.06" Lg.

Part# 738-0885

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $33.63

750-0936

14

Spacer .635" I.D. x 1" O.D. x .37" Thk.

Part# 750-0936 (Superseded to 950-0936)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.45

617-0004

15

Gear Idler Ass'y.

Part# 617-0004 (Superseded to 917-0004)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $124.50

712-3067

16

Hex Patch L-Nut 7/16-20 Thd.

Part# 712-3067

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.45

736-0407

17

Bell-Wash. .45" I.D. x 1" O.D.

Part# 736-0407

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.67

712-0378

18

Hex Nut 7/16-20 Thd.

Part# 712-0378

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.44

710-0599

19

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

732-0863

20

Spring Detent

Part# 732-0863 (Superseded to 932-0863)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

741-0862

21

Ball Detent

Part# 741-0862

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

784-0167

22

Dust Cover Ass'y. 1" Shaft

Part# 784-0167 (Superseded to 921-0378)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $12.97

736-0163

23

Thrust Wash. 1.03" I.D. x 1.62"

Part# 736-0163 (Superseded to 936-0163)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.96

750-0570

24

Spacer 1" I.D. x 2" O.D. x .5" Thk.

Part# 750-0570 (Superseded to 950-0570)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.53

611-0021

26

Tine Shaft Ass'y.

Part# 611-0021 (Superseded to 611-0021A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $100.65

713-0226

27

Chain - #50 5/8" Pitch x 52 Links - Endless

Part# 713-0226 (Superseded to 913-0226)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $74.84

713-0223

28

Chain - #41 1/2" Pitch x 30 Links - Endless

Part# 713-0223 (Superseded to 713-0233)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $26.81

686-0038

29

Gear Case Ass'y. Half - R.H.

Part# 686-0038

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

GEAR CASE ASSEMBLY RH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

GEAR CASE ASSEMBLY RH

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

736-0406

30

Fl-Wash. 7/16" I.D. x 1-3/8" O.D.

Part# 736-0406 (Superseded to 936-0406)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.40

617-0002

31

Gear and Sprocket Ass'y.

Part# 617-0002 (Superseded to 917-0003)

OEM Warranty Repair Part for White Outdoor

Not available

738-0884

32

Jack Shaft 5" Lg.

Part# 738-0884

OEM Warranty Repair Part for White Outdoor

Not available

750-0931

33

Spacer .636" I.D. x .86" O D.

Part# 750-0931

OEM Warranty Repair Part for White Outdoor

Not available

736-0302

34

Fl-Wash. .63" I.D. x .94" O.D.

Part# 736-0302

OEM Warranty Repair Part for White Outdoor

Not available

717-1411

35

Spur Gear 10T

Part# 717-1411 (Superseded to 917-1411)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $24.13

750-0930

36

Spacer 1.5" I.D. x 1.76" O.D.

Part# 750-0930 (Superseded to 950-0930)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.73

713-0436

37

Sprocket - #41 Chain

Part# 713-0436

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $20.57

717-1405

38

Reverse Gear 46T

Part# 717-1405

OEM Warranty Repair Part for White Outdoor

Not available

736-0518

39

Thrust Wash. .445" I.D. x 1.92"

Part# 736-0518

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.20

618-0105

40

Shifter Ass'y.

Part# 618-0105 (Superseded to 753-0869)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $115.29

717-1409

41

Spur Gear 17T

Part# 717-1409

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $14.27

736-0442

42

Fl-Wash. .69" I.D. x 1.06" O.D.

Part# 736-0442

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.73

716-0234

43

Retaining Ring .669" Shaft

Part# 716-0234 (Superseded to 916-0234)

OEM Warranty Repair Part for White Outdoor

Not available

718-0234

44

Clutch Collar

Part# 718-0234

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $35.39

716-0235

45

Retaining Ring .875" Shaft

Part# 716-0235 (Superseded to 916-0235)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.73

711-0952

46

Drive Shaft

Part# 711-0952 (Superseded to 753-0661)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $137.23

713-0435

47

Sprocket 11T

Part# 713-0435

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $13.97

717-1451

49

Spur Gear 16T

Part# 717-1451 (Superseded to 717-1451A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $19.32

736-0336

50

Fl-Wash. 5/8" I.D. x 1" O.D.

Part# 736-0336 (Superseded to 936-0336)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

741-0124

51

Ball Bearing .669" I.D.

Part# 741-0124 (Superseded to 941-0600)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $17.13

736-00329

52

L-Wash. 1/4" I.D.

Part# 736-00329

Not available

710-0258

53

Hex Bolt 1/4-20 x .62" Lg.

Part# 710-0258 (Superseded to 710-0751)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.66

736-0511

54

Fl-Wash. .635" I.D. x 1" O.D.

Part# 736-0511

Not available

741-0563

55

Ball Bearing

Part# 741-0563 (Superseded to 941-0563)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $26.08

736-0512

56

Fl-Wash. .281" I.D. x .875" O.D.

Part# 736-0512

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.97

686-0040

57

Gear Case Ass'y. Comp.

Part# 686-0040

OEM Warranty Repair Part for White Outdoor

Not available

718-0227

?58

Key - Drive Shaft

Part# 718-0227

Note: (Not shown)

Not available
