RB-530 (216-403-190) - White Outdoor Roto Boss Tiller (1986) Chain Case Assembly Parts Diagram

Roto Boss Tiller

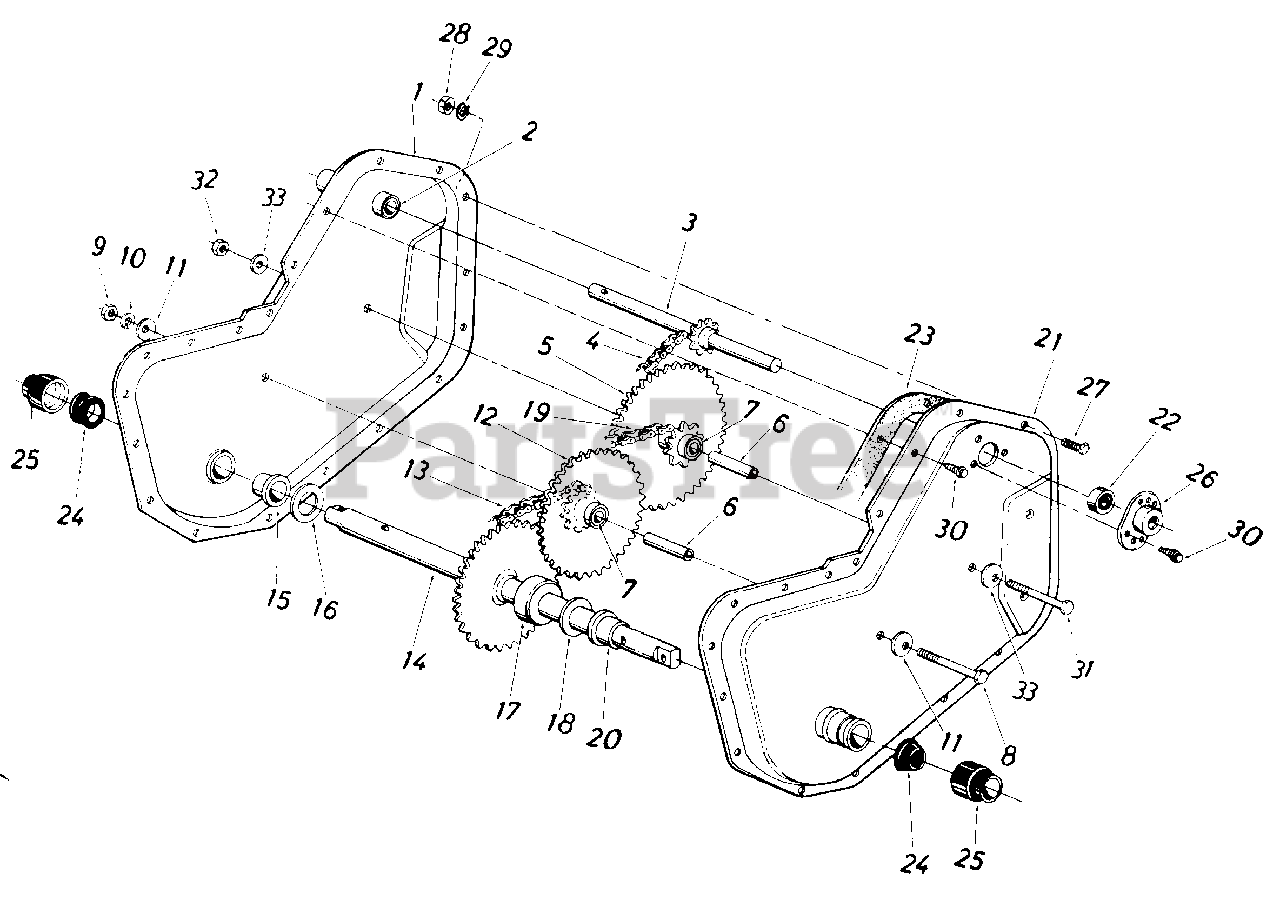

Chain Case Assembly Parts Diagram

  • Title

1

White Outdoor 14962

Chain Case Half Ass'y.-R.H.

$

$

Not available

2

White Outdoor 748-0154

Bearing 5/8" I.D. x .813" O.D. x 1.31" Lg.

$

$

Not available

3

White Outdoor 14960

Input Shaft Ass'y.

$

$

Not available

4

White Outdoor 713-0325

Chain #35-3/8" Pitch x 44 Links
(Superseded to 913-0325)

$

$

Not available

5

713-0316

Sprocket and Hub Ass'y.

$

$

Not available

6

White Outdoor 750-0351

Bearing Inner Axle

$

$

Not available

7

White Outdoor 741-0228

Sleeve Brg. 5/8" I.D. x 3/4" O.D. x 1.50
(Superseded to 941-0228)

$

$

Not available

8

White Outdoor 710-0369

Hex Bolt 3/8-24 x 2.50" Lg.

$5.99

$

Usually ships in 3-6 days

0

9

White Outdoor 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 7

0

10

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

11

White Outdoor 736-0219

Bell-Wash. .41" I.D. x 1.13" O.D. x .03
(Superseded to 936-0219)

$3.99

$

In Stock, only 1 left!

0

12

White Outdoor 713-0330

Sprocket & Hub Ass'y. 9T-22T

$

$

Not available

13

White Outdoor 713-0326

#420 Chain 1/2 Pitch x 28 Links Endless
(Superseded to 913-0326)

$

$

Not available

14

White Outdoor 784-0095

Wheel Shaft Ass'y.

$

$

Not available

15

White Outdoor 741-0227

Flange Bearing

$10.99

$

In Stock, Qty 20+

0

16

White Outdoor 736-0265

Fl-Wash. .88" I.D. x 1.5" O.D. x .03

$

$

Not available

17

White Outdoor 750-0354

Spacer 7/8" I.D. x 13/4" O.D. x.68" Lg.
(Superseded to 750-0354A)

$

$

Not available

18

White Outdoor 736-0265

Fl-Wash. .88" I.D. x 1.50" O.D. x .03

$

$

Not available

19

White Outdoor 713-0267

#420 Chain 1/2" Pitch x 30 Links Endless

$

$

Not available

20

White Outdoor 741-0227

Flange Bearing

$10.99

$

In Stock, Qty 20+

0

21

White Outdoor 15797

Chain Case Half Ass'y.-L.H.

Variations

White Outdoor 15797-0637

No Longer Available HOUSING-WHEEL-LH-C - POWDER BLACK (0637)

$

$

Not available

$

$

22

White Outdoor 741-0155

Bearing
(Superseded to 941-0155)

$22.99

$

In Stock, Qty 20+

0

23

White Outdoor 721-0156

Gasket
(Superseded to 921-0156A)

$

$

Not available

24

White Outdoor 721-0157

Seal

$

$

Not available

25

White Outdoor 731-0486

Dust Cup

$

$

Not available

26

White Outdoor 05034

Bearing Housing
(Superseded to 05034A)

$

$

Not available

27

White Outdoor 710-0195

Hex Bolt 1/4-28 x 5/8" Lg.
(Superseded to 910-0195)

$3.49

$

In Stock, only 1 left!

0

28

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$6.49

$

Usually ships in 3-6 days

0

29

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

30

White Outdoor 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x.50" Lg.

$3.99

$

In Stock, Qty 20+

0

31

White Outdoor 710-0378

Hex Bolt 5/16-18 x 2.5" Lg.

$4.49

$

In Stock, only 3 left!

0

32

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

33

White Outdoor 736-0159

Fl.-Wash. 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0

White Outdoor 737-0133

Grease-Plastilube #0
(Superseded to 737-0300A)

Note: (10 oz.)

$32.99

$

In Stock, Qty 20+

0

784-0102

Wheel Chain Case Ass'y. Comp.

$

$

Not available
