RB-530 (216-403-190) - White Outdoor Roto Boss Tiller (1986) Wheel & Drive Assembly Parts Diagram

Roto Boss Tiller

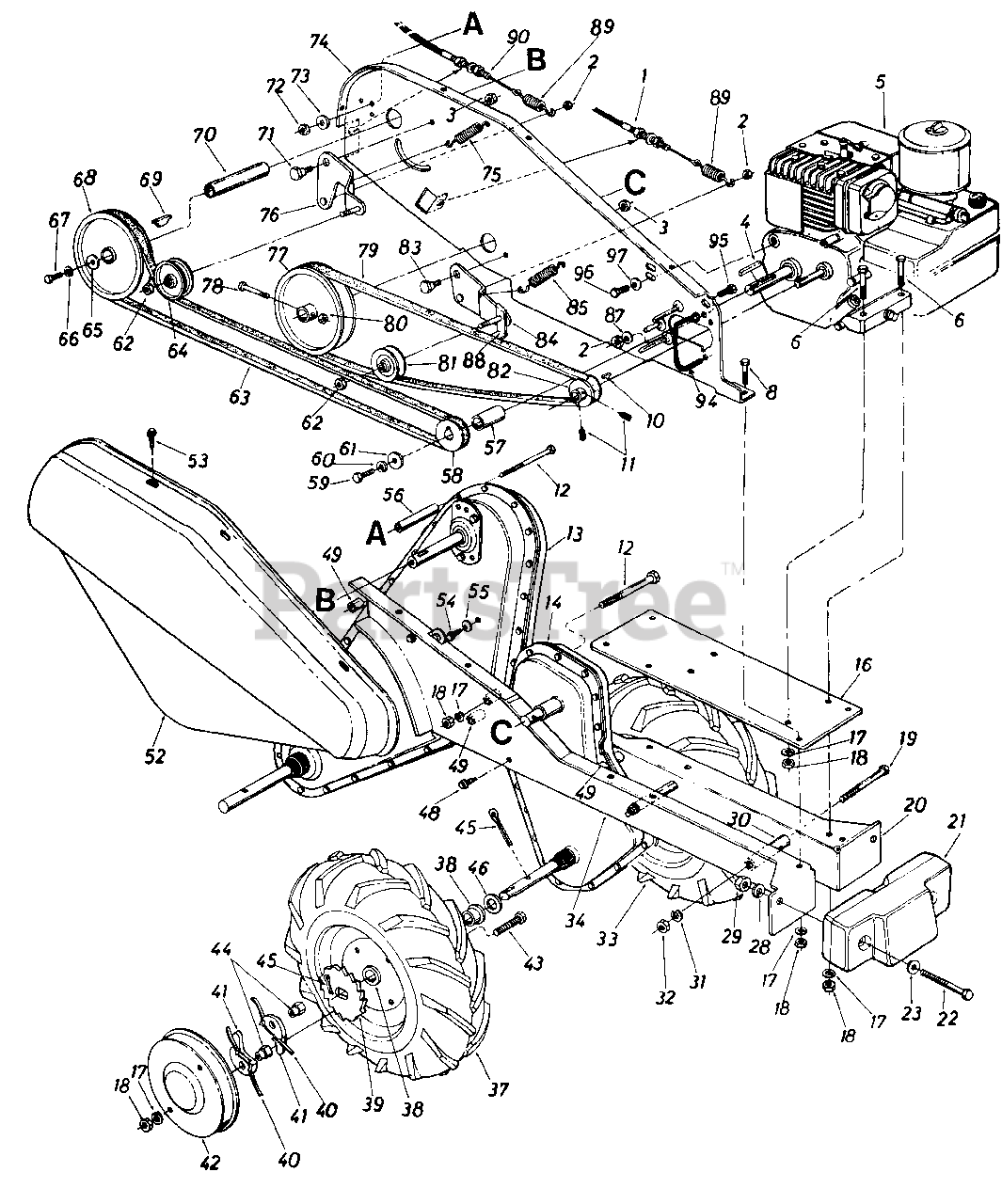

Wheel & Drive Assembly Parts Diagram

  • Title

1

White Outdoor 746-0484

Clutch Control Cable
(Superseded to 946-0484)

$61.99

$

In Stock, Qty 14

0

2

White Outdoor 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

3

White Outdoor 712-0266

Hex Cent. L-Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

4

White Outdoor 714-0122

Sq. Key 3/16" Dia. x .75

$3.49

$

In Stock, Qty 17

0

5

Eng i ne

$

$

Not available

6

White Outdoor 710-0442

Hex Bolt 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

$3.99

$

In Stock, only 2 left!

0

8

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 714-0131

Hi-Pro Key #5 Woodruff

$

$

Not available

11

White Outdoor 710-0938

Set Scr. 1/4-28 x .25" Lg.

$

$

Not available

12

White Outdoor 710-0189

Hex Bolt 5/16-18 x 3.0" Lg.

$5.99

$

In Stock, Qty 5

0

13

White Outdoor 14981

Chain Case Ass'y. Comp.- 0 Ti nes

Variations

White Outdoor 14981-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

14

784-0102

Chaln Case Ass'y. Comp.- 0 Wheels

$

$

Not available

16

White Outdoor 14973

Engine Mounting Plate

Variations

White Outdoor 14973-0637

No Longer Available PLATE-MTG-ENG - POWDER BLACK (0637)

$

$

Not available

$

$

17

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

19

White Outdoor 710-0830

Hex Bolt 3/8-24 x 3.0" Lg.

$

$

Not available

20

White Outdoor 14975

Frame Rail-L.H.

Variations

White Outdoor 14975-0637

No Longer Available RAIL-FRAME-LH - POWDER BLACK (0637)

$

$

Not available

$

$

21

White Outdoor 723-0340

Counter Weight

$

$

Not available

22

White Outdoor 710-0786

Hex Bolt 1/2-13 x 4.0" Lg.

$15.99

$

Usually ships in 3-6 days

0

23

White Outdoor 736-0326

Fl-Wash. 1/2" I.D. x 1.0" O.D.

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 736-0921

L-Wash 1/2" I.D.

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 712-0206

Hex Nut 1/2-13 Thd.

$3.99

$

In Stock, Qty 20+

0

30

750-0579

Spacer 3/8" I.D. x 5/8" O.D. x 2.18" Lg.

$

$

Not available

31

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

32

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

33

734-1129

Comp. Wheel Ass'y.-L.H.

$

$

Not available

34

White Outdoor 14974

Frame Rail-R.H.

Variations

White Outdoor 14974-0637

No Longer Available RAIL-FRAME-RH - POWDER BLACK (0637)

$

$

Not available

$

$

37

734-1130

Comp. Wheel Ass1y.-R.H.

$

$

Not available

38

White Outdoor 741-0227

Flange Brg. 7/8" I.D. x 1.12" Lg.

$10.99

$

In Stock, Qty 20+

0

39

White Outdoor 748-0292

Ratchet Wheel

$

$

Not available

40

White Outdoor 10622

Nylon Spring
(Superseded to 10622BP)

$4.49

$

In Stock, Qty 20+

0

41

White Outdoor 748-0291

Pawl .44" I.D.
(Superseded to 948-0291A)

$14.99

$

In Stock, Qty 6

0

42

White Outdoor 14967

Wheel Cover

$

$

Not available

43

White Outdoor 710-0874

Hex Nut 5/16-18 x 1.25" Lg.

$6.49

$

Usually ships in 3-6 days

0

44

White Outdoor 712-0329

Special Hex Nut 5/16-24 Thd.

$

$

Not available

45

White Outdoor 714-0470

Cotter Pin 1/8" Dia. x 1.25" Lg.*

$3.99

$

In Stock, Qty 20+

0

46

White Outdoor 736-0214

Fl-Wash. 7/8" I.D. x 1-3/8" O.D. x .06

$

$

Not available

48

White Outdoor 710-0600

Hex Wash. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

49

White Outdoor 750-0470

Spacer 5/16" I.D. x 16 Ga. x.96" Lg.

$6.49

$

Usually ships in 3-6 days

0

52

14980-615

Belt Cover

$

$

Not available

53

White Outdoor 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x.50" Lg.

$3.99

$

In Stock, Qty 20+

0

54

White Outdoor 710-0653

Hex Wash. S-Tap Scr. 1/4-20 x 3/8" Lg.

$4.49

$

In Stock, Qty 16

0

55

White Outdoor 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 15

0

56

750-0219

Spacer 3/8" I.D. x 1/2" O.D. x2.0" Lg.

$

$

Not available

57

White Outdoor 750-0442

Spacer 3/4" I.D. x 1.12" O.D. x 1.56" Lg.

$

$

Not available

58

White Outdoor 756-0396

1/2" "V"-4L Pulley 314" I.D. x 2.59 " O.D.

$

$

Not available

59

White Outdoor 710-0152

Hex Bolt 3/8-24 x 1.00" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 11

0

60

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

61

White Outdoor 736-0133

Fl-Wash. 3/8" I.D. x 1.25" O.D.

$4.99

$

In Stock, Qty 7

0

62

White Outdoor 712-0116

Hex L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 7

0

63

White Outdoor 754-0195

'V"-Belt 1/2" X 54" Lg.
(Superseded to 954-0195A)

$54.99

$

In Stock, Qty 8

0

64

White Outdoor 756-0405

Fl-ldler Pulley 3.75" O.D. x 3/8" I.D.

$66.99

$

Usually ships in 3-6 days

0

65

White Outdoor 736-0176

Fl-Wash. .25" I.D. x .93" O.D. x .1 20

$3.99

$

In Stock, Qty 20+

0

66

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

67

White Outdoor 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.49

$

In Stock, Qty 9

0

68

White Outdoor 756-0389

Split Pulley 6" Dia. x 5/8" I . D.
(Superseded to 756-0389A)

$

$

Not available

69

White Outdoor 714-0388

Hi-Pro Key
(Superseded to 914-0388)

$7.49

$

In Stock, Qty 8

0

70

White Outdoor 750-0472

Spacer

$

$

Not available

71

White Outdoor 738-0183

Shld. Bolt 1/2" Dia. x .210" Lg.
(Superseded to 938-0183)

$

$

Not available

72

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

73

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

74

White Outdoor 14991

Side Plate Ass'y.

$

$

Not available

75

White Outdoor 732-0445

Ext. Spring .50" O.D. x 1.55" Lg.

$8.49

$

In Stock, only 2 left!

0

76

14971

Idler Bracket Ass'y.-Tines

$

$

Not available

77

756-0387

Pulley 6" Dia. x 5/8" I.D.

$

$

Not available

78

White Outdoor 710-0698

Hex Bolt 1/4-28 x 1.50" Lg.

$

$

Not available

79

White Outdoor 754-0207

"V"-Belt 1/2" X 42" Lg.

$

$

Not available

80

White Outdoor 712-0117

Hex Cent. L-Nut 1/4-28 Thd.
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

81

White Outdoor 756-0166

"V"-ldler Pulley 2-5/8" O.D.
(Superseded to 756-1035A)

$32.99

$

In Stock, only 4 left!

0

82

White Outdoor 756-0386

1/2" "V"-Pulley 2-1/4" O.D. x .50" I.D.

$

$

Not available

83

White Outdoor 738-0147

Shld. Bolt 1/2" Dia. x .160" Lg.

$

$

Not available

84

White Outdoor 14969

Idler Bracket Ass'y-Whee I s

$

$

Not available

85

White Outdoor 732-0444

Ext. Spring .50" O.D. x 1.97" Lg.
(Superseded to 732-0445)

$8.49

$

In Stock, only 2 left!

0

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

87

White Outdoor 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 15

0

88

White Outdoor 15399

Belt Keeper Ass'y.

$

$

Not available

89

White Outdoor 732-0387

Ext. Spring

$

$

Not available

90

White Outdoor 746-0484

Clutch Control Cable
(Superseded to 946-0484)

$61.99

$

In Stock, Qty 14

0

94

747-0507

Belt Keeper

$

$

Not available

95

White Outdoor 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, only 1 left!

0

96

White Outdoor 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

97

White Outdoor 736-0242

Bell-Wash. 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0
