RB-580 (212-430-190) - White Outdoor Roto Boss Tiller (1992) Rail & Belts Parts Diagram

Roto Boss Tiller

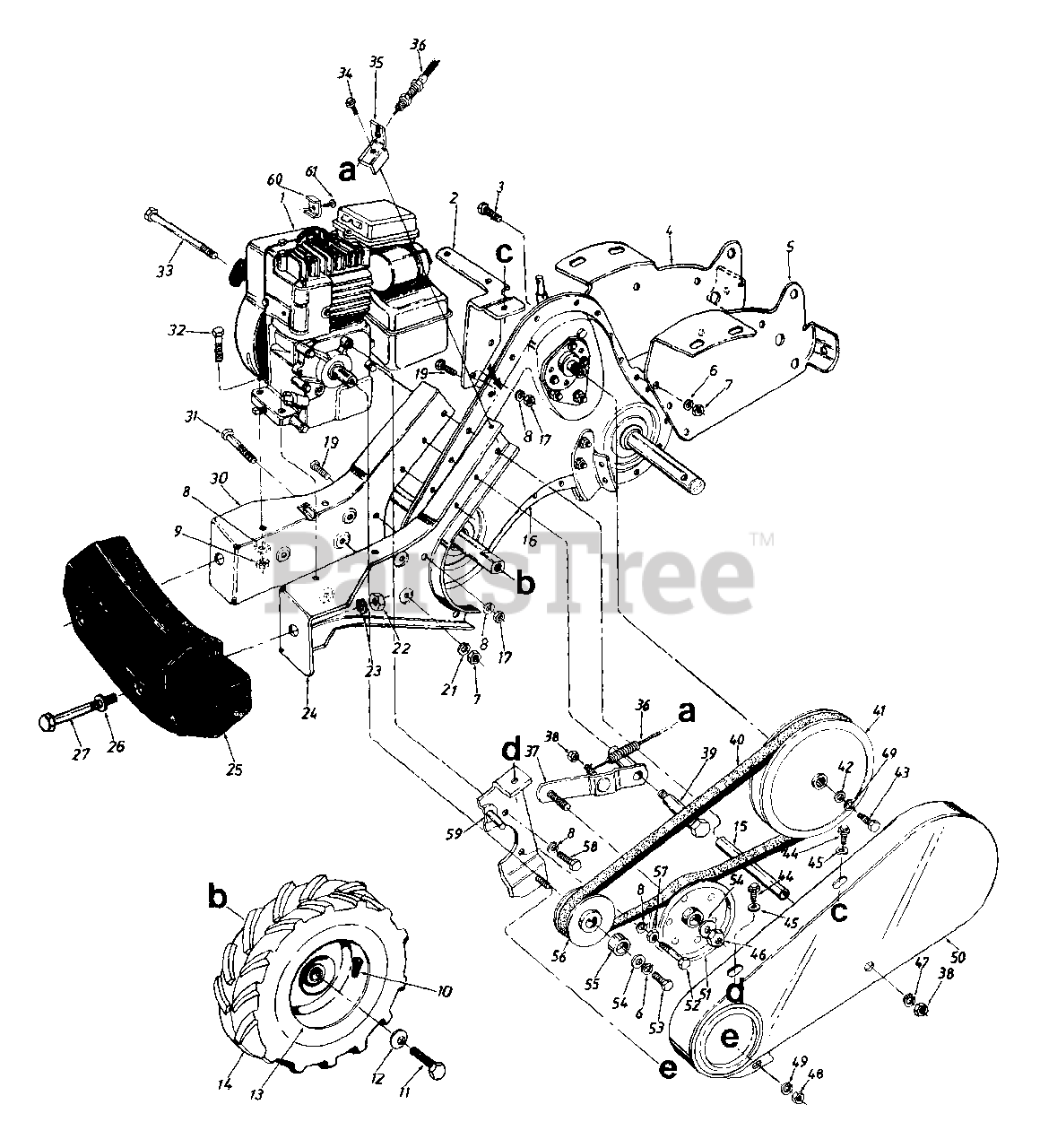

Rail & Belts Parts Diagram

  • Title

1

Engine

$

$

Not available

2

MTD 784-0199A

Belt Cover Mounting Brkt.

Note: NLA

Variations

MTD 784-0199A-0637

No Longer Available BRACKET-MT - POWDER BLACK (0637)

$

$

Not available

MTD 784-0199A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-0199A-0640

No Longer Available - CO-OP GREEN (0640)

$

$

Not available

$

$

3

MTD 910-0253

Hex Bolt 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

4

MTD 784-0178-0637

Tine Shield Mtg. Brkt. - R.H.

$

$

Not available

5

MTD 784-0177

Tine Shield Mtg. Brkt. - L.H.

Note: NLA

Variations

MTD 784-0177-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-0177-0637

No Longer Available BRACKET-MT - POWDER BLACK (0637)

$

$

Not available

MTD 784-0177-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-0177-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

6

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

7

MTD 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

8

MTD 936-0119

L-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

9

MTD 912-0267

Hex Nut 5/16-18" Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

10

MTD 934-0255

Air Valve

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

12

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$3.99

$

In Stock, Qty 20+

0

13

MTD 734-1376

Wheel Rim Ass'y. Only

Note: NLA

$

$

Currently unavailable

14

MTD 734-1377

L.H. Wheel Ass'y. Comp.

Note: NLA

$

$

Not available

14

MTD 734-1378

R.H. Wheel Ass'y. Comp.

Note: NLA

$

$

Currently unavailable

14

MTD 734-1154-0901

Tire Only 13 x 5.0

$

$

Not available

15

MTD 750-0688

Spacer 3/8" I.D. x 3.38" Lg.

Note: NLA

$

$

Not available

16

MTD 784-0150

Transmission Comp.

Note: NLA

$

$

Not available

17

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

21

MTD 936-0217

L-Wash. 3/8" I.D. - H.D.
(Superseded to 736-0217)

$3.99

$

In Stock, Qty 13

0

22

MTD 912-0206

Hex Nut 1/2-13 Thd.
(Superseded to 712-0206)

$3.99

$

In Stock, Qty 20+

0

23

MTD 936-0921

L-Wash. 1/2" I.D.
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 20+

0

24

MTD 784-0155

Engine Mounting Rail - R.H.

Note: NLA

Variations

MTD 784-0155-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0155-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 784-0155-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

25

MTD 723-0381

#40 Counter Weight

$

$

Not available

26

MTD 936-0326

Fl-Wash. .510" I.D. x 1.0"
(Superseded to 736-0326)

$4.49

$

In Stock, Qty 20+

0

27

MTD 710-0382

Hex Bolt 1/2-13 x 5.00" Lg.

$11.99

$

In Stock, only 2 left!

0

30

MTD 784-0154

Engine Mounting Rail - L.H.

Note: NLA

Variations

MTD 784-0154-0498

No Longer Available RAIL-ENGIN - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0154-0637

No Longer Available RAIL-ENGIN - POWDER BLACK (0637)

$

$

Not available

MTD 784-0154-0665

No Longer Available RAIL-ENGIN - YARDMAN GREEN (0665)

$

$

Not available

$

$

31

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$3.99

$

In Stock, Qty 17

0

32

MTD 710-0805

Hex Bolt 5/16-18 x 1.50"
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

33

MTD 710-0974

Hex Bolt 5/16-18 x 4.75" Lg. - Gr. 2

$11.99

$

Usually ships in 3-6 days

0

34

MTD 710-0604A

Hex Wash. TT-Tap Scr. 5/16-18 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

35

MTD 784-0203

Bracket Clutch Cable

Note: NLA

$

$

Not available

36

MTD 946-0612

Clutch Control Cable 53" Lg.

$66.99

$

In Stock, only 4 left!

0

37

MTD 784-0175

Idler Bracket Ass'y.

Note: NLA

Variations

MTD 784-0175-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

38

MTD 912-0158

Hex Cent. L-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 19

0

39

MTD 738-0681

Shld. Bolt .500" Dia. x 2.27"

Note: NLA

$

$

Not available

40

MTD 954-0325

V-Belt

$

$

Not available

41

MTD 756-0472

V-Pulley Split 5/8" I.D.

Note: NLA

$

$

Not available

42

MTD 936-0176

Fl-Wash. 1/4" I.D. x .93" O.D.
(Superseded to 736-0176)

$3.99

$

In Stock, Qty 20+

0

43

MTD 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.49

$

In Stock, Qty 9

0

44

MTD 710-0599

Hex Wash. Hd. S-Tap Scr. 1/4-20 x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

45

MTD 936-0463

Fl-Wash. .281" I.D. x .625"
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

46

MTD 712-0262

Hex Cent. L-Nut 3/8-24 Thd.

$3.99

$

In Stock, Qty 20+

0

47

MTD 936-0123

Fl-Wash. 5/16" I.D.

$5.99

$

Usually ships in 3-6 days

0

48

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.49

$

In Stock, only 2 left!

0

49

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 13

0

50

MTD 784-0158A

Belt Cover
(Superseded to 784-0158B)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-0158A-0638

COVER-BELT - MTD/TROY-BILT RED (0638)

$88.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0498

Belt Cover, Yellow - OLD CUB YELLOW (0498)

$88.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0716

Belt Cover, Yellow - CUB YELLOW-99 (0716)

$88.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-4021

Belt Cover, Yellow - CUB YELLOW 2 (4021)

$88.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0606

COVER-BELT - MAJESTIC ORANGE (0606)

$88.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0640

COVER-BELT - CO-OP GREEN (0640)

$88.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0650

COVER-BELT - RED METALLIC (0650)

$71.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0662

COVER-BELT - OYSTER GRAY (0662)

$88.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0665

COVER-BELT - YARDMAN GREEN (0665)

$82.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0691

COVER-BELT - BLACK JACK (0691)

$88.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0709

COVER-BELT - MASTERCRAFT GREEN (0709)

$71.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-4015

COVER-BELT - FIRE RED (4015)

$88.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

51

MTD 756-0405

Fl-Idler w/Flanges 3.75" O.D.

$66.99

$

Usually ships in 3-6 days

0

52

MTD 710-0409

Hex Bolt 5/16-24 x 1.75"

$4.49

$

Usually ships in 3-6 days

0

53

MTD 710-1039

Hex Bolt 3/8-24 x 1.00" Lg.

$4.49

$

In Stock, Qty 11

0

54

MTD 736-0258

Fl-Wash. 3/8" I.D. x 1.00"

$4.49

$

In Stock, only 1 left!

0

55

MTD 750-0345

Spacer .758" I.D. x .990"

Note: NLA

$

$

Not available

56

MTD 748-0282

Engine Pulley

Note: NLA

$

$

Not available

57

MTD 912-3057

Hex Nut 5/16-24 Thd.

$6.49

$

In Stock, Qty 13

0

58

MTD 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

59

MTD 784-0197

Belt Keeper Ass'y.

Note: NLA

Variations

MTD 784-0197-0637

No Longer Available GUIDE ASM - POWDER BLACK (0637)

$

$

Not available

$

$

60

MTD 751B221535

Casing Clamp

$9.49

$

In Stock, Qty 20+

0

61

MTD 710-0899A

Hex Sems Scr. #10-32 x .62"

$6.49

$

Usually ships in 3-6 days

0

MTD 777-6589

580 Belt Guard Label

Note: NLA

$

$

Currently unavailable

MTD 777-6549

Plastic Logo on Engine

Note: NLA

$

$

Not available

MTD 777-7028

5 H.P. Engine Label

Note: NLA

$

$

Currently unavailable

MTD 777-5877C

Handle Panel Label

Note: NLA

$

$

Currently unavailable

MTD 777-5876B

F-N-R Label

Note: NLA

$

$

Currently unavailable

MTD 777-5913

Throttle Label

Note: NLA

$

$

Currently unavailable

MTD 777-4450

Tine Shield Caution Label

Note: NLA

$

$

Currently unavailable

MTD 777-9675

Tilling Depth Label

Note: NLA

$

$

Currently unavailable

MTD 777-6550

Plastic Logo - Handle Panel

Note: NLA

$

$

Not available
