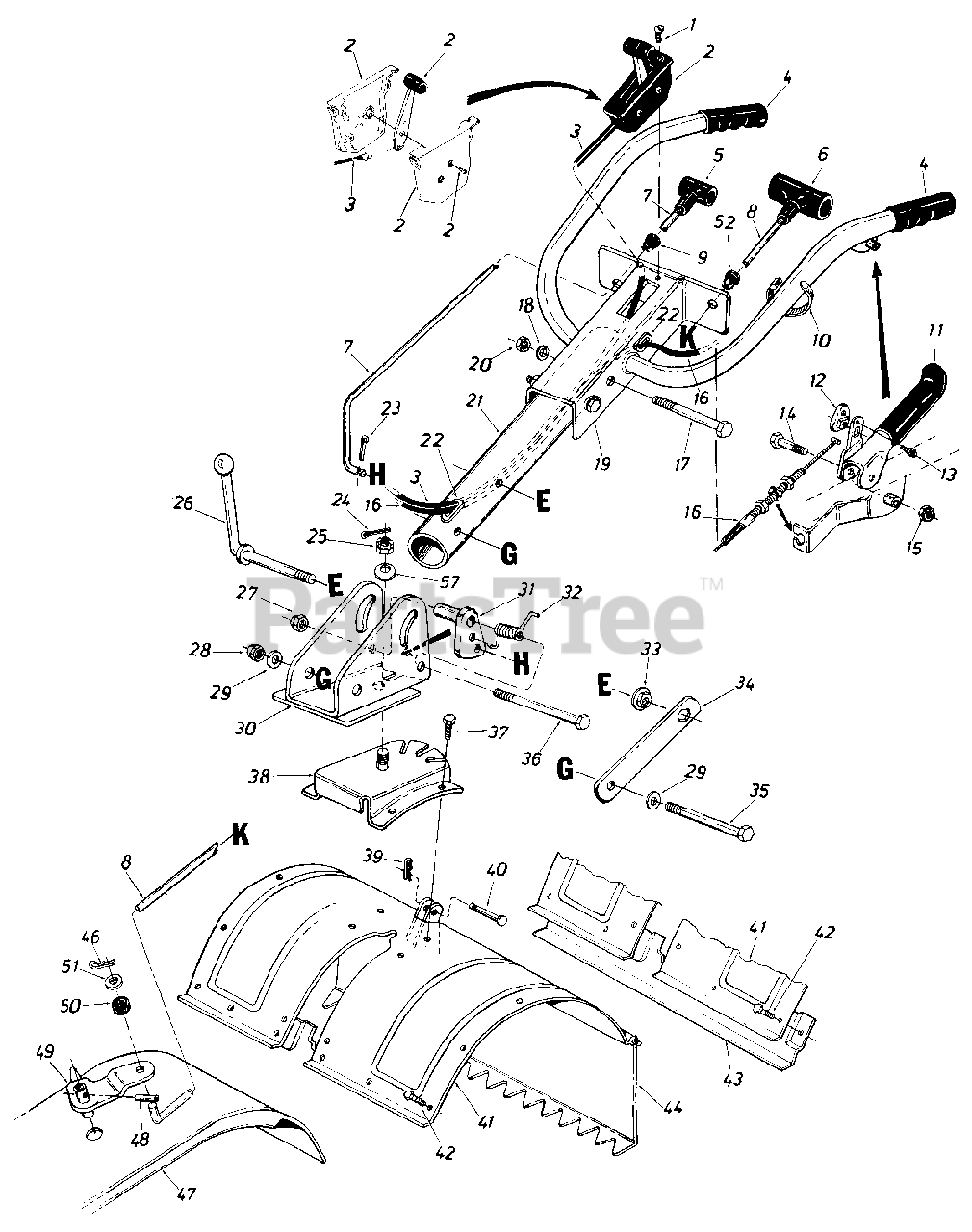

RB-580 (217-430-190) - White Outdoor Roto Boss Tiller (1987) Handle Assembly Parts Diagram

Roto Boss Tiller

Handle Assembly Parts Diagram

  • Title

1

White Outdoor 710-0779

Truss Mach. AB-Tap. Scr. #10 x .50" Lg.
(Superseded to 710-0779A)

$4.49

$

In Stock, Qty 12

0

2

White Outdoor 831-0823

Throttle Control Box Ass'y.
(Superseded to 831-0823A)

$30.99

$

In Stock, Qty 20+

0

3

White Outdoor 746-0513

Throttle Control Wire
(Superseded to 946-0513B)

$18.99

$

In Stock, Qty 11

0

4

White Outdoor 720-0180

Handle Grip
(Superseded to 720-04083)

$13.99

$

In Stock, only 3 left!

0

5

White Outdoor 720-0210

Small "T" Knob
(Superseded to 720-0210A)

$14.99

$

In Stock, Qty 6

0

6

White Outdoor 720-0209

Large "T" Knob

$20.99

$

Usually ships in 3-6 days

0

7

White Outdoor 747-0666

Clutch Rod

$23.99

$

Usually ships in 3-6 days

0

8

White Outdoor 747-0664

Control Rod .33 Dia. x 37" Lg.

$21.99

$

Usually ships in 3-6 days

0

9

White Outdoor 735-0228

Snap On Bushing 3/8" Dia.

$

$

Not available

10

White Outdoor 725-0157

Cable Tie-Self Clinching

$3.49

$

In Stock, only 4 left!

0

11

White Outdoor 784-0202

Clutch Grip Ass'y.-L.H.
(Superseded to 684-04399A-0637)

$31.99

$

In Stock, Qty 5

0

12

White Outdoor 746-0605

Barrel Cable Hold Down
(Superseded to 946-0605)

$3.99

$

In Stock, Qty 16

0

13

White Outdoor 710-0919

Hex B-Tap Scr. #10 x .44" Lg.

$4.49

$

In Stock, Qty 12

0

14

White Outdoor 710-0427

Hex Bolt 3/8-16 x 2.0" Lg.*
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 712-0266

Hex Cent. L-Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 746-0612

Clutch Control Cable 53" Lg.
(Superseded to 946-0612)

$66.99

$

In Stock, only 4 left!

0

17

White Outdoor 710-0194

Hex Bolt 3/8-16 x 3.00" Lg.*

$

$

Not available

18

White Outdoor 736-0217

L-Wash. 3/8" I.D.-H.D.

$3.99

$

In Stock, Qty 13

0

19

White Outdoor 784-0185

Handle Ass'y.
(Superseded to 649-0030-0638)

Variations

White Outdoor 784-0185-0638

HANDLE ASSY W/THROTTLE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 784-0185-0665

HANDLE ASSY W/THROTTLE - YARDMAN GREEN (0665)

$

$

Not available

$

$

20

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

21

White Outdoor 784-0189

Handle Tubing Ass'y.

Variations

White Outdoor 784-0189-0480

TUBING ASSY HANDLE - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 784-0189-0498

TUBING ASSY HANDLE - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 784-0189-0637

TUBING ASSY HANDLE - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-0189-0638

TUBING ASSY HANDLE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 784-0189-0648

TUBING ASSY HANDLE - TECH GRAY (0648)

$

$

Not available

White Outdoor 784-0189-0650

TUBING ASSY HANDLE - RED METALLIC (0650)

$

$

Not available

White Outdoor 784-0189-0662

TUBING ASSY HANDLE - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 784-0189-0665

TUBING ASSY HANDLE - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 784-0189-0691

TUBING ASSY HANDLE - BLACK JACK (0691)

$

$

Not available

White Outdoor 784-0189-4015

TUBING ASSY HANDLE - FIRE RED (4015)

$

$

Not available

$

$

22

White Outdoor 735-0226

Rubber Grommet .66" I.D. x 1.12" O.D.

$9.99

$

Usually ships in 3-6 days

0

23

White Outdoor 714-0507

Cotter Pin 3/32" Dia. x .75"-Lg.*

$4.49

$

In Stock, only 4 left!

0

24

White Outdoor 714-0111

Cotter Pin 3/32" Dia. x 1.25" Lg. *

$4.49

$

In Stock, Qty 20+

0

25

White Outdoor 712-0386

Hex Slotted Nut 5/8-18 Thd.
(Superseded to 712-0386A)

$7.49

$

Usually ships in 3-6 days

0

26

White Outdoor 784-0190

Handle Adj. Crank

$22.99

$

Usually ships in 3-6 days

0

27

White Outdoor 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

28

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

29

White Outdoor 736-0105

Bell-Wash. .400" I.D. x .87" O.D.

$3.99

$

In Stock, Qty 20+

0

30

White Outdoor 784-0182

Handle Pivot Bracket
(Superseded to 684-0263A-0637)

$

$

Not available

31

White Outdoor 784-0183

Positioner Crank Ass'y.

$

$

Not available

32

White Outdoor 732-0493

Spring Handle Adj.

Note: (Torsion)

$15.99

$

Usually ships in 3-6 days

0

33

White Outdoor 712-0379

Hex Flange Nut 3/8-24 Thd.

$4.49

$

Usually ships in 3-6 days

0

34

White Outdoor 784-0191

Bracket Hex Nut Retainer

$6.99

$

Usually ships in 3-6 days

0

35

White Outdoor 710-0644

Hex Bolt 3/8-16 x 3.25" Lg.*
(Superseded to 710-3130)

$9.49

$

In Stock, Qty 20+

0

36

White Outdoor 710-0521

Hex Bolt 3/8-16 x 3.00" Lg.-Gr. 8

$4.99

$

In Stock, Qty 15

0

37

White Outdoor 710-0216

Hex Bolt 3/8-16 x .75" Lg.*

$3.99

$

In Stock, Qty 17

0

38

White Outdoor 784-0181

Handle Positioner Brkt. Ass'y.
(Superseded to 686-0071)

$

$

Not available

39

White Outdoor 714-0145

Intern. Cotter Pin

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 711-0415

Clevis Pin .375" Dia.

$4.49

$

In Stock, Qty 20+

0

41

White Outdoor 784-0156

Tine Shield 18"

Variations

White Outdoor 784-0156-0483

No Longer Available SHIELD-TINE - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 784-0156-0498

No Longer Available SHIELD-TINE - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 784-0156-0499

No Longer Available SHIELD-TINE - CUB BEIGE (0499)

$

$

Not available

White Outdoor 784-0156-0637

No Longer Available SHIELD-TINE - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-0156-0638

No Longer Available SHIELD-TINE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 784-0156-0662

No Longer Available SHIELD-TINE - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 784-0156-0665

No Longer Available SHIELD-TINE - YARDMAN GREEN (0665)

$

$

Not available

$

$

42

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

43

White Outdoor 784-0210

Bracket Reinforcement- 0 18"

$

$

Not available

44

White Outdoor 14979

Tine Shield Hinge Flap
(Superseded to 786-0113)

Variations

White Outdoor 14979-0638

SHIELD-REAR TINE - MTD/TROY-BILT RED (0638)

$83.99

$

Usually ships in 3-6 days

0

White Outdoor 14979-0483

USE 786-0113A SHIELD-REAR TIN - CHARCOAL GRAY (0483)

$67.99

$

Usually ships in 3-6 days

0

White Outdoor 14979-0637

USE 786-0113A SHIELD-REAR TIN - POWDER BLACK (0637)

$67.99

$

Usually ships in 3-6 days

0

White Outdoor 14979-0665

USE 786-0113-0665 0113A SHIE - YARDMAN GREEN (0665)

$67.99

$

Usually ships in 3-6 days

0

White Outdoor 14979-0606

No Longer Available SHIELD - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 14979-0662

No Longer Available SHIELD - OYSTER GRAY (0662)

$

$

Not available

$64.99

$

Usually ships in 3-6 days

0

46

White Outdoor 714-0104

Intern. Cotter Pin 5/16" Dia.

$3.99

$

In Stock, Qty 20+

0

47

White Outdoor 784-0208

Shift Cover

$

$

Not available

48

White Outdoor 715-0120

Spring Roll Pin 3/16" Dia. x 1.00" Lg.

$9.99

$

In Stock, only 4 left!

0

49

White Outdoor 784-0173

Shifting Crank Ass'y. D x 2.05

$

$

Not available

50

White Outdoor 735-0127

Rubber Washer .33" I.D. x .87" O.D.

$6.49

$

Usually ships in 3-6 days

0

51

White Outdoor 736-0133

Fl-Wash. .400" I.D. x 1.250" O.D.

$4.99

$

In Stock, Qty 7

0

52

White Outdoor 735-0227

Snap On Bushing 1/2" Dia.

$

$

Not available

57

White Outdoor 736-0317

Bell-Wash. .630" I.D. x 1.25" O.D.

$7.49

$

In Stock, Qty 20+

0
