RB-60 - Echo Broadcast Spreader (SN: N29000001001 - N29000999999) Hopper Parts Diagram

Broadcast Spreader

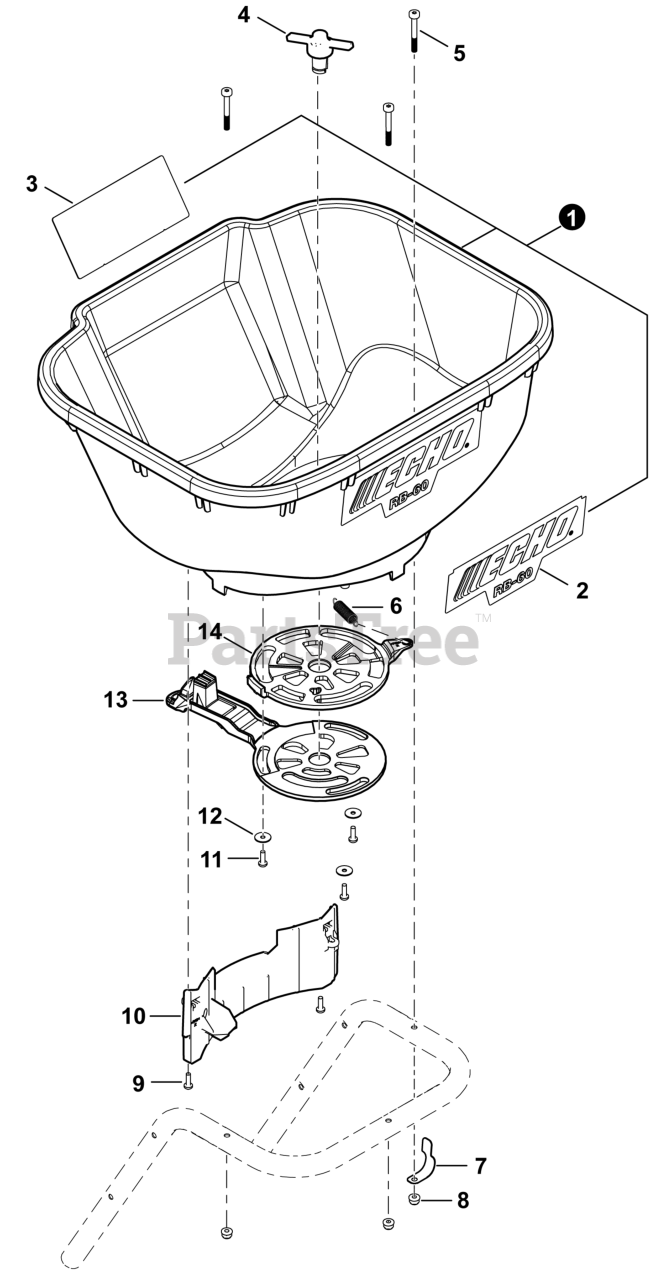

Hopper Parts Diagram

  • Title

1

Echo G400000070

HOPPER

Note: Includes Items 2-3

$36.99

$

Usually ships in 2-4 days

0

2

Echo X502001170

LABEL - ECHO

$6.99

$

Usually ships in 2-4 days

0

3

Echo X532005600

LABEL - OPERATION

$3.99

$

Usually ships in 2-4 days

0

4

Echo E156000010

AGITATOR

$2.49

$

In Stock, Qty 14

0

5

Echo V204001860

BOLT, M6

$0.99

$

Usually ships in 2-4 days

0

6

Echo V451001610

SPRING

$1.49

$

In Stock, only 4 left!

0

7

Echo V490001720

CLIP

$1.49

$

Usually ships in 2-4 days

0

8

Echo 9210806000

NUT, FLANGE M6

$1.49

$

In Stock, Qty 5

0

9

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

10

Echo A422000480

COVER, BRACKET

$5.49

$

Usually ships in 2-4 days

0

11

Echo V805000160

BOLT, TORX 5×20

$0.99

$

In Stock, Qty 20+

0

12

Echo V303000390

WASHER

$

$

Currently unavailable

13

Echo C627000180

METERING PLATE , LOWER

$6.49

$

Usually ships in 2-4 days

0

14

Echo C627000190

METERING PLATE , UPPER

$6.49

$

In Stock, only 1 left!

0
