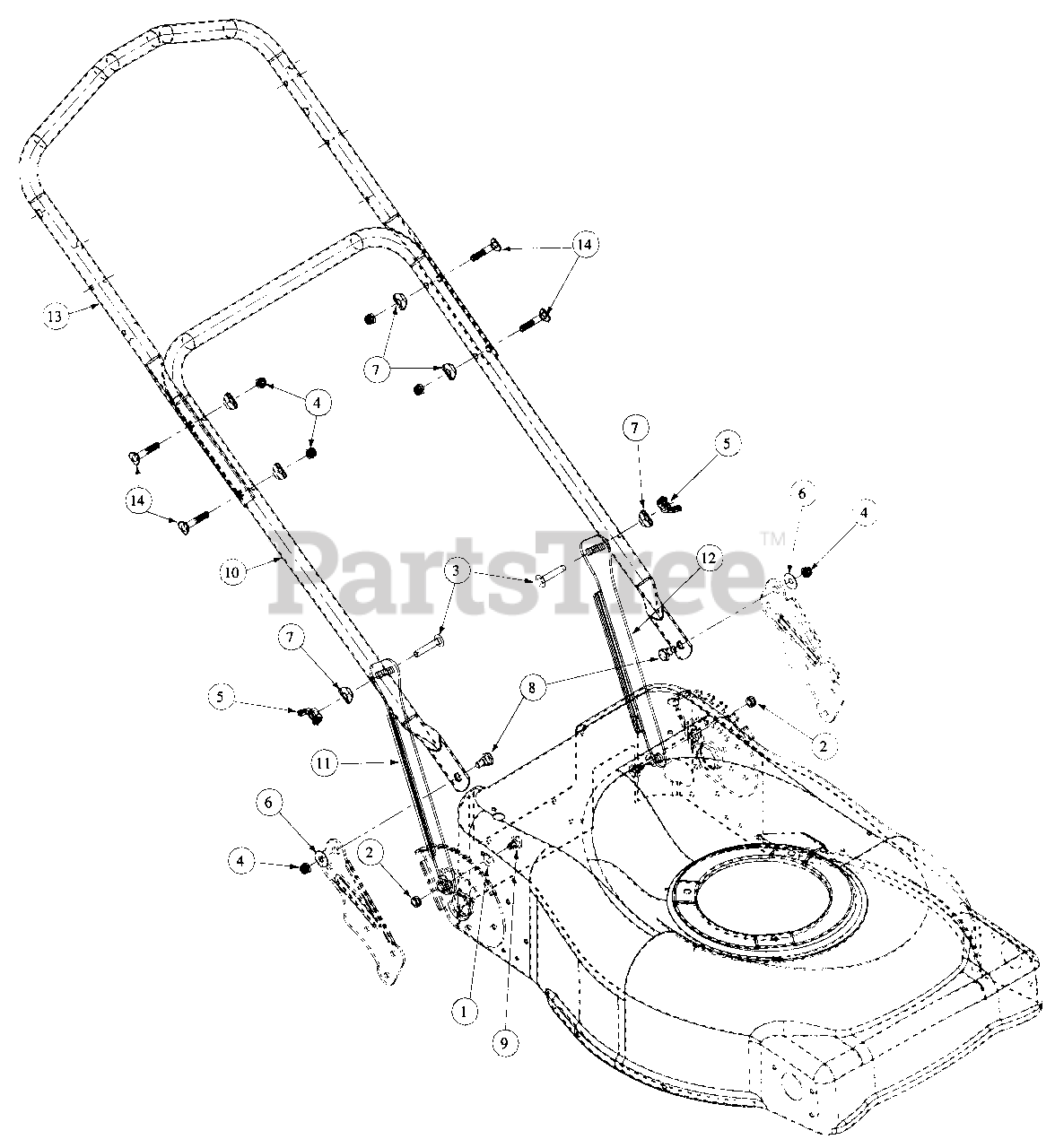

RB 600 (52A-399O100) - Cub Cadet Walk-Behind Mower 3 Position Handle Self Propelled Parts Diagram

Walk-Behind Mower

3 Position Handle Self Propelled Parts Diagram

  • Title

1

Cub Cadet 00012577

Thrust Washer

$5.49

$

In Stock, Qty 12

0

2

Cub Cadet 00022547

Nut, Lock, 5/16-18,

$

$

Not available

3

Cub Cadet 01000956

Bolt Carriage, 5/16-18, 1.75
(Superseded to 710-0458)

$4.49

$

In Stock, only 4 left!

0

4

Cub Cadet 01000957

Hex Nut, 5/16-18
(Superseded to 912-0429)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 01000958

Wing Nut, 5/16-18

$

$

Not available

6

Cub Cadet 01000960

Belle Washer, .325 x .930 x .045
(Superseded to 936-0425)

$

$

Not available

7

Cub Cadet 01000961

Shoulder Washer, .320 ID x .93 OD
(Superseded to 936-0451)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 01000962

Shoulder Screw, .435 x .350, 5/16-18
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 8

0

9

Cub Cadet 01000963

Shoulder Screw, .437 x 1.62 LG
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 00022547

Handle, Lower, 1.0"

$

$

Not available

11

Cub Cadet 01003111

Strut, 3 Position Handle, Right hand
(Superseded to 01001673)

$

$

Not available

12

Cub Cadet 01003112

Strut, 3 Position Handle, Left hand
(Superseded to 01001671)

$

$

Not available

13

Cub Cadet 01003203

Upper Handle, 1.0", Self Propelled

$

$

Not available

14

Cub Cadet 01003208

Carriage Bolt, 5/16-18 X 2.0 CRVD
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0
