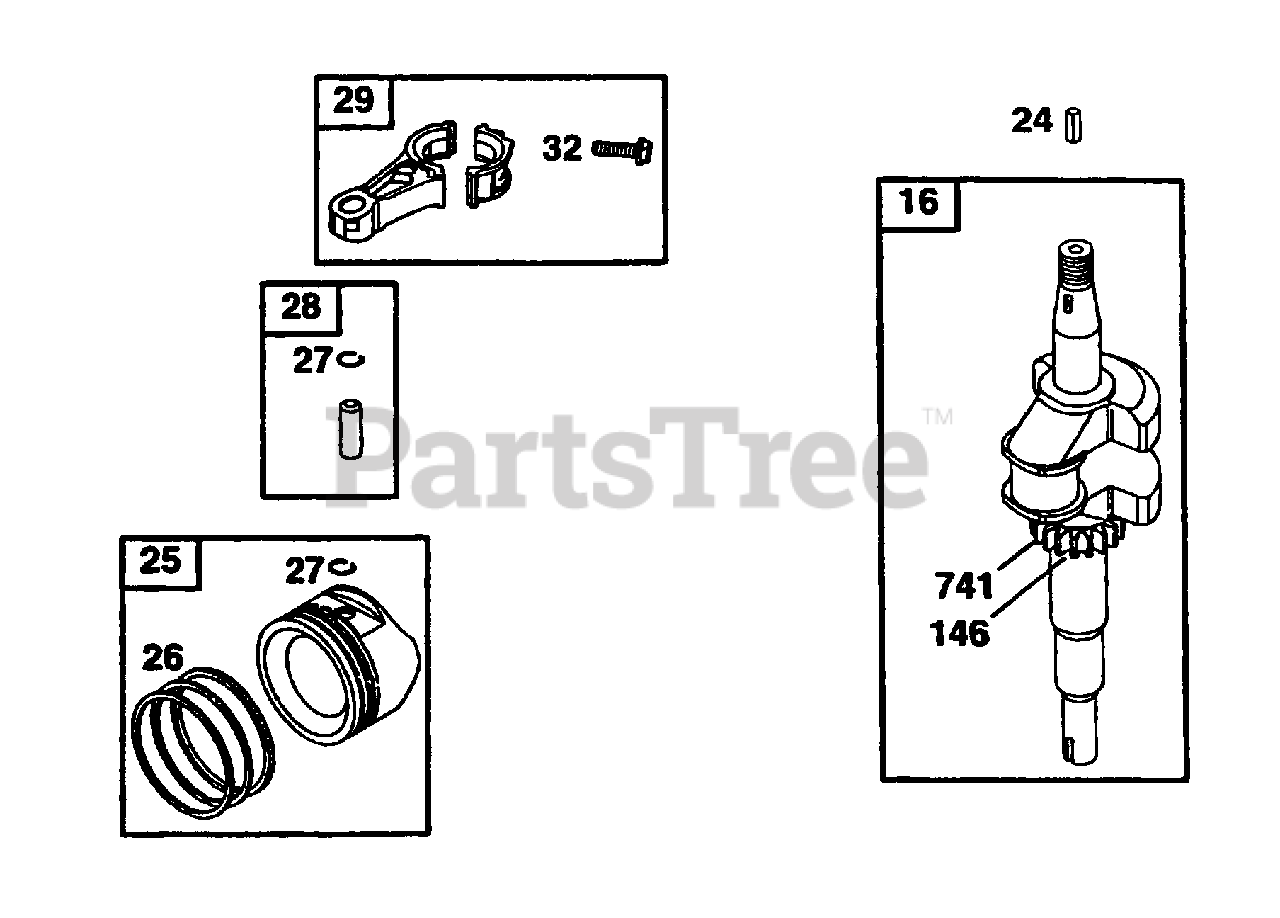

RB 600 (52A-399O100) - Cub Cadet Walk-Behind Mower Engine Crankshaft Parts Diagram

Walk-Behind Mower

Engine Crankshaft Parts Diagram

  • Title

16

Cub Cadet BS-498615

Crankshaft
(Superseded to BS-691457)

$225.99

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-222698

Flywheel Key
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-499627

Piston Assembly (Standard)
(Superseded to BS-799063)

$100.99

$

In Stock, only 3 left!

0

Cub Cadet BS-692788

Piston Assembly ( 010" O.S.)

Note: (As Needed)

$

$

Not available

Cub Cadet BS-692789

Piston Assembly ( 020" O.S.)

Note: (As Needed)

$

$

Not available

Cub Cadet BS-692790

Piston Assembly ( 030" O.S.)

Note: (As Needed)

$

$

Not available

26

Cub Cadet BS-499631

Ring Set (Standard)

$58.99

$

In Stock, only 2 left!

0

Cub Cadet BS-692785

Ring Set ( 010" O.S.)

Note: (As Needed)

$

$

Not available

Cub Cadet BS-692786

Ring Set ( 020" O.S.)

Note: (As Needed)

$61.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-692787

Ring Set (.030" O.S.)

Note: (As Needed)

$

$

Not available

27

Cub Cadet BS-263190

Piston Pin Lock
(Superseded to BS-691866)

$4.99

$

In Stock, Qty 7

0

28

Cub Cadet BS-499423

Piston Pin

$9.99

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-499424

Connecting Rod
(Superseded to BS-590406)

$96.99

$

In Stock, only 2 left!

0

32

Cub Cadet BS-94699

Connecting Rod Screw

$

$

Not available

146

Cub Cadet BS-94388

Timing Key
(Superseded to BS-690979)

$3.49

$

In Stock, Qty 20+

0

741

Cub Cadet BS-262598

Timing Gear
(Superseded to BS-691830)

$19.99

$

Usually ships in 2-12 days

0
