RB 600 (52A-399O101) - Cub Cadet Walk-Behind Mower Carburetor Parts Diagram

Walk-Behind Mower

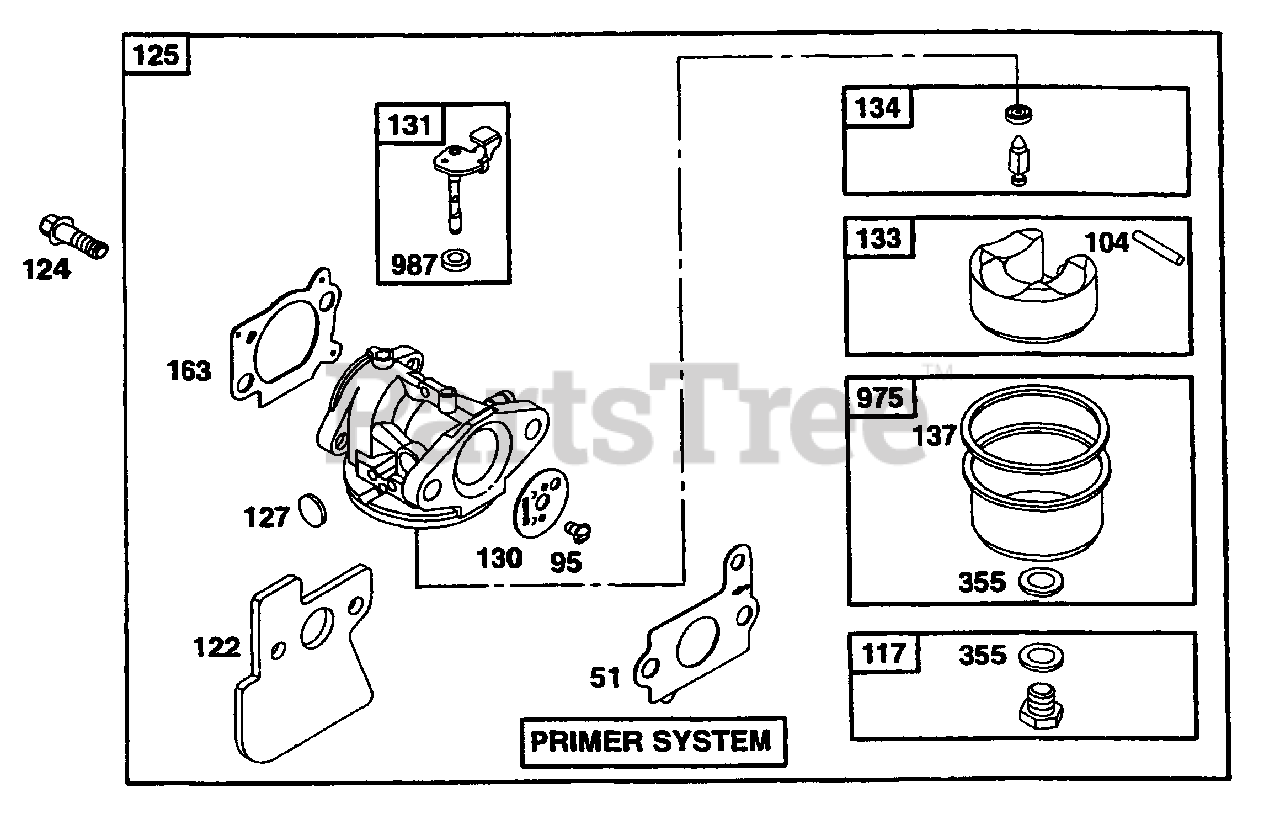

Carburetor Parts Diagram

  • Title

51

Cub Cadet BS-692668

Intake Gasket

$4.99

$

In Stock, only 4 left!

0

95

Cub Cadet BS-94098

Round Head Screw
(Superseded to BS-691636)

$4.49

$

In Stock, Qty 12

0

104

Float Pin

Note: (This Item Only Available In Carburetor Kit, Part No. BS692703)

$

$

Not available

117

Cub Cadet BS-692677

Main Jet

$21.99

$

Usually ships in 2-12 days

0

122

Cub Cadet BS-692799

Carburetor Spacer

$15.99

$

In Stock, only 2 left!

0

124

Cub Cadet BS-95048

Screw Hex
(Superseded to BS-691148)

$4.49

$

In Stock, only 3 left!

0

125

Cub Cadet BS-692648

Carburetor
(Superseded to BS-790120)

$

$

Not available

127

Welch Plug

Note: (This Item Only Available In Carburetor Kit, Part No. BS692703)

$

$

Not available

130

Cub Cadet BS-224908

Throttle Valve
(Superseded to BS-691203)

$10.99

$

Usually ships in 2-12 days

0

131

Cub Cadet BS-499682

Throttle Shaft

$18.99

$

In Stock, only 2 left!

0

133

Cub Cadet BS-398187

Float

$10.99

$

In Stock, Qty 6

0

134

Cub Cadet BS-398188

Needle Valve

Note: (Includes Seat)

$6.99

$

In Stock, Qty 16

0

137

Float Bowl Gasket

Note: (This Item Only Available In Carburetor Kit, Part No. BS692703)

$

$

Not available

163

Cub Cadet BS-273364

Air Cleaner Gasket
(Superseded to BS-691894)

$4.49

$

In Stock, Qty 18

0

355

Seal Washer

Note: (This Item Only Available In Carburetor Kit, Part No. BS692703)

$

$

Not available

975

Cub Cadet BS-493640

Float Bowl
(Superseded to BS-796611)

$7.49

$

Usually ships in 2-12 days

0

987

Throttle Shaft Seal

Note: (This Item Only Available In Carburetor Kit, Part No. BS692703)

$

$

Not available

Cub Cadet BS-692703

Carburetor Kit
(Superseded to BS-792383)

$24.99

$

In Stock, only 1 left!

0
