RB-850 (215-418-190) - White Outdoor Roto Boss Tiller (1985) Handles & Rear Frame Parts Diagram

Roto Boss Tiller

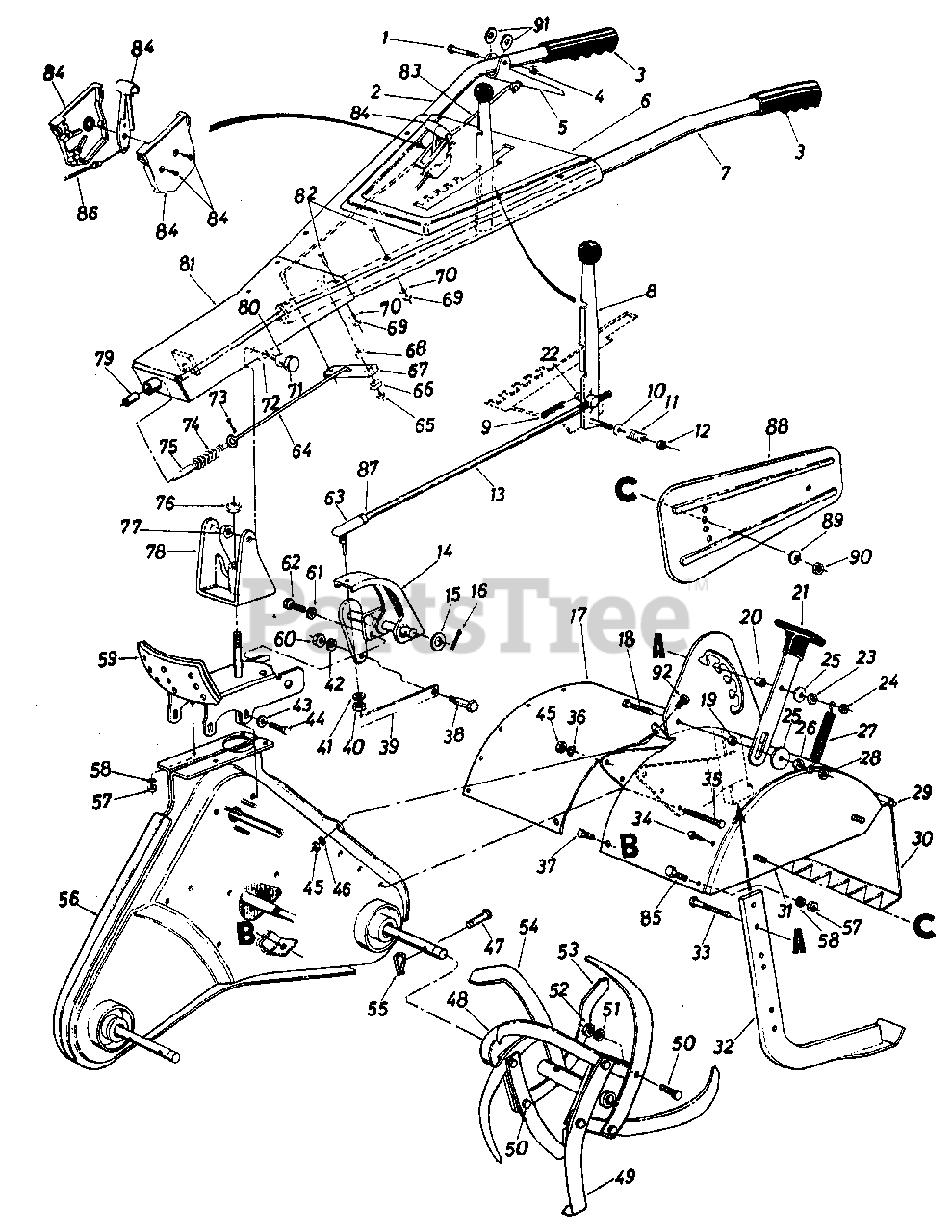

Handles & Rear Frame Parts Diagram

  • Title

1

MTD 710-0136

Hex Bolt 1/4-20 x 1.75" Lg.*

$3.99

$

In Stock, only 1 left!

0

2

MTD 749-0268

Handle R.H.

Note: NLA

$

$

Not available

3

MTD 720-04083

Grip

$13.99

$

In Stock, only 1 left!

0

4

MTD 912-0107

Hex Cent. L-Nut 1/4-20 Thd.

$4.49

$

In Stock, only 1 left!

0

5

MTD 14844

Clutch Grip

Note: NLA

$

$

Currently unavailable

6

MTD 04831

Handle Panel Ass'y.

Note: NLA

$

$

Currently unavailable

7

MTD 749-0269

Handle L.H.

Note: NLA

$

$

Not available

8

MTD 04810

Clutch Handle Ass'y.

Note: NLA

$

$

Currently unavailable

9

MTD 914-0149B

Hairpin Cotter
(Superseded to 714-0149B)

$

$

Not available

10

MTD 736-0105

Belleville Wash. .38" I.D.

$3.99

$

In Stock, Qty 20+

0

11

MTD 732-0193

Compression Spring .88" O . D. x .81 " Lg. .

$4.49

$

In Stock, Qty 8

0

12

MTD 912-0214

Hex Cent. L-Nut 3/8-24 Thd.
(Superseded to 712-0214)

$5.99

$

In Stock, Qty 20+

0

13

MTD 747-0278

Gear Shift Rod

Note: NLA

$

$

Currently unavailable

14

MTD 14734

Pivot Horn Ass'y.

Note: NLA

$

$

Currently unavailable

15

MTD 736-0290

Fl-Wash. .630 I.D. x 1.0" O.D. x .063

$6.49

$

In Stock, Qty 20+

0

16

MTD 914-0474

Cotter Pin 1/8" Dia. x .75" Lg.*
(Superseded to 714-0474)

$

$

Not available

17

MTD 15381

Tine Shield Ass'y.

Note: NLA

$

$

Currently unavailable

18

MTD 710-0344

Hex Bolt 3/8-16 x 1.5" Lg.*

$5.49

$

In Stock, only 1 left!

0

19

MTD 750-0527

Spacer .38 I.D. x .50 O.D. x .18 Lg.

$

$

Not available

20

MTD 950-0528

Spacer .38 I.D. x .50 O.D. x .38 Lg.

$

$

Not available

21

MTD 14843

Depth Bar Handle Ass'y w/ Knob

Note: NLA

$

$

Currently unavailable

22

MTD 911-0198

Ferrule

$12.99

$

In Stock, Qty 20+

0

23

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

24

MTD 712-0130

Hex Ins. L-Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 20+

0

25

MTD 936-0227

Fl-Wash. .38 I.D. x 1.50 O.D. x . 1 3
(Superseded to 736-0227)

$

$

Not available

26

MTD 712-0798

Hex N ut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

27

MTD 732-0416

Spring Depth Bar

Note: NLA

$

$

Not available

28

MTD 712-0130

Hex Ins. L-Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 20+

0

29

MTD 747-0252

Hinge Rod

Note: NLA

$

$

Currently unavailable

30

MTD 04804

Tine Shield Hinge Flap Ass'y.

Note: NLA

$

$

Currently unavailable

31

MTD 15389

Side Cover Tine Shield L.H.

Note: NLA

$

$

Currently unavailable

31

MTD 15388

Side Cover Tine Shield R.H.

Note: NLA

$

$

Currently unavailable

32

MTD 14731

Depth/Drag Bar Ass'y.

Note: NLA

$

$

Currently unavailable

33

MTD 710-0347

Hex Bolt 3/8-16 x 1.75" Lg.*

$4.99

$

In Stock, Qty 20+

0

34

MTD 710-0604A

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

34

MTD 712-0292

Speed Nut

$9.99

$

Usually ships in 3-6 days

0

35

MTD 710-0830

Hex Bolt 3/8-24 x 3.0" Lg.

Note: NLA

$

$

Not available

36

MTD 936-0169

L-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

37

MTD 710-0623

Hex Wash. Hd. Self-Tap Scr.

$3.99

$

In Stock, Qty 6

0

38

MTD 938-0258

Shoulder Bolt .50" Dia. x .25" Lg.

$

$

Not available

39

MTD 04841

Control Bracket

Note: NLA

$

$

Currently unavailable

40

MTD 912-0116

Hex Ins. L-Nut 3/8-24 Thd.
(Superseded to 712-0116)

$

$

Not available

41

MTD 936-0169

L-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

42

MTD 936-0169

L-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

43

MTD 736-0105

Belleville Wash.

$3.99

$

In Stock, Qty 20+

0

44

MTD 710-0623

Hex Wash. Hd. Self-Tap Scr.

$3.99

$

In Stock, Qty 6

0

45

MTD 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 20+

0

46

MTD 936-0169

L-Wash. 3/8" Scr.*
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

47

MTD 711-0679A

Clevis Pin

$13.99

$

In Stock, only 2 left!

0

48

MTD 15295

Tine Adapter Ass'y.

Note: NLA

$

$

Currently unavailable

49

MTD 15387

L.H. Tine Ass'y. Comp.

Note: NLA

$

$

Currently unavailable

49

MTD 15386

R.H. Tine Ass'y. Comp.

Note: NLA

$

$

Not available

50

MTD 710-0192

Hex Bolt 3/8-24 x 1.25" Lg.*

$3.49

$

In Stock, Qty 11

0

51

MTD 936-0169

L-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

52

MTD 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 20+

0

53

MTD 742-0244-0637

Tine R.H.

$29.99

$

Usually ships in 3-6 days

0

54

MTD 742-0243-0637

Tine L.H.

$

$

Not available

55

MTD 914-0149B

Hairpin Cotter
(Superseded to 714-0149B)

$

$

Not available

56

MTD 15385

Chain Case Ass'y. Comp.

Note: NLA

$

$

Currently unavailable

57

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

58

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.49

$

In Stock, Qty 20+

0

59

MTD 14744

Handle Positioner Ass'y.

Note: NLA

$

$

Currently unavailable

60

MTD 712-0130

Hex Ins. L-Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 20+

0

61

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.49

$

In Stock, Qty 20+

0

62

MTD 710-1260A

Hex Wash. Hd. Self-Tap Scr.

$3.49

$

In Stock, Qty 20+

0

63

MTD 923-0156

Rod End 3/8-24 Thd.

$15.99

$

In Stock, Qty 20+

0

64

MTD 747-0254

Lower Handle Control Rod

Note: NLA

$

$

Currently unavailable

65

MTD 912-0158

Hex Nut 5/16-18 Thd.*

$3.49

$

In Stock, Qty 19

0

66

MTD 748-0516

Pivot Handle Brg.

Note: NLA

$

$

Currently unavailable

67

MTD 04819

Pivot Handle Link

Note: NLA

$

$

Currently unavailable

68

MTD 936-0289

Bushing Wash.

$6.49

$

In Stock, only 1 left!

0

69

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

70

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.49

$

In Stock, Qty 20+

0

71

MTD 738-0143

Shld. Bolt .500" Dia. x .660

$3.99

$

In Stock, Qty 20+

0

72

MTD 936-0253

Belleville Wash. .505" I.D. x 1.00" O.D.
(Superseded to 736-0253)

$

$

Not available

73

MTD 914-0474

Cotter Pin 1/8" Dia. x .75" Lg. .*
(Superseded to 714-0474)

$

$

Not available

74

MTD 732-0132

Compression Spring

Note: NLA

$

$

Not available

75

MTD 711-0663

Locking Pin

Note: NLA

$

$

Currently unavailable

76

MTD 712-0221

Hex Ins. L-Nut 5/8-16 Thd.

$

$

Not available

77

MTD 912-0181

Hex Top L-Nut 3/8-16 Thd.
(Superseded to 712-0181)

$

$

Not available

78

MTD 04812

Pivot Brkt. Ass'y.

Note: NLA

$

$

Currently unavailable

79

MTD 748-0150

Sleeve Brg. .50" I.D. x .62" O.D. x 1.12" Lg.

Note: NLA

$

$

Not available

80

MTD 936-0192

Fl-Wash. .50" I.D. x 1.00" O.D. x .090

$3.99

$

In Stock, Qty 18

0

81

MTD 04792

Handle Mtg. Brkt. Ass'y.

Note: NLA

$

$

Currently unavailable

82

MTD 710-0458

Carriage Bolt 5/16-18 x 1.75" Lg.*

$4.49

$

In Stock, only 4 left!

0

83

MTD 747-0255

Handle Lock Rod

Note: NLA

$

$

Currently unavailable

84

MTD 831-0796A

Throttle Control Box Ass'y.

$20.99

$

In Stock, Qty 14

0

85

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.*

$3.99

$

In Stock, Qty 20+

0

86

MTD 946-0502

Throttle Control Wire

$23.99

$

In Stock, only 2 left!

0

87

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$3.99

$

In Stock, Qty 20+

0

88

MTD 15390

Side Shield

Note: NLA

Variations

MTD 15390-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 15390-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 15390-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 15390-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 15390-0637

No Longer Available SHIELD-SID - POWDER BLACK (0637)

$

$

Not available

MTD 15390-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 15390-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 15390-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 15390-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 15390-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

$

$

89

MTD 936-0170

Bell-Wash.
(Superseded to 736-0170)

$

$

Not available

90

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

91

MTD 736-0173

Fl-Wash. 1/4 " I.D.

$3.99

$

In Stock, Qty 10

0

92

MTD 710-0191

Hex Bolt 3/8-24 x .75" Lg.

$4.49

$

In Stock, Qty 8

0
