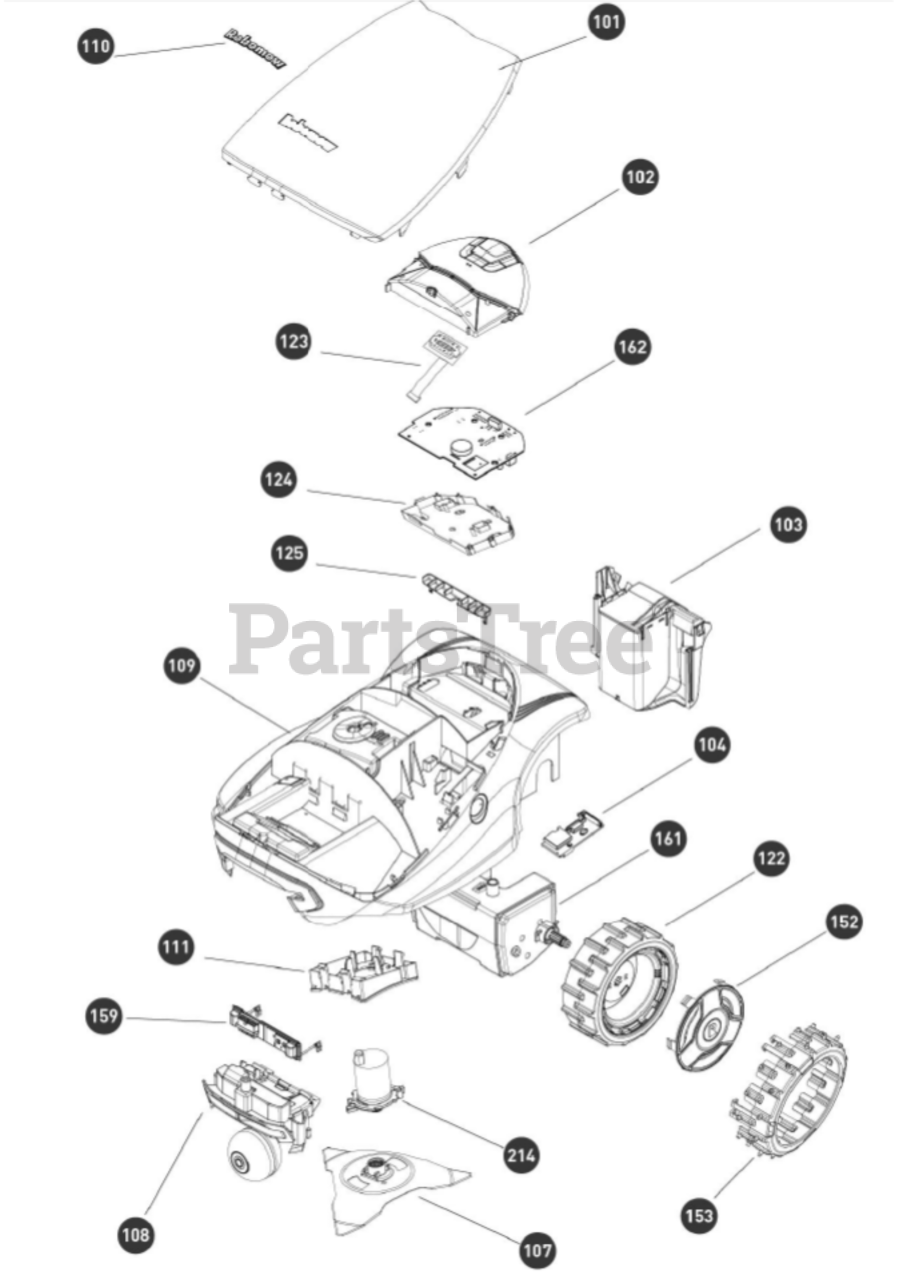

RC 306 (22BCDDAE737) - MTD RoboMow Robotic Mower (2019) General Assembly Parts Diagram

RoboMow Robotic Mower

General Assembly Parts Diagram

  • Title

101

MTD FR-INJ7001B

C COVER ASSEMBLY (GREEN)

$101.99

$

Usually ships in 3-6 days

0

102

MTD FR-SMSB7008A

RC PANEL ASSEMBLY W/O LCD DISPLAY

$74.99

$

Usually ships in 3-6 days

0

103

MTD FR-MRK7005A

BATTERY (RC/TC/MC)

$452.99

$

Usually ships in 3-6 days

0

104

MTD FR-ESB7020B1

GSM W/GPS US (CATM1)
(Superseded to FR-ESB7020B2)

$317.99

$

Usually ships in 3-6 days

0

107

MTD FR-MRK7019A

HIGH CUT BLADE KIT

$89.99

$

Usually ships in 3-6 days

0

107

MTD FR-MRK7003A

1 BLADE KIT (RC)

Note: NOT SHOWN

$66.99

$

Usually ships in 3-6 days

0

108

MTD FR-SPP7029A

NOZZLE ASSEMBLY

$257.99

$

Usually ships in 3-6 days

0

109

MTD FR-MSB7000B2

RC CHASSIS ASSEMBLY (BRUSH)

$359.99

$

Usually ships in 3-6 days

0

110

MTD FR-STC7000A

ROBOMOW STICKER C MODELS

$21.99

$

Usually ships in 3-6 days

0

111

MTD FR-INJ7011A

MOWING DECK FLANGE

$39.99

$

Usually ships in 3-6 days

0

122

MTD FR-MRK7012A

POWER WHEELS (RC MODEL - PAIR)

$108.99

$

Usually ships in 3-6 days

0

122

MTD FR-SPP7021A

POWER WHEEL C W/O PLATE

Note: NOT SHOWN

$59.99

$

Usually ships in 3-6 days

0

123

MTD FR-SESB7001A

RC LCD ASSEMBLY

$49.99

$

Usually ships in 3-6 days

0

124

MTD FR-INJ7156B

Main Circuit Board Protector RC

$

$

Currently unavailable

125

MTD FR-INJ7157A

RC DRAIN PROTECTOR

$8.49

$

Usually ships in 3-6 days

0

152

MTD FR-INJ7155A

RC PREMIUM TAS

$9.99

$

Usually ships in 3-6 days

0

153

MTD FR-MRK7023A

ROBO GRIPS FOR RC

$41.99

$

Usually ships in 3-6 days

0

159

MTD FR-ESB7103A1

RC FRONT BOARD

$97.99

$

Usually ships in 3-6 days

0

161

MTD FR-SMSB7106A

GEAR CASE ASSY HD (SPARE PARTS)

$288.99

$

Usually ships in 3-6 days

0

162

MTD FR-SPP7216B

MAIN ELECTRICAL BOARD

$418.99

$

Usually ships in 3-6 days

0

214

MTD FR-SPP7013A

MOWING MOTOR ASSEMBLY (BRUSH)

$156.99

$

Usually ships in 3-6 days

0
