RC 318 T - Husqvarna Rider Collector Swedish Riding Mower (Original) TRANSMISSION Parts Diagram

Rider Collector Swedish Riding Mower

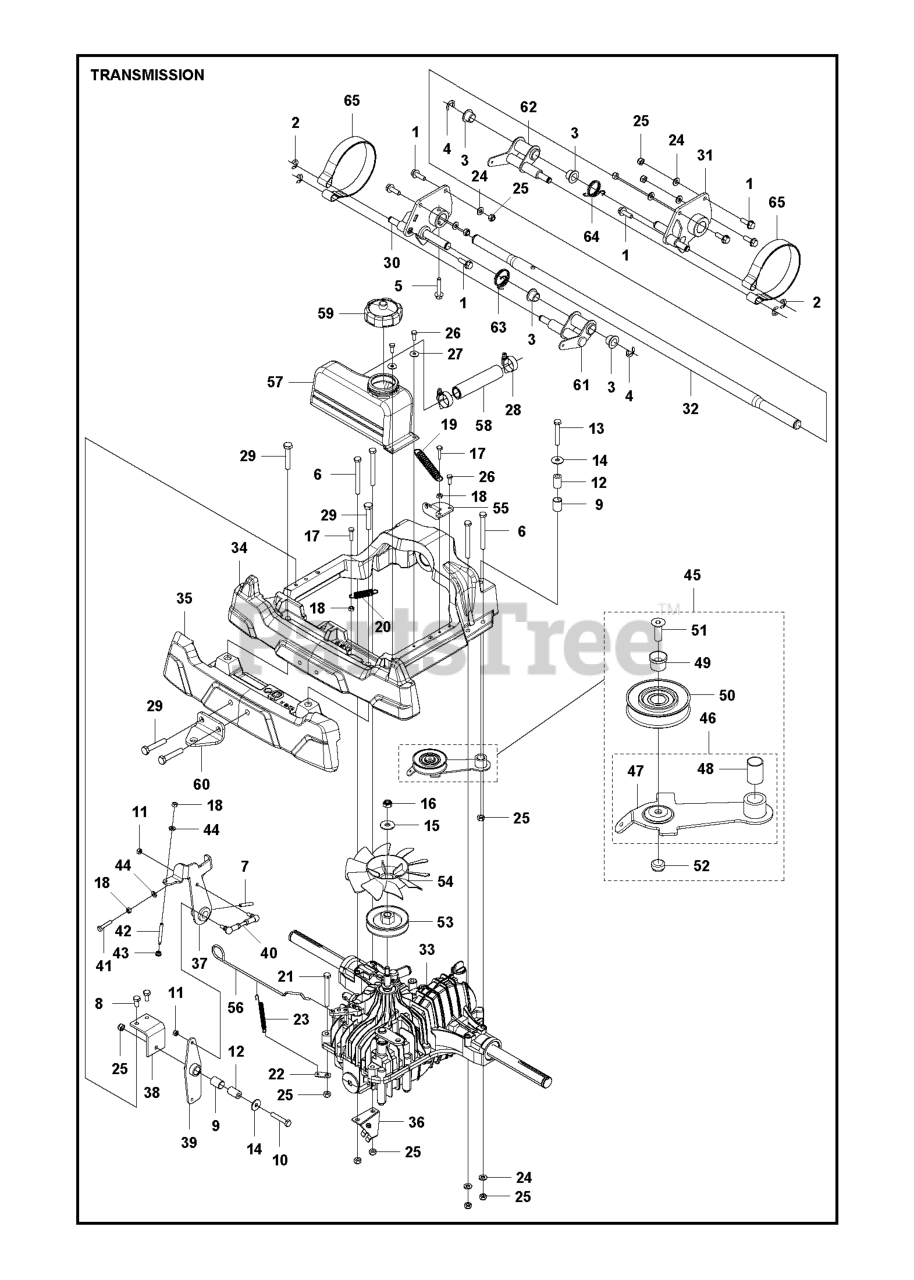

TRANSMISSION Parts Diagram

  • Title

5

Husqvarna 725245961

BOLT FLANGE - M8X40\

$

$

Not available

40

Husqvarna 506992201

ROD

$

$

Not available

53

Husqvarna 506991401

PULLEY

$85.99

$

Usually ships in 3-10 days

0

58

Husqvarna 535458301

NEEDS DESCRIPTION

$

$

Currently unavailable

44

Husqvarna 503230405

NEEDS DESCRIPTION

$

$

Currently unavailable

27

Husqvarna 734115441

WASHER - 26X6.5X1.6
(Superseded to 531003379)

$4.99

$

In Stock, Qty 11

0

52

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

22

Husqvarna 506599301

CONNECTOR

$

$

Not available

15

Husqvarna 734117441

WASHER

$6.99

$

In Stock, Qty 7

0

64

Husqvarna 582762702

NEEDS DESCRIPTION

$

$

Currently unavailable

50

Husqvarna 506947001

PULLEY

$34.99

$

Usually ships in 3-10 days

0

1

Husqvarna 506570105

BOLT
(Superseded to 506597401)

$9.49

$

In Stock, only 1 left!

0

13

Husqvarna 725246251

SCREW

$7.99

$

Usually ships in 3-10 days

0

62

Husqvarna 582527502

NEEDS DESCRIPTION

$

$

Currently unavailable

54

Husqvarna 506948101

FAN

$26.99

$

Usually ships in 3-10 days

0

35

Husqvarna 582051101

NEEDS DESCRIPTION

$

$

Currently unavailable

19

Husqvarna 506542501

SPRING

$

$

Not available

63

Husqvarna 582762701

NEEDS DESCRIPTION

$

$

Currently unavailable

18

Husqvarna 731231601

NUT

$6.49

$

In Stock, Qty 5

0

34

Husqvarna 501750801

NEEDS DESCRIPTION

$

$

Currently unavailable

59

Husqvarna 506673301

FUEL CAP

$45.99

$

In Stock, only 1 left!

0

3

Husqvarna 584871302

BEARING FLANGE

$6.99

$

Usually ships in 3-10 days

0

61

Husqvarna 582527501

NEEDS DESCRIPTION

$

$

Currently unavailable

28

Husqvarna 505443601

NEEDS DESCRIPTION

$

$

Currently unavailable

60

Husqvarna 506889901

DRAW RING

$31.99

$

Usually ships in 3-10 days

0

11

Husqvarna 732251601

NUT FLANGE - M6

$4.99

$

In Stock, Qty 12

0

10

Husqvarna 725246051

SCREW
(Superseded to 725246351)

$5.99

$

In Stock, only 4 left!

0

23

Husqvarna 506834301

SPRING

$5.99

$

Usually ships in 3-10 days

0

33

Husqvarna 501114101

NEEDS DESCRIPTION

$

$

Currently unavailable

57

Husqvarna 535458101

NEEDS DESCRIPTION

$

$

Currently unavailable

65

Husqvarna 582402901

NEEDS DESCRIPTION

$

$

Currently unavailable

55

Husqvarna 506992801

BRACKET

$

$

Not available

38

Husqvarna 506992101

BRACKET

$

$

Not available

24

Husqvarna 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

32

Husqvarna 589032601

NEEDS DESCRIPTION

$

$

Currently unavailable

9

Husqvarna 506986103

BEARING

$

$

Not available

16

Husqvarna 732212051

NUT

$6.99

$

In Stock, only 4 left!

0

7

Husqvarna 721434701

PIN

$4.99

$

In Stock, only 1 left!

0

42

Husqvarna 589404001

NEEDS DESCRIPTION

$

$

Currently unavailable

26

Husqvarna 725236871

BOLT FLANGE - M6X20

$4.99

$

In Stock, Qty 6

0

17

Husqvarna 725237271

SCREW

$4.99

$

In Stock, only 3 left!

0

6

Husqvarna 504628201

NEEDS DESCRIPTION

$

$

Currently unavailable

37

Husqvarna 582817401

NEEDS DESCRIPTION

$

$

Currently unavailable

47

Husqvarna 506993101

TENSIONER
(Superseded to 506993001)

$148.99

$

Usually ships in 3-10 days

0

49

Husqvarna 506993301

SLEEVE

$9.49

$

In Stock, only 2 left!

0

4

Husqvarna 735311820

Lock Ring

$

$

Not available

46

Husqvarna 535406301

IDLER ARM

$

$

Not available

41

Husqvarna 725237471

SCREW M6S 6X30

$5.99

$

In Stock, Qty 20+

0

48

Husqvarna 506986103

BEARING

$

$

Not available

29

Husqvarna 725250271

SCREW

$

$

Not available

43

Husqvarna 589403301

NEEDS DESCRIPTION

$

$

Currently unavailable

2

Husqvarna 735311520

RETAINING RING

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 506992001

BUSHING

$14.99

$

Usually ships in 3-10 days

0

21

Husqvarna 725246651

Screw

$

$

Not available

39

Husqvarna 582859301

NEEDS DESCRIPTION

$

$

Currently unavailable

8

Husqvarna 725244951

BOLT - M8X16

$4.99

$

In Stock, only 2 left!

0

56

Husqvarna 505490101

NEEDS DESCRIPTION

$

$

Currently unavailable

14

Husqvarna 734116441

SPACER

$6.99

$

Usually ships in 3-10 days

0

20

Husqvarna 506535603

SPRING

$7.99

$

Usually ships in 3-10 days

0

51

Husqvarna 725645301

SCREW

$6.99

$

In Stock, only 1 left!

0

30

Husqvarna 582565701

NEEDS DESCRIPTION

$

$

Currently unavailable

45

Husqvarna 506993001

TENSIONER

$148.99

$

Usually ships in 3-10 days

0

25

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

36

Husqvarna 506991501

BRACKET

$

$

Not available

31

Husqvarna 582565702

NEEDS DESCRIPTION

$

$

Currently unavailable
