RC 45 - Shindaiwa String Trimmer / Brush Cutter Crankcase Parts Diagram

String Trimmer / Brush Cutter

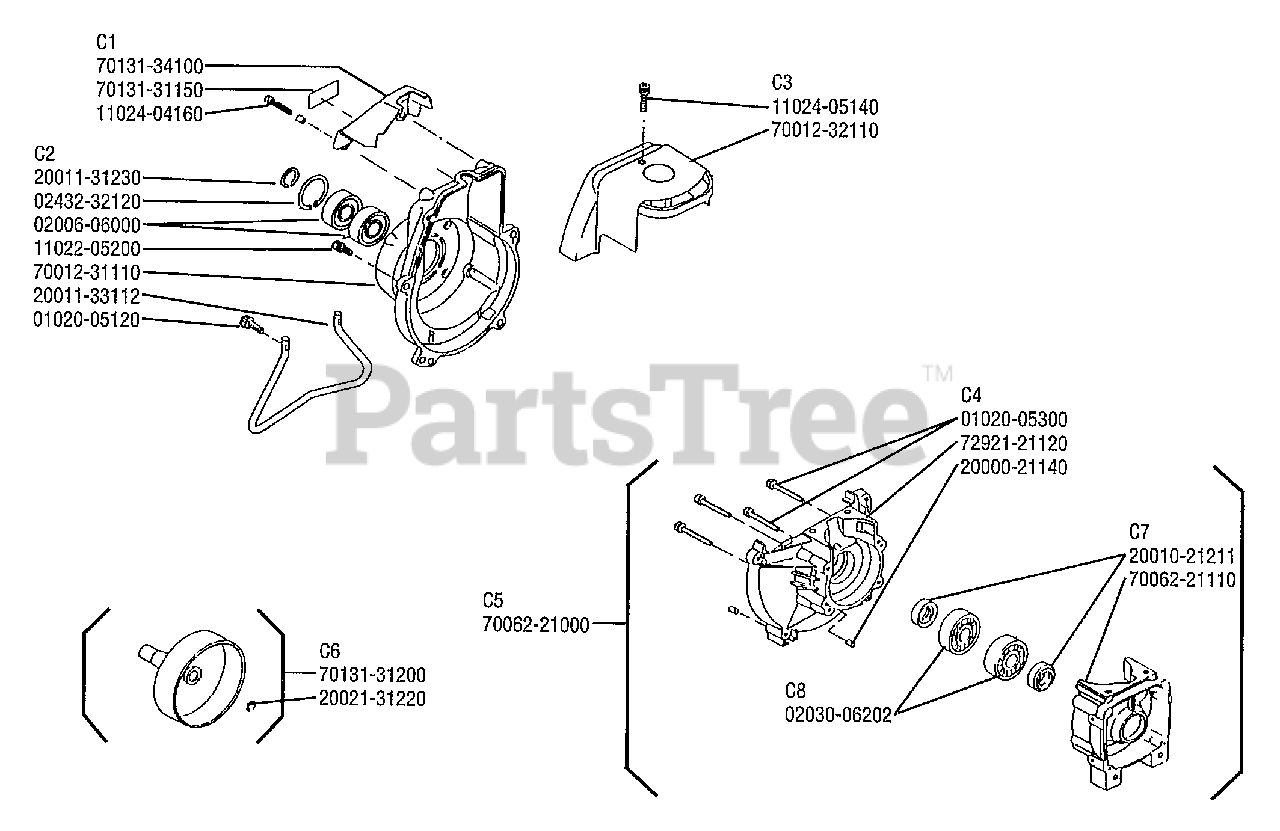

Crankcase Parts Diagram

  • Title

C1-70131-34100

Echo 70131-34100

PROTECTOR ASSY
(Superseded to A162000190)

$6.99

$

Usually ships in 2-4 days

0

C1-70131-31150

Echo 70131-31150

LABEL, NAME PLATE
(Superseded to Discontinued)

$

$

Not available

C1-11024-04160

Echo 11024-04160

BOLT
(Superseded to V202000300)

$0.99

$

In Stock, Qty 17

0

C2-20011-31230

Echo 20011-31230

SNAP RING
(Superseded to V583000180)

$0.99

$

Usually ships in 2-4 days

0

C2-02432-32120

Echo 02432-32120

SNAP RING
(Superseded to 9242432000)

$1.49

$

In Stock, only 4 left!

0

C2-02006-06000

Echo 02006-06000

BEARING
(Superseded to 90080206000)

$15.99

$

In Stock, Qty 20+

0

C2-11022-05200

Echo 11022-05200

BOLT
(Superseded to V203000350)

$1.49

$

In Stock, Qty 8

0

C2-70012-31110

Echo 70012-31110

COVER, FAN
(Superseded to 70012-31111)

$59.99

$

Usually ships in 2-4 days

0

C2-20011-33112

Echo 20011-33112

STAND

$7.99

$

Usually ships in 2-4 days

0

C2-01020-05120

Echo 90010505012

SCREW - 5X12 HSH

$1.49

$

In Stock, Qty 15

0

C3-11024-05140

Echo 11024-05140

BOLT
(Superseded to V203001140)

$1.49

$

Usually ships in 2-4 days

0

C3-70012-32110

Echo 70012-32110

COVER, CYLINDER
(Superseded to A160001720)

$17.99

$

Usually ships in 2-4 days

0

C4-01020-05300

Echo 01020-05300

BOLT
(Superseded to 90010505030)

$1.49

$

In Stock, Qty 13

0

C4-72921-21120

Echo 72921-21120

CRANKCASE M, USE 72921-21121
(Superseded to 72921-21121)

$42.99

$

Usually ships in 2-4 days

0

C4-20000-21140

Echo 20000-21140

PIN, DOWEL
(Superseded to V623000060)

$0.99

$

Usually ships in 2-4 days

0

C7-20010-21211

Echo 20010-21211

SEAL, OIL
(Superseded to V508000050)

$7.49

$

In Stock, Qty 11

0

C7-70062-21110

Echo 70062-21110

CRANKCASE S
(Superseded to 72935-21111)

$47.99

$

Usually ships in 2-4 days

0

C8-02030-06202

Echo 02030-06202

BEARING, BALL
(Superseded to 90081036202)

$10.99

$

In Stock, only 2 left!

0

C5-70062-21000

Echo 70062-21000

CRANKCASE ASSY
(Superseded to Discontinued)

$

$

Not available

C6-70131-31200

Echo 70131-31200

CLUTCH DRUM COMPLETE

$46.99

$

Usually ships in 2-4 days

0

C6-20021-31220

Echo 20021-31220

SNAP RING
(Superseded to V582000090)

$0.99

$

Usually ships in 2-4 days

0
