RC 45 - Shindaiwa String Trimmer / Brush Cutter Gear Housing Parts Diagram

String Trimmer / Brush Cutter

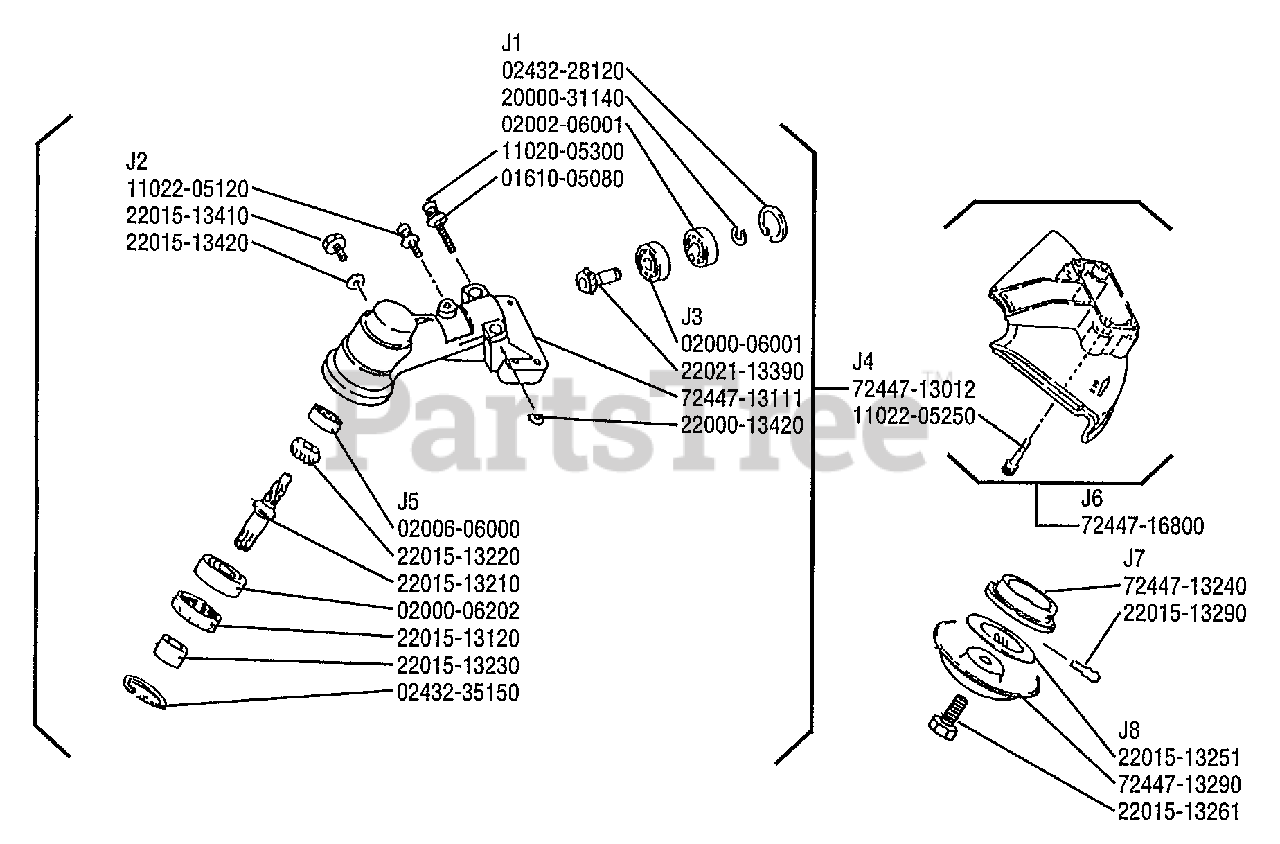

Gear Housing Parts Diagram

  • Title

J1-02432-28120

Echo 02432-28120

SNAP RING
(Superseded to 9242428000)

$1.99

$

In Stock, Qty 20+

0

J1-20000-31140

Echo 20000-31140

SNAP RING
(Superseded to V583000170)

$1.49

$

In Stock, Qty 20+

0

J1-02002-06001

Echo 02002-06001

BEARING, BALL
(Superseded to 90080406001)

$13.99

$

In Stock, Qty 5

0

J1-11020-05300

Echo 11020-05300

BOLT
(Superseded to V203000730)

$1.99

$

In Stock, only 2 left!

0

J1-01610-05080

Echo 01610-05080

WASHER
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

J3-02000-06001

Echo 02000-06001

BEARING, BALL 6001
(Superseded to 37074-63310)

$11.99

$

In Stock, Qty 20+

0

J3-22021-13390

Echo 22021-13390

PINION KIT
(Superseded to V651000550)

$28.99

$

Usually ships in 2-4 days

0

J2-72447-13111

Echo 72447-13111

GEARCASE
(Superseded to 72447-13012)

$213.99

$

Usually ships in 2-4 days

0

J3-22000-13420

Echo 22000-13420

SHIM
(Superseded to V340000300)

$1.49

$

In Stock, Qty 6

0

J2-11022-05120

Echo 11022-05120

BOLT SPW
(Superseded to V203000700)

$1.49

$

In Stock, Qty 20+

0

J2-22015-13410

Echo 22015-13410

BOLT
(Superseded to V206000250)

$1.99

$

In Stock, Qty 18

0

J2-22015-13420

Echo 22015-13420

GASKET
(Superseded to V307000230)

$1.49

$

In Stock, only 3 left!

0

J5-02006-06000

Echo 02006-06000

BEARING
(Superseded to 90080206000)

$16.99

$

In Stock, Qty 17

0

J5-22015-13220

Echo 22015-13220

BEVEL GEAR
(Superseded to V651000540)

$29.99

$

Usually ships in 2-4 days

0

J5-22015-13210

Echo 22015-13210

GEAR SHAFT
(Superseded to C534000590)

$39.99

$

Usually ships in 2-4 days

0

J5-02000-06202

Echo 02000-06202

BEARING, BALL
(Superseded to 90081006202)

$11.99

$

In Stock, only 1 left!

0

J5-22015-13120

Echo 22015-13120

7MM SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

J5-22015-13230

Echo 22015-13230

COLLAR, GEAR
(Superseded to V358000130)

$4.99

$

Usually ships in 2-4 days

0

J5-02432-35150

Echo 02432-35150

SNAP RING
(Superseded to 9242435000)

$2.49

$

In Stock, Qty 10

0

J8-22015-13251

Echo 22015-13251

HOLDER B
(Superseded to C535000780)

$38.99

$

In Stock, Qty 6

0

J8-72447-13290

Echo 72447-13290

STABILIZER

$26.99

$

Usually ships in 2-4 days

0

J8-22015-13261

Echo 22015-13261

BOLT
(Superseded to V206000220)

$3.49

$

In Stock, only 3 left!

0

J7-72447-13240

Echo 72447-13240

HOLDER A
(Superseded to C535000770)

$42.99

$

Usually ships in 2-4 days

0

J7-22015-13290

Echo 22015-13290

SLIDE PIN
(Superseded to V641000140)

$2.99

$

In Stock, only 2 left!

0

J6-72447-16800

Echo 72447-16800

GUARD ASSY
(Superseded to Discontinued)

$

$

Not available

J4-72447-13012

Echo 72447-13012

GEARCASE ASSY

$213.99

$

Usually ships in 2-4 days

0

J4-11022-05250

Echo 11022-05250

BOLT SPW
(Superseded to V203000630)

$1.49

$

In Stock, Qty 20+

0
