RC 45 - Shindaiwa String Trimmer / Brush Cutter Piston And Crankshaft Parts Diagram

String Trimmer / Brush Cutter

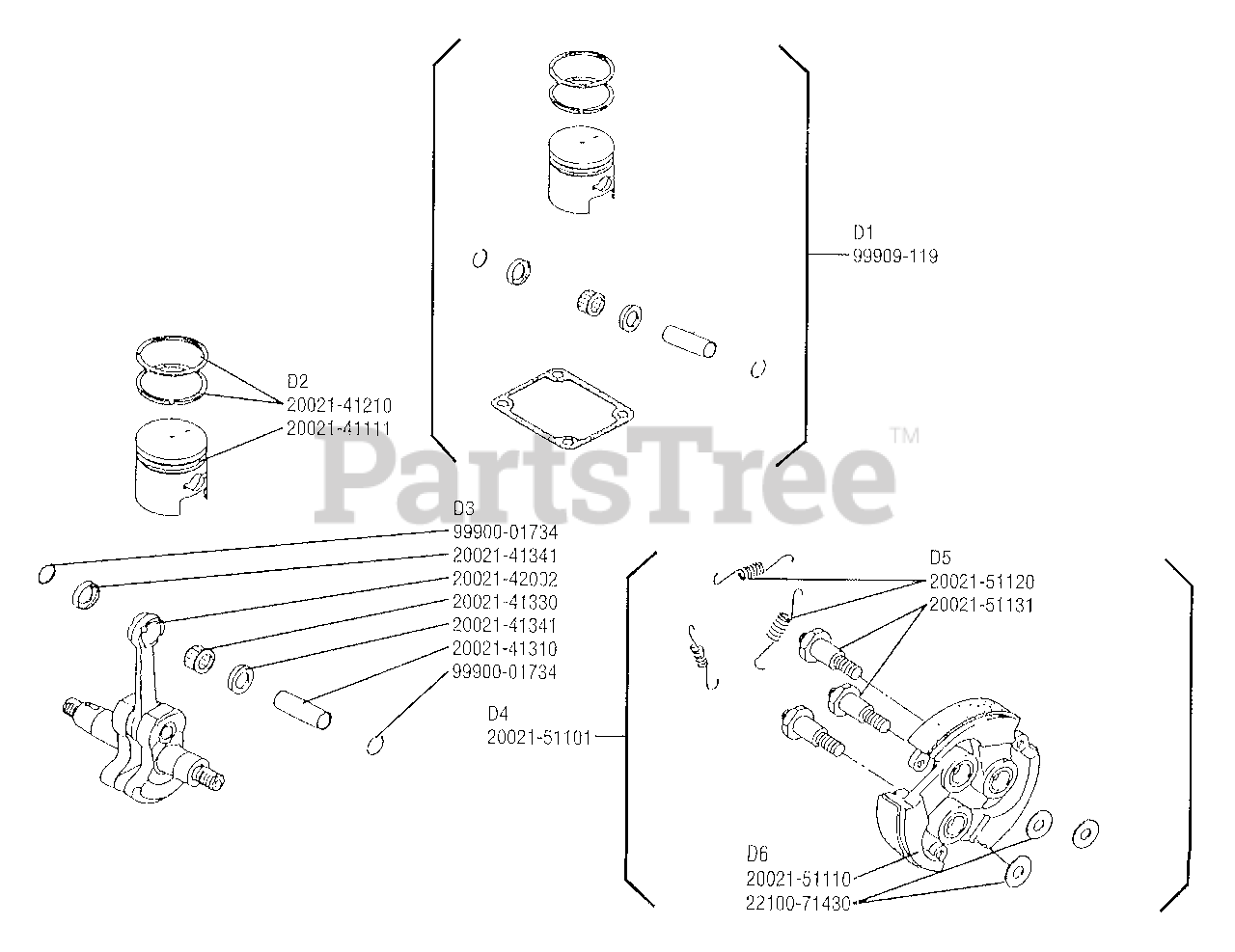

Piston And Crankshaft Parts Diagram

  • Title

D1-99909-119

Echo 99909-119

PISTON ASSY
(Superseded to 99909-136)

$

$

Not available

D1-20021-41210

Echo 20021-41210

PISTON RING
(Superseded to A101000350)

$4.99

$

In Stock, Qty 14

0

D2-20021-41111

Echo 20021-41111

PISTON, USE 99909-304
(Superseded to 99909-304)

$

$

Not available

D3-99900-01734

Echo 99900-01734

SNAP RING, 8MM

$0.99

$

Usually ships in 2-4 days

0

D3-20021-41341

Echo 20021-41341

WASHER, THRUST
(Superseded to 20021-41342)

$5.99

$

Usually ships in 2-4 days

0

D3-20021-42002

Echo 20021-42002

CRANKSHAFT ASSY
(Superseded to A011000810)

$65.99

$

Usually ships in 2-4 days

0

D3-20021-41330

Echo 20021-41330

BEARING, NEEDLE
(Superseded to V556000020)

$10.99

$

Usually ships in 2-4 days

0

D3-20021-41341

Echo 20021-41341

WASHER, THRUST
(Superseded to 20021-41342)

$5.99

$

Usually ships in 2-4 days

0

D3-20021-41310

Echo 20021-41310

PISTON PIN
(Superseded to V609000020)

$5.99

$

Usually ships in 2-4 days

0

D3-99900-01734

Echo 99900-01734

SNAP RING, 8MM

$0.99

$

Usually ships in 2-4 days

0

D4-20021-51101

Echo 20021-51101

CLUTCH ASSY
(Superseded to 20021-51102)

$66.99

$

Usually ships in 2-4 days

0

D5-20021-51120

Echo 20021-51120

SPRING, CLUTCH
(Superseded to A566000130)

$2.99

$

Usually ships in 2-4 days

0

D5-20021-51131

Echo 20021-51131

BOLT, CLUTCH
(Superseded to A557000100)

$6.49

$

Usually ships in 2-4 days

0

D6-20021-51110

Echo 20021-51110

CLUTCH SHOE
(Superseded to 20021-51111)

$13.99

$

Usually ships in 2-4 days

0

D6-22100-71430

Echo 22100-71430

WASHER
(Superseded to V304000150)

$1.49

$

Usually ships in 2-4 days

0
