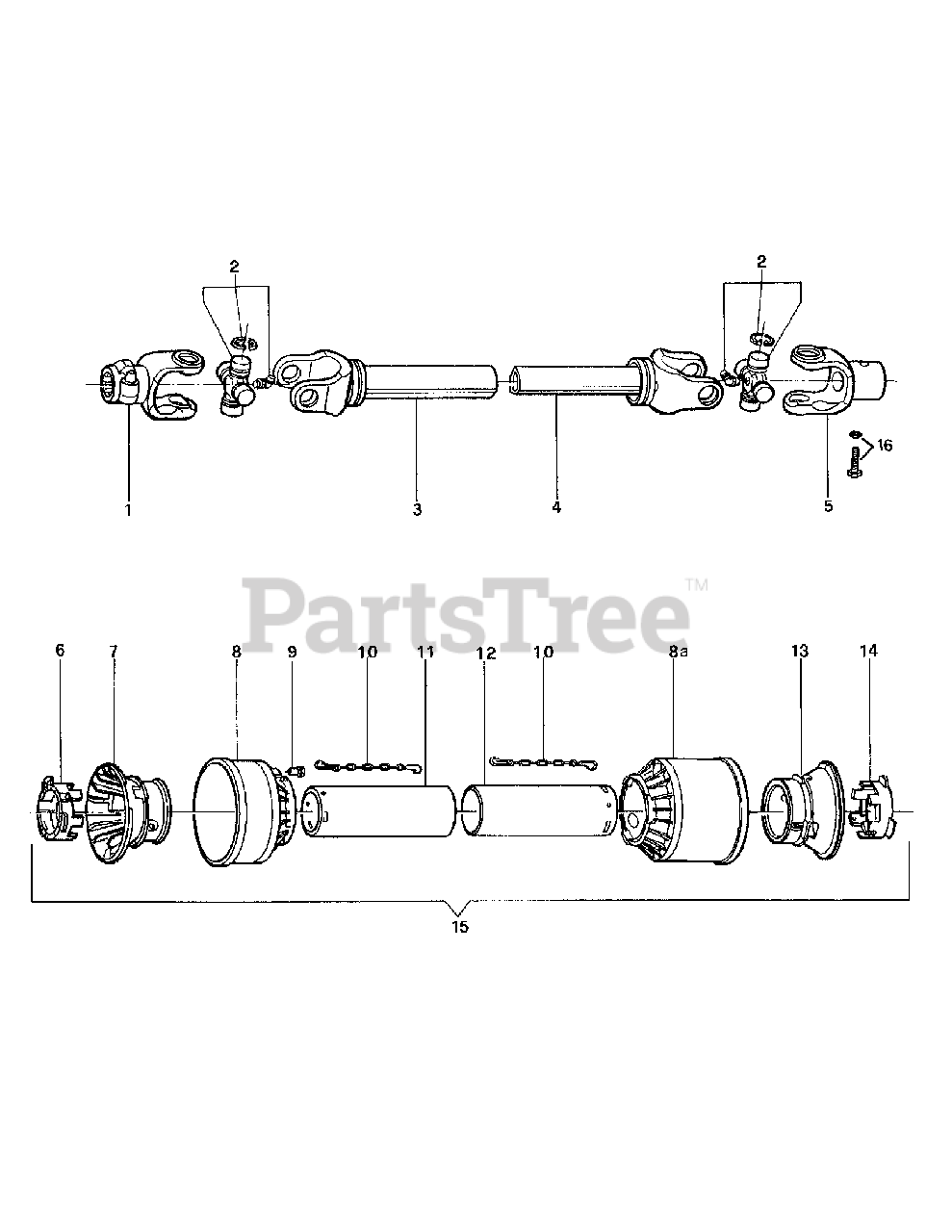

RC 60 (59A40034727) - Cub Cadet Yanmar Tractor 60" Rotary Cutter Driveline Version 03 Parts Diagram

Tractor 60" Rotary Cutter

Driveline Version 03 Parts Diagram

  • Title
1

Cub Cadet YS-024-001E

Yoke assembly (tractor end)
(Superseded to BF-024-001E)

$

$

Not available

2

Cub Cadet YS-014-130E

Cross & bearing
(Superseded to BF-014-130E)

$

$

Not available

3

Cub Cadet YS-1944062C

Outer tube with yoke (RC60)

$

$

Not available

3

Cub Cadet YS-1944075C

Outer tube with yoke (RC72)

$

$

Not available

4

Cub Cadet YS-1954064C

Inner tube with yoke (RC60)
(Superseded to BF-1954064C)

$

$

Not available

4

Cub Cadet YS-1954077C

Inner tube with yoke (RC72)

$

$

Not available

5

Cub Cadet YS-1074566C

Yoke assembly (implement end)

$

$

Not available

6

Cub Cadet YS-1784210C

Outer tube bearing
(Superseded to BF-1784210C)

$

$

Not available

7

Cub Cadet YS-1784201C

Outer tube rigid cone
(Superseded to BF-1784201C)

$26.25

$

In Stock, only 1 left!

0

8

Cub Cadet YS-1784203C

Soft cone
(Superseded to BF-1784203C)

$

$

Not available

8a

Cub Cadet YS-1784205C

Soft cone (long)
(Superseded to BF-1784205C)

$

$

Not available

9

Cub Cadet YS-1784212C

Pin
(Superseded to BF-1784212C)

$

$

Not available

10

Cub Cadet YS-016-025E

Chain
(Superseded to BF-016-025E)

$

$

Not available

11

Cub Cadet YS-1773060C

Outer shield (RC60)

$

$

Not available

11

Cub Cadet YS-1773075C

Outer shield (RC72)

$

$

Not available

12

Cub Cadet YS-1872060C

Inner shield (RC60)

$

$

Not available

12

Cub Cadet YS-1872075C

Inner shield (RC72)

$

$

Not available

13

Cub Cadet YS-1784202C

Inner shield rigid cone
(Superseded to BF-1784202C)

$

$

Not available

14

Cub Cadet YS-1784211C

Inner tube bearing
(Superseded to BF-1784211C)

$

$

Not available

15

Cub Cadet YS-9054060C

Complete protection (RC60)

$

$

Not available

15

Cub Cadet YS-9054075C

Complete protection (RC72)

$

$

Not available

16

Cub Cadet YS-503-314B

Shear bolt ½"x3½" w/nut grade 2
(Superseded to BF-503-314B)

$8.68

$

Usually ships in 5-10 days

0

Cub Cadet YS-050-0455

Complete driveline w/shear pin (RC60)

Note: Not shown

$

$

Not available

Cub Cadet YS-050-0456

Complete driveline w/shear pin (RC72)

Note: Not shown

$

$

Not available

Cub Cadet YS-950-463B

Decal "DANGER - Rotating driveline, keep away" outer shield

Note: Not shown

$

$

Not available

Cub Cadet YS-950-464B

Decal "DANGER - Guard missing, do not operate" outer tube

Note: Not shown

$

$

Not available
