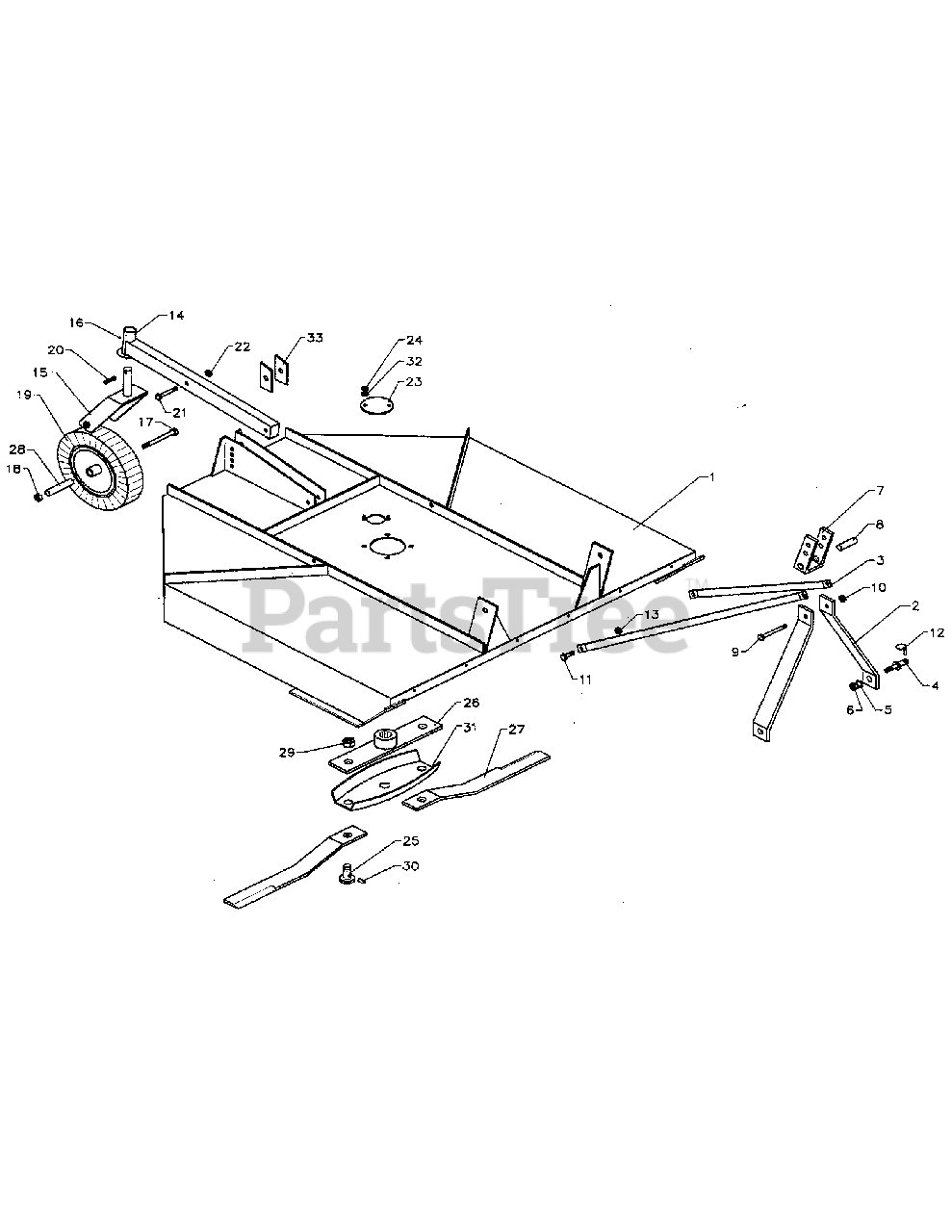

RC 60 (59A40034727) - Cub Cadet Yanmar Tractor 60" Rotary Cutter Frame Version 01 Parts Diagram

Tractor 60" Rotary Cutter

Frame Version 01 Parts Diagram

  • Title

1

Cub Cadet YS-503-804B

ROUND BACK FRAME COMPLETE

$

$

Not available

2

Cub Cadet YS-005-5803

VERTICAL SUPPORT
(Superseded to BF-005-5803)

$

$

Not available

3

Cub Cadet YS-025-5804

HORIZONTAL SUPPORT 60"

$

$

Not available

4

Cub Cadet YS-502-858B

HITCH PINS
(Superseded to BF-502-858B)

$

$

Not available

5

Cub Cadet YS-502-860B

HEX NUT 5/8"
(Superseded to BF-502-860B)

$

$

Not available

6

Cub Cadet YS-502-859B

LOCKWASHER 5/8"
(Superseded to BF-502-859B)

$

$

Not available

7

Cub Cadet YS-000-6828

TOP HITCH PLATE
(Superseded to BF-000-6828)

$

$

Not available

8

Cub Cadet YS-005-5809

INNER SPACER
(Superseded to BF-005-5809)

$

$

Not available

9

Cub Cadet YS-190-1228

BOLT 5/8" X 7"
(Superseded to BF-190-1228)

$

$

Not available

10

Cub Cadet YS-502-807B

STOVER NUT 5/8"
(Superseded to BF-502-807B)

$

$

Not available

11

Cub Cadet YS-000-2437

BOLT 14 X 40
(Superseded to BF-000-2437)

$

$

Not available

12

Cub Cadet YS-001-8266

LYNCH PIN
(Superseded to BF-001-8266)

$

$

Not available

13

Cub Cadet YS-000-7224

STOVER NUT 14MM
(Superseded to BF-000-7224)

$

$

Not available

14

Cub Cadet YS-503-720B

WHEEL ARM

$

$

Not available

15

Cub Cadet YS-000-5531

WHEEL YOKE
(Superseded to BF-000-5531)

$

$

Not available

16

Cub Cadet YS-000-6635

GREASE FITTING
(Superseded to BF-000-6635)

$

$

Not available

17

Cub Cadet YS-005-5819

BOLT 3/4" X 7"
(Superseded to BF-005-5819)

$

$

Not available

18

Cub Cadet YS-200-2024

JAM NUT 3/4"

$

$

Not available

19

Cub Cadet YS-005-5821

LAMINATED TIRE
(Superseded to BF-005-5821)

$

$

Not available

20

Cub Cadet YS-000-5521

ROLL PIN 10 X 40
(Superseded to BF-000-5521)

$

$

Not available

21

Cub Cadet YS-000-8029

BOLT 16 X 90
(Superseded to BF-000-8029)

$

$

Not available

22

Cub Cadet YS-000-5581

STOVER NUT 16MM
(Superseded to BF-000-5581)

$

$

Not available

23

Cub Cadet YS-005-5826

ACCESS PLATE
(Superseded to BF-005-5826)

$

$

Not available

24

Cub Cadet YS-001-4106

NYLOCK NUT 10MM
(Superseded to BF-001-4106)

$

$

Not available

25

Cub Cadet YS-000-5960

BLADE BOLT

$

$

Not available

26

Cub Cadet YS-005-5831

BLADE ROTOR W/BUSHING

$

$

Not available

27

Cub Cadet YS-000-5628

BLADE

$

$

Not available

28

Cub Cadet YS-005-5836

WHEEL SPACER
(Superseded to BF-005-5836)

$

$

Not available

29

Cub Cadet YS-000-5570

NUT 27MM
(Superseded to BF-000-5570)

$

$

Not available

30

Cub Cadet YS-000-5635

BLADE STOP PIN
(Superseded to BF-000-5635)

$

$

Not available

31

Cub Cadet YS-005-5842

STUMP JUMPER (60", 72" ONLY)
(Superseded to BF-005-5842)

$

$

Not available

32

Cub Cadet YS-000-1047

FLAT WASHER 10MM
(Superseded to BF-000-1047)

$

$

Not available

33

Cub Cadet N/A

SPACERS

$

$

Currently unavailable
