RD-1750 (13B4516N190) - White Outdoor 42" Lawn Tractor (2003) Dash Parts Diagram

42" Lawn Tractor

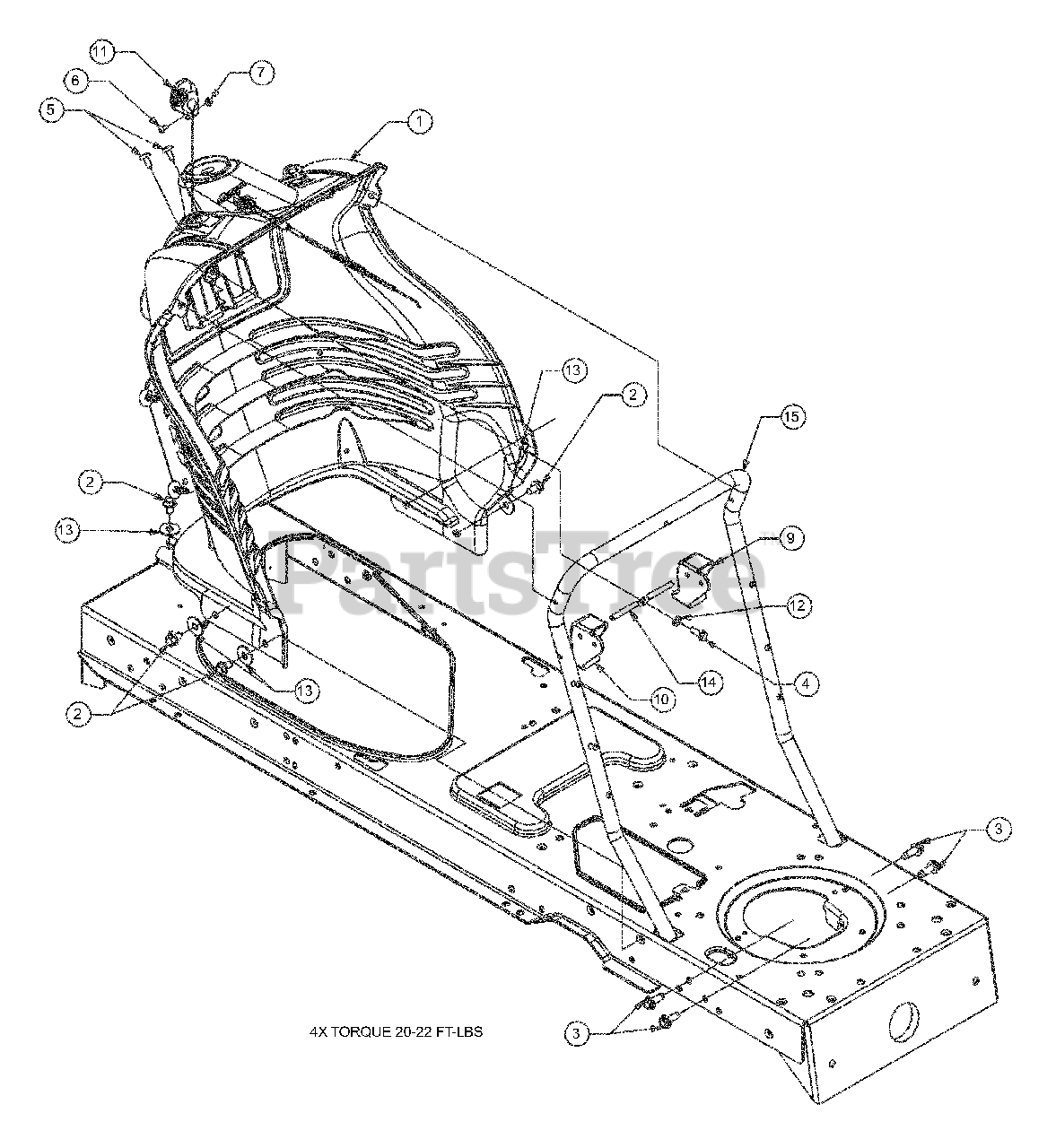

Dash Parts Diagram

  • Title

15

White Outdoor 749-1087C

TUBE:DASH:SUPT

Variations

749-1087C-0637

White Outdoor 749-1087C-0637

TUBE-DASH SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

14

White Outdoor 747-1155

ROD:LVR:BRAKE/CRUISE PIVOT

$13.99

$

Usually ships in 3-6 days

0

13

White Outdoor 736-3078

FL-WASH .344 X 1.00 X .063 HDN

$4.99

$

In Stock, only 4 left!

0

12

White Outdoor 736-0142

WASH:FLAT:.281 X .50 X .063

$4.99

$

In Stock, Qty 20+

0

11

White Outdoor 731-1857

KNOB:CONT

$15.99

$

In Stock, only 4 left!

0

10

White Outdoor 731-04214

LVR:DASH:CRUISE

$

$

Not available

9

White Outdoor 731-04213

LVR:DASH:BRAKE

$13.99

$

Usually ships in 3-6 days

0

?8

White Outdoor 726-04029

CLIP:RTCHT:.300 DIA

$4.49

$

Usually ships in 3-6 days

0

7

White Outdoor 712-0142

NUT:8-32:HEX MACH SCR:

$4.99

$

In Stock, Qty 5

0

6

White Outdoor 710-3217

SCR:MACH:#8-32:0.375:TRUSPHI

$7.49

$

In Stock, only 2 left!

0

5

White Outdoor 710-1017

SCR:AB:1/4-14:0.625:TRUSTRXI

$8.99

$

In Stock, Qty 9

0

4

White Outdoor 710-0895

SCR:HL:1/4-15:0.750:HXINDWSH

$6.99

$

In Stock, Qty 20+

0

3

White Outdoor 710-0650

SCR:TT:5/16-18:0.875:HXINDWSH

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 710-0604A

SCR:TT:5/16-18:0.625:HXINDWSH

$4.99

$

In Stock, Qty 8

0

1

631-04035

DASH ASM:4 STYLE:CARGO NET

$

$

Not available
