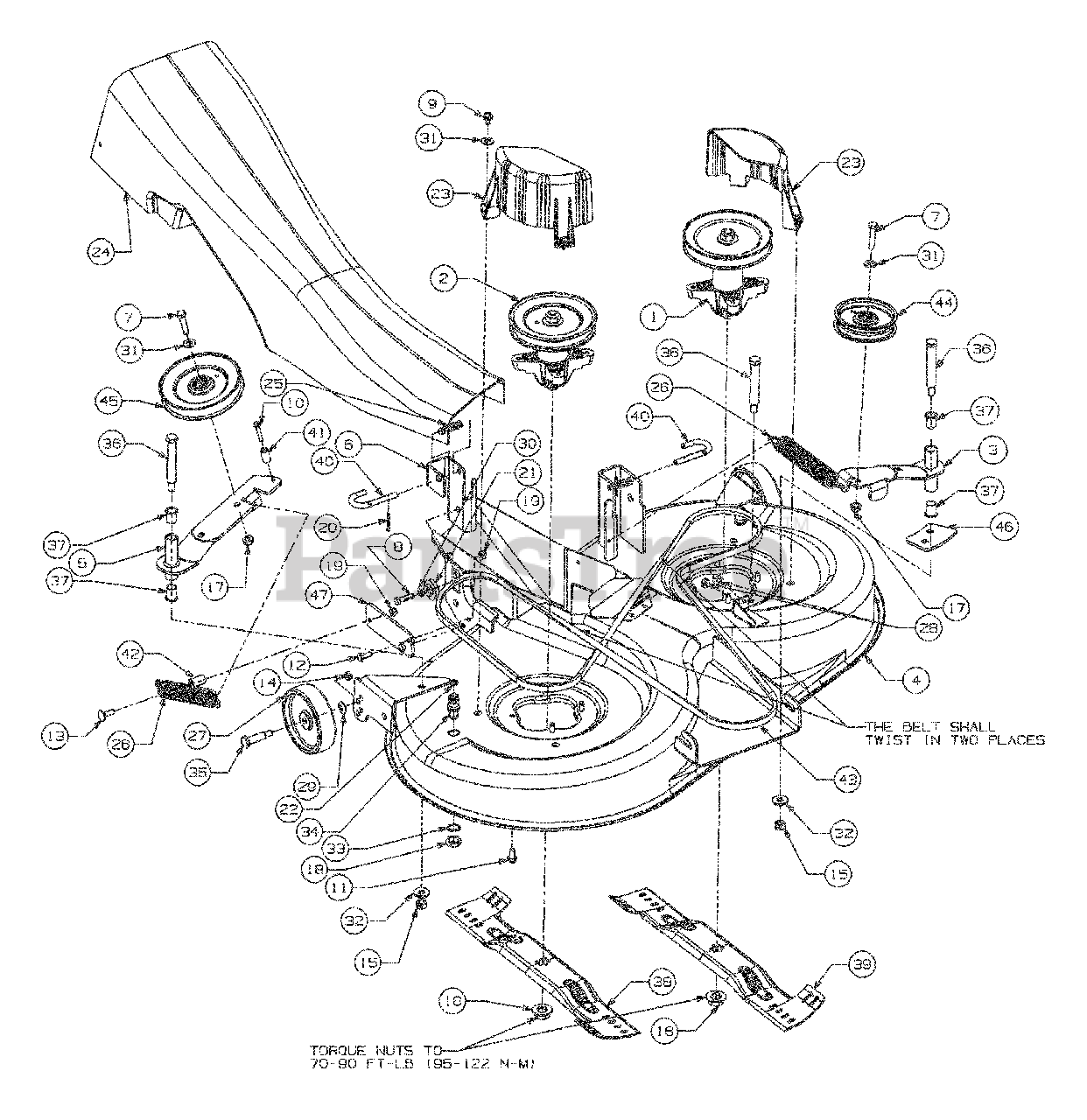

RD-1750 (13B4516N190) - White Outdoor 42" Lawn Tractor (2003) Deck Assembly Parts Diagram

42" Lawn Tractor

Deck Assembly Parts Diagram

  • Title

47

White Outdoor 783-04255

BRKT:DECK:SPR 500 SERIES

Variations

783-04255-0637

White Outdoor 783-04255-0637

BRACKET-DECK - POWDER BLACK (0637)

$

$

Not available

$

$

46

White Outdoor 783-04240

BRKT:SUPT:IDLR:DECK

Variations

783-04240-0637

White Outdoor 783-04240-0637

BRACKET-SUPPORT IDLR - POWDER BLACK (0637)

$

$

Not available

$

$

45

White Outdoor 756-04050

PUL:IDLR:6.0 DIA.
(Superseded to 956-04050)

$60.99

$

Usually ships in 3-6 days

0

44

White Outdoor 756-04049

PUL:IDLR:4.0 DIA.
(Superseded to 956-04049A)

$53.99

$

Usually ships in 3-6 days

0

43

White Outdoor 754-0631

BELT:V TYP:5 L X 106 LG KEVL
(Superseded to 954-0631)

$68.99

$

Usually ships in 3-6 days

0

42

White Outdoor 750-04195

SPCR:16X8X27 DIN 2391

$

$

Not available

41

White Outdoor 750-04182

SPCR:14MM OD X 7MM ID

$

$

Not available

40

White Outdoor 747-04116

ROD:HNDL:DECK REL .375 DIA
(Superseded to 747-1116)

$12.99

$

In Stock, Qty 20+

0

39

White Outdoor 742-04025A

BLADE:LH:21.35 LG:STAR BAG
(Superseded to 742-04081)

$67.99

$

Usually ships in 3-6 days

0

38

White Outdoor 742-04024A

BLADE:RH:21.35 LG:STAR BAG
(Superseded to 742-04080)

$63.99

$

Usually ships in 3-6 days

0

37

White Outdoor 741-0591

BRG:FLG:.630 ID X .693 OD X .875

$4.99

$

In Stock, Qty 9

0

36

White Outdoor 738-0476

SCR:SHLDR:.625 X 3.50:7/16-14

$

$

Not available

35

White Outdoor 738-0373

SHLD-SCR .498 DIA X 1.53 LNG
(Superseded to 938-0373)

$9.99

$

In Stock, Qty 20+

0

34

White Outdoor 737-04003

NOZ:DECK:WATER
(Superseded to 737-04003D)

$24.99

$

In Stock, Qty 7

0

33

White Outdoor 736-0760

WASH:LOCK:SCHNORR 17X23.8X1.95

$4.49

$

In Stock, Qty 7

0

32

White Outdoor 736-04097

WASH:FLAT:.469 X 1.125 X .125
(Superseded to 936-04097)

$

$

Not available

31

White Outdoor 736-0300

WASH:FLAT:.406 X .875 X .059

$4.99

$

In Stock, Qty 20+

0

30

White Outdoor 736-0119

WASH:LOCK:5/16:REGULAR DUTY
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

29

White Outdoor 736-0105

WASH:BELL:.375 X .870 X .063

$4.99

$

In Stock, Qty 20+

0

28

White Outdoor 735-0271

BMPR: .62 DIA X .3
(Superseded to 735-0271A)

$9.49

$

In Stock, Qty 16

0

27

White Outdoor 734-0973

DECK WHEEL 5.0 X 1.38
(Superseded to 734-06265)

$13.99

$

Usually ships in 3-6 days

0

26

White Outdoor 732-04099

SPR:EXT:1.25 DIA X 8.224 LG

$

$

Not available

25

White Outdoor 732-0306

SPR:CMPRS:.406X.531X1.75 LG
(Superseded to 932-0306A)

$8.99

$

In Stock, Qty 7

0

24

White Outdoor 731-2539A

CHUTE:DIS:RR:105CM DECK
(Superseded to 731-2539B)

$199.99

$

Usually ships in 3-6 days

0

23

White Outdoor 731-2538

CVR:DECK:BELT:92cm/105cm

$

$

Not available

22

White Outdoor 721-0417

SEAL:O-RG:16mm OD X 11mm ID
(Superseded to 921-0417)

$

$

Not available

21

White Outdoor 717-1553B

ADJ:DECK:GEAR
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 20+

0

20

White Outdoor 714-0470

PIN:COT:1/8 X 1.25

$4.49

$

In Stock, only 4 left!

0

19

White Outdoor 712-0692

NUT:HEXLK:M8-1.25:NYLON DIN985

$7.49

$

In Stock, Qty 8

0

18

White Outdoor 712-0641

NUT:HEX:M16-1.5 DIN 936

$6.49

$

In Stock, Qty 9

0

17

White Outdoor 712-0431

NUT:FLGLK:3/8-16:GRF:TOP LK
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

16

White Outdoor 712-0417A

NUT:HEX FLG:5/8-18

$7.49

$

In Stock, Qty 20+

0

15

White Outdoor 712-0290

NUT:HEXLK:7/16-14:GRA:CTRLK

$4.99

$

In Stock, Qty 8

0

14

White Outdoor 712-0181

NUT:JAM:3/8-16:TOP LOCK

$4.49

$

In Stock, only 3 left!

0

13

White Outdoor 710-1719

BOLT:CRG:M8 X 1.25 X 50 LG

$2.99

$

Usually ships in 3-6 days

0

12

White Outdoor 710-1681

HHCS:M8-1.25:20.00:GR8.8:STD

$6.49

$

Usually ships in 3-6 days

0

11

White Outdoor 710-1260A

SCR:LD:5/16-18:0.750:HXINDWSH

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 710-0778

SCR:TT:1/4-20:1.500:HXINDWSH

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 710-0607

SCR:TT:5/16-18:0.500:HXINDWSH

$6.99

$

In Stock, Qty 20+

0

8

White Outdoor 710-0528

HHCS:5/16-18:1.25:GR5:STD

$4.99

$

In Stock, Qty 20+

0

7

White Outdoor 710-0347

HHCS:3/8-16:1.75:GR5:STD

$5.49

$

In Stock, Qty 20+

0

6

White Outdoor 683-0596

BRKT ASM:DECK:HNGR ADJ 92/105
(Superseded to 683-0596-0637)

Variations

683-0596-0637

White Outdoor 683-0596-0637

BRACKET ASSY DECK - POWDER BLACK (0637)

$

$

Not available

$

$

5

White Outdoor 683-04061

BRKT ASM:IDLR:V-PUL
(Superseded to 683-04061-0637)

Variations

683-04061-0637

White Outdoor 683-04061-0637

BRACKET ASSY-IDLER - POWDER BLACK (0637)

$

$

Not available

$

$

4

White Outdoor 683-04059

DECK ASM:RR DIS:105 CM

Variations

683-04059-0650

White Outdoor 683-04059-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

$

$

3

White Outdoor 683-04058

BRKT ASM:IDLR:DECK 500 S

Variations

683-04058-0637

White Outdoor 683-04058-0637

BRACKET ASSY-IDLER 500 - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 618-0624

SPDL ASM:PUL:6.3 DIA
(Superseded to 918-0624B)

$158.99

$

In Stock, only 4 left!

0

1

White Outdoor 618-0609

SPDL ASM:PUL:6.418 DIA X .5625
(Superseded to 918-0609)

$

$

Not available
