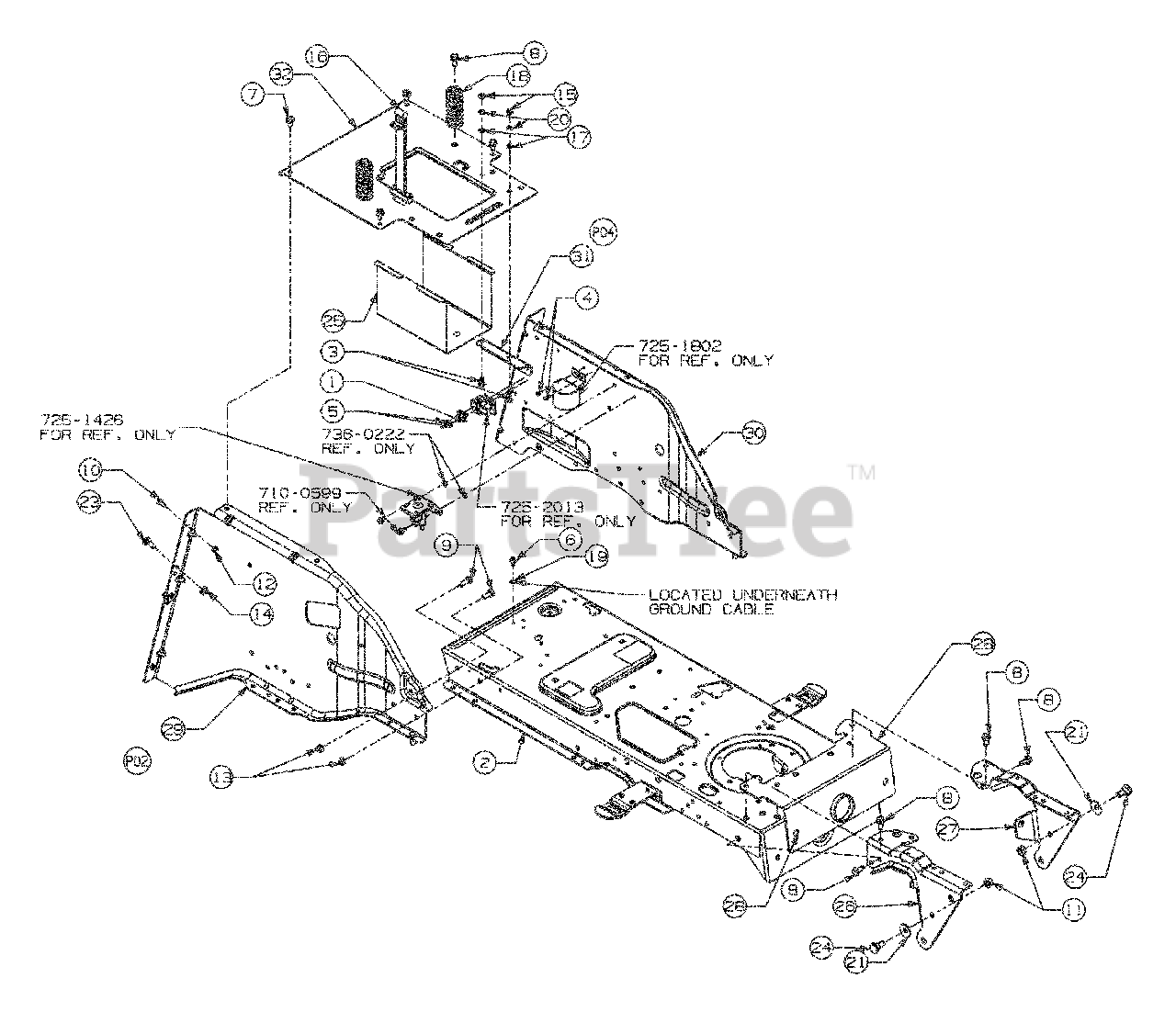

RD-1750 (13B4516N190) - White Outdoor 42" Lawn Tractor (2003) Frame Parts Diagram

42" Lawn Tractor

Frame Parts Diagram

  • Title

32

White Outdoor 783-1410

PLT:TOP

Variations

White Outdoor 783-1410-0650

PLATE-TOP - RED METALLIC (0650)

$

$

Not available

$

$

31

White Outdoor 783-1387A

BRKT:ROD:SHF

$

$

Not available

30

783-1370B

FRM:RR:LH HYDRO 500

$

$

Not available

29

White Outdoor 783-1318A

FRM:RR:RH 500

Variations

White Outdoor 783-1318A-0637

FRAME-REAR RH - POWDER BLACK (0637)

$

$

Not available

$

$

28

White Outdoor 783-0728

BRKT:PIVOT:BAR
(Superseded to 783-0728B)

Variations

White Outdoor 783-0728-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0728-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0728-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0728-0691

BRACKET-PIVOT BAR - BLACK JACK (0691)

$43.99

$

Usually ships in 3-6 days

0

$38.99

$

Usually ships in 3-6 days

0

27

White Outdoor 783-0727A

BRKT:PIVOT:SUPT LH
(Superseded to 783-0727B)

Variations

White Outdoor 783-0727A-0650

BRACKET:PIVOT:SUPPORT LH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0727A-0691

BRACKET:PIVOT:SUPPORT LH - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0727A-0637

USE 783-0727C BRKT:PIVOT:SUPT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0727A-0665

BRACKET:PIVOT:SUPPORT LH - YARDMAN GREEN (0665)

$

$

Not available

$52.99

$

Usually ships in 3-6 days

0

26

White Outdoor 783-0726B

BRKT:PIVOT:SUPT RH
(Superseded to 783-0726E)

Variations

White Outdoor 783-0726B-0606

Pivot Support Bracket, RH - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-0726B-0498

Pivot Support Bracket, RH - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 783-0726B-0637

BRACKET:PIVOT SUPPORT RH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0726B-0650

BRACKET:PIVOT SUPPORT RH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0726B-0691

BRACKET:PIVOT SUPPORT RH - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0726B-0716

Pivot Support Bracket, RH - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 783-0726B-0665

BRACKET:PIVOT SUPPORT RH - YARDMAN GREEN (0665)

$

$

Not available

$

$

25

White Outdoor 783-0349

TRAY:BATT:400

Variations

White Outdoor 783-0349-4008

TRAY-BATTERY 400 S - WINE RED (4008)

$

$

Not available

White Outdoor 783-0349-0606

TRAY-BATTERY 400 S - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-0349-0637

Battery Tray, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

24

White Outdoor 738-0143

SHLD SCR: 3/8-16

$3.99

$

In Stock, Qty 20+

0

23

White Outdoor 738-0140

SCR:SHLD:.435 X .178-5/16 X .56

$5.49

$

In Stock, Qty 17

0

?22

737-3007

GRES:ALVANIA EP 2

$

$

Not available

21

White Outdoor 736-0331

WASH:BELL:.390 X 1.13 X .062

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 736-0329

WASH:LOCK:1/4:REGULAR DUTY
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

19

White Outdoor 736-0222

EXTERN L-WASH 1/4

$5.49

$

In Stock, only 3 left!

0

18

White Outdoor 732-04035

SPR:COMPRS:1.28 OD X 3.125

$9.99

$

In Stock, Qty 15

0

17

White Outdoor 726-0233

NUT:PUSH:.25 ID X .50 OD

$3.99

$

In Stock, only 2 left!

0

16

White Outdoor 723-0444

STRAP:BAT:400

$22.99

$

Usually ships in 3-6 days

0

15

White Outdoor 712-3006

NUT:HEX:1/4-20:GR5

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 712-3004A

NUT:FLGLK:5/16-18:GR5:SD LK

$3.49

$

In Stock, Qty 20+

0

13

White Outdoor 712-0692

NUT:HEXLK:M8-1.25:NYLON DIN985

$6.49

$

In Stock, only 4 left!

0

12

MTD 712-0691

NUT:HEXLK:M6-1:NYLON DIN 985

$6.99

$

Usually ships in 3-6 days

0

11

White Outdoor 712-0431

NUT:FLGLK:3/8-16:GRF:TOP LK
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

10

White Outdoor 710-1691

SCR:M6-1:12.00 LG DIN 933

$2.99

$

Usually ships in 3-6 days

0

9

White Outdoor 710-1681

HHCS:M8-1.25:20.00:GR8.8:STD

$5.99

$

Usually ships in 3-6 days

0

8

White Outdoor 710-1260A

SCR:LD:5/16-18:0.750:HXINDWSH

$3.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-0604A

SCR:TT:5/16-18:0.625:HXINDWSH

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 710-0599

SCR:TT:1/4-20:0.500:HXINDWSH

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 710-0224

SCR:AB:#10-16:0.500:HXINDWSH
(Superseded to 910-0224)

$3.49

$

In Stock, only 1 left!

0

4

White Outdoor 710-0148

SCR:F:#8-32:0.375:HXINDWSH

$3.99

$

In Stock, Qty 16

0

3

White Outdoor 710-0134

SCR:CRG:1/4-20:.62:GR2

$3.99

$

In Stock, Qty 20+

0

2

White Outdoor 683-0586

FRM ASM:LWR

Variations

White Outdoor 683-0586-0650

FRAME ASSY-LOWER - RED METALLIC (0650)

$

$

Not available

$

$

1

White Outdoor 17962

PLT:SW

$4.99

$

In Stock, Qty 5

0
