RD 1840 (1694384) - Snapper 40" Lawn Tractor, 18hp Transmission Group - Tuff Torq K46Q Parts Diagram

40" Lawn Tractor, 18hp

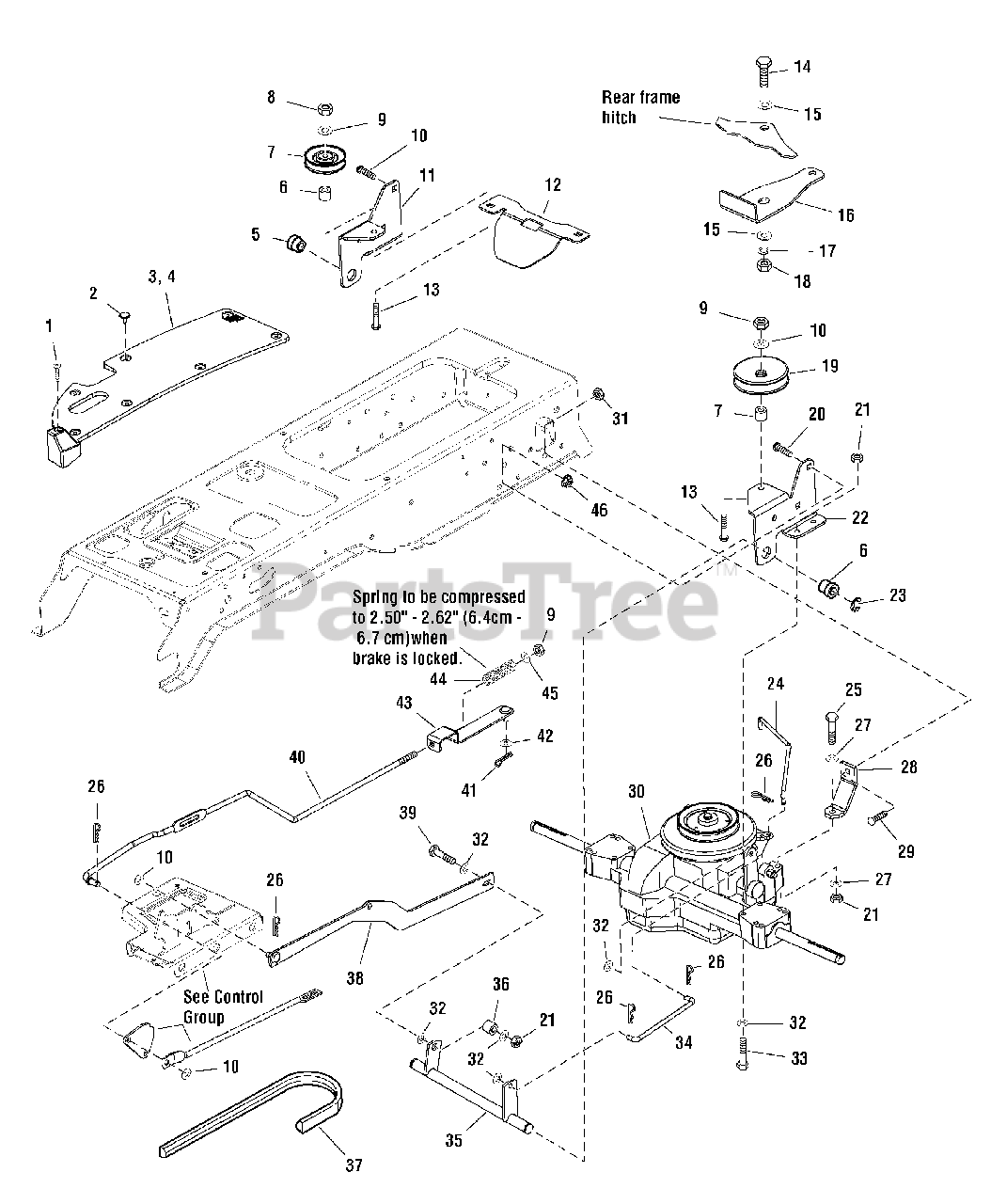

Transmission Group - Tuff Torq K46Q Parts Diagram

  • Title

1

Snapper 1960676

SCREW, Pan Head Trox Taptite, 1/4-20 x 1-1/4
(Superseded to 1960676SM)

$4.49

$

Usually ships in 2-12 days

0

2

Snapper 1704351

FASTENER, Panel
(Superseded to 1704351SM)

$4.99

$

Usually ships in 2-12 days

0

3

Snapper 1722173

PAD, Footrest, RH
(Superseded to 1722173SM)

$32.99

$

Usually ships in 2-12 days

0

4

Snapper 1722174

PAD, Footrest, LH
(Superseded to 1722174SM)

$30.99

$

Usually ships in 2-12 days

0

5

Snapper 2176440

BUSHING
(Superseded to 2176440SM)

$4.99

$

In Stock, Qty 20+

0

6

Snapper 1667812

SPACER
(Superseded to 1667812SM)

$5.99

$

In Stock, only 2 left!

0

7

Snapper 2174561

PULLEY, 3" OD
(Superseded to 2174561SM)

$53.99

$

In Stock, only 4 left!

0

8

Snapper 1919439

NUT, Hex Lock ESNA, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

9

Snapper 1924940

WASHER
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

10

Snapper 1960268

CARRIAGE BOLT, 3/8-16 x 1-1/4
(Superseded to 1960268SM)

$4.49

$

In Stock, Qty 13

0

11

Snapper 1723035

SUPPORT, Transmission, RH
(Superseded to 1723035SM)

$16.99

$

Usually ships in 2-12 days

0

12

Snapper 1723037

BRACKET, Chute
(Superseded to 1723037SM)

$19.99

$

Usually ships in 2-12 days

0

13

Snapper 1931355

CARRIAGE BOLT, 3/8-16 x 2-1/4
(Superseded to 1931355SM)

$5.99

$

In Stock, only 3 left!

0

14

Snapper 1921176

CAPSCREW, Hex Head, 1/2-13 x 1-1/4
(Superseded to 1921176SM)

$4.99

$

Usually ships in 2-12 days

0

15

Snapper 1960170

WASHER
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

16

Snapper 1724578

DRAWBAR
(Superseded to 1724578ASM)

$18.99

$

Usually ships in 2-12 days

0

17

Snapper 1916966

LOCKWASHER, 1/2
(Superseded to 703341)

$4.49

$

Usually ships in 2-12 days

0

18

Snapper 1916951

NUT, Hex 1/2-13
(Superseded to 703340)

$7.99

$

Usually ships in 2-12 days

0

19

Snapper 1723952

PULLEY, 4" OD, Idler
(Superseded to 1723952SM)

$43.99

$

Usually ships in 2-12 days

0

20

Snapper 1931350

CARRIAGE BOLT, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 3 left!

0

21

Snapper 1919438

NUT, Hex Lock ESNA Light, 5/16-18
(Superseded to 1919438SM)

$3.99

$

In Stock, Qty 12

0

22

Snapper 1723036

SUPPORT, Transmisson, LH
(Superseded to 1723036SM)

$15.99

$

Usually ships in 2-12 days

0

23

Snapper 2927794

RING, E"
(Superseded to 2827794SM)

$3.49

$

In Stock, Qty 20+

0

24

Snapper 1723234

ROD, Free Wheel
(Superseded to 1723234SM)

$10.99

$

Usually ships in 2-12 days

0

25

Snapper 1921978

CAPSCREW, Hex Head, 5/16-18 x 2
(Superseded to 703867)

$4.99

$

In Stock, Qty 6

0

26

Snapper 1722460

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, Qty 8

0

27

Snapper 1960141

WASHER
(Superseded to 1960141SM)

$3.99

$

Usually ships in 2-12 days

0

28

Snapper 1723042

STRAP, Torque
(Superseded to 1723042SM)

$8.99

$

Usually ships in 2-12 days

0

29

Snapper 1931333

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

30

Snapper 1721022

TRANSMISSION ASSEMBLY, K46Q
(Superseded to 1721022SM)

$632.99

$

Usually ships in 2-12 days

0

31

Snapper 1960636

NUT, Hex KEPS, 5/16-18
(Superseded to 1960636SM)

$4.99

$

In Stock, only 1 left!

0

32

Snapper 1919326

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 11

0

33

Snapper 1921719

CAPSCREW, Hex Head, 5/16-18 x 2-1/2
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

34

Snapper 1723045

ROD
(Superseded to 1723045SM)

$10.99

$

Usually ships in 2-12 days

0

35

Snapper 1723038

SHAFT ASSEMBLY
(Superseded to 1723038SM)

$40.99

$

Usually ships in 2-12 days

0

36

Snapper 1666697

SPACER
(Superseded to 1666697SM)

$6.49

$

In Stock, only 2 left!

0

37

Snapper 1723268

V-BELT, Drive
(Superseded to 1723268SM)

$69.99

$

Usually ships in 2-12 days

0

38

Snapper 1723043

ARM & PIN ASSEMBLY
(Superseded to 1723043SM)

$30.99

$

Usually ships in 2-12 days

0

39

Snapper 1921333

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, Qty 6

0

40

Snapper 1723090

ROD, Brake
(Superseded to 1723090SM)

$31.99

$

Usually ships in 2-12 days

0

41

Snapper 1918447

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

42

Snapper 1922755

WASHER
(Superseded to 704128)

$4.99

$

In Stock, Qty 6

0

43

Snapper 1723267

BRACKET & PIN ASSEMBLY
(Superseded to 1723267SM)

$16.99

$

Usually ships in 2-12 days

0

44

Snapper 1729277

SPRING, Compression
(Superseded to 1729277SM)

$6.99

$

Usually ships in 2-12 days

0

45

Snapper 1960103

WASHER
(Superseded to 1960103SM)

$4.49

$

In Stock, only 2 left!

0

46

Snapper 1960637

NUT, Hex KEPS, 3/8-16
(Superseded to 1960637SM)

$3.49

$

In Stock, only 1 left!

0
