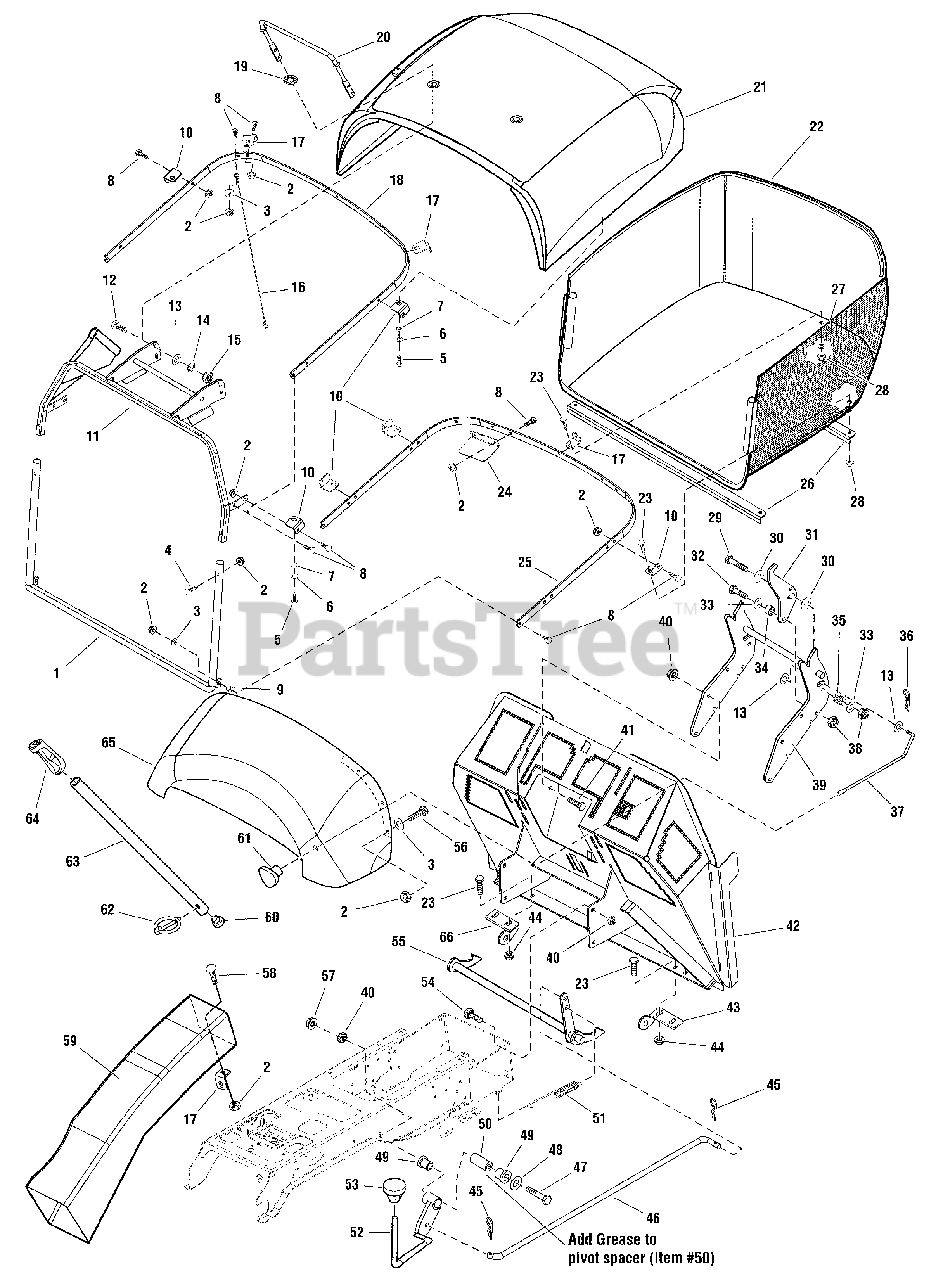

RD 18S40 (2690508) - Snapper LT300 Series 40" Lawn Tractor, 18hp Hopper Group Parts Diagram

LT300 Series 40" Lawn Tractor, 18hp

Hopper Group Parts Diagram

  • Title

1

Snapper 1727486ASM

ROD & TABS ASSEMBLY, Bagger Front

$82.99

$

Usually ships in 2-12 days

0

2

Snapper 1960685SM

NUT, Hex KEPS Conical Washer, 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, only 3 left!

0

3

Snapper 1960353SM

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, only 2 left!

0

4

Snapper 1931320SM

CARRIAGE BOLT, 1/4-20 x 1-1/4
(Superseded to 703178)

$3.99

$

In Stock, only 2 left!

0

5

Snapper 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 3 left!

0

6

Snapper 1917356SM

LOCKWASHER, Spring 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Snapper 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 18

0

8

Snapper 1931317SM

CARRIAGE BOLT, 1/4-20 x 3/4 G5
(Superseded to 703101)

$3.99

$

In Stock, Qty 5

0

9

Snapper 1715654SM

SPACER

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 1727674SM

CLIP, L 12GA
(Superseded to 1732987SM)

$8.99

$

Usually ships in 2-12 days

0

11

Snapper 1727420A

FRAME ASSEMBLY, Hopper
(Superseded to 1727420ASM)

$267.99

$

Usually ships in 2-12 days

0

12

Snapper 1924009SM

CAPSCREW, Hex Head, 1/4-20 x 7/8 G5
(Superseded to 703819)

$4.49

$

In Stock, only 1 left!

0

13

Snapper 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 17

0

14

Snapper 1916964SM

LOCKWASHER, Spring 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

15

Snapper 1916622SM

NUT, Hex 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

16

Snapper 1727832SM

CABLE, Bagger, 17.72 Long

$10.99

$

Usually ships in 2-12 days

0

17

Snapper 1727676A

CLIP, L 12GA
(Superseded to 1732987SM)

$8.99

$

Usually ships in 2-12 days

0

18

Snapper 1727671ASM

BAR, Bagger Top 7GA

$67.99

$

Usually ships in 2-12 days

0

19

Snapper 1724684SM

WASHER, 5/8

$3.99

$

Usually ships in 2-12 days

0

20

Snapper 1724399ASM

HANDLE, Hopper, 13.59 Long

$33.99

$

Usually ships in 2-12 days

0

21

Snapper 1727931SM

LID & SCREEN ASSEMBLY, Red

$341.99

$

Usually ships in 2-12 days

0

22

Snapper 1727423SM

BAG, Grass Black Cloth

$205.99

$

Usually ships in 2-12 days

0

23

Snapper 1931334SM

CARRIAGE BOLT, 5/16-18 x 7/8 G5
(Superseded to 704065)

$4.49

$

In Stock, Qty 12

0

24

Snapper 1727520A

PLATE, Tube Stop Bagger 14GA
(Superseded to 1727520ASM)

$27.99

$

Usually ships in 2-12 days

0

25

Snapper 1727670A

BAR, Bagger Bottom 7GA
(Superseded to 1727670ASM)

$103.99

$

Usually ships in 2-12 days

0

26

Snapper 1727675ASM

BRACE, Angle

$25.99

$

Usually ships in 2-12 days

0

27

Snapper 1960044SM

WASHER, 5/16

$4.49

$

In Stock, Qty 12

0

28

Snapper 1960684SM

NUT, Hex KEPS Conical Washer, 5/16-18
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

29

Snapper 1921978SM

CAPSCREW, Hex Head 5/16-18 x 2 G5
(Superseded to 703867)

$4.99

$

In Stock, Qty 6

0

30

Snapper 1960044SM

WASHER, 5/16

$4.49

$

In Stock, Qty 12

0

31

Snapper 1724651ASM

LATCH, Release 10GA

$7.99

$

Usually ships in 2-12 days

0

32

Snapper 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 3 left!

0

33

Snapper 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 18

0

34

Snapper 1666697SM

SPACER, Powdered Metal

$6.49

$

In Stock, only 2 left!

0

35

Snapper 1714263SM

SPRING, Compression

$4.99

$

Usually ships in 2-12 days

0

36

Snapper 1923360SM

PIN, Cotter
(Superseded to 703892)

$3.49

$

In Stock, Qty 5

0

37

Snapper 1724652SM

ROD, Foot Pedal Bagger Release, 11.66 Long, 2 Bends

$12.99

$

Usually ships in 2-12 days

0

38

Snapper 1919438SM

NUT, Hex Lock ESNA Light, 5/16-18 NC-3B
(Superseded to 703902)

$3.99

$

In Stock, Qty 13

0

39

Snapper 1727580A

PIVOT ASSEMBLY, Latch
(Superseded to 1727580ASM)

$78.99

$

Usually ships in 2-12 days

0

40

Snapper 1928352SM

NUT, Hex Flange Whiz Lock, 3/8-16 Large
(Superseded to 703793)

$4.49

$

In Stock, Qty 9

0

41

Snapper 1921965SM

CAPSCREW, Hex Head, 3/8-16 x 3/4 G5
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

42

Snapper 1727419A

BACKPLATE ASSEMBLY
(Superseded to 1736010ASM)

$655.99

$

Usually ships in 2-12 days

0

43

Snapper 1723182ASM

BRACKET, Latch LH, 7GA

$12.99

$

Usually ships in 2-12 days

0

44

Snapper 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18 Small
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

45

Snapper 1960074SM

CLIP, Hair Pin, Spring Wire
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

46

Snapper 1724458SM

ROD, 25.12 Long, 2 Bends

$17.99

$

Usually ships in 2-12 days

0

47

Snapper 1921973SM

CAPSCREW, Hex Head, 3/8-16 x 2-3/4 G5

$5.49

$

Usually ships in 2-12 days

0

48

Snapper 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

49

Snapper 1676148SM

BUSHING, Powdered Metal

$5.99

$

In Stock, Qty 10

0

50

Snapper 1669105SM

SPACER, 1-1/2 Long, Hardened

$13.99

$

In Stock, only 4 left!

0

51

Snapper 1718016SM

SPRING, Extansion
(Superseded to 1752846YP)

$46.99

$

Usually ships in 2-12 days

0

52

Snapper 1725036SM

ROD & TUBE ASSEMBLY, Differential Lock Pedal

$41.99

$

Usually ships in 2-12 days

0

53

Snapper 1719940SM

KNOB, Hole 1/2, 1.37 Long

$12.99

$

Usually ships in 2-12 days

0

54

Snapper 1960268SM

CARRIAGE BOLT, 3/8-16 x 1-1/4 G5

$4.49

$

In Stock, Qty 14

0

55

Snapper 1724540SM

SHAFT & ARMS ASSEMBLY, Latch

$44.99

$

Usually ships in 2-12 days

0

56

Snapper 1960556SM

SCREW, Pan Head Torx Taptite, 1/4-20 x 3/4

$4.49

$

Usually ships in 2-12 days

0

57

Snapper 1930645SM

NUT, Hex Flange Two Way Lock, 3/8-16 GA
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

58

Snapper 1923341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4 G5

$4.49

$

In Stock, Qty 8

0

59

Snapper 1727429SM

CHUTE, Discharge Black Poly

$188.99

$

Usually ships in 2-12 days

0

60

Snapper 1724553SM

CAPLUG, Black Poly, 3/4 Hole

$4.49

$

In Stock, only 1 left!

0

61

Snapper 1713855SM

KNOB, Bagger Release

$12.99

$

Usually ships in 2-12 days

0

62

Snapper 1666969SM

PIN, Klik 5/164

$7.49

$

Usually ships in 2-12 days

0

63

Snapper 1727523ASM

HANDLE, Tube, 39.75 Long

$136.99

$

Usually ships in 2-12 days

0

64

Snapper 1723359SM

GRIP, Hopper Lift Rod

$10.99

$

Usually ships in 2-12 days

0

65

Snapper 1727406SM

TRANSITION, Hopper Black

$190.99

$

Usually ships in 2-12 days

0

66

Snapper 1723181ASM

BRACKET, Latch RH, 7GA

$12.99

$

Usually ships in 2-12 days

0
