RD 80955 (090079244) - PowerStroke Pressure Washer, Rev 03 (2017-03) Figure A Parts Diagram

Pressure Washer, Rev 03

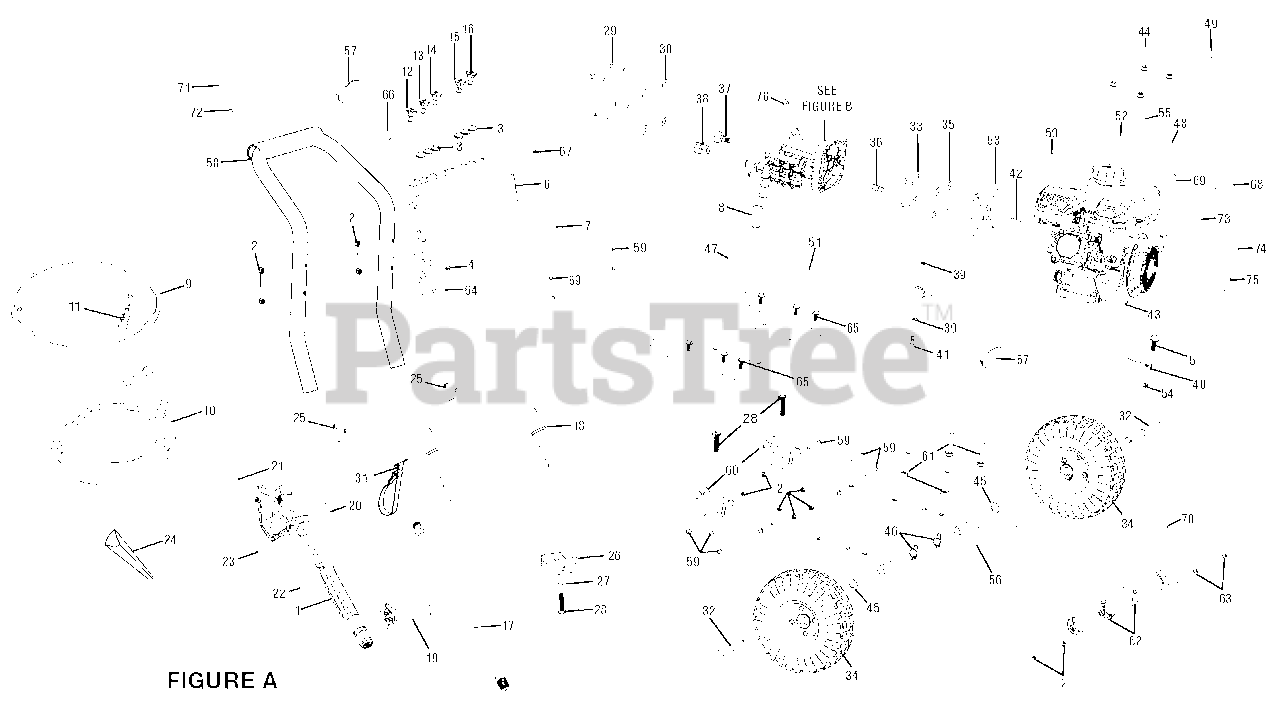

Figure A Parts Diagram

  • Title

1

Homelite 308760037

Trigger Handle Assembly

Note: (Inc. Key Nos. 19-20, 22-23)

$218.99

$

Usually ships in 3-7 days

0

2

Homelite 678610006

Lock Nut (M6)

$

$

Not available

3

Homelite 561383004

Rubber Grommets

$

$

Not available

4

Homelite 660224013

Screw (M6 X16 mm, Phillips Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 660938003

Bolt (M5 x 20 mm)

$1.49

$

In Stock, only 1 left!

0

6

Homelite 638671010

Metal Performance Panel & Nozzle Holder

$24.99

$

Usually ships in 3-7 days

0

7

Homelite 940779115

Performance Label

$

$

Not available

8

Homelite 570410002

Pump Unloader Cap

$

$

Not available

9

Homelite 561399003

Injection Hose

$3.49

$

In Stock, Qty 7

0

10

Homelite 308835037

High Pressure Hose (30 ft.)
(Superseded to 308835090)

$98.99

$

Usually ships in 3-7 days

0

11

Homelite 308103015

Injection Hose Filter

$2.99

$

In Stock, only 4 left!

0

12

Homelite 308697013

0 Deg Nozzle

$21.99

$

In Stock, only 1 left!

0

13

Homelite 308698013

15 Deg Nozzle

$6.99

$

Usually ships in 3-7 days

0

14

Homelite 308699013

25 Deg Nozzle

$11.99

$

Usually ships in 3-7 days

0

15

Homelite 308706011

Soap Nozzle

$6.49

$

In Stock, only 2 left!

0

16

Homelite 308700013

40 Deg Nozzle

$10.99

$

Usually ships in 3-7 days

0

17

Homelite 308494004

Spray Wand
(Superseded to 308494058)

$

$

Not available

18

Homelite 308774002

Rear Frame Assembly

Note: (Inc. Key Nos. 25-28)

$44.99

$

Usually ships in 3-7 days

0

19

Homelite 521830002

Auxiliary Handle Assembly

$

$

Not available

20

Homelite 940654061

Trigger Handle Warning Label

$

$

Not available

21

Homelite 940726009

Trigger Handle Label

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 941749001

Trigger Handle Max Pressure Label

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 940654058

Trigger Handle Warning Label

$

$

Not available

24

Homelite 519314001

Funnel

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 308421004

Lock Button w/Spring Clip

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 561307007

Wear Pad

$

$

Not available

27

Homelite 638128004

Washer (1/4 in.)

$2.49

$

In Stock, Qty 5

0

28

Homelite 660224009

Screw (M6 x 25 mm,T30 Torx Hd.)

$

$

Not available

29

Homelite 661558001

Bolt (3/8-16 x 1-3/8 in., Hex Hd.)

$

$

Not available

30

Homelite 638386002

Washer (3/8 in.)

$2.49

$

Usually ships in 3-7 days

0

31

Homelite 308350001

Hose Storage Strap

$4.49

$

Usually ships in 3-7 days

0

32

Homelite 620598002

Axle

$5.99

$

Usually ships in 3-7 days

0

33

Homelite 661557001

Bolt (5/16-24 x 3/4 in., Hex Hd.)

$10.99

$

Usually ships in 3-7 days

0

34

Homelite 308451057

Wheel

$57.99

$

Usually ships in 3-7 days

0

35

Homelite 638675002

Washer (5/16 in.)

$3.99

$

Usually ships in 3-7 days

0

36

Homelite 678169004

Thermal Release Valve

$16.99

$

Usually ships in 3-7 days

0

37

Homelite 308692003

Garden Hose Coupler w/Filter

$

$

Not available

38

Homelite 308661004

Quick Disconnect (Female)

$

$

Not available

39

Homelite 310928001

Seal
(Superseded to 310928002)

$

$

Not available

40

Homelite 310437017

Idle Down Assembly

$

$

Not available

41

Homelite 660971005

Idle Down Bolt (M10 x 1.5 mm, Banjo)

$6.49

$

Usually ships in 3-7 days

0

42

Homelite 678041006

Output Shaft Key (35 mm)

$15.99

$

In Stock, only 1 left!

0

43

"Ridgid 212cc" Horizontal Engine

$

$

Not available

44

Homelite 678774002

Lock Nut (M8 x 1.25)

$2.49

$

In Stock, Qty 6

0

45

Homelite 638275002

Washer (1/2 in.)

$2.49

$

In Stock, Qty 5

0

46

Homelite 678899001

Hitch Pin

$

$

Not available

47

Homelite 940947003

Combustion Warning Label

$

$

Not available

48

Homelite 940894004

Danger Label

$2.49

$

Usually ships in 3-7 days

0

49

Homelite 940473012

Notice Hang Tag

$2.49

$

Usually ships in 3-7 days

0

50

Homelite 940872003

E-85 Label

$2.49

$

In Stock, only 2 left!

0

51

Homelite 940871010

Check Oil Label

$

$

Not available

52

Homelite 940680027

Hot Muffler Label

$1.49

$

Usually ships in 3-7 days

0

53

Homelite 638642001

Pump Flange

$182.99

$

Usually ships in 3-7 days

0

54

Homelite 524014001

Cable Clamp

$

$

Not available

55

Homelite 941613004

Pressure Release Label

$

$

Not available

56

Homelite 308471049

Main Frame Assembly

Note: (Inc. Key Nos. 2, 28 & 59-60)

$

$

Not available

57

Homelite 900333015

Wire Tie

$

$

Not available

58

Homelite 308638054

Handle Assembly

$51.99

$

Usually ships in 3-7 days

0

59

Homelite 661503015

Bolt (M6 X 48 mm, T30 Torx Hd.)

$2.99

$

Usually ships in 3-7 days

0

60

Homelite 638578002

Connector

$9.49

$

Usually ships in 3-7 days

0

61

Homelite 660764002

Bolt (M8 x 1.25 x 40 mm, Flange Hd.)

$

$

Not available

62

Homelite 522951001

Lower Frame Cover

$

$

Not available

63

Homelite 661834002

Screw (M6 x 55 mm, T30 Torx Hd.)

$2.49

$

Usually ships in 3-7 days

0

64

Homelite 638701029

Wand Holder

$14.99

$

Usually ships in 3-7 days

0

65

Homelite 661505020

Bolt (M6 x 16 mm, Flange Hd.)

$

$

Not available

66

Homelite 961039006

Nozzle Hang Tag

$

$

Not available

67

Homelite 940378015

Extra Nozzle Label

$

$

Not available

68

Homelite 940639011

Idle Down Label

$

$

Not available

69

Homelite 940889002

Oil Dipstick Hang Tag

$2.49

$

Usually ships in 3-7 days

0

70

Homelite 940705227

Logo Label

$

$

Not available

71

Homelite 940917272

Quick Start Label

$

$

Not available

72

Homelite 941486013

Inquires Label

$

$

Not available

73

Homelite 940698034

On/Off Label

$

$

Not available

74

Homelite 940647112

Choke & Fuel Label

$

$

Not available

75

Homelite 940633042

Recoil Housing Label

$

$

Not available

76

Homelite 940971084

Vent Cap Hang Tag

$

$

Not available

Oil (SAE 30 or SAE 10W30)

Note: Not Shown

$

$

Not available

Homelite 991000226

Operator's Manual

$

$

Not available

Homelite 991000227

Quick Reference Guide

$2.49

$

Usually ships in 3-7 days

0
