RD 907500 P (100930224) - Ryobi 7500 Watt Generator, Rev 04 (2018-10) FIGURE A Parts Diagram

7500 Watt Generator, Rev 04

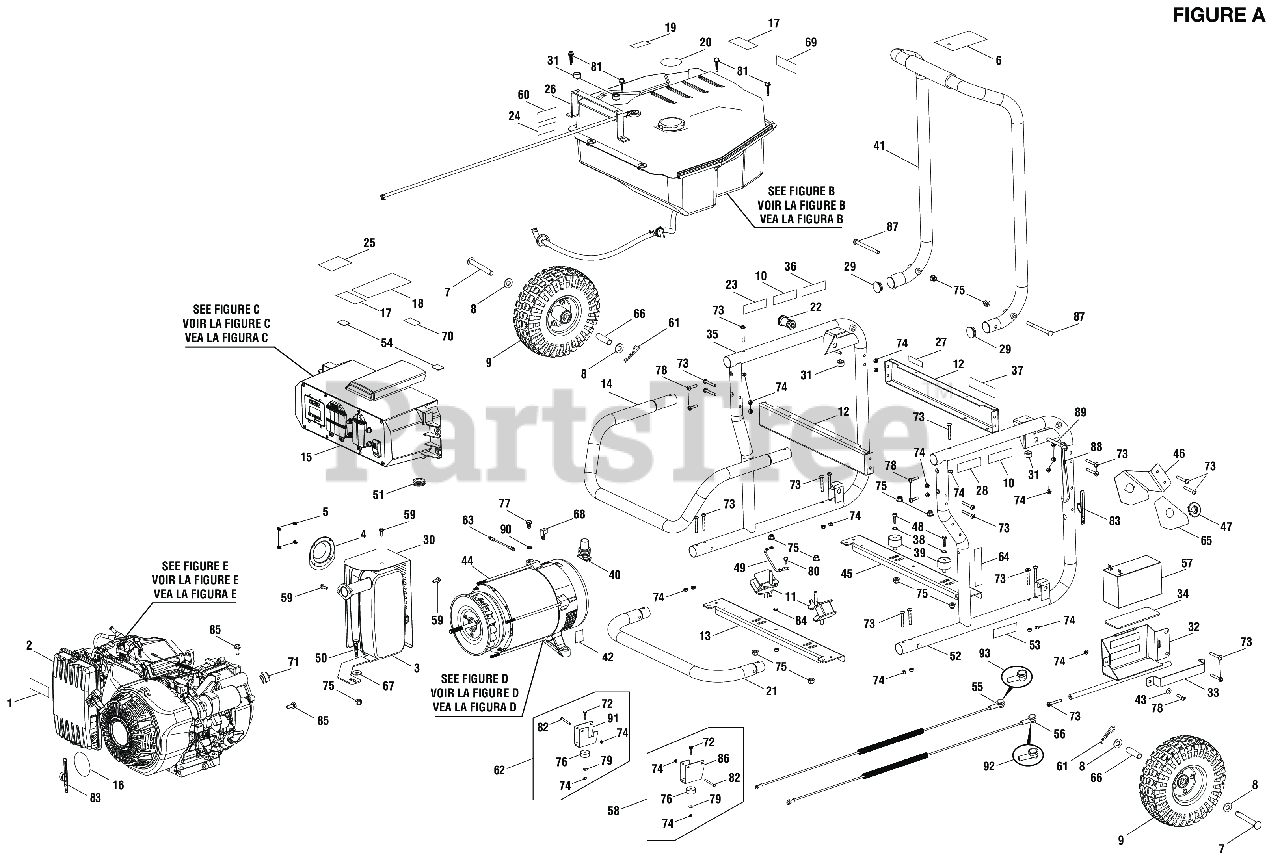

FIGURE A Parts Diagram

  • Title

1

Homelite 940647102

Choke Label

$

$

Not available

2

Engine

Note: See Figure E

$

$

Not available

3

Homelite 309322035

Muffler w/Brackets

$31.99

$

Usually ships in 3-7 days

0

4

Homelite 638147003

Spark Arrester Screen

$

$

Not available

5

Homelite 661306001

Screw (8-32 x 3/8 in., Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 940971087

Warning Hangtag

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 681866001

Axle

$

$

Not available

8

Homelite 638275002

Washer (1/2 in.)

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 308451010

Wheel (10 in. x 3 in.)

$

$

Not available

10

Homelite 940595002

LABEL, ZERO GRAVITY

$3.49

$

Usually ships in 3-7 days

0

11

Homelite 570356006

Vibration Isolator

$

$

Not available

12

Homelite 638959012

CROSSMEMBER, FUEL TANK

$

$

Not available

13

Homelite 638735040

CROSSMEMBER, ENGINE, RIDGID

$13.99

$

Usually ships in 3-7 days

0

14

Homelite 638221007

FRONT TUBE, TOP RIDGID

$

$

Not available

15

Homelite 290403061

ASSEMBLY, WIRED PANEL RD907500P

Note: See Figure C

$

$

Not available

16

Homelite 940633034

LABEL, RECOIL, RIGID 420CC OHV

$

$

Not available

17

Homelite 940705168

LABEL, LOGO RIDGID

$

$

Not available

18

Homelite 940779119

LABEL, PERFORMANCE RD907500P

$

$

Not available

19

Homelite 940872003

No E85 Label

$1.49

$

In Stock, only 2 left!

0

20

Homelite 940872006

Fuel Stabilizer Label

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 524470007

FRONT TUBE, BOTTOM

$17.99

$

Usually ships in 3-7 days

0

22

Homelite 308910001

RELEASE PIN CM80034

$12.99

$

Usually ships in 3-7 days

0

23

Homelite 940974089

Fire Distance Label (Eng/Sp)

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 940680027

Hot Surface and Exhaust Label

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 940515017

CPSC Danger Label

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 638702006

BRACKET, WRAPPER BOX SUPPORT

$3.99

$

Usually ships in 3-7 days

0

27

Homelite 941486005

LABEL, INQUIRES RIDGID GENERATORS

$

$

Not available

28

Homelite 940974007

Risk of Fire Danger Label

$

$

Not available

29

Homelite 519712003

End Cap (Handle)

$1.49

$

Usually ships in 3-7 days

0

30

Homelite 638497038

Heat Shield

$12.99

$

Usually ships in 3-7 days

0

31

Homelite 570712002

Rubber Bumper

$

$

Not available

32

Homelite 308509004

BATTERY BOX ASSEMBLY, SMALL

$

$

Not available

33

Homelite 308681010

BATTERY RETAINING BRACKET ASSEMBLY, GRAY

$2.49

$

Usually ships in 3-7 days

0

34

Homelite 570630004

Gasket (Battery Hold Down Bracket)

$2.49

$

Usually ships in 3-7 days

0

35

Homelite 308581158

RIGHT FRAME ASSEMBLY

$61.99

$

Usually ships in 3-7 days

0

36

Homelite 940758005

Quick Release Pin Label

$1.49

$

Usually ships in 3-7 days

0

37

Homelite 940513027

Ground Warning Label

$

$

Not available

38

Homelite 673155001

Lock Washer (OD14.8 x ID8.5 x 1t)

$1.99

$

In Stock, only 1 left!

0

39

Homelite 570356012

Isolator Generation 7

$

$

Not available

40

Homelite 570766002

Rubber Boot

$

$

Not available

41

Homelite 310224066

HANDLE ASSY W/ CAPS

$47.99

$

Usually ships in 3-7 days

0

42

Homelite 940513002

Ground Label Icon

$1.99

$

Usually ships in 3-7 days

0

43

Homelite 638387005

Washer (1/4 in.)

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 310227062

GEN HEAD ASSEMBLY 7.5KW <6% THD SHENFA

Note: See Figure D

$436.99

$

Usually ships in 3-7 days

0

45

Homelite 638735041

CROSSMEMBER, GEN-HEAD, RIDGID

$

$

Not available

46

Homelite 638702027

BRACKET, FUEL VALVE, RIDGID

$8.99

$

Usually ships in 3-7 days

0

47

Homelite 519813025

Fuel Valve Bezel

$1.49

$

Usually ships in 3-7 days

0

48

Homelite 660973017

Bolt (M8 x 1.25 in., Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

49

Homelite 290404009

Ground Wire Assembly

$1.49

$

Usually ships in 3-7 days

0

50

Homelite 660973019

Screw (M8 x 40 mm, Hex Hd.)

$

$

Not available

51

Homelite 561383003

GROMMET 16mm ID

$1.99

$

Usually ships in 3-7 days

0

52

Homelite 308581157

LEFT FRAME ASSEMBLY

$

$

Not available

53

Homelite 940708019

Engine Lubricant Label

$1.99

$

Usually ships in 3-7 days

0

54

Homelite 570630003

RUBBER ISOLATOR

$

$

Not available

55

Homelite 290418003

BATTERY CABLE RED

$12.99

$

Usually ships in 3-7 days

0

56

Homelite 290419005

Battery Cable (Black 390 mm)

$4.49

$

Usually ships in 3-7 days

0

57

Homelite 750400010

Battery Bracket

$101.99

$

Usually ships in 3-7 days

0

58

Homelite 310739012

LEFT FOOT ASSEMBLY, BLACK
(Superseded to 310739008)

$

$

Not available

59

Homelite 660975009

Bolt (M6 x 9 mm, Hex Flange Hd.)

$1.99

$

Usually ships in 3-7 days

0

60

Homelite 940947003

UL Fire Warning Label Spark Arrestor)

$

$

Not available

61

Homelite 678146002

Hitch Pin (M3)

$1.99

$

Usually ships in 3-7 days

0

62

Homelite 310739011

Superseded by 310739009
(Superseded to 310739009)

$8.49

$

Usually ships in 3-7 days

0

63

Homelite 290455004

WIRE, BONDING 95MM 10AWG

$

$

Not available

64

Homelite 940617135

LABEL, QUICK START JD 420CC E-START

$

$

Not available

65

Homelite 940647104

LABEL, FUEL VALVE ON/OFF

$1.49

$

Usually ships in 3-7 days

0

66

Homelite 638498004

Axle Spacer

$

$

Not available

67

Homelite 638675001

Washer (ID9 x OD25.4 x 2t)

$1.49

$

Usually ships in 3-7 days

0

68

Homelite 638703003

Ground Lug (1/4-20)

$1.49

$

Usually ships in 3-7 days

0

69

Homelite 940654254

Warning Label

$4.99

$

Usually ships in 3-7 days

0

70

Homelite 940617105

Electric Start Label

$1.99

$

Usually ships in 3-7 days

0

71

Homelite 563030001

Plug (Generator Head)

$1.49

$

Usually ships in 3-7 days

0

72

Homelite 660505033

Superseded by 660224019
(Superseded to 660224019)

$1.99

$

Usually ships in 3-7 days

0

73

Homelite 661834004

Bolt (M6 x 42 mm, T30 Torx Hex Hd.)..

$1.99

$

Usually ships in 3-7 days

0

74

Homelite 678460009

Lock Nut (M6 x 1 mm)

$

$

Not available

75

Homelite 678774012

Flange Lock Nut (M8 x 1.25 mm)

$1.49

$

Usually ships in 3-7 days

0

76

Homelite 570554001

Rubber Wear Pad

$1.49

$

Usually ships in 3-7 days

0

77

Homelite 660973016

Bolt (M8 x 15 mm, Hex Hd.)

$

$

Not available

78

Homelite 661834005

Bolt (M6 x 25 mm,T30 Torx Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

79

Homelite 673154002

Washer (OD17 x ID6.4 x 1.6t)

$1.49

$

Usually ships in 3-7 days

0

80

Homelite 661505021

Screw (M6 x 16 mm, Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

81

Homelite 660901036

Screw (1/4-14 x 1.25 in., Hex Flange Hd.)

$1.49

$

Usually ships in 3-7 days

0

82

Homelite 660505031

Bolt (M6 x 25 mm, Hex Hd.)
(Superseded to 661834005)

$1.49

$

Usually ships in 3-7 days

0

83

Homelite 519729002

J-Clamp Flexible

$1.49

$

Usually ships in 3-7 days

0

84

Homelite 673157002

Star Washer (M6)

$

$

Not available

85

Homelite 660391002

Bolt (M8 x 20 mm, Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

86

Homelite 638706009

FOOT, LEFT

$

$

Not available

87

Homelite 661851004

Handle Pivot Bolt (M8 x 98 mm, Flat Hd.)

$1.49

$

Usually ships in 3-7 days

0

88

Homelite 308640002

BUNGE CORD RETAINER

$1.49

$

Usually ships in 3-7 days

0

89

Homelite 310712001

Release Pin (5/16 x 2 in.)

$1.99

$

In Stock, Qty 5

0

90

Homelite 673157001

Star Washer (M8)

$1.49

$

Usually ships in 3-7 days

0

91

Homelite 638706010

FOOT, RIGHT

$

$

Not available

92

Homelite 570766014

Rubber Battery Cable Boot (Black)

$1.99

$

Usually ships in 3-7 days

0

93

Homelite 570766013

Rubber Battery Cable Boot (Red)

$

$

Not available

Homelite 991000014

Operator's Manual

Note: Not Shown

$

$

Currently unavailable

Homelite 991000015

Quick Reference Guide

Note: Not Shown

$

$

Currently unavailable

Homelite 120302025

HARDWARE KIT, RIDGID FEET PAIR BP

Note: Not Shown

$22.99

$

Usually ships in 3-7 days

0

Homelite 120302026

HARDWARE KIT, WHEELS

Note: Not Shown

$

$

Not available
