RD 907500 P (100930224) - Ryobi 7500 Watt Generator, Rev 04 (2018-10) FIGURE B Parts Diagram

7500 Watt Generator, Rev 04

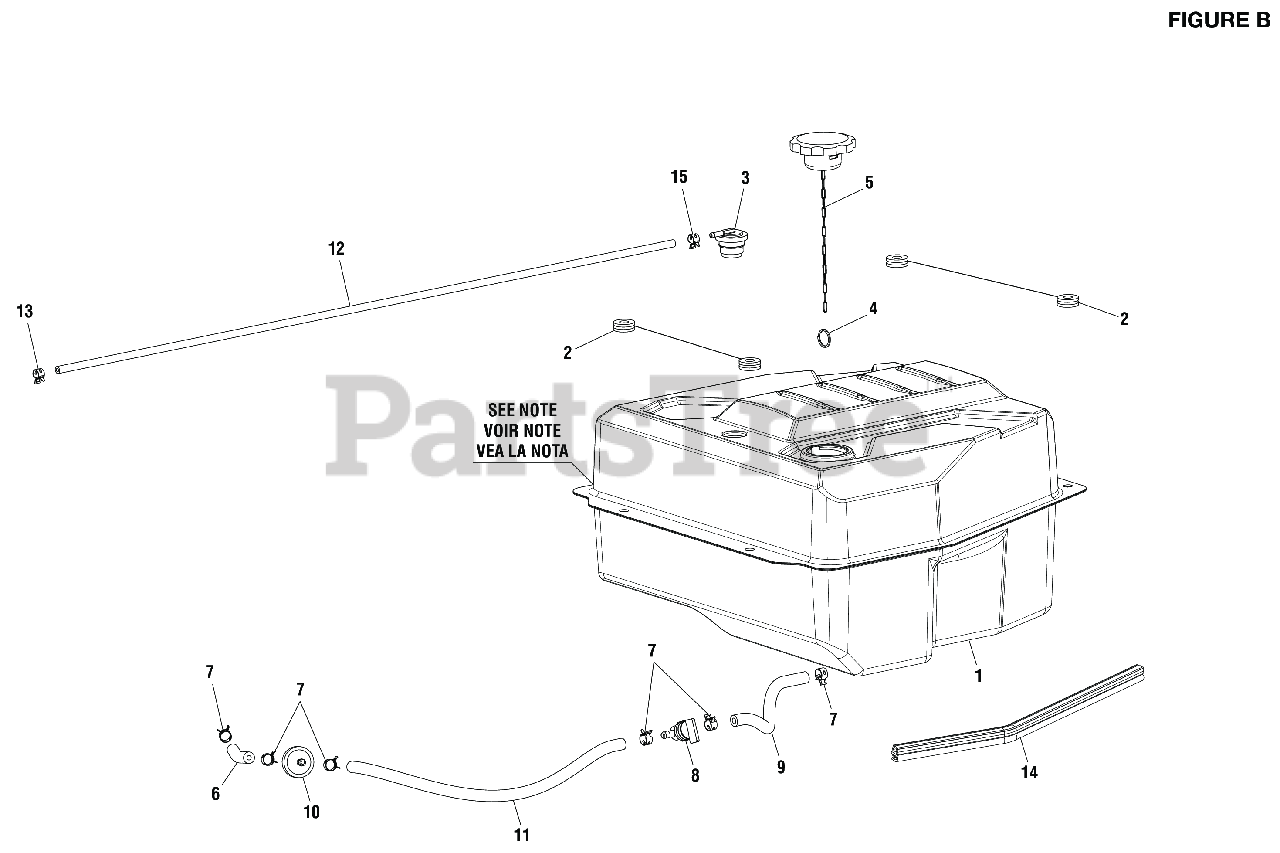

FIGURE B Parts Diagram

  • Title

1

Homelite 310711154

FUEL TANK 8 GALLON W/ BUSHINGS/SPACERS

$

$

Not available

2

Homelite 310225001

Bushing w/Insert

$10.99

$

Usually ships in 3-7 days

0

3

Homelite 310854002

Fuel Tank Vent Valve (PS905055SA)

$

$

Not available

4

Homelite 678899007

Ring Clip

$2.49

$

In Stock, only 1 left!

0

5

Homelite 310720026

Fuel Cap Assembly

$47.99

$

Usually ships in 3-7 days

0

6

Homelite 570358127

FUEL HOSE, 1/4 X 60MM

$2.99

$

Usually ships in 3-7 days

0

7

Homelite 678408006

Fuel Line Clamp (1/2 in.).

$3.99

$

In Stock, Qty 6

0

8

Homelite 308459005

FUEL SHUT OFF VALVE 180 DEGREE

$

$

Not available

9

Homelite 570358131

FUEL HOSE, 220MM X 1/4IN

$10.99

$

Usually ships in 3-7 days

0

10

Homelite 308733008

Fuel Filter Inline (1/4 in.)

$8.99

$

In Stock, only 2 left!

0

11

Homelite 570358140

FUEL HOSE, 5MM X 430MM

$

$

Not available

12

Homelite 570358142

VAPOR HOSE TAPERED 825MM

$

$

Not available

13

Homelite 678408005

Fuel Line Clamp (3/8 in.).

$

$

Not available

14

Homelite 570818002

BONDED RUBBER, WEATHER STRIPPING

$4.99

$

Usually ships in 3-7 days

0

15

Homelite 678409003

Fuel Line Clamp (7/16 in., BM903611)

$2.49

$

In Stock, only 2 left!

0
