RD 907500 P (100930224) - Ryobi 7500 Watt Generator, Rev 04 (2018-10) FIGURE C Parts Diagram

7500 Watt Generator, Rev 04

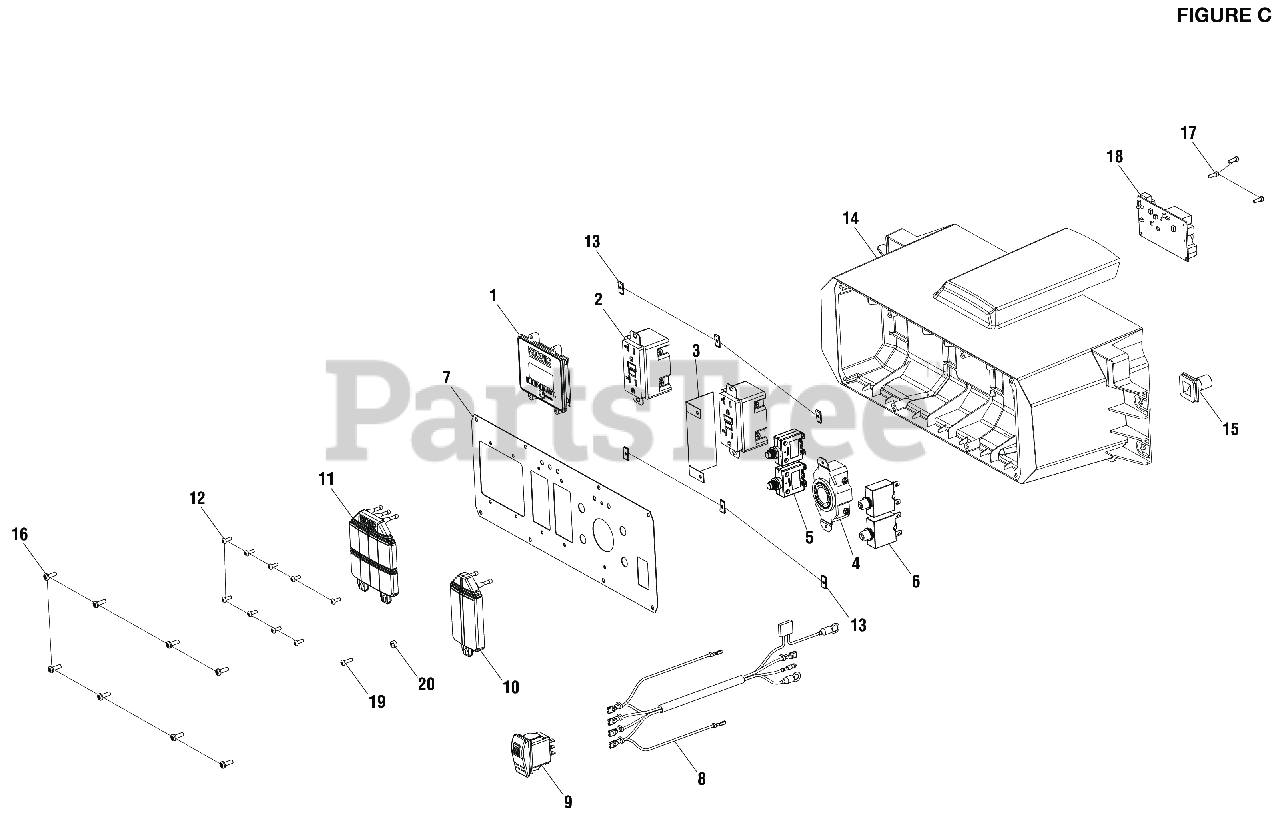

FIGURE C Parts Diagram

  • Title

1

Homelite 290432010

GENSMART DISPLAY, 120/240V

$56.99

$

Usually ships in 3-7 days

0

2

Homelite 290400010

Duplex GFCI Receptacle (120 Volt)
(Superseded to 290400024)

$73.99

$

In Stock, only 2 left!

0

3

Homelite 902114002

INSULATOR

$

$

Not available

4

Homelite 290401001

Twist Lock Receptacle (120/240 Volt, 30 Amp, L14-30R)

$15.99

$

In Stock, only 2 left!

0

5

Homelite 780350007

Circuit Breaker (20 Amp, 125 Volt)

$6.49

$

Usually ships in 3-7 days

0

6

Homelite 780351012

Circuit Breaker (30 Amp)

$8.49

$

Usually ships in 3-7 days

0

7

Homelite 638930009

ELECTRICAL FACEPLATE, RD907500P

$

$

Not available

8

Homelite 290435015

E-START WIRE HARNESS RD907500P

$

$

Not available

9

Homelite 270290007

Start Switch w/Lock

$35.99

$

Usually ships in 3-7 days

0

10

Homelite 570409002

RAIN SHIELD, 30 AMP TWISTLOCK

$

$

Not available

11

Homelite 570409001

RAIN SHIELD, DUEL GFCI

$9.99

$

In Stock, Qty 7

0

12

Homelite 660901004

Screw (#6-20 x 3/8 in., T15 Torx Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 678244002

NUT, SPEED #6-18

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 519815006

WRAPPER BOX, RIDGID

$49.99

$

Usually ships in 3-7 days

0

15

Homelite 570766003

Rubber Boot (Control Panel Assembly)

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 660899002

Screw (#8-18 x 1/2 in., T20 Torx Pan Hd.)

$

$

Not available

17

Homelite 660598001

Screw (6-20 x 3/8 in., Phillips Pan Hd.)

$1.99

$

In Stock, only 3 left!

0

18

Homelite 140173028

Circuit Board Assembly
(Superseded to 140173027)

$35.99

$

Usually ships in 3-7 days

0

19

Homelite 660961002

SCREW, #6-10 X 0.5 TYPE B ZINC TORX HD

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 638128005

SPACER 4mm

$1.49

$

Usually ships in 3-7 days

0
