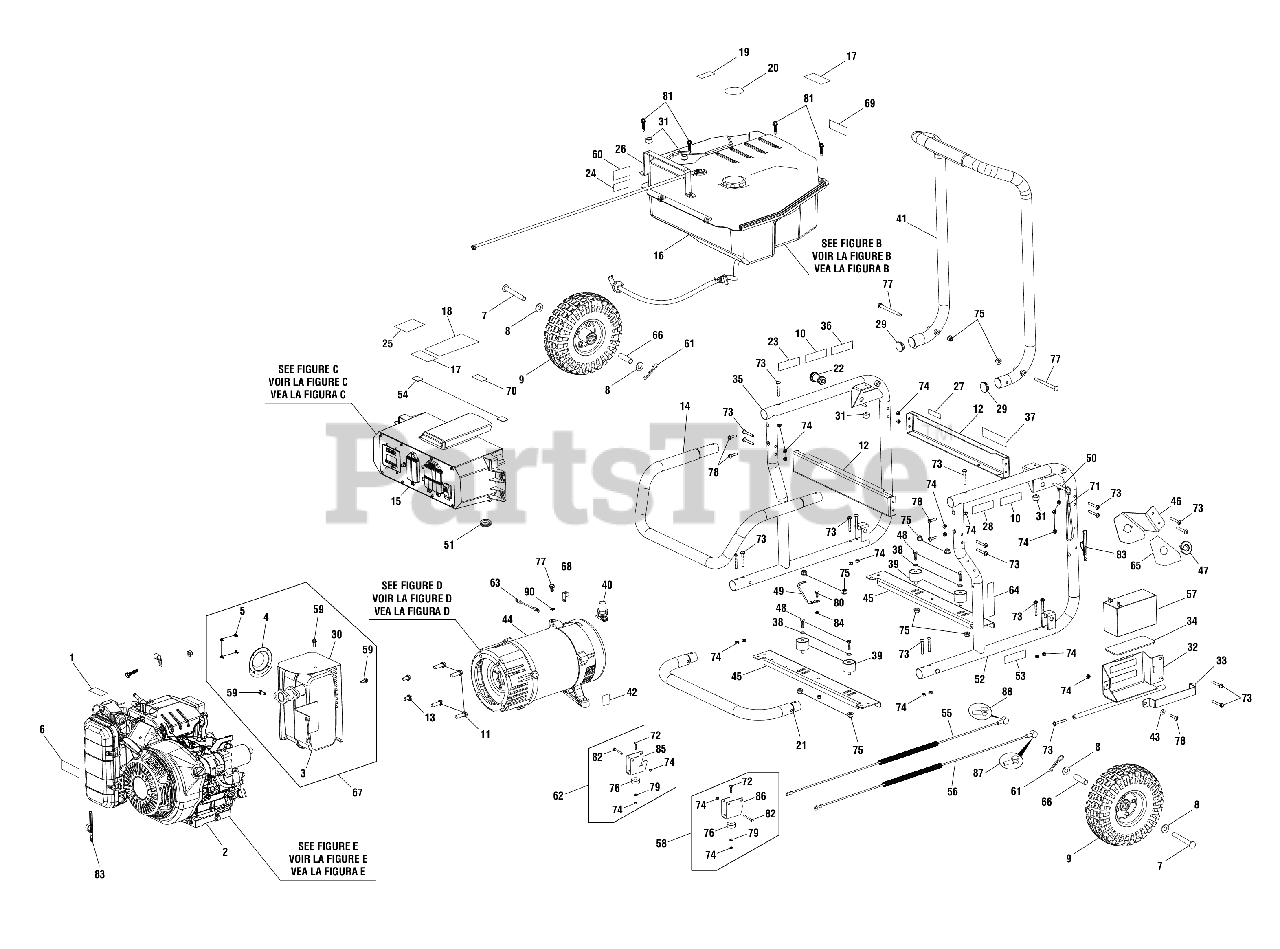

RD 9C7001 P - Ryobi 7000 Watt Generator, Rev 03 (2018-10) FIGURE A Parts Diagram

7000 Watt Generator, Rev 03

FIGURE A Parts Diagram

  • Title

1

Homelite 940647033

Choke Label

$1.49

$

Usually ships in 3-7 days

0

2

Engine

$

$

Not available

3

Homelite 309322037

Muffler w/Brackets

$51.99

$

Usually ships in 3-7 days

0

4

Homelite 638147003

Spark Arrester Screen

$

$

Not available

5

Homelite 661306001

Screw (8-32 x 3/8 in., Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 940605001

EMC label

$

$

Not available

7

Homelite 681866001

Axle

$

$

Not available

8

Homelite 638275002

Washer (1/2 in.)

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 308451010

Wheel (10 in. x 3 in.)

$

$

Not available

10

Homelite 940595002

LABEL, ZERO GRAVITY

$3.49

$

Usually ships in 3-7 days

0

11

Homelite 660596002

Bolt, Wiz (3/8-18 x 1-1/4 in.)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 638959012

CROSSMEMBER, FUEL TANK

$

$

Not available

13

Homelite 660599002

Bolt (5/16-24 x 0.6 in., Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 638221007

FRONT TUBE, TOP RIDGID

$

$

Not available

15

Homelite 290403064

Control Panel Assembly (See Figure C)

$

$

Currently unavailable

16

Homelite 310711173

Fuel Tank (See Figure B)

$

$

Currently unavailable

17

Homelite 940705168

LABEL, LOGO RIDGID

$

$

Not available

18

Homelite 940705260

LABEL, PERFORMANCE 7000 WATT

$

$

Not available

19

Homelite 940872003

No E85 Label

$1.49

$

In Stock, only 2 left!

0

20

Homelite 940872006

Fuel Stabilizer Label

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 524470007

FRONT TUBE, BOTTOM

$17.99

$

Usually ships in 3-7 days

0

22

Homelite 308910001

RELEASE PIN CM80034

$12.99

$

Usually ships in 3-7 days

0

23

Homelite 940974089

Fire Distance Label (Eng/Sp)

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 940680027

Hot Surface and Exhaust Label

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 940515017

CPSC Danger Label

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 638702006

BRACKET, WRAPPER BOX SUPPORT

$3.99

$

Usually ships in 3-7 days

0

27

Homelite 941486012

LABEL, CLICK/CALL/SCAN RIDGID

$

$

Not available

28

Homelite 940974007

Risk of Fire Danger Label

$

$

Not available

29

Homelite 519712003

End Cap (Handle)

$1.49

$

Usually ships in 3-7 days

0

30

Homelite 638497041

Heat Shield

$19.99

$

Usually ships in 3-7 days

0

31

Homelite 570712002

Rubber Bumper

$

$

Not available

32

Homelite 308509004

BATTERY BOX ASSEMBLY, SMALL

$

$

Not available

33

Homelite 308681009

Battery Hold Down Bracket Assembly

$3.49

$

Usually ships in 3-7 days

0

34

Homelite 570630004

Gasket (Battery Hold Down Bracket)

$2.49

$

Usually ships in 3-7 days

0

35

Homelite 308581158

RIGHT FRAME ASSEMBLY

$61.99

$

Usually ships in 3-7 days

0

36

Homelite 940758005

Quick Release Pin Label

$1.49

$

Usually ships in 3-7 days

0

37

Homelite 940513027

Ground Warning Label

$

$

Not available

38

Homelite 673155001

Lock Washer (OD14.8 x ID8.5 x 1t)

$1.99

$

In Stock, only 1 left!

0

39

Homelite 570356012

Isolator Generation 7

$

$

Not available

40

Homelite 570766004

Rubber Sleeve

$1.99

$

Usually ships in 3-7 days

0

41

Homelite 310224066

HANDLE ASSY W/ CAPS

$47.99

$

Usually ships in 3-7 days

0

42

Homelite 940513002

Ground Label Icon

$1.99

$

Usually ships in 3-7 days

0

43

Homelite 940678388

Data Label

$

$

Currently unavailable

44

Homelite 310227059

ASSEMBLY, GENHEAD 7.0kW, Al, <6% THD

$

$

Not available

45

Homelite 638735036

CROSSMEMBER, ENGINE/GENHEAD

$26.99

$

Usually ships in 3-7 days

0

46

Homelite 638702027

BRACKET, FUEL VALVE, RIDGID

$8.99

$

Usually ships in 3-7 days

0

47

Homelite 519813025

Fuel Valve Bezel

$1.49

$

Usually ships in 3-7 days

0

48

Homelite 660973017

Bolt (M8 x 1.25 in., Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

49

Homelite 290404009

Ground Wire Assembly

$1.49

$

Usually ships in 3-7 days

0

50

Homelite 310712001

Release Pin (5/16 x 2 in.)

$1.99

$

In Stock, Qty 5

0

51

Homelite 561383003

GROMMET 16mm ID

$1.99

$

Usually ships in 3-7 days

0

52

Homelite 308581157

LEFT FRAME ASSEMBLY

$

$

Not available

53

Homelite 940708019

Engine Lubricant Label

$1.99

$

Usually ships in 3-7 days

0

54

Homelite 570630003

RUBBER ISOLATOR

$

$

Not available

55

Homelite 290418003

BATTERY CABLE RED

$12.99

$

Usually ships in 3-7 days

0

56

Homelite 290419005

Battery Cable (Black 390 mm)

$4.49

$

Usually ships in 3-7 days

0

57

Homelite 750400010

Battery Bracket

$101.99

$

Usually ships in 3-7 days

0

58

Homelite 310739012

LEFT FOOT ASSEMBLY, BLACK
(Superseded to 310739008)

$

$

Not available

59

Homelite 660975009

Bolt (M6 x 9 mm, Hex Flange Hd.)

$1.99

$

Usually ships in 3-7 days

0

60

Homelite 940947003

UL Fire Warning Label Spark Arrestor)

$

$

Not available

61

Homelite 310739011

Superseded by 310739009
(Superseded to 310739009)

$8.49

$

Usually ships in 3-7 days

0

63

Homelite 290455004

WIRE, BONDING 95MM 10AWG

$

$

Not available

64

Homelite 940617144

LABEL, ENGINE START RD HONDA

$

$

Not available

65

Homelite 940647104

LABEL, FUEL VALVE ON/OFF

$1.49

$

Usually ships in 3-7 days

0

66

Homelite 638498004

Axle Spacer

$

$

Not available

67

Homelite 309322038

Muffler Assembly

$

$

Not available

68

Homelite 638703003

Ground Lug (1/4-20)

$1.49

$

Usually ships in 3-7 days

0

69

Homelite 940654254

Warning Label

$4.99

$

Usually ships in 3-7 days

0

70

Homelite 940686052

LABEL, STARTING WATTS RDCA7000

$

$

Not available

71

Homelite 308640002

BUNGE CORD RETAINER

$1.49

$

Usually ships in 3-7 days

0

72

Homelite 660505033

Superseded by 660224019
(Superseded to 660224019)

$1.99

$

Usually ships in 3-7 days

0

73

Homelite 661834004

Bolt (M6 x 42 mm, T30 Torx Hex Hd.)..

$1.99

$

Usually ships in 3-7 days

0

74

Homelite 678460009

Lock Nut (M6 x 1 mm)

$

$

Not available

75

Homelite 678774012

Flange Lock Nut (M8 x 1.25 mm)

$1.49

$

Usually ships in 3-7 days

0

76

Homelite 570554001

Rubber Wear Pad

$1.49

$

Usually ships in 3-7 days

0

77

Homelite 661851004

Handle Pivot Bolt (M8 x 98 mm, Flat Hd.)

$1.49

$

Usually ships in 3-7 days

0

78

Homelite 661834005

Bolt (M6 x 25 mm,T30 Torx Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

79

Homelite 673154002

Washer (OD17 x ID6.4 x 1.6t)

$1.49

$

Usually ships in 3-7 days

0

80

Homelite 661505021

Screw (M6 x 16 mm, Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

81

Homelite 660901036

Screw (1/4-14 x 1.25 in., Hex Flange Hd.)

$1.49

$

Usually ships in 3-7 days

0

82

Homelite 660505031

Bolt (M6 x 25 mm, Hex Hd.)
(Superseded to 661834005)

$1.49

$

Usually ships in 3-7 days

0

83

Homelite 519729001

J Clamp (1/2 in.)

$

$

Not available

84

Homelite 673157002

Star Washer (M6)

$

$

Not available

85

Homelite 638706010

FOOT, RIGHT

$

$

Not available

86

Homelite 638706009

FOOT, LEFT

$

$

Not available

87

Homelite 570766014

Rubber Battery Cable Boot (Black)

$1.99

$

Usually ships in 3-7 days

0

88

Homelite 570766013

Rubber Battery Cable Boot (Red)

$

$

Not available

Homelite 991000097

Operator's Manual

Note: Not Shown

$

$

Currently unavailable

Homelite 991000098

Quick Reference Guide

Note: Not Shown

$

$

Currently unavailable

Homelite 120302025

HARDWARE KIT, RIDGID FEET PAIR BP

Note: Not Shown

$22.99

$

Usually ships in 3-7 days

0

Homelite 120302026

HARDWARE KIT, WHEELS

Note: Not Shown

$

$

Not available
