RDP 2 (UT-01582) - Homelite Diaphragm Pump Reduction Gear Parts Diagram

Diaphragm Pump

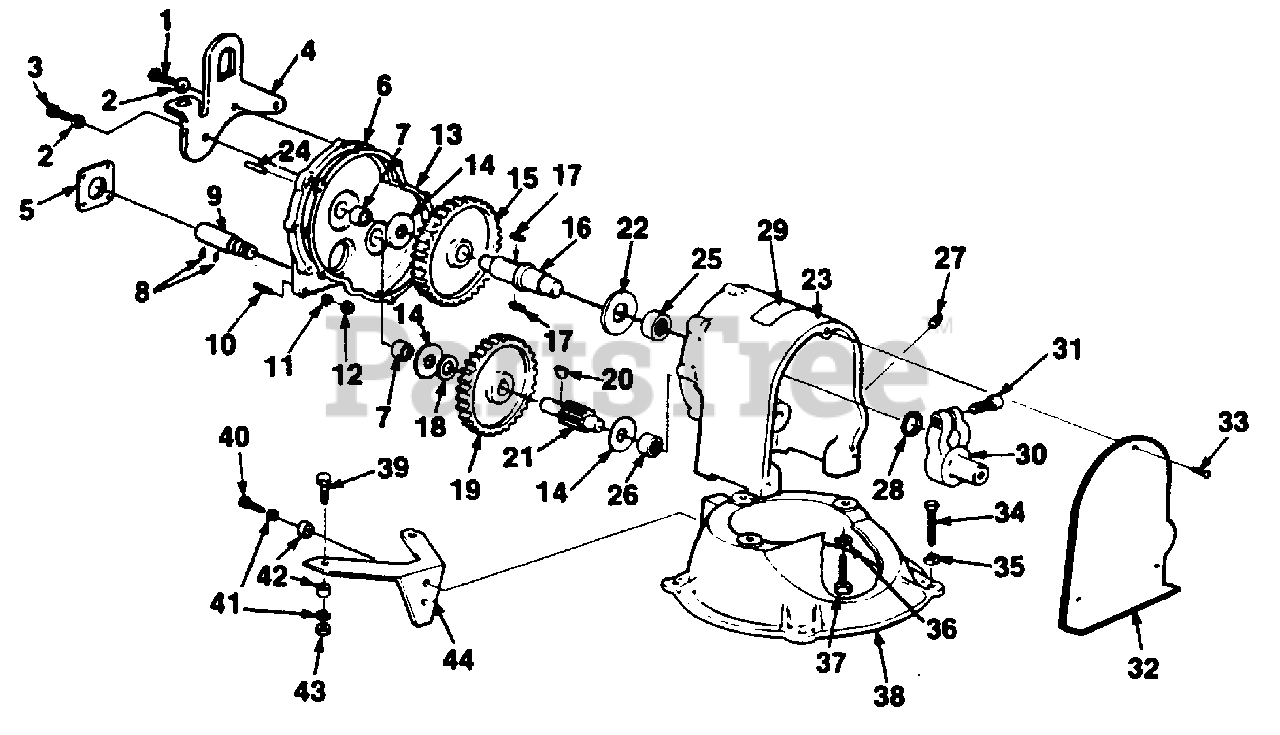

Reduction Gear Parts Diagram

  • Title

ENGINE- Robin (RDP2)

Note: (Not Shown); See your local engine dealer for engine replacement parts.

$

$

Not available

ENGINE- Briggs & Stratton (111DP2-1)

Note: (Not Shown); See your local engine dealer for engine replacement parts.

$

$

Not available

1

Homelite 80882

SCREW- Hex hd (1/4-20 x 1 1/2")

$

$

Not available

2

Homelite 83009

WASHER- Lock (1/4")

$9.99

$

Usually ships in 3-7 days

0

3

Homelite 80388

SCREW- Hex hd (1/4-20 x 1 1/4")

$

$

Not available

4

Homelite 49731

BRACKET- Lift

$

$

Not available

5

Homelite 50666

GASKET- Engine mounting

$

$

Not available

6

Homelite A50487

COVER- Gear Case w/bearings

$

$

Not available

7

Homelite 50493

BEARING Needle

$

$

Not available

8

Homelite 805142

SCREW- Set, 10-32 x 3/8

Note: (Nylok)

$

$

Currently unavailable

9

Homelite 50488

SHAFT- Extension
(Superseded to UP07094)

$

$

Not available

10

Homelite 72787

STUD- 5/16-24, 5/16-18

$12.99

$

Usually ships in 3-7 days

0

11

Homelite 83030

WASHER- Lock (5/16")

$

$

Not available

12

Homelite 81018

NUT- 5/16-18

$

$

Not available

13

Homelite 50485

GASKET- Gear case

$

$

Not available

14

Homelite 50471

WASHER- Thrust, small

$

$

Not available

15

Homelite 738661A

GEAR- Main
(Superseded to UP07188)

$

$

Not available

16

Homelite A51220

SHAFT Drive

$

$

Currently unavailable

17

Homelite 27752

KEY

$

$

Not available

18

Homelite 50496

SPACER

$

$

Not available

19

Homelite 743521

GEAR

$

$

Currently unavailable

20

Homelite 66612

KEY- Woodruff #61

$

$

Not available

21

Homelite 50474

SHAFT- Pinion

$

$

Not available

22

Homelite 50483

WASHER- Thrust large

$

$

Not available

23

Homelite A50492

CASE- Gear w/bearings
(Superseded to A50492A)

$1160.99

$

Usually ships in 3-7 days

0

24

Homelite 74332

PIN- Dowel

$

$

Not available

25

Homelite 74252S

BEARING- Needle

$

$

Not available

26

Homelite 50493

BEARING Needle

$

$

Not available

27

Homelite 50949

PLUG- Pipe

$

$

Not available

28

Homelite 74333

SEAL- Garlock

$

$

Not available

29

Homelite 24581

DECAL

$

$

Not available

30

Homelite 738585

CRANK
(Superseded to 738585A)

$

$

Not available

31

Homelite 80423

SCREW- Cap (1/2-13 x 1 1/2")

$

$

Not available

32

Homelite 507311

SHIELD- Crank

$

$

Currently unavailable

33

Homelite 51247

SCREW- Thumb (1/4-20 x 1/2")

$

$

Not available

34

Homelite 80098

SCREW- Hex hd.

$

$

Not available

35

Homelite 83018

WASHER- Lock (3/8")

$

$

Not available

36

Homelite 83020

WASHER- Lock (1/2")

$

$

Not available

37

Homelite 80627

SCREW- Hex hd (1/2-13 x 1 3/4")

$

$

Not available

38

Homelite 504642

BODY Pump (upper)

$

$

Not available

39

Homelite 80087

SCREW- Hex hd (5/16-18 x 1 1/2") (111DP2-1)

$

$

Not available

40

Homelite 80084

SCREW- Hex hd (111DP2-1)
(Superseded to UP07177)

$

$

Not available

41

Homelite 83030

WASHER- Lock (5/16") (111DP2-1)

$

$

Not available

42

Homelite 84001

WASHER- Flat (111DP2-1)

$

$

Not available

43

Homelite 81162

NUT- (5/16-18) (111DP2-1)

$

$

Not available

44

Homelite 504841

SUPPORT Engine (111DP2-1)

$

$

Not available

Homelite 48825

WRENCH-
(Superseded to UP03586)

Note: (Not Shown)

$

$

Not available

Homelite 54702A

STRAINER
(Superseded to UP08146)

Note: (Not Shown)

$101.99

$

Usually ships in 3-7 days

0

Homelite 55291F

OIL-GEAR
(Superseded to 55291G)

Note: (Not Shown)

$

$

Not available

Homelite 49369

BRACKET- Lite (RDP2)

Note: (Not Shown)

$8.99

$

Usually ships in 3-7 days

0

Homelite 49389

DECAL- Low Oil (RDP2)

Note: (Not Shown)

$8.99

$

Usually ships in 3-7 days

0
