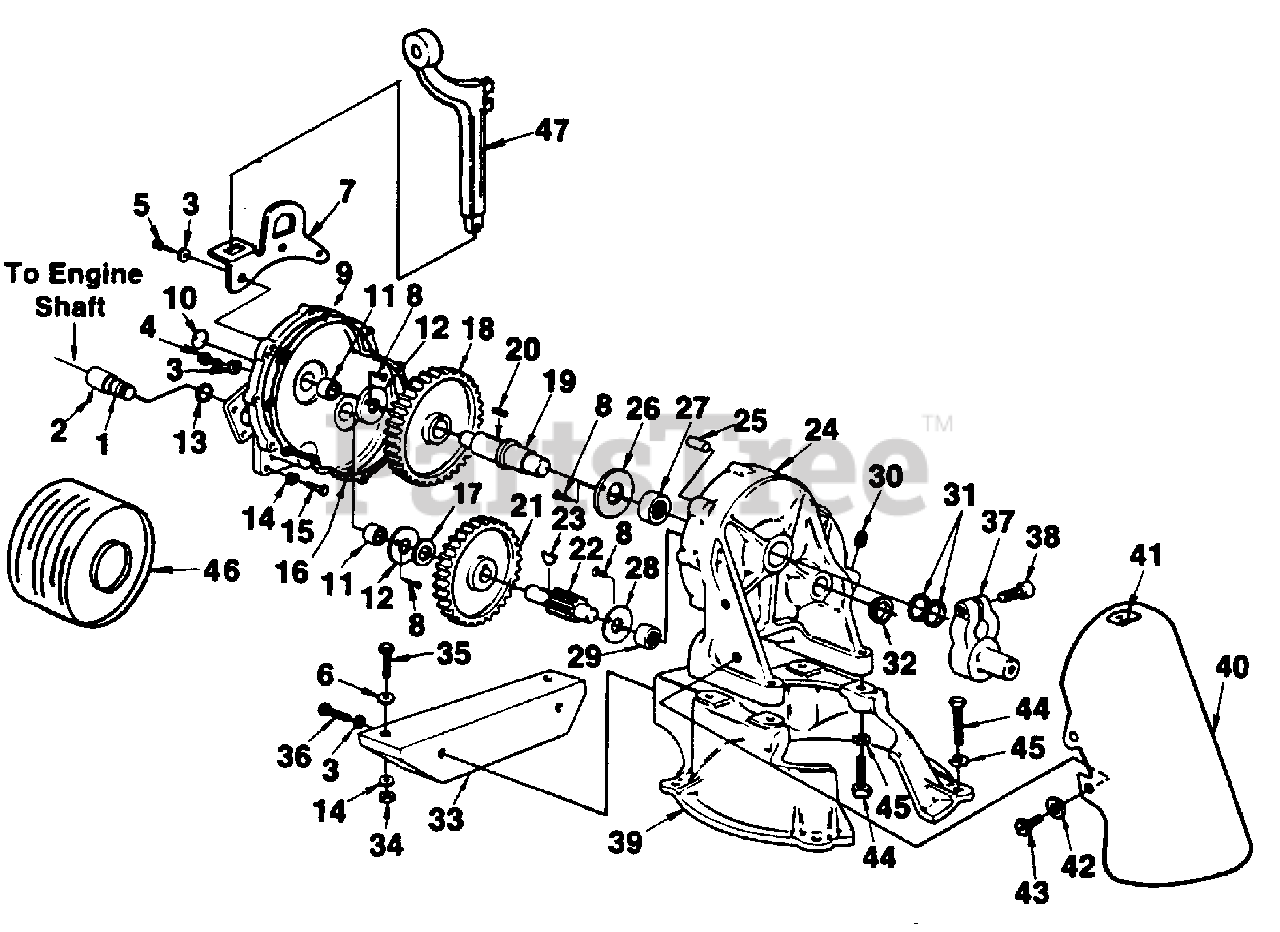

RDP 3 (UT-01583) - Homelite Diaphragm Pump Reduction Gear Parts Diagram

Diaphragm Pump

Reduction Gear Parts Diagram

  • Title

Homelite A54965AS

ENGINE- Briggs & Stratton 3 HP (111DP3)

$

$

Currently unavailable

Homelite A49719S

ENGINE- Robin 3.4 HP (RDP3)

$

$

Currently unavailable

1

Homelite A47098

SHAFT- Extension
(Superseded to UP07094)

$

$

Not available

2

SCREW- Set Hex Soc (5/16-18 x 3/8")

Note: Purchase at local hardware store.

$

$

Not available

3

Homelite 83009

WASHER- Lock (1/4")

$9.99

$

Usually ships in 3-7 days

0

4

Homelite 80284

SCREW- Hex hd. (1/4-20 x 1")
(Superseded to 82496)

$

$

Not available

5

Homelite 80388

SCREW- Hex cap (1/4-20 x 1 1/4")

$

$

Not available

6

Homelite 84032

WASHER- Flat (5/16")

$

$

Not available

7

Homelite 49731

BRACKET- Lift

$

$

Not available

8

Homelite 80143

SCREW- Flat hd. (8-32 x 1/2)

$

$

Not available

9

Homelite A75983

GEAR CASE COVER

$

$

Not available

10

Homelite 74137

CAP- Bearing

$16.99

$

Usually ships in 3-7 days

0

11

Homelite 74251S

BEARING- Needle

$

$

Currently unavailable

12

Homelite 73850

WASHER- Thrust

$

$

Not available

13

Homelite 74333

SEAL- Extension shaft

$

$

Not available

14

Homelite 83002

WASHER- Lock (5/16")
(Superseded to 653671)

$5.49

$

Usually ships in 3-7 days

0

15

SCREW- Cap Hex Hd. (RDP3) (5/16-24 x 1")

Note: Purchase at local hardware store.

$

$

Not available

Homelite 80376

SCREW- Cap Hex Hd. (111DP3) (5/16-24 x 7/8")
(Superseded to UP07181)

$

$

Not available

16

Homelite 74147

GASKET- Gear case

$

$

Not available

17

Homelite 73885

SPACER

$

$

Not available

18

Homelite 738661A

GEAR- Pump
(Superseded to UP07188)

$

$

Not available

19

Homelite A75672

SHAFT- Gear

$

$

Not available

20

Homelite 27752

KEY

$

$

Not available

21

Homelite 743521

GEAR- Intermediate

$

$

Currently unavailable

22

Homelite A75706

GEAR

$

$

Not available

23

Homelite 743531

KEY

$

$

Not available

24

Homelite A743121

GEAR CASE ASSEMBLY

$

$

Not available

25

Homelite 74332

PIN- Dowel

$

$

Not available

26

Homelite 73855

WASHER- Thrust

$

$

Not available

27

Homelite 74252S

BEARING- Needle

$

$

Not available

28

Homelite 73850

WASHER- Thrust

$

$

Not available

29

Homelite 74251S

BEARING- Needle

$

$

Currently unavailable

30

Homelite 50949

PLUG- Pipe

$

$

Not available

31

Homelite 74333

SEAL- Garlock

$

$

Not available

32

Homelite 74137

CAP- Bearing

$16.99

$

Usually ships in 3-7 days

0

33

Homelite 759811

BRACKET- Engine to pump

$

$

Not available

34

Homelite 81162

NUT- Hex (5/16-18")

$

$

Not available

35

Homelite 80288

SCREW- Cap hex hd. (5/16-18 x 1 3/4")
(Superseded to UP03388)

$

$

Not available

36

Homelite 802181

SCREW- Hex hd. (1/4-20 x 3/4")
(Superseded to 80052)

$

$

Not available

37

Homelite 738583

CRANK
(Superseded to UP06445)

$

$

Not available

38

Homelite 80423

SCREW- Cap socket hd. (1/2-13 x 1 1/2")

$

$

Not available

39

Homelite 741185

BODY- Pump (upper)

$

$

Not available

40

Homelite A51135

GUARD- Pump rod

$

$

Currently unavailable

41

Homelite 24581

DECAL- Grease fitting

$

$

Not available

42

Homelite 84004

WASHER- Flat
(Superseded to 678013001)

$2.49

$

Usually ships in 3-7 days

0

43

Homelite 80837

SCREW- Hex hd. (12-24 x 3/8")
(Superseded to 80676)

$

$

Not available

44

Homelite 80627

SCREW- Hex hd. (1/2-13 x 1 3/4")

$

$

Not available

45

Homelite 83020

WASHER- Lock (1/2")

$

$

Not available

46

Homelite 74454A

STRAINER- Suction hose
(Superseded to UP07029)

$

$

Not available

47

Homelite 20024B

WRENCH- Spanner
(Superseded to UP06389)

$

$

Not available

Homelite 49369

BRACKET- Lite (RDP3)

Note: (not shown)

$8.99

$

Usually ships in 3-7 days

0

Homelite 49389

DECAL- Low oil (RDP3)

Note: (not shown)

$8.99

$

Usually ships in 3-7 days

0

Homelite 54661

PLATE- Warning

Note: (not shown)

$

$

Not available
