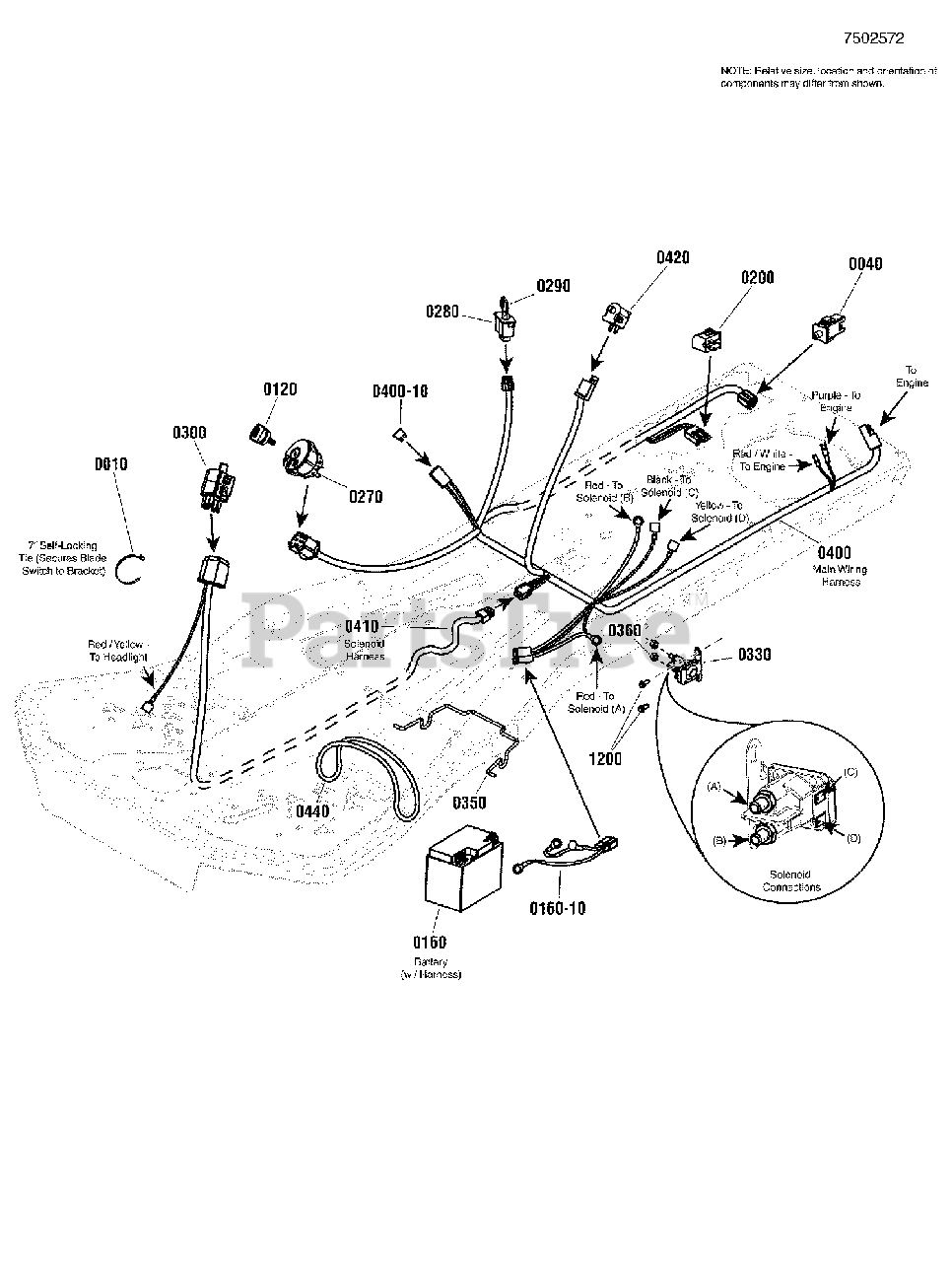

RE 100 (7800918-00) - Snapper 28" Rear-Engine Riding Mower, 10hp Electrical Group Parts Diagram

28" Rear-Engine Riding Mower, 10hp

Electrical Group Parts Diagram

  • Title

0010

Snapper 703586

TIE, 7", Self Locking

Note: (Was 7012080 or 80002747)

$4.99

$

Usually ships in 2-12 days

0

0040

Snapper 7022886YP

SWITCH, DP, NO/NC, Snap-In

$14.99

$

In Stock, Qty 20+

0

0120

Snapper 1750464YP

KEY, Ignition Switch, Trombetta Snap-in Switch (Blister Pack contains 2 keys)

$22.99

$

Usually ships in 2-12 days

0

0160

Snapper 7067012YP

KIT, Battery, 12V, 35CCA (includes 7015488 Harness and Hardware)

$93.99

$

Usually ships in 2-12 days

0

0160-10

Snapper 7015488YP

HARNESS, Battery

$14.99

$

In Stock, only 1 left!

0

0200

Snapper 1732004SM

SWITCH, Push Button, (NO, Black)

$8.99

$

In Stock, Qty 6

0

0270

Snapper 1737959YP

SWITCH, Ignition (Trombetta)
(Superseded to 7600215YP)

$64.99

$

In Stock, only 1 left!

0

0280

Snapper 1726556SM

SWITCH, Reverse Mow Option Module (Without Key)
(Superseded to 1761897YP)

$30.99

$

Usually ships in 2-12 days

0

0290

Snapper 1726557SM

KEY, RMO Module (Yellow)

$5.49

$

In Stock, Qty 20+

0

0300

Snapper 1751449YP

SWITCH, Plunger, Snap In (NO/NC/NC)

$24.99

$

In Stock, only 1 left!

0

0330

Snapper 1755381YP

SOLENOID, 12V, L-Bracket, 2-Spade

$24.99

$

Usually ships in 2-12 days

0

0350

Snapper 7105788YP

BRACE, Battery

$11.99

$

In Stock, only 1 left!

0

0360

Snapper 2860750SM

NUT, 5/16-24 Hex Lock, Keps, YZ

$2.99

$

Usually ships in 2-12 days

0

0400

Snapper 7105660YP

HARNESS, Main Wiring (10 Gross Torgue Engine)

$107.99

$

Usually ships in 2-12 days

0

0400-10

Snapper 7023653YP

FUSE, 20 Amp

$3.49

$

Usually ships in 2-12 days

0

0410

Snapper 7105697YP

HARNESS, Solenoid, 41"

$41.99

$

Usually ships in 2-12 days

0

0420

Snapper 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

Usually ships in 2-12 days

0

0440

Snapper 7106024YP

BAND, Battery Hold Down

$8.99

$

Usually ships in 2-12 days

0

1200

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

Note: (Was 80004190)

$4.49

$

In Stock, only 2 left!
