RE 100 (7800954-01) - Snapper 28" Rear-Engine Riding Mower, 10hp Electrical Group Parts Diagram

28" Rear-Engine Riding Mower, 10hp

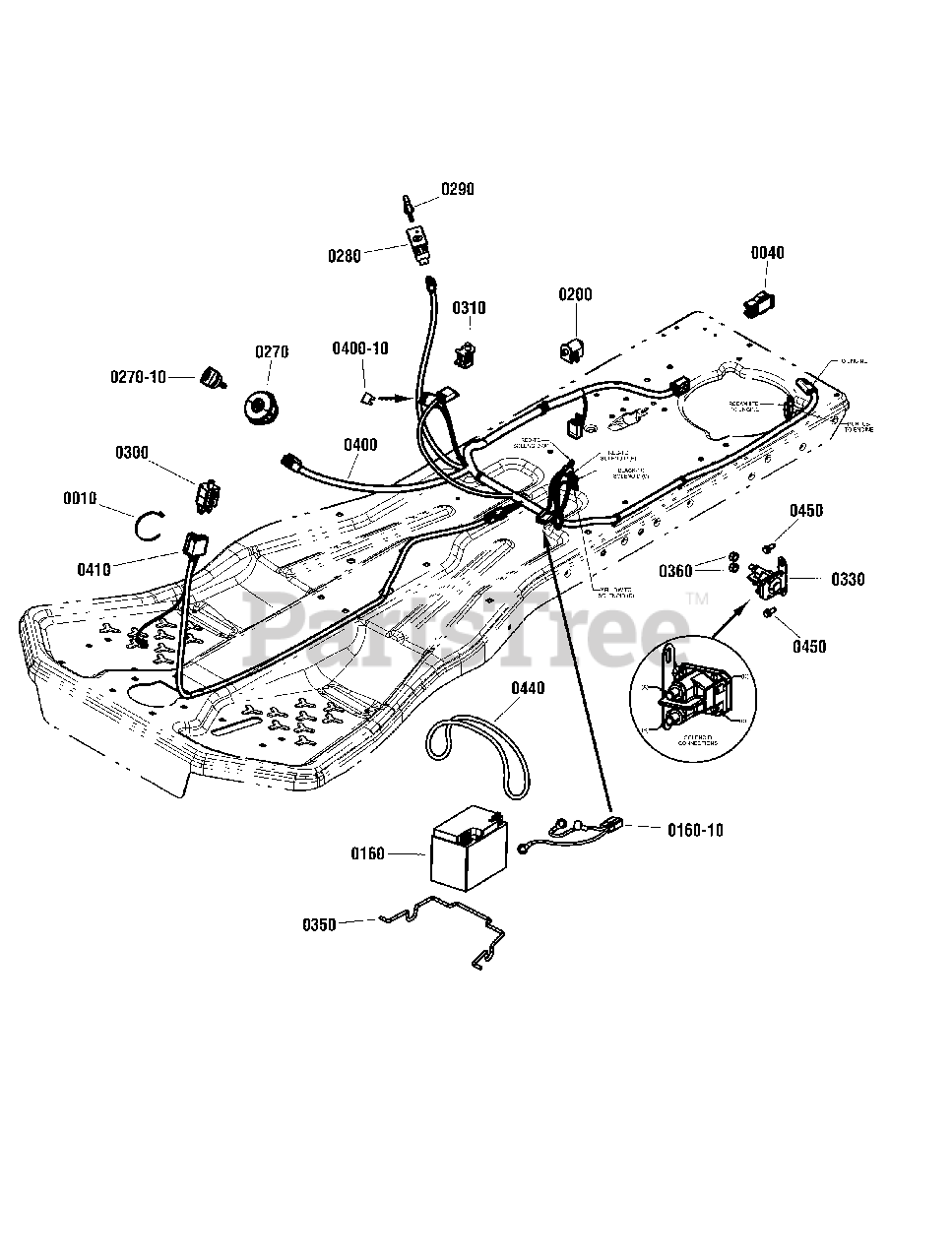

Electrical Group Parts Diagram

  • Title

0010

Snapper 703586

TIE, 7, Self Locking

$4.99

$

Usually ships in 2-12 days

0

0040

Snapper 7022886YP

SWITCH, DP, NO/NC, Snap-In

$15.99

$

In Stock, Qty 20+

0

0160

Snapper 7067012YP

KIT, Battery, 12V, 35CCA (includes 7015488 Harness and Hardware)

$99.99

$

Usually ships in 2-12 days

0

0160-10

Snapper 7015488YP

HARNESS, Battery

$15.99

$

In Stock, only 2 left!

0

0160-20

Snapper 7043977YP

SCREW, M5X10 (Not Shown)

$

$

Not available

0160-30

Snapper 7090932YP

NUT, Battery Terminal (Not Shown)

$6.99

$

Usually ships in 2-12 days

0

0200

Snapper 1732004SM

SWITCH, Push Button, (NO, Black)

$9.49

$

In Stock, Qty 8

0

0270

Snapper 7106169YP

SWITCH, Ignition, 3 Position (Delta)(Without Key)

$18.99

$

In Stock, only 4 left!

0

0270-10

Snapper 7106172YP

KEY, Ignition Switch - Pack of 2, CE/CAN

$29.99

$

In Stock, only 2 left!

0

0280

Snapper 1726556SM

SWITCH, Reverse Mow Option Module (Without Key)
(Superseded to 1761897YP)

$30.99

$

Usually ships in 2-12 days

0

0290

Snapper 1726557SM

KEY, RMO Module (Yellow)

$11.99

$

In Stock, Qty 6

0

0300

Snapper 1751449YP

SWITCH, Plunger, Snap In (NO/NC/NC)

$26.99

$

In Stock, only 3 left!

0

0310

Snapper 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

In Stock, Qty 17

0

0330

Snapper 1755381YP

SOLENOID, 12V, L-Bracket, 2-Spade

$24.99

$

In Stock, Qty 16

0

0350

Snapper 7105788YP

BRACE, Battery

$11.99

$

In Stock, only 1 left!

0

0360

Snapper 2860750SM

NUT, 5/16-24 Hex Lock, Keps, YZ

$2.99

$

Usually ships in 2-12 days

0

0400

Snapper 706330

WIRE HARNESS, MY 14, 10TP

$119.99

$

Usually ships in 2-12 days

0

0400-10

Snapper 7023653YP

FUSE, 20 Amp

$3.49

$

Usually ships in 2-12 days

0

0410

Snapper 7105697YP

HARNESS, Blade Engage, 41"

$44.99

$

Usually ships in 2-12 days

0

0440

Snapper 7106024YP

BAND, Battery Hold Down

$9.49

$

Usually ships in 2-12 days

0

0450

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 11

0
