RE 100 (7800954-01) - Snapper 28" Rear-Engine Riding Mower, 10hp Engine Group Parts Diagram

28" Rear-Engine Riding Mower, 10hp

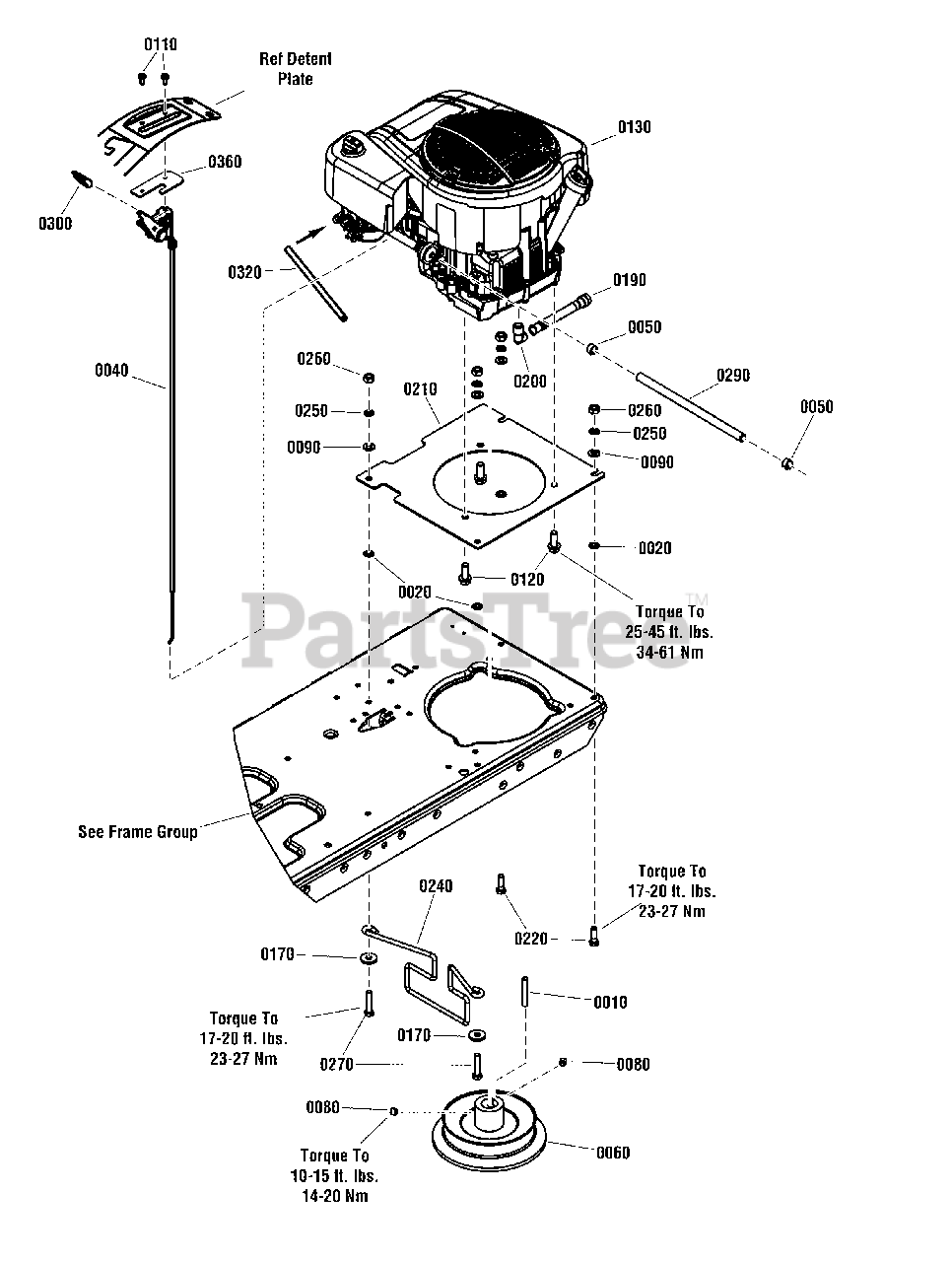

Engine Group Parts Diagram

  • Title

0010

Snapper 7010210SM

KEY, 1/4X2, Square
(Superseded to 703890)

$5.49

$

In Stock, only 3 left!

0

0020

Snapper 703297

RETAINER, 5/16, GR5 Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0040

Snapper 7105679YP

ASSEMBLY, Throttle Control, W28, 28.8" Long

$

$

Not available

0050

Snapper 7029900SM

CLAMP, .490 X .31, Fuel Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 12

0

0060

Snapper 7072658YP

DRIVE DISC, Steel, (4.56" P.D., 5.75 O.D. Pulley)

$132.99

$

In Stock, Qty 5

0

0080

Snapper 7090132YP

SCREW, 3/8-16 x 3/8" Hex Recess Set

$3.49

$

In Stock, Qty 8

0

0090

Snapper 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, Qty 10

0

0110

Snapper 7090913SM

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx), Zinc/Clear
(Superseded to 704060)

$3.99

$

In Stock, only 2 left!

0

0120

Snapper 7090324SM

SCREW, 3/8-16 x 1" Hex Washer Self-Tap, BZ
(Superseded to 704000)

$5.49

$

In Stock, Qty 13

0

0130

Snapper 14D937-0101-G1

* ENGINE, 10 Gross Torque W28 B&S, Mod. 14D937-0101-G1

$857.99

$

Usually ships in 2-12 days

0

0170

Snapper 703298

WASHER, 5/16

$4.49

$

In Stock, Qty 15

0

0190

Snapper 7105635YP

HOSE, Oil Drain

$14.99

$

Usually ships in 2-12 days

0

0200

Snapper 7105636YP

FITTING, 3/8 NPT Male/Female

$12.99

$

Usually ships in 2-12 days

0

0210

Snapper 7301274BMYP

PLATE, Engine

$44.99

$

Usually ships in 2-12 days

0

0220

Snapper 703301

SCREW, 5/16-24 x 1 Hex Head Cap, GR 5, BZ

$4.49

$

In Stock, only 4 left!

0

0240

Snapper 7105696BMYP

GUIDE, Wire Belt, 9.48" W, 3.7" H, 5.1" Guide Width

$9.49

$

Usually ships in 2-12 days

0

0250

Snapper 703116

WASHER, .32 X .58 X .08, Split Lock, YZ
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

0260

Snapper 703331

NUT, 5/16-24, Hex, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 17

0

0270

Snapper 703959

SCREW, 5/16-24 x 1-1/2 Hex Head Cap, GR 5, Zinc/Clear

$4.49

$

Usually ships in 2-12 days

0

0290

Snapper 7200111YP

HOSE, 1/4" ID X 9", Fuel

$9.49

$

In Stock, only 1 left!

0

0300

Snapper 7106008YP

KNOB, Molded Paddle, Black

$5.49

$

Usually ships in 2-12 days

0

0320

Snapper 7200141YP

HOSE, Vapor - 16" L

$13.99

$

Usually ships in 2-12 days

0

0360

PLATE, Throttle Restrictor (Part of KIT #7600209)

$

$

Not available
