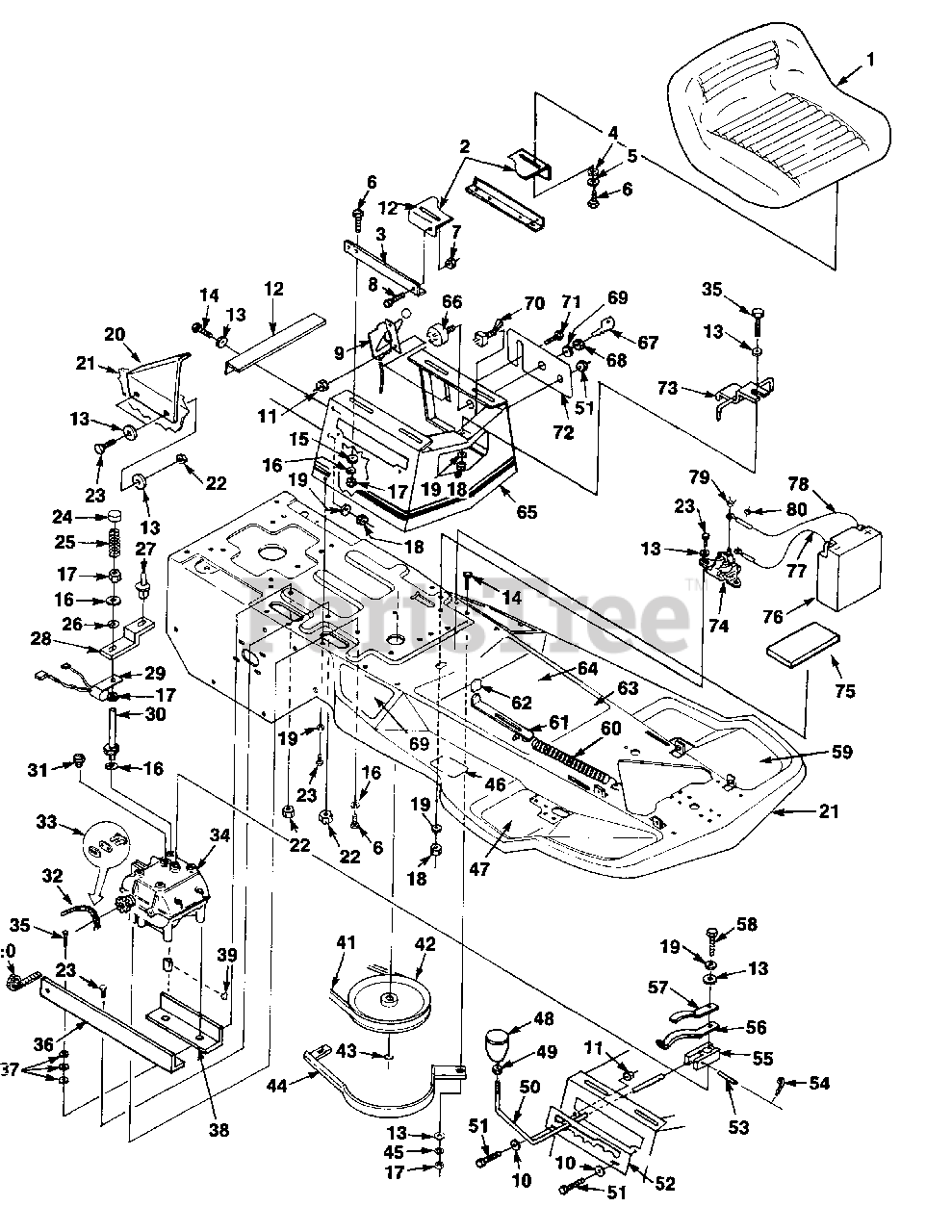

RE 1030 ECKD (UT-32037) - Homelite Rear-Engine Riding Mower Frame Parts Diagram

Rear-Engine Riding Mower

Frame Parts Diagram

  • Title

1

Homelite JA994841

$

$

Currently unavailable

2

Homelite JA993926

BRACKET- Seat

$

$

Currently unavailable

3

Homelite JA993924

SEAT RAIL

$

$

Currently unavailable

4

Homelite JA452006

NLA(NO LONGER AVAILABLE)

$

$

Currently unavailable

5

Homelite JA446136

Superseded by UP03791
(Superseded to UP03791)

$

$

Not available

6

Homelite JA400184

Superseded by UP03381
(Superseded to UP03381)

$

$

Not available

7

Homelite JA444718

NLA(NO LONGER AVAILABLE)

$

$

Not available

8

Homelite JA375431

NLA(NO LONGER AVAILABLE)

$

$

Not available

9

Homelite JA992098

NLA(NO LONGER AVAILABLE)

$

$

Currently unavailable

10

Homelite JA452002

WASHER

$

$

Not available

11

Homelite JA444782

NUT-TBO

$

$

Not available

12

Homelite JA993928

BRACKET- Reinforcement

$

$

Currently unavailable

13

Homelite JA452004

Superseded by 84026
(Superseded to 84026)

$

$

Not available

14

Homelite JA400108

Superseded by 80052
(Superseded to 80052)

$

$

Not available

15

Homelite JA453009

Superseded by UP07173
(Superseded to UP07173)

$

$

Not available

16

Homelite JA446134

Superseded by UP03407
(Superseded to 653671)

$5.49

$

Usually ships in 3-7 days

0

17

Homelite JA443106

Superseded by 81018
(Superseded to 81018)

$

$

Not available

18

Homelite JA443102

Superseded by JA993730
(Superseded to JA993730)

$

$

Not available

19

Homelite JA446128

Superseded by UP03409
(Superseded to UP03409)

$9.99

$

Usually ships in 3-7 days

0

20

Homelite JA993932

BRACKET- Chain guard

$

$

Currently unavailable

21

Homelite JA994428

FRAME

$

$

Currently unavailable

22

Homelite JA444708

Nut - hex 1/4-20 lock

$

$

Currently unavailable

23

Homelite JA400106

SCREW

$

$

Currently unavailable

24

Homelite JA994765

$

$

Currently unavailable

25

Homelite JA359266

NLA(NO LONGER AVAILABLE)

$

$

Not available

26

Homelite JA992007

RETAINER- Spring

$8.49

$

Usually ships in 3-7 days

0

27

Homelite JA991513

NLA(NO LONGER AVAILABLE)

$

$

Currently unavailable

28

Homelite JA994034

BRACKET- Transmission

$

$

Currently unavailable

29

Homelite JA991077

NEUTRAL START (Safety Mod)

$

$

Currently unavailable

30

Homelite JA993027

STUD- 5/16-18

$

$

Currently unavailable

31

Homelite JA990981

NLA(NO LONGER AVAILABLE)

$

$

Currently unavailable

32

Homelite JA990739

NLA(NO LONGER AVAILABLE)

$

$

Currently unavailable

33

Homelite JA470502

NLA(NO LONGER AVAILABLE)

$

$

Currently unavailable

34

Homelite JA990222

TRANSMISSION- Peerless Tecumseh

$2000.99

$

Usually ships in 3-7 days

0

35

Homelite JA400112

Superseded by UP04158
(Superseded to UP04158)

$

$

Not available

36

Homelite JA993954

ANGLE- Long

$

$

Currently unavailable

37

Homelite JA993025

WASHER

$

$

Currently unavailable

38

Homelite JA994510

$

$

Currently unavailable

39

Homelite JA463017

KEY (#9) 3/16 x 3/4

$

$

Currently unavailable

40

Homelite JA991636

NLA(NO LONGER AVAILABLE)

$

$

Not available

41

Homelite JA990738

BELT TBO

$

$

Not available

42

Homelite JA392593

NLA(NO LONGER AVAILABLE)

$

$

Currently unavailable

43

Homelite JA458009

RING- Retaining

$

$

Not available

44

Homelite JA993951

BELT GUIDE- Transmission

$

$

Currently unavailable

45

Homelite JA446130

NLA(NO LONGER AVAILABLE)

$

$

Not available

46

Homelite JA339568

FOOTPAD

$

$

Currently unavailable

47

Homelite JA339514

NLA(NO LONGER AVAILABLE)

$

$

Currently unavailable

48

Homelite JA991845

KNOB- Shift lever

$

$

Currently unavailable

49

Homelite JA443812

NUT- Hex jam 3/8-24

$

$

Currently unavailable

50

Homelite JA994035

NLA(NO LONGER AVAILABLE)

$

$

Currently unavailable

51

Homelite JA403744

SCREW 10-24 x 1/2

$

$

Currently unavailable

52

Homelite JA992013

PLATE- Shift

$

$

Currently unavailable

53

Homelite JA461383

NLA(NO LONGER AVAILABLE)

$

$

Not available

54

Homelite JA460212

NLA(NO LONGER AVAILABLE)

$

$

Currently unavailable

55

Homelite JA991848

BRACKET- Pivot

$

$

Currently unavailable

56

Homelite JA991843

NLA(NO LONGER AVAILABLE)

$

$

Currently unavailable

57

Homelite JA991839

SPRING LEAF

$

$

Currently unavailable

58

Homelite JA400148

SCREW- Hex hd 1/4-28 x 7/8

$4.49

$

Usually ships in 3-7 days

0

59

Homelite JA339513

FOOT REST (left hand)

$

$

Currently unavailable

60

Homelite JA991442

NLA(NO LONGER AVAILABLE)

$

$

Not available

61

Homelite JA375859

LATCHING- Parking brake

$

$

Currently unavailable

62

Homelite JA375987

KNOB- Latch

$

$

Currently unavailable

63

Homelite JA994660

$

$

Currently unavailable

64

Homelite JA994650

NLA(NO LONGER AVAILABLE)

$

$

Currently unavailable

65

Homelite JA992479

SUPPORT- Seat

$

$

Currently unavailable

66

Homelite JA130666

SWITCH- Ignition

Note: (RE830)

$

$

Currently unavailable

Homelite JA130412

NLA(NO LONGER AVAILABLE)

$

$

Currently unavailable

67

Homelite JA343060

NLA(NO LONGER AVAILABLE)

$

$

Not available

68

Homelite JA549343

NLA(NO LONGER AVAILABLE)

$

$

Currently unavailable

69

Homelite JA447224

NLA(NO LONGER AVAILABLE)

$

$

Not available

70

Homelite JA990135

Superseded by UP06659
(Superseded to UP06659)

$

$

Not available

71

Homelite JA403910

SCREW- (10-24 x 1/2")

$4.49

$

Usually ships in 3-7 days

0

72

Homelite JA994786

NLA(NO LONGER AVAILABLE)

Note: (RE830)

$

$

Currently unavailable

Homelite JA994785

Note: (RE830E, RE1030E, RE1030E-CKD, RE1230E-CKD)

$

$

Currently unavailable

73

Homelite JA994368

$

$

Currently unavailable

74

Homelite JA995590

NLA(NO LONGER AVAILABLE)

$

$

Currently unavailable

75

Homelite JA991507

BATTERY PAD

$

$

Currently unavailable

76

Homelite JA994414

$

$

Currently unavailable

77

Homelite JA992201

BATTERY CABLE- Ground

$

$

Not available

78

Homelite JA994415

$

$

Currently unavailable

79

Homelite JA443802

NUT- (1/4-20)

$

$

Currently unavailable

80

Homelite JA444306

NUT- Mach (8-32)

$

$

Currently unavailable
