RE 12R38 A - Electrolux/AYP Lawn Tractor ENGINE/THROTTLE Parts Diagram

Lawn Tractor

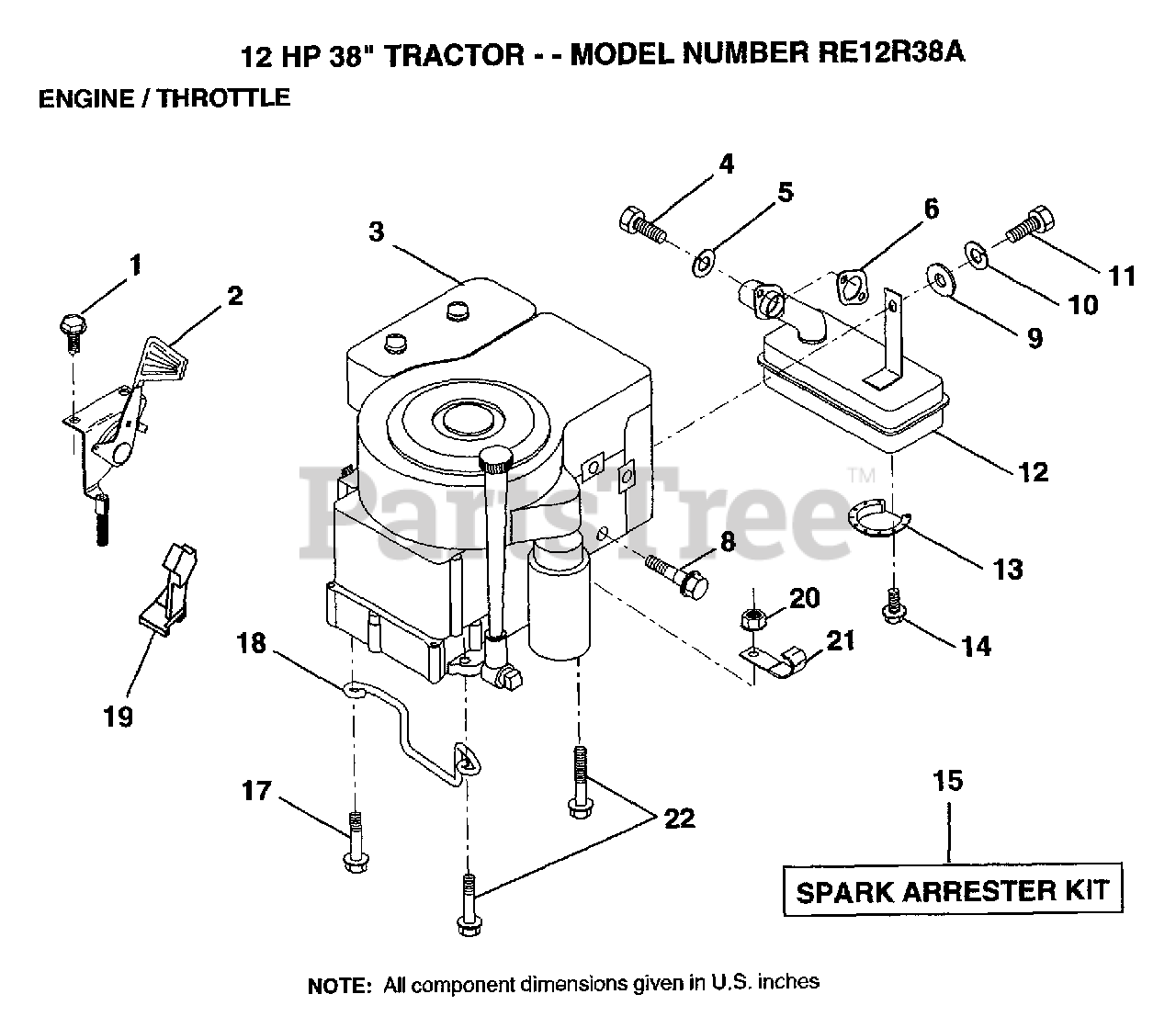

ENGINE/THROTTLE Parts Diagram

  • Title

1

Electrolux/AYP 17720408

SCREW
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 132750

THROTTLE CONTROL

$

$

Not available

3

REFER TO IMAGE

$

$

Not available

4

Electrolux/AYP 71070512

SCREW
(Superseded to 596134201)

$3.99

$

In Stock, Qty 20+

0

5

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

6

125593x

SUB= 272293

$

$

Not available

8

121094x

BOLT T

$

$

Not available

9

Electrolux/AYP 19101216

WASHER

$

$

Not available

10

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

11

Electrolux/AYP 74780412

SUB= 74780414
(Superseded to 874780412)

$

$

Not available

12

123676x

SUB= 137437

$

$

Not available

13

101326l

DEFLECTOR.222573

$

$

Not available

14

Electrolux/AYP 17030808

SUB= 17030814
(Superseded to 817030808)

$

$

Not available

15

121851x

SUB= 532137180

$

$

Not available

17

Electrolux/AYP 17490624

SCREW LT
(Superseded to 817060624)

$7.49

$

In Stock, only 1 left!

0

18

126636x

KEEPER,DR BELT GR

$

$

Not available

19

Electrolux/AYP 127951

"STOP,DASH THROTT"
(Superseded to 539127951)

$2.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 73510600

NUT
(Superseded to 873510600)

$6.49

$

Usually ships in 3-10 days

0

21

2751r

CLIP T

$

$

Not available

22

Electrolux/AYP 17490632

SCREW LT
(Superseded to 817490632)

$

$

Not available
