RE 130 (2691416-00) - Snapper 33" Rear-Engine Riding Mower, 12.5hp Console & Fuel Tank Group Parts Diagram

33" Rear-Engine Riding Mower, 12.5hp

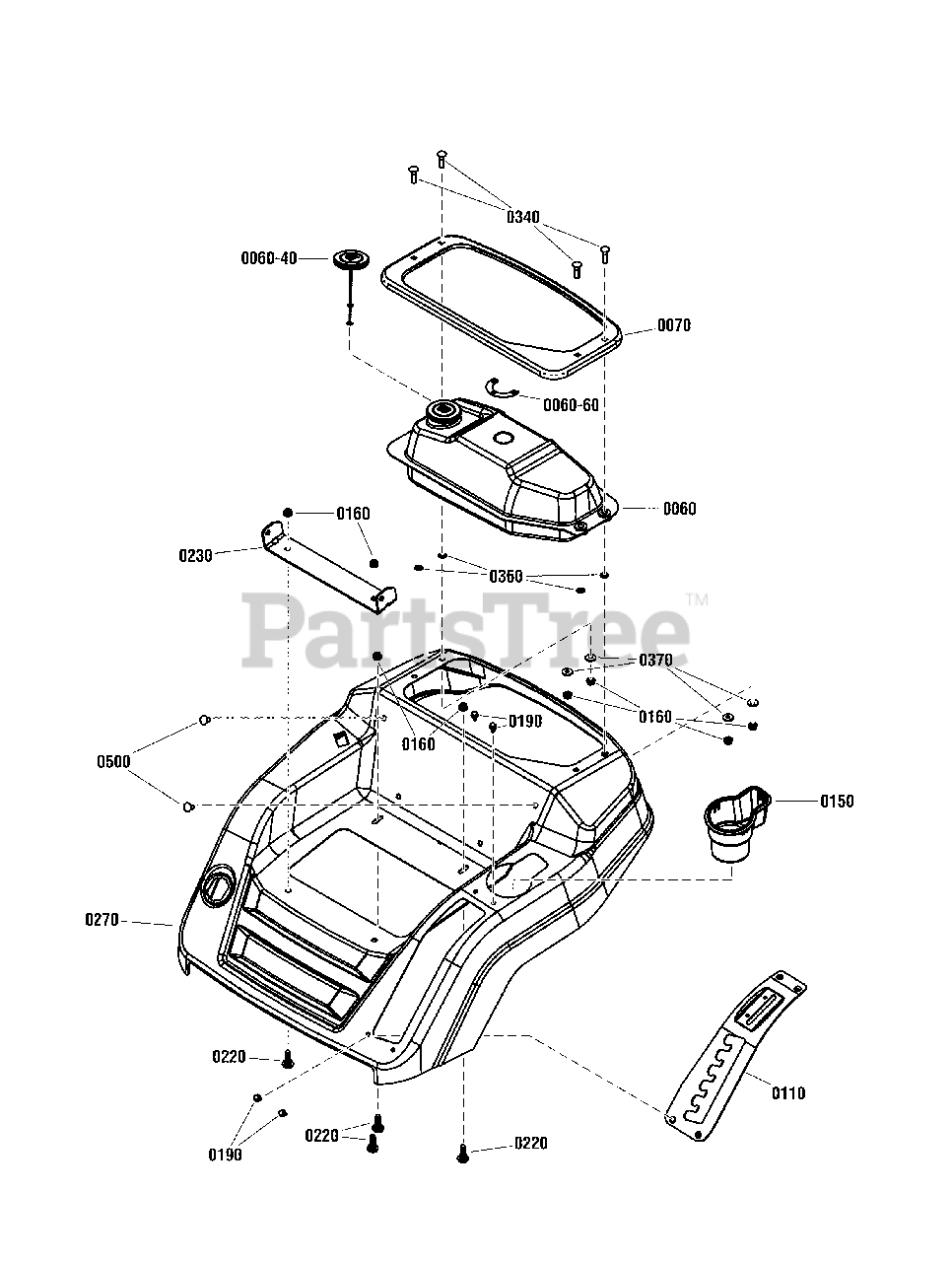

Console & Fuel Tank Group Parts Diagram

  • Title

0060

Snapper 7106250YP

ASSEMBLY, Fuel Tank w/guage (Includes Decal)

$165.99

$

Usually ships in 2-12 days

0

0060-40

Snapper 1751942YP

CAP FUEL, Vented

$16.99

$

Usually ships in 2-12 days

0

0060-60

Snapper 706328

DECAL, Fuel Gauge, RER

$

$

Not available

0070

Snapper 1758785YP

TANK, Trim

$41.99

$

Usually ships in 2-12 days

0

0110

Snapper 7301262BMYP

PLATE, HOC Detent, Black

$28.99

$

Usually ships in 2-12 days

0

0150

Snapper 7105766YP

CUP HOLDER

$16.99

$

Usually ships in 2-12 days

0

0160

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.99

$

In Stock, Qty 20+

0

0190

Snapper 703953

SCREW, 1/4-20 X 5/8, Torx Pan Head Self-Tapping, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0220

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0230

Snapper 706334

BRACKET, Seat Pivot, 12.41" W, 9.5" W .344" Sq Holes, Black

$21.99

$

Usually ships in 2-12 days

0

0270

Snapper 7301428DYP

CONSOLE, Seat/Controls, Mechanical, Red

$410.99

$

Usually ships in 2-12 days

0

0340

Snapper 703446

BOLT, 5/16-18 X 1.25, Carriage, GR5, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0360

Snapper 703297

RETAINER, 5/16 X .625, Push Nut, GR 5, Zinc/Clear

$3.99

$

In Stock, Qty 9

0

0370

Snapper 703298

WASHER, 5/16

$4.49

$

In Stock, Qty 15

0

0500

Snapper 1705115SM

PLUG, Hole (for .344 Square Hole)

$4.49

$

In Stock, Qty 11

0
