RE 145H42 H - Electrolux/AYP Lawn Tractor MOWER DECK Parts Diagram

Lawn Tractor

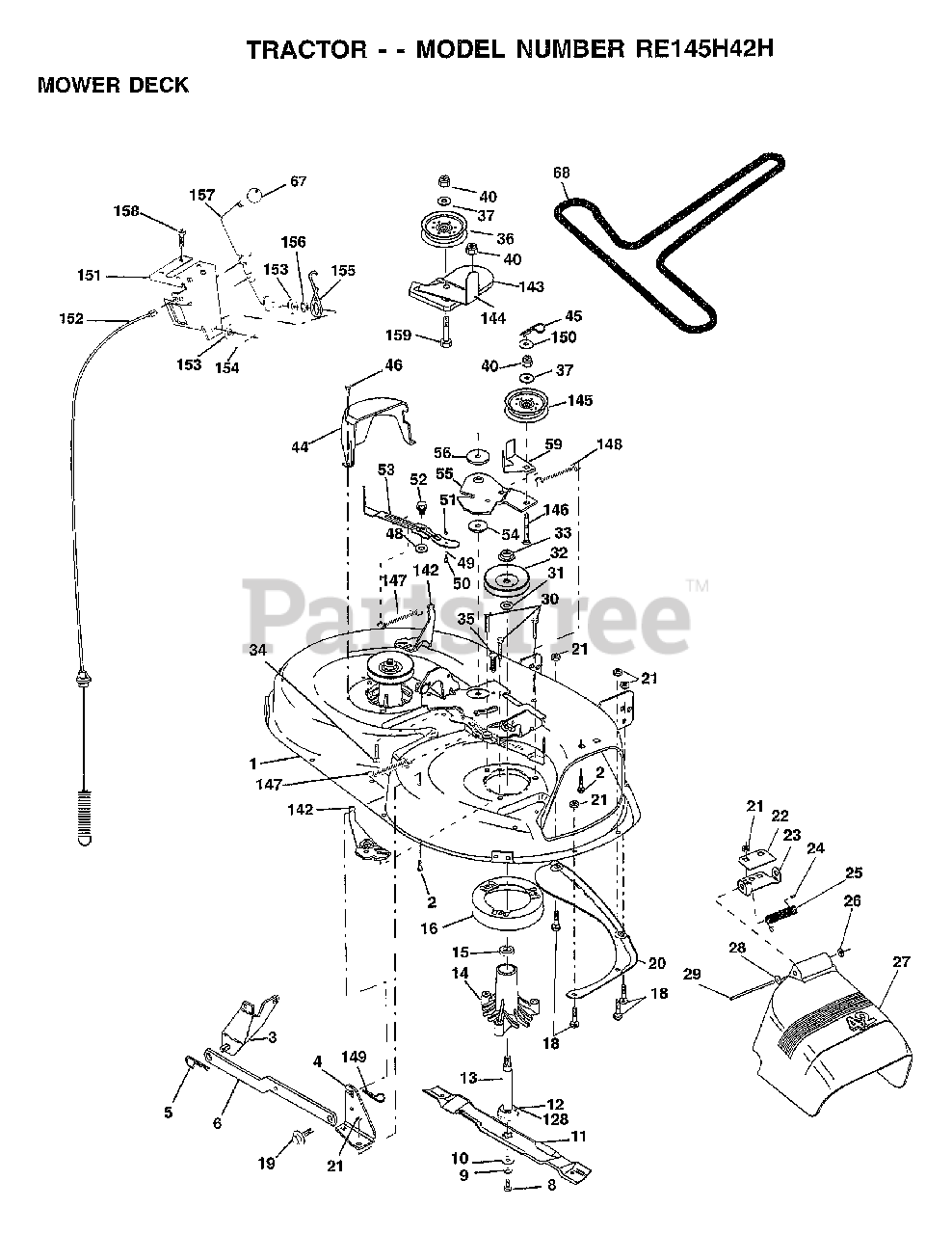

MOWER DECK Parts Diagram

  • Title

1

Murray 165892

MOWER DECK ASSY
(Superseded to 532176027)

$399.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 138017

BRKT ASM SWAY BAR
(Superseded to 532138017)

$12.99

$

In Stock, Qty 14

0

4

Electrolux/AYP 165460

BRACKET DECK
(Superseded to 532165460)

$10.99

$

In Stock, only 2 left!

0

5

Murray 4939M

SUB= 85902

$

$

Not available

6

Electrolux/AYP 130832

SUB= 130833
(Superseded to 532130832)

$

$

Not available

8

Electrolux/AYP 850857

BLADE BOLT
(Superseded to 532850857)

$3.99

$

In Stock, Qty 17

0

9

Electrolux/AYP 10030600

SUB= 10040600
(Superseded to 810030600)

$

$

Not available

10

Electrolux/AYP 140296

WASHER.HARD.BLADE
(Superseded to 532140296)

$6.49

$

In Stock, Qty 6

0

11

Electrolux/AYP 138498

"BLADE.42"" HIPERF"
(Superseded to 532138971)

$14.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 129895

BEARING.BALL
(Superseded to 532129895)

$26.99

$

In Stock, Qty 11

0

13

Electrolux/AYP 137645

SUB= 137646
(Superseded to 532137645)

$26.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 128774

HSG ASM MANDREL
(Superseded to 532128774)

$31.99

$

In Stock, Qty 20+

0

15

Electrolux/AYP 110485X

BEARING
(Superseded to 532110485)

$10.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 140329

STRIPPER RND MWR
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 72140505

BOLT
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 132827

BOLT SHD 5/16-18
(Superseded to 532132827)

$6.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 159770

BAFFLE VORTEX 42
(Superseded to 532159770)

$

$

Not available

21

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

22

Electrolux/AYP 134753

STIFFENER BRKT
(Superseded to 532177563)

$4.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 131267

DEFLECTOR BRKT
(Superseded to 532177563)

$4.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 105304X

CAP-SLEEVE LT
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 123713X

SPRING TORSION
(Superseded to 532123713)

$5.99

$

In Stock, Qty 11

0

26

Electrolux/AYP 110452X

NUT PUSH M
(Superseded to 532110452)

$3.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 130968X428

SHIELD DEFLECTOR 42''
(Superseded to 532130968)

$34.99

$

In Stock, Qty 20+

0

28

Electrolux/AYP 19111016

WASHER
(Superseded to 819111016)

$3.99

$

In Stock, Qty 20+

0

29

Electrolux/AYP 131491

HINGE ROD
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 157722

"SCREW-THD ROLL,WA"
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

31

Electrolux/AYP 129963

WASHER
(Superseded to 532187690)

$3.49

$

In Stock, Qty 20+

0

32

Murray 153535

PULLEY.MANDREL.42
(Superseded to 532173436)

$10.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 137266

SUB= 139729
(Superseded to 532139729)

$8.99

$

In Stock, only 2 left!

0

34

Electrolux/AYP 72110614

BOLT
(Superseded to 872110614)

$3.99

$

In Stock, Qty 10

0

35

Electrolux/AYP 133835

XMAS TREE FASTNER
(Superseded to 532133835)

$7.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 20+

0

37

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

40

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 140088

GUARD MAND LH BLK
(Superseded to 532140088)

$26.99

$

In Stock, Qty 13

0

45

Electrolux/AYP 4497H

RETAINER M
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

46

Electrolux/AYP 137729

SCREW.1/4-20X5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

48

Electrolux/AYP 133944

HARD SMALL WASHER
(Superseded to 532133944)

$6.49

$

In Stock, Qty 12

0

49

Electrolux/AYP 155066

ROLLER ASM-CAM
(Superseded to 532174284)

$11.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 131340

SHOULDER BOLT
(Superseded to 532131340)

$

$

Not available

51

Electrolux/AYP 69180

LOCKNUT
(Superseded to 532069180)

$6.49

$

In Stock, only 2 left!

0

52

Electrolux/AYP 139888

BOLT.SHLD.5/16-18
(Superseded to 532139888)

$6.49

$

In Stock, Qty 10

0

53

Electrolux/AYP 131845

BRAKE PAD ARM ASM
(Superseded to 532184907)

$14.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 133943

HARDENED WASHER
(Superseded to 532178515)

$6.49

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 155046

ARM-IDLER
(Superseded to 532155046)

$15.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 165723

SPACER.RETAINER.MOWER
(Superseded to 532165723)

$6.49

$

In Stock, Qty 14

0

59

Electrolux/AYP 141043

GUARD IDLER TUV
(Superseded to 532141043)

$

$

Not available

67

Electrolux/AYP 106932X

KNOB T(3/8 HOLE)
(Superseded to 532106932)

$6.49

$

In Stock, Qty 9

0

68

Electrolux/AYP 144959

BELT-V.SEC.46.KEL
(Superseded to 532144959)

$42.99

$

In Stock, Qty 20+

0

128

Electrolux/AYP 153390

WASHER.FELT.
(Superseded to 532153390)

$6.49

$

In Stock, Qty 5

0

142

Electrolux/AYP 165890

ARM SPRING BRAKE MOWER
(Superseded to 532165890)

$4.99

$

Usually ships in 3-10 days

0

143

Electrolux/AYP 157109

BRACKET ARM IDLER
(Superseded to 532157109)

$6.49

$

Usually ships in 3-10 days

0

144

Electrolux/AYP 158634

KEEPER BELT CLUTCH CABLE
(Superseded to 532173441)

$9.99

$

In Stock, only 3 left!

0

145

Electrolux/AYP 165888

PULLEY IDLER FLAT
(Superseded to 532173437)

$22.99

$

In Stock, Qty 20+

0

146

Electrolux/AYP 165891

BOLT
(Superseded to 532173443)

$7.49

$

In Stock, Qty 17

0

147

Electrolux/AYP 131335

SPRING EXTENSION
(Superseded to 532179748)

$3.99

$

In Stock, Qty 20+

0

148

Electrolux/AYP 169022

SPRING RETURN IDLER
(Superseded to 532169022)

$4.99

$

In Stock, Qty 20+

0

149

Electrolux/AYP 165898

RETAINER SPRING
(Superseded to 532165898)

$7.49

$

In Stock, Qty 6

0

150

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

In Stock, only 1 left!

0

151

Electrolux/AYP 169670

BRKT CLUTCH CABLE
(Superseded to 532169670)

$

$

Not available

152

Murray 169676

"CABLE.CLUTCH.42"""
(Superseded to 532175067)

$44.99

$

In Stock, Qty 20+

0

153

Electrolux/AYP 169674

WASHER FLAT
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

154

Electrolux/AYP 169675

SPRING RETAINER
(Superseded to 532169675)

$7.49

$

In Stock, only 4 left!

0

155

Electrolux/AYP 169671

SPRING RETENTION LVR CLUTCH CAB
(Superseded to 532169671)

$6.49

$

In Stock, Qty 12

0

156

Electrolux/AYP 169672

SPACER
(Superseded to 532169672)

$6.49

$

Usually ships in 3-10 days

0

157

Electrolux/AYP 169669

ROD.CLUTCH.CABLE.3/8
(Superseded to 532169669)

$

$

Not available

158

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

159

Electrolux/AYP 72140614

BOLT
(Superseded to 872140614)

$4.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 130794

MANDREL ASM
(Superseded to 532130794)

$44.99

$

In Stock, Qty 20+

0

Electrolux/AYP 171639

MOWER DECK COMPLETE
(Superseded to 532169583)

$848.99

$

Usually ships in 3-10 days

0
