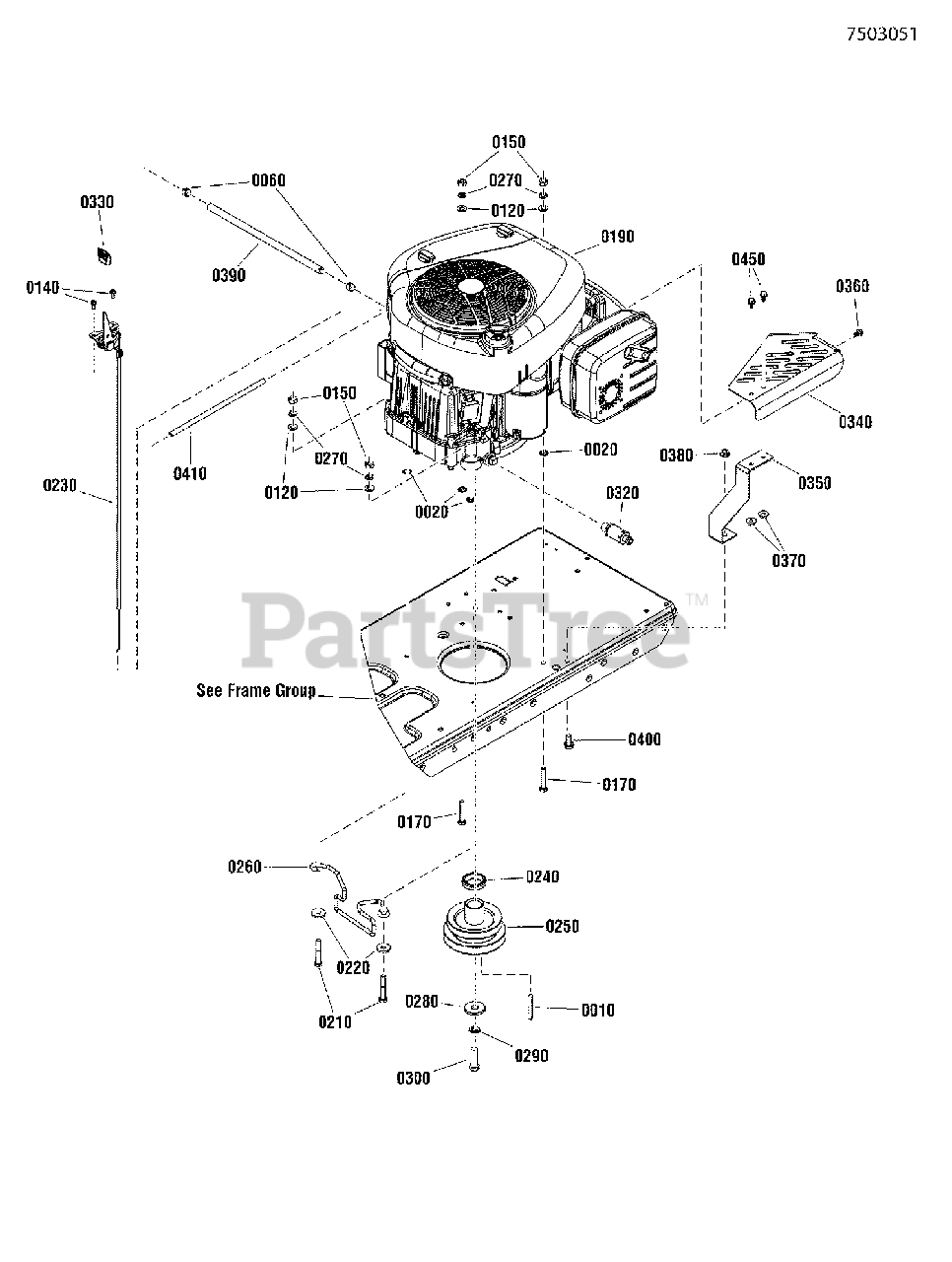

RE 210 (7800921-00) - Snapper 33" Rear-Engine Riding Mower, 14.5hp Engine Group Parts Diagram

33" Rear-Engine Riding Mower, 14.5hp

Engine Group Parts Diagram

  • Title

0010

Snapper 703890

KEY, 1/4 Square x 2 Long

$4.99

$

In Stock, Qty 8

0

0020

Snapper 703297

RETAINER, 5/16, GR5 Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0060

Snapper 7029900SM

CLAMP, .490 X .31, Fuel Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

0120

Snapper 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0140

Snapper 7090913SM

SCREW, 10-24 x 1/2" Hex Washer Self-Tap, Torx, Zinc/Clear
(Superseded to 704060)

$3.49

$

In Stock, Qty 12

0

0150

Snapper 703331

NUT, 5/16-24, Hex, GR5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0170

Snapper 7091513YP

SCREW, 5/16-24 X 1.75, Hex Head Cap, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 14

0

0190

Snapper 31A507-0144-G5

* ENGINE, 14.5HP, B&S, Mod. 31A507-0144-G5

$

$

Not available

0210

Snapper 704056

SCREW, 5/16-24 X 2, Hex Head Cap, GR5, Zinc/Clear

$4.49

$

Usually ships in 2-12 days

0

0220

Snapper 703298

WASHER, 5/16

$4.49

$

In Stock, Qty 9

0

0230

Snapper 7105872YP

ASSEMBLY, Throttle Control, 27.6" Long, 1.6" Throw

$25.99

$

Usually ships in 2-12 days

0

0240

Snapper 721153MA

SPACER, Engine, 1.015 ID, 1.77 OD, .340" Thick
(Superseded to 093077MA)

$15.99

$

In Stock, only 1 left!

0

0250

Snapper 7105938

PULLEY, Double Stack 4 & 4.5" OD, 1" ID, 3.255 Tall
(Superseded to 7105938YP)

$67.99

$

In Stock, only 1 left!

0

0260

Snapper 7106040BMYP

GUIDE, Belt, 1/4" Wire, 1" X 4" ID, 3.55" Tall, 7.66" Mount

$15.99

$

Usually ships in 2-12 days

0

0270

Snapper 703116

WASHER, .32 X .58 X .08, Split Lock, YZ

$3.49

$

In Stock, Qty 20+

0

0280

Snapper 704053

WASHER, .468 ID X 1.5 OD X .19 THK, Special, Zinc/Clear

$9.99

$

In Stock, only 2 left!

0

0290

Snapper 704007

WASHER, 7/16, Split-Lock, Zinc/Clear

$4.49

$

In Stock, Qty 6

0

0300

Snapper 720205

BOLT, 7/16-20 X 1.5, Hex Patch Lock, G5, ZP
(Superseded to 01X140MA)

$5.49

$

In Stock, only 1 left!

0

0320

Snapper 7027972SM

ASSEMBLY, Oil Drain Valve, 2.775" Long

$24.99

$

In Stock, only 1 left!

0

0330

Snapper 7106008YP

KNOB, Molded Paddle, Black

$5.49

$

Usually ships in 2-12 days

0

0340

Snapper 7301368BMYP

SHIELD, Muffler, RER

$64.99

$

Usually ships in 2-12 days

0

0350

Snapper 7301369BMYP

BRACKET, Heatshield Mounting

$18.99

$

Usually ships in 2-12 days

0

0360

Snapper 1750447YP

SCREW, 1/4-20 x 1/2, Hex Washer Head, Trilob
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0370

Snapper 703161

NUT, 1/4-20, Hex Flange Whiz Lock, G5, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0380

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0390

Snapper 7200116YP

HOSE, Fuel, Low Perm, 1/4" ID X 14"

$8.99

$

In Stock, only 1 left!

0

0400

Snapper 9357MA

SCREW, 5/16-18 X .750, Flanged Whiz-Lock, GR5
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

0410

Snapper 7106041YP

HOSE, Vapor, 10" Long

$3.99

$

Usually ships in 2-12 days

0

0450

Snapper 7090584YP

BOLT, 1/4-20 x 1/2 Hex Flange Lock, GR 5, ZP

$3.99

$

Usually ships in 2-12 days

0
